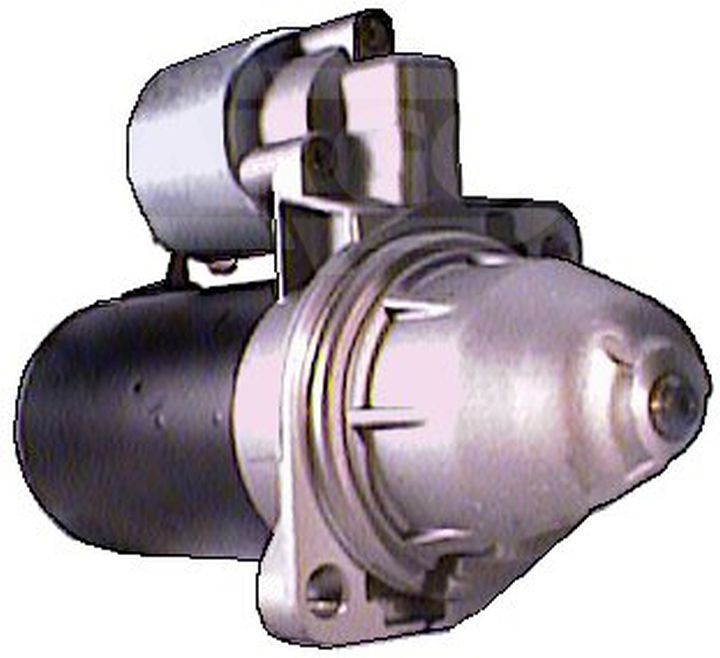

HC-Cargo Starter Motor for Volvo 1.4 kw F032111489

Voltage: 12
kW: 1.4
No./teeth: 9
Rotation: CW
Gear type: GR
Mount. flange: 82.50
B+: M8
No./mount. holes: 2 (2)
Drive dist.: 34.00
Mount. hole 1 mm: M12
Mount. hole 2 mm: M12
Dist./back: 170.00
Dist./front: 70.00
Terminal 15a: 4.80
Position/15a: 45
Terminal 50: 6.30
Position/50: 20
Dist. mm: 103.50
Total length mm: 242.00
Drive type: Steel
Prod. info: BN

Replaces OEM reference(s):
Bosch 0001108030, Bosch 0001108088, Bosch 0001311146, Bosch 0001311147, HC-PARTS cs389, Volvo 204284, Volvo 1357199, Volvo 3523301, Volvo 5003564, Volvo 13571990, Volvo 13571997, Volvo 35233010, Volvo 35233014, Volvo 50035640, Volvo 50035641

Replaces aftermarket reference(s):
Ac delco drs0650, Ac delco drs3600, AD Kühner 10292, AD Kühner 10389, Autostarter Poland S0055, Bosch 0986010658, Bosch 0986013600, Bosch 0986013603, Bosch 0986013604, Bosch 0986013607, Bosch Blue F042002002, Bosch USA SR0438X, Bosch USA SR437X, Casco CST10109, Cevam 3586, Dansk Renoveringsindustri 338.111.092, Dansk Renoveringsindustri 338.122.092, Elstock 26-0464, Elstock 26-1446, ERA S.p.A Italia 220061, ERA S.p.A Italia 220061A, FARCOM 103213, Friesen 40-10.650, Friesen 40-13.600, Friesen 41-13.600, Friesen 8013600, Hella 8ea726052-001, Hella 8ea726137-001, Hella Timefit 8EA012526-871, Lester 17135, lucas lrs00229, lucas lrs00729, lucas LRS02136, Magneti Marelli 943251223, Magneti Marelli 943251426, Magneti Marelli 943251426010, Magneti Marelli 944280136000, Magneti Marelli MSR409, Mahle Letrika IS0777, Mahle Letrika MS266, PIC 120-320, POWER MAX 8212849, QX Components - HCUK QS1454, Sovereign - HCUK SS852, Spidan 1324, Spidan 4024, Sud Est 11422, Sud Est 11424, Unipoint STR-2003, Unipoint Bosch F042S02002, Valeo 436085, Valeo vs204, Valeo vs344, Wai 17135N, Wai 17135R, Wai 2-1288-BO, Wai 2-1290-BO, Wai 7465N, Wood Auto STR2003, Wood Auto STR50080
