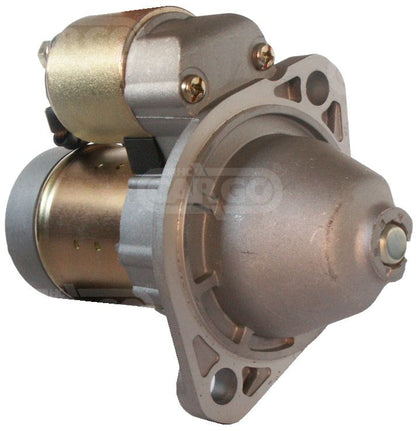

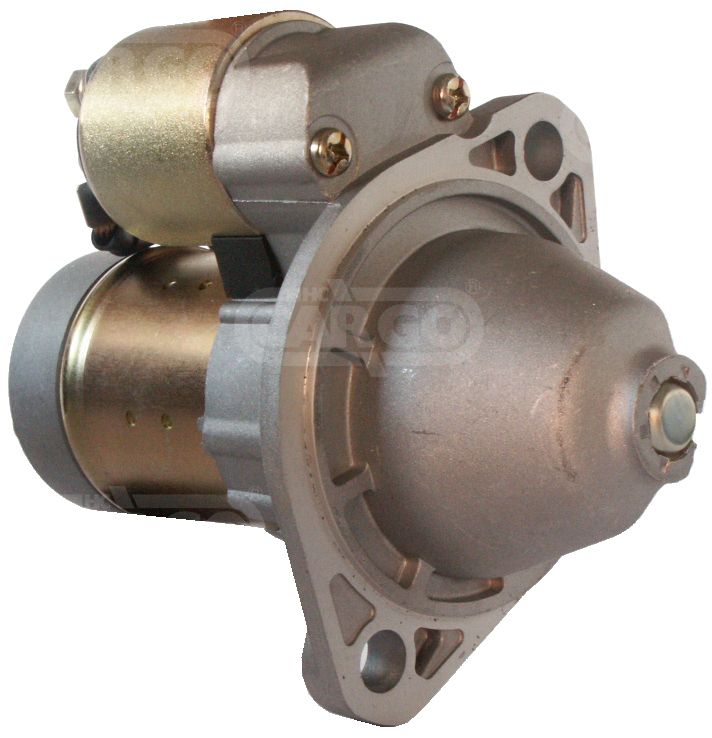

HC-Cargo Starter Motor for Yanmar 1.2 kw F032113408

Voltage: 12
kW: 1.4
No./teeth: 11
Rotation: CW
Gear type: GR
Mount. flange: 95.00
B+: M8
No./mount. holes: 2 (0)
Drive dist.: 20.00
Mount. hole 1 mm: 13.00
Mount. hole 2 mm: 13.00
Dist./back: 141.50
Dist./front: 55.00
Terminal 50: 6.30
Position/50: 45
Dist. mm: 120.00
Total length mm: 193.00
Drive type: Steel
Prod. info: BN
Info: HC-CARGO 114281 = 1.7 kW.

Replaces OEM reference(s):
Case VV12924277010, Hitachi s114-815, Hitachi s114-815a, Hitachi s114-817, Hitachi s114-817a, Hitachi s12-47, Yanmar 121370-77010, Yanmar 129608-77010, Yanmar 129698-77010

Replaces aftermarket reference(s):
AD Kühner 254002, Aep shi0081, Aep smu0003, Aim sh-00100r, Ampere 17712, Autostarter Poland S2027, Autostarter Poland S2062, Bosch Blue F042004009, Bosch USA SR1286N, Bosch USA sr1286x, Casco CST20109, Casco CST20157, Dansk Renoveringsindustri 682.025.112, Dansk Renoveringsindustri 682.036.112, Dixie s-8698, Dixie s-8848, Elstock 25-3013, Elstock 25-3142, Lester 18210, Lester 18219, Lester 18290, lucas LRS01148, lucas LRS01617, POWER MAX 8213542, Prestolite - HCUK PBNS3073, RAYLOC 44-6729, Unipoint STR-3309, Unipoint Bosch F042S04009, Wai 16960, Wai 18205N-ND, Wai 18219N, Wai 18219R, Wai 2-1869-mt, Wai 2-2009-hi, Wilson 91-25-1134, Wood Auto STR23015, Wood Auto STR3309, Worldwide 17299
