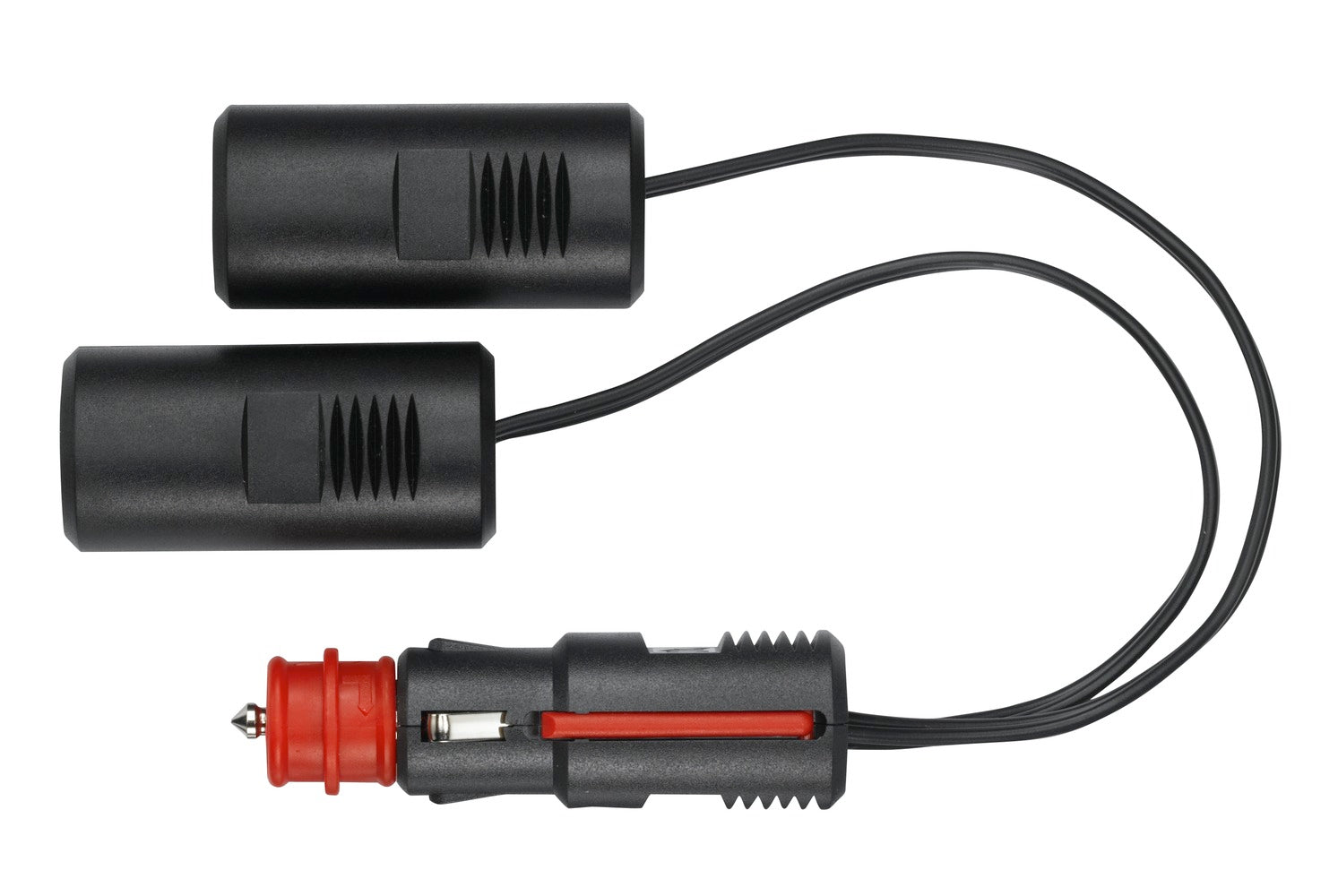

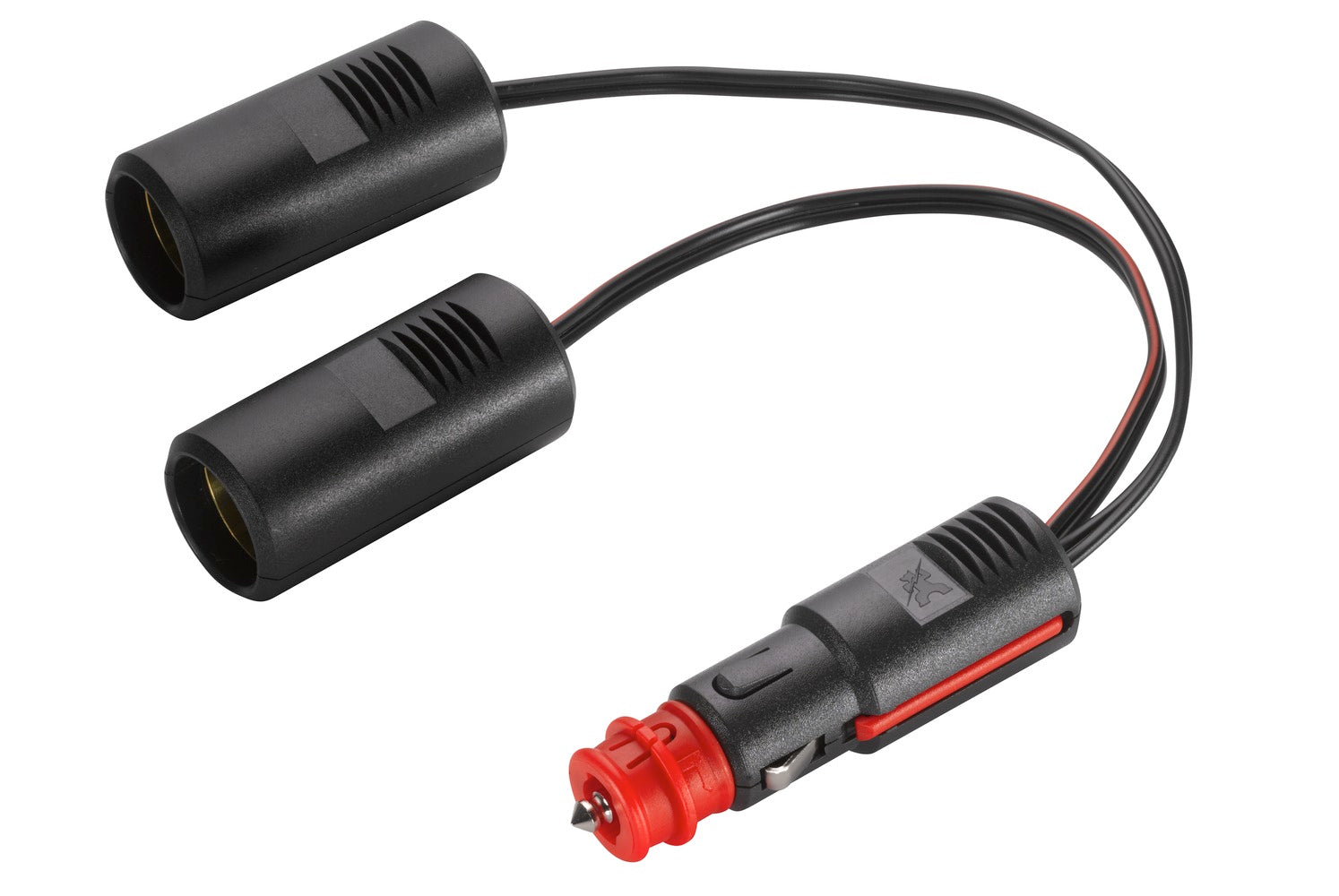

HELLA Adaptor, cigarette lighter - 1-pin connector 8JA007589-111

Adaptor, cigarette lighter - 1-pin connector - Cable: 250mm - Plastic - Black - DIN/ISO: 4165 SAE

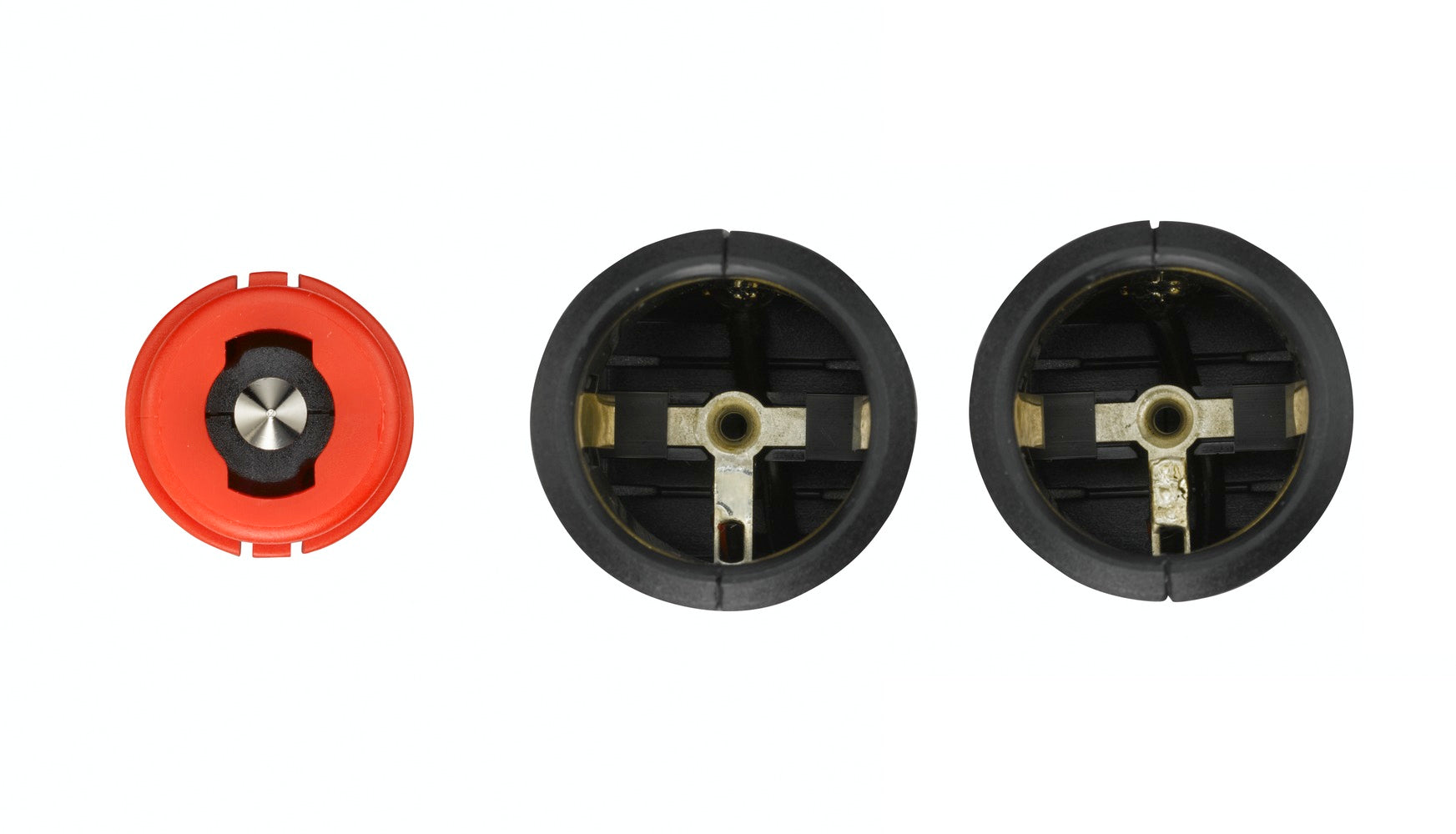

The tried-and-tested plug-in system according to ISO 4165 allows an additional connection option for supplying a variety of small consumers, such as lights, fans, coolers, telephones, laptops, portable refrigerators, coffee machines etc. Depending on the version, the plug-in systems can be installed both inside and outside the vehicle. The universal plugs allow the use of both systems with one and the same plug due to the red front adapter. Here, too, the HELLA range offers the right design for almost every application thanks to its wide variety.

• Easy assembly
• Various connection options
• Sockets with and without cover
• with fuse

Item Attributes:
Material: Plastic
Voltage from: 12 V
Voltage to: 24 V
Colour: black
Cross Section [mm²]: 0.75 mm²
Cable: 250 mm
Inner Diameter: 21 mm
Outer Diameter 1: 12 mm
Outer Diameter 2: 20.4 mm
Rated Current: 16 A
Number of connectors: 2
Number of pins: 1 -pin connector
DIN/ISO: 4165 SAE
Supplementary Article/Supplementary Info 2: with fuse
Assembly by qualified personnel required!

OE references: JOHN DEERE F713314
