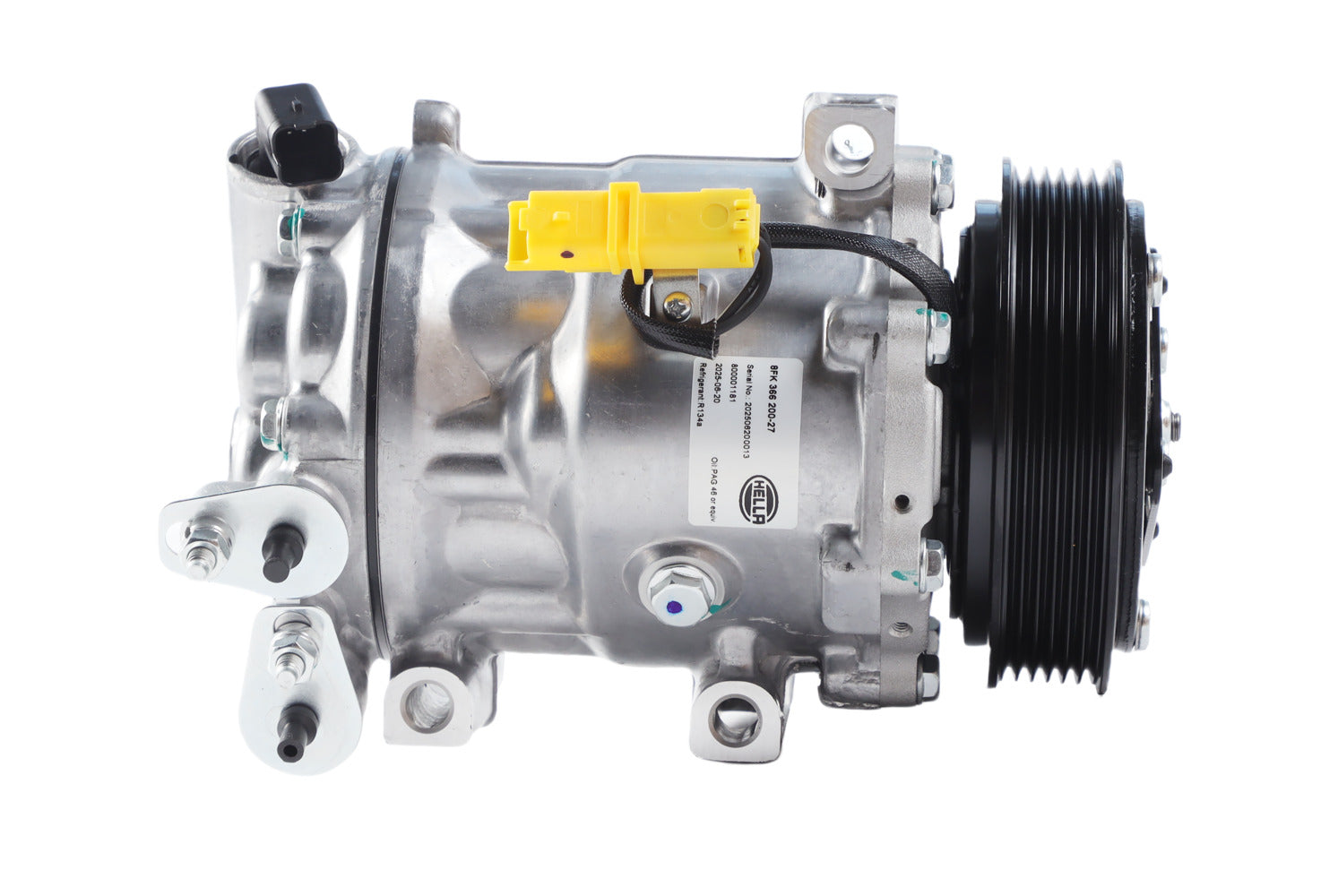

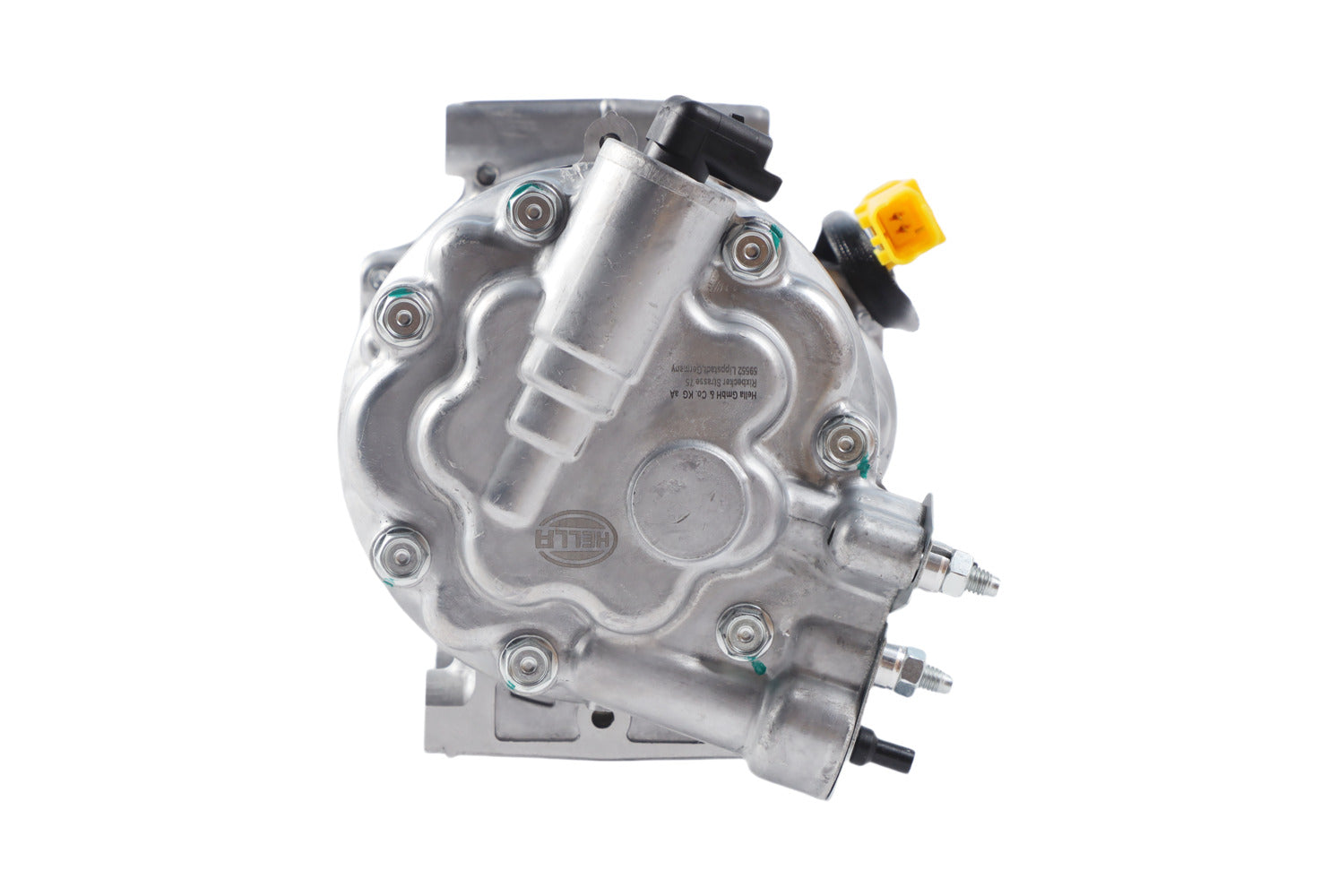

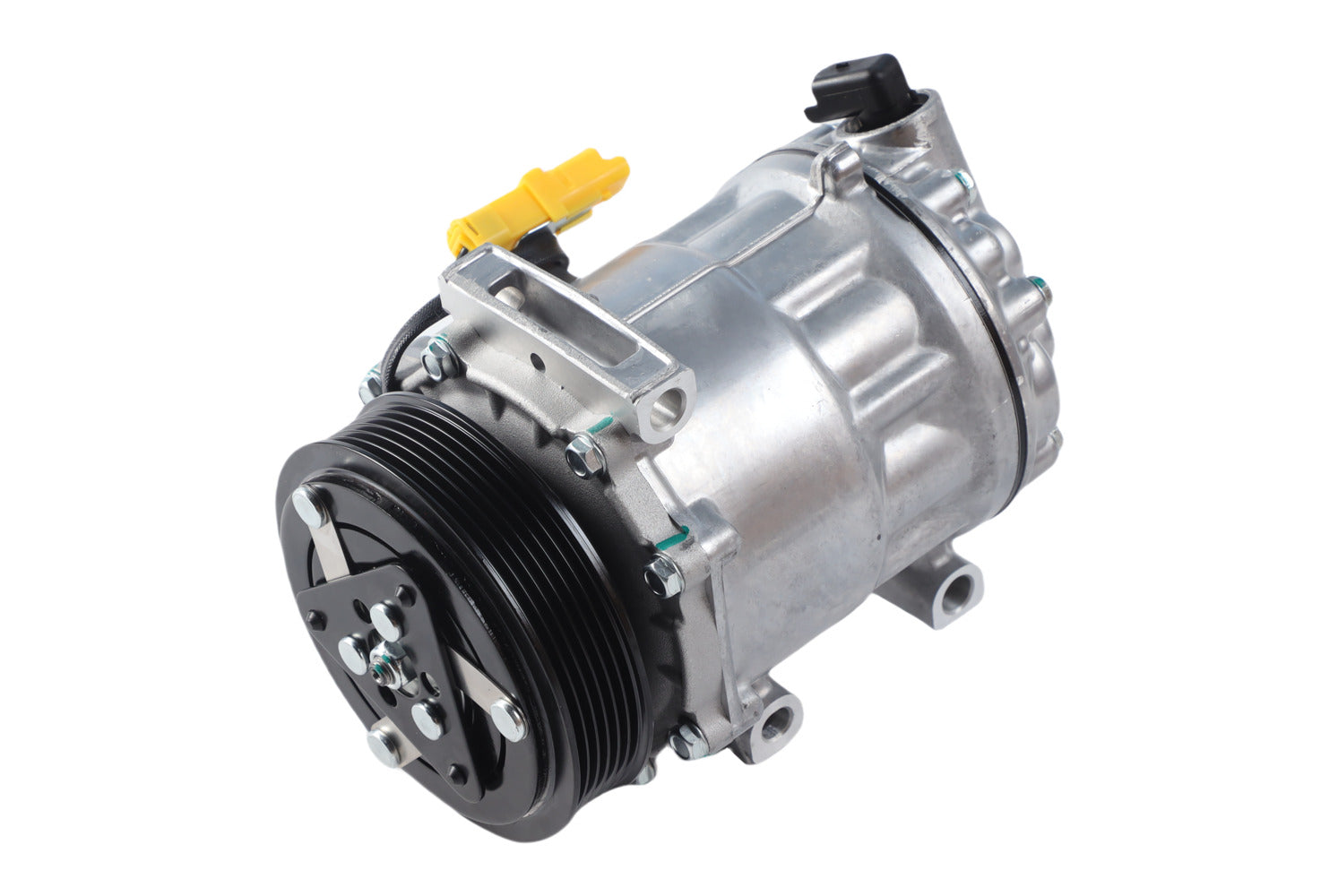

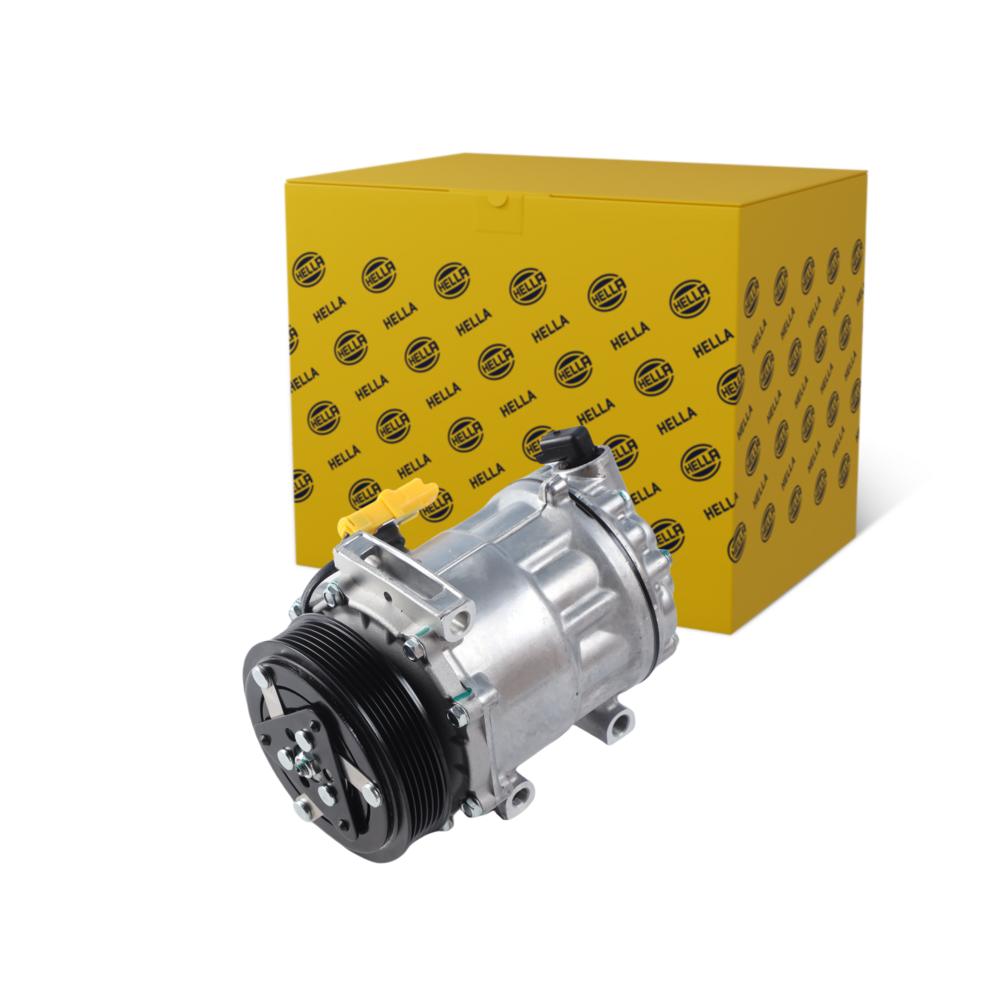

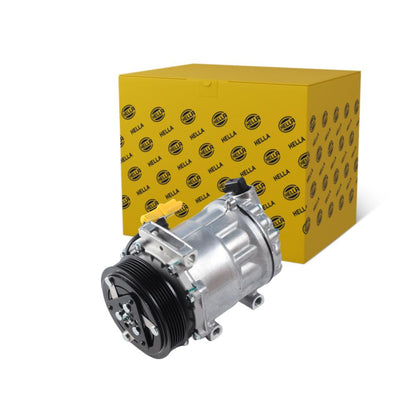

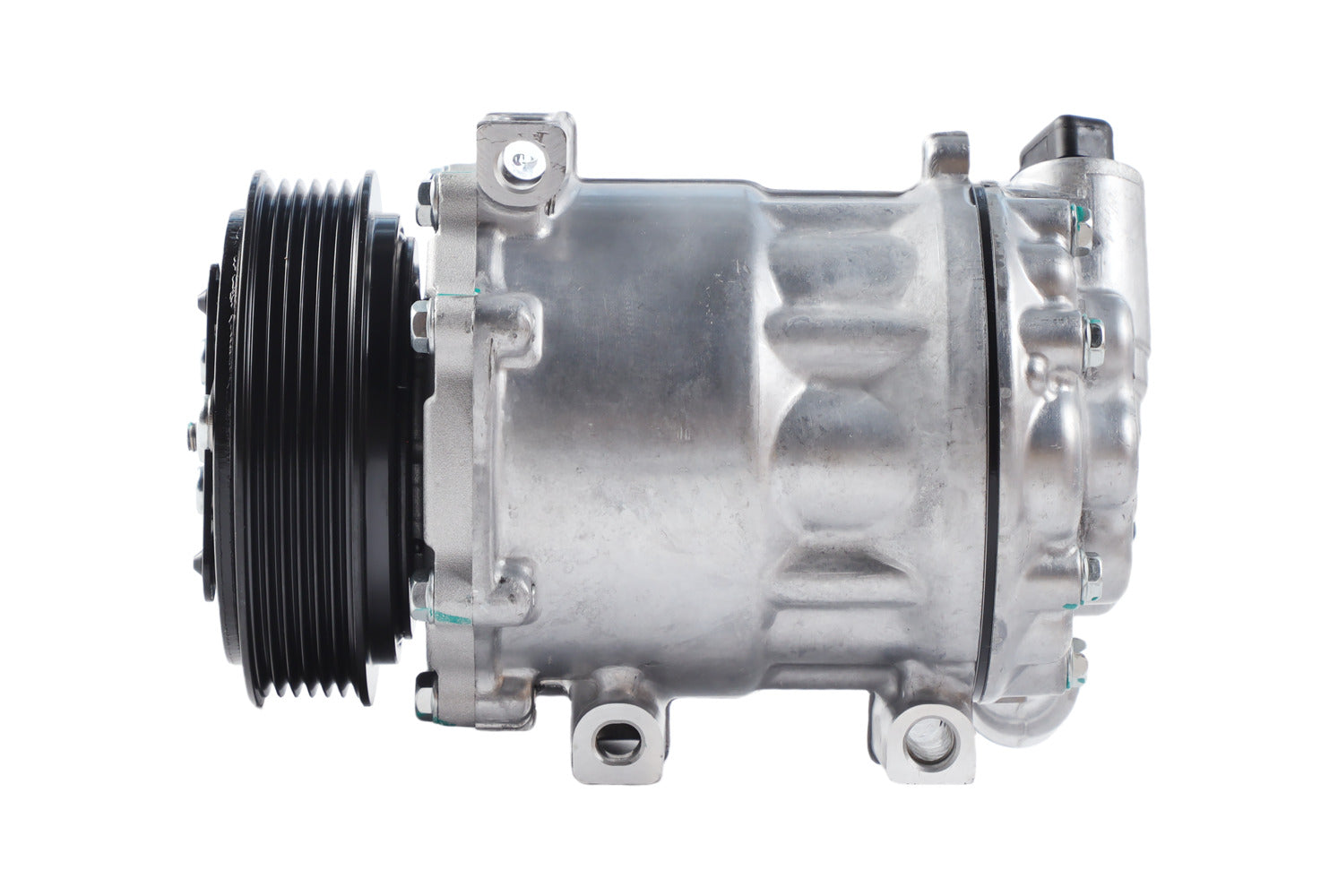

Hella Aircon Compressor 8FK366200-271

Compressor, air conditioning - SD7C16 - 12V - R 134a/R 1234yf - PAG 46 YF - 115ml - with magnetic clutch/with seal ring/with PAG compressor oil

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. PEUGEOT 607 (9D, 9U) 2.2 HDi (please check exact vehicle application)
• Compressor ID: SD7C16 - for manufacturer: Sanden - Voltage: 12V

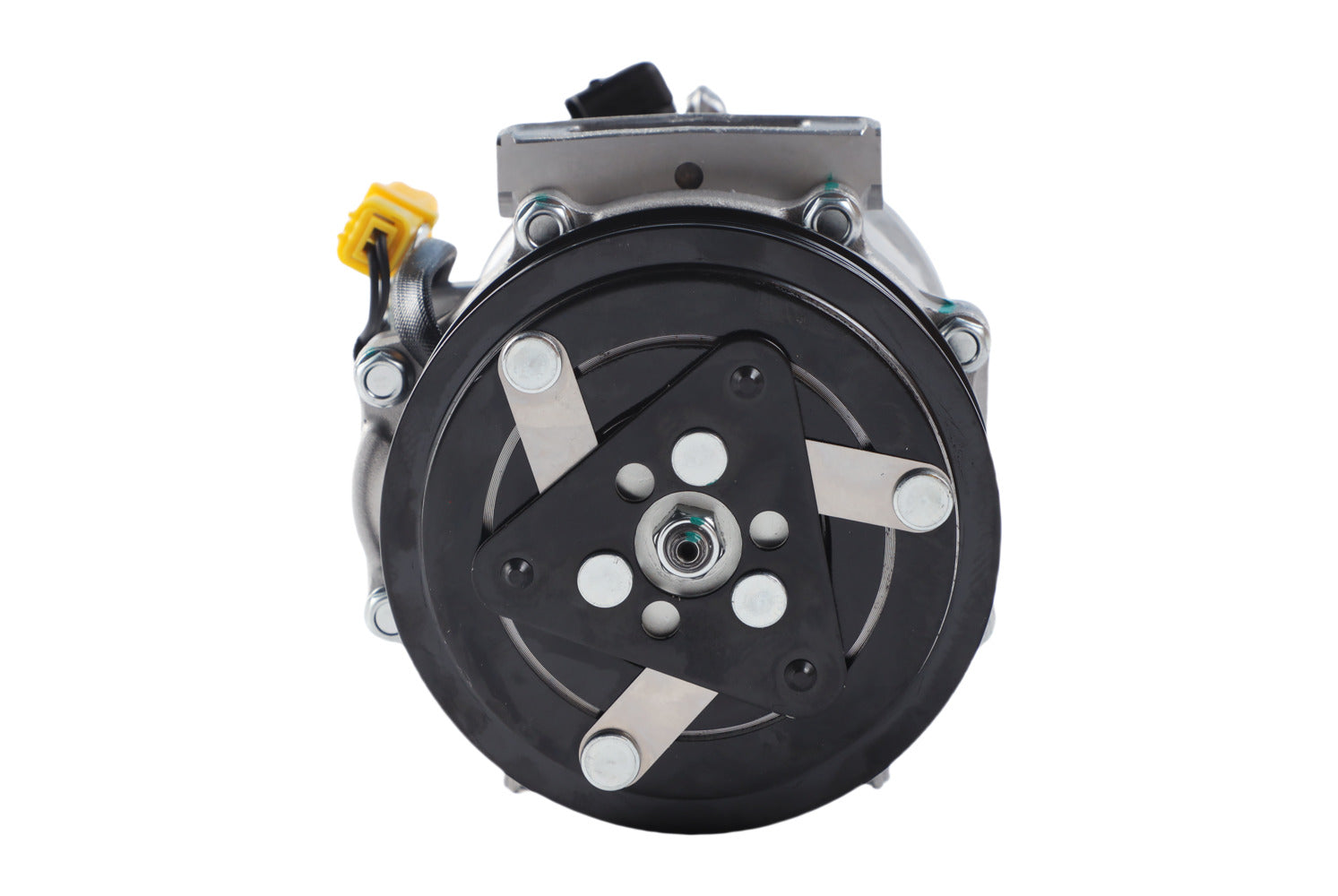

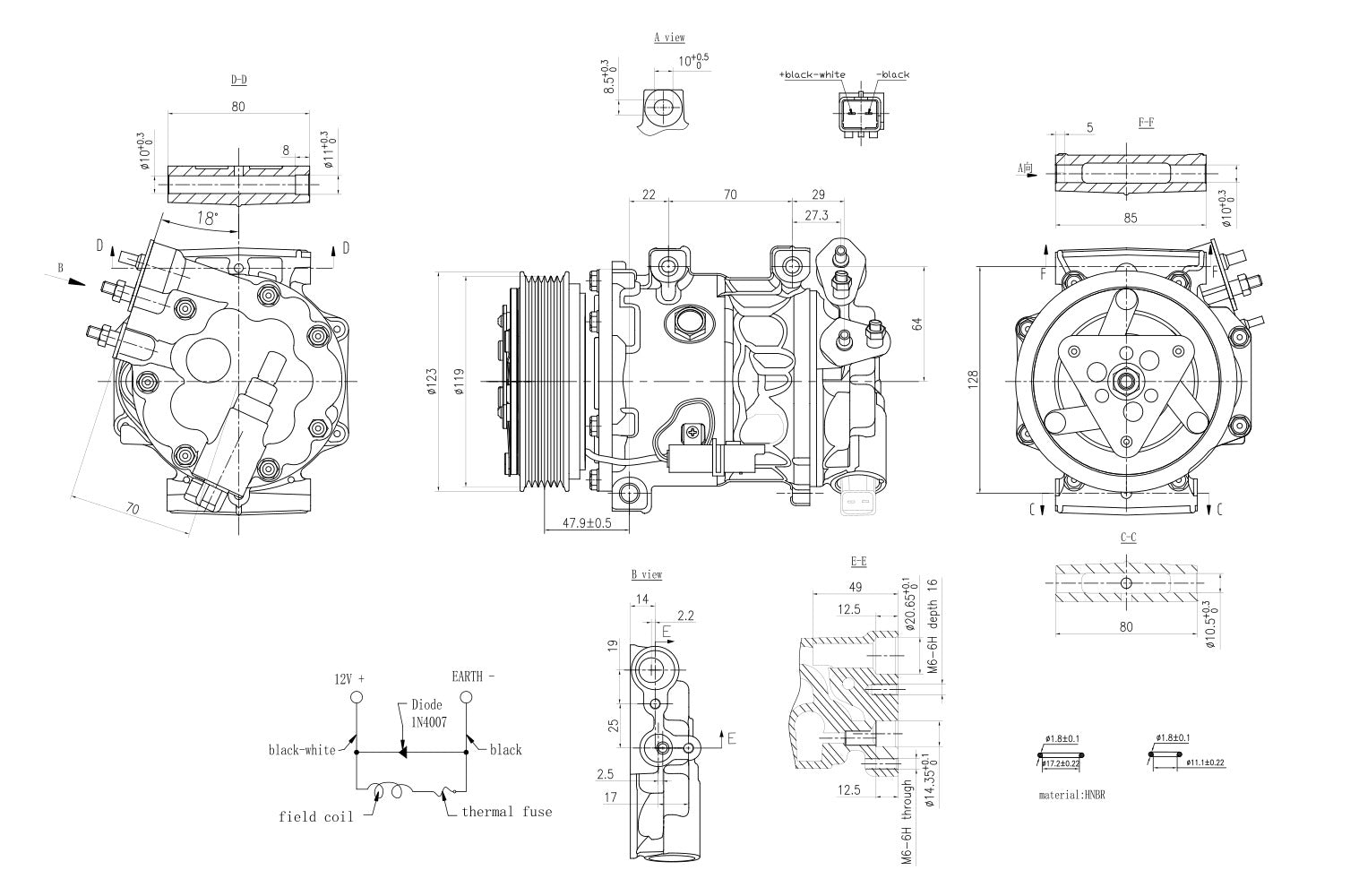

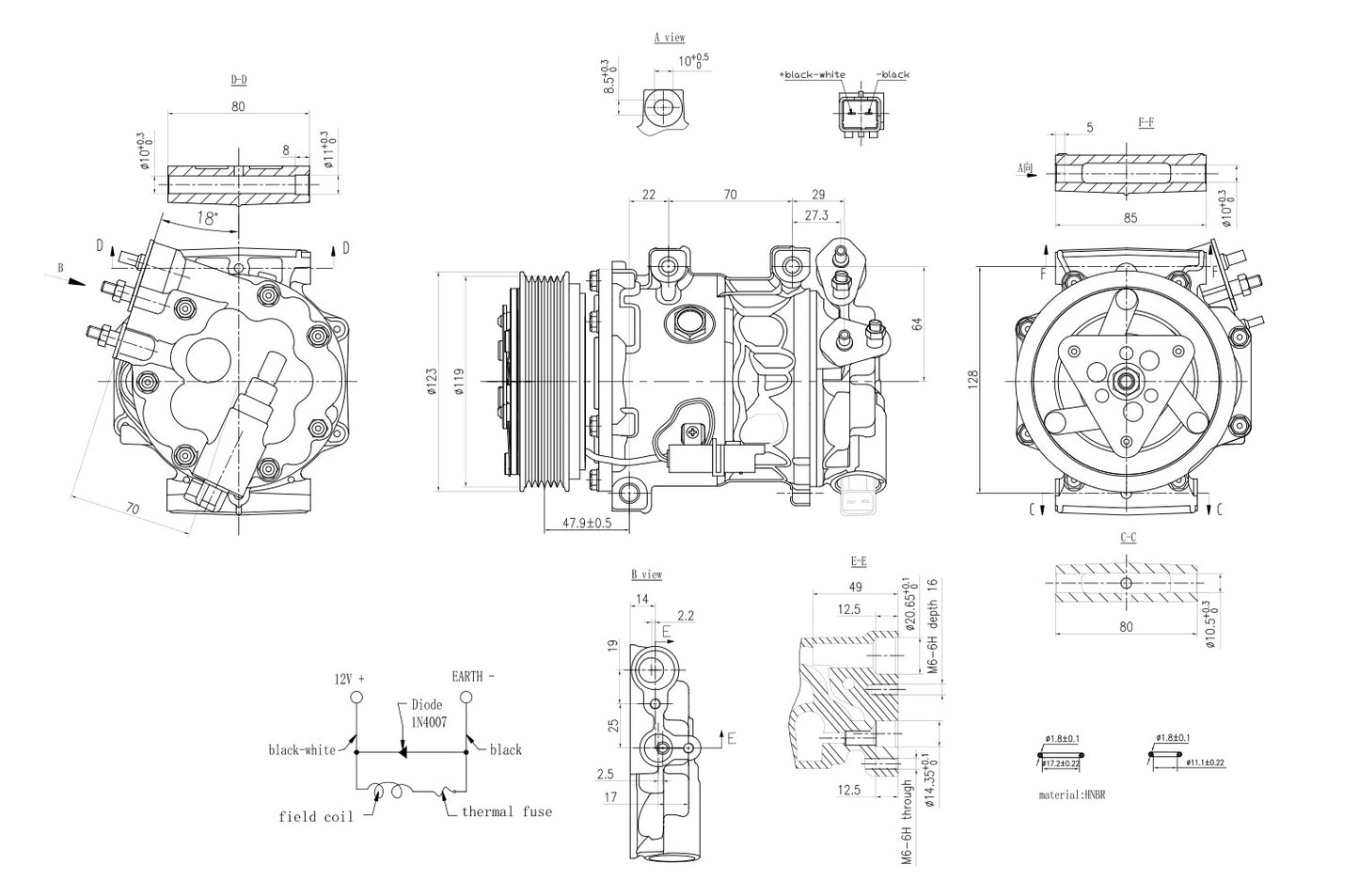

• Inlet Ø: 20.6mm - Outlet Ø: 14.3mm - with V-ribbed belt pulley - Belt Pulley Ø: 119mmNumber of grooves: 6

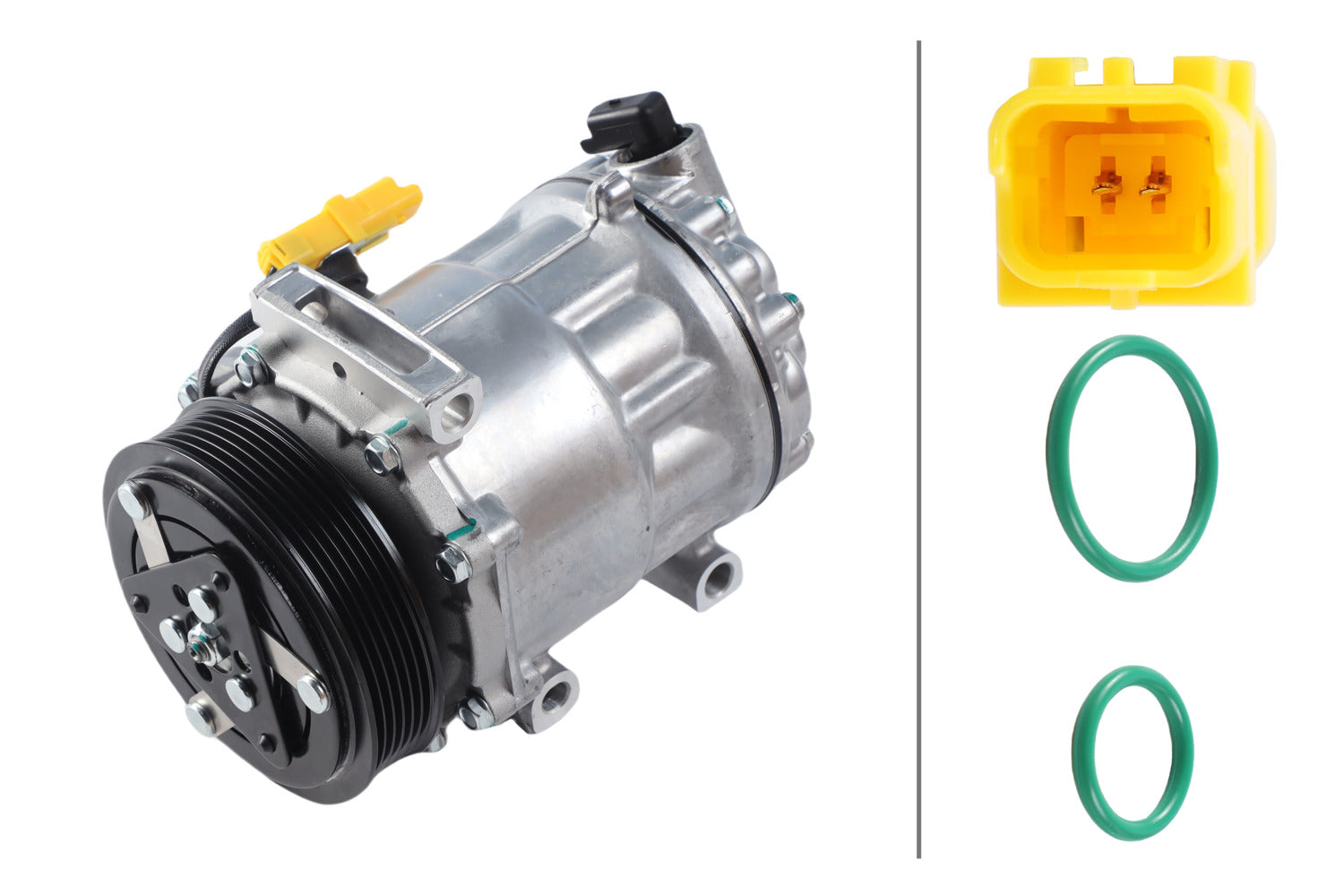

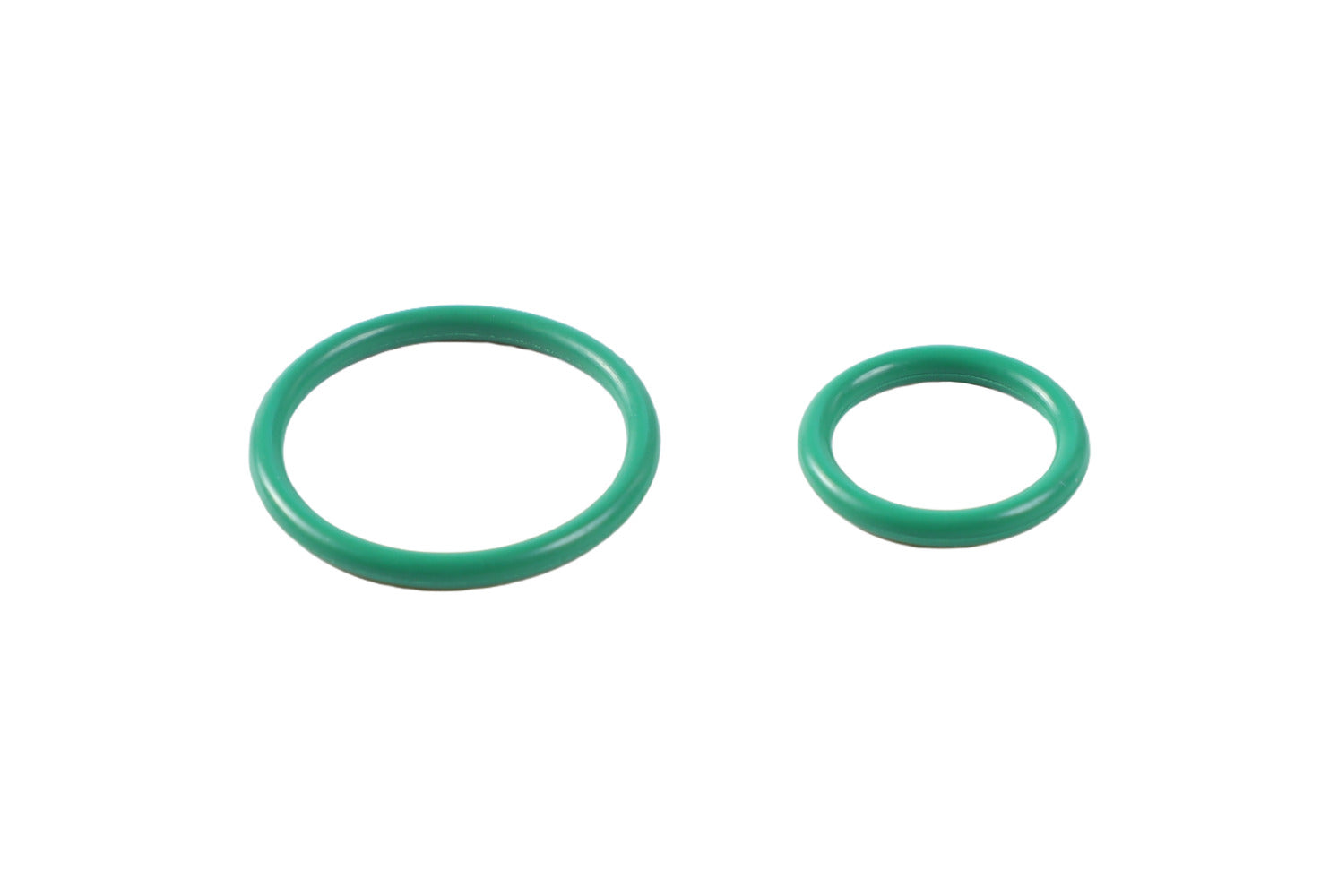

• with magnetic clutch/with seal ring/with PAG compressor oil
• Refrigerant: R 134a/R 1234yf - Compressor Oil: PAG 46 YF - Oil Fill Quantity: 115ml
• Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
• Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.

Item Attributes:
for manufacturer: Sanden
Compressor ID: SD7C16
Voltage: 12 V
Supplementary Article/Supplementary Info 2: with seal ring / with magnetic clutch / with PAG compressor oil
Pulleys: with V-ribbed belt pulley
Number of grooves: 6
Belt Pulley Ø: 119 mm
Inlet Ø: 20.6 mm
Outlet Ø: 14.3 mm
Refrigerant: R 1234yf / R 134a
Compressor Oil: PAG 46 YF
Oil Fill Quantity: 115 ml
Assembly by qualified personnel required!

Replaces OEM reference(s):
CITROËN 6453PP; CITROËN 6453RE; CITROËN 6453RF; CITROËN 6453RT; CITROËN 6453SN; CITROËN 6453SP; CITROËN 6453WW; CITROËN 6453WX; CITROËN 6453XE; CITROËN 6453XF; CITROËN 648704; CITROËN 648769; CITROËN 9648138980; CITROËN 9654764280; CITROËN 9656574080; CITROËN 9660555380; CITROËN 9670022580; CITROËN 9671340580; CITROËN 9683055180; CITROËN 9800840380; PEUGEOT 6453PP; PEUGEOT 6453RE; PEUGEOT 6453RF; PEUGEOT 6453RT; PEUGEOT 6453SN; PEUGEOT 6453SP; PEUGEOT 6453WW; PEUGEOT 6453WX; PEUGEOT 6453XE; PEUGEOT 6453XF; PEUGEOT 648704; PEUGEOT 648769; PEUGEOT 9648138980; PEUGEOT 9654764280; PEUGEOT 9656574080; PEUGEOT 9660555380; PEUGEOT 9670022580; PEUGEOT 9671340580; PEUGEOT 9683055180; PEUGEOT 9800840380

Replaces aftermarket reference(s):
AUTOGAMMA: 108421, AVA: PEAK322, AVA: PEK322, AVA: RTAK485, BOSCH: 1986AD1111, DELPHI: TSP0155955, HOFFER: K11336, HOFFER: K11336A, HOFFER: K11336R, HOFFER: K11366, KRIOS: 11336, KRIOS: 11366, KRIOS: 11336A, KRIOS: 11336R, MAHLE BEHR INDUSTRY: ACP1274000P, MAHLE BEHR INDUSTRY: ACP1274000S, MEAT & DORIA: K11336, MEAT & DORIA: K11336A, MEAT & DORIA: K11336R, MEAT & DORIA: K11366, NISSENS: 89362, NRF: 32682, SIDAT: 11336, SIDAT: 11366, SIDAT: 11336A, SIDAT: 11336R, VALEO: 813225, VALEO: 813663, VALEO: 813725, VAN WEZEL: 4000K322, WAECO: 8880120300
