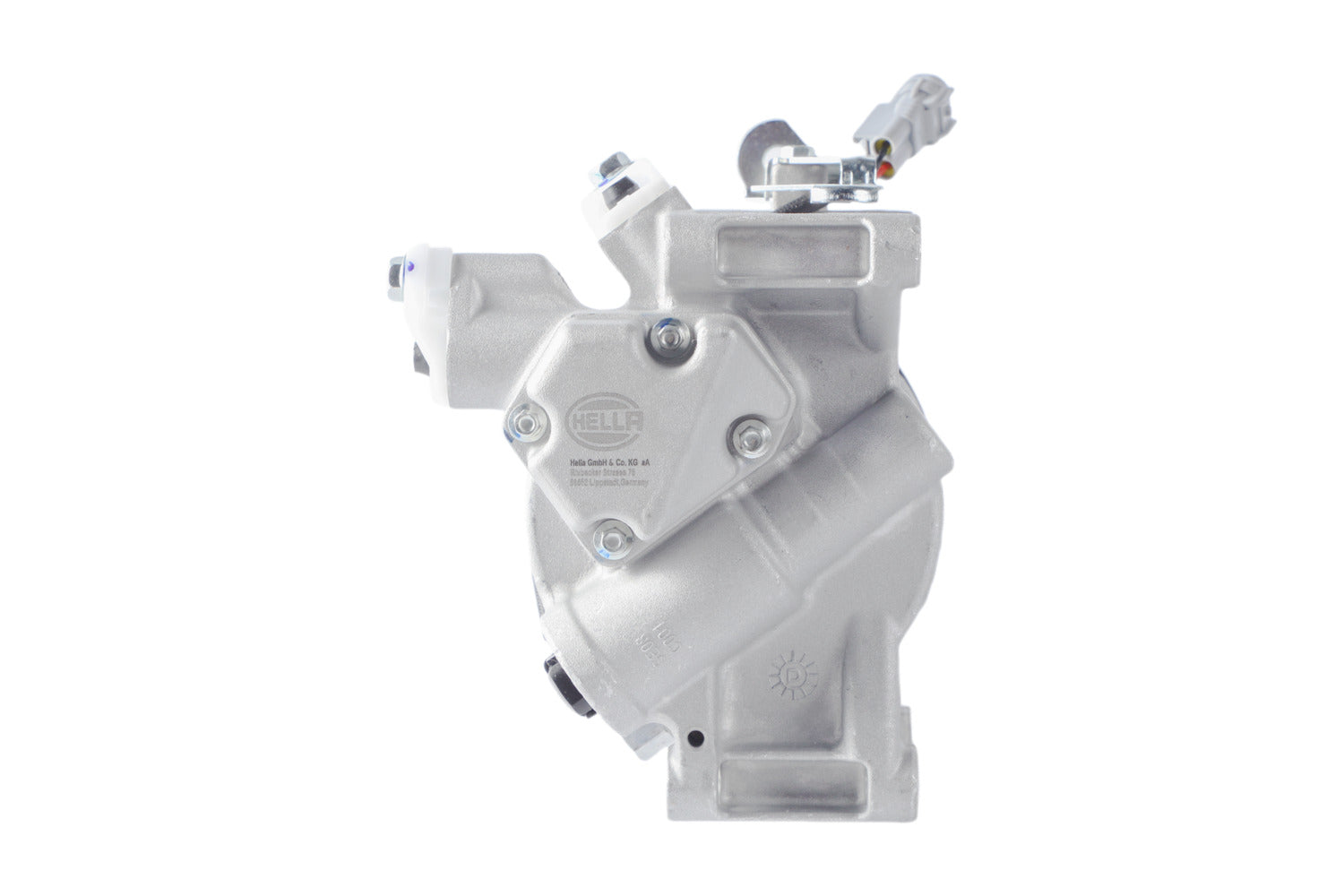

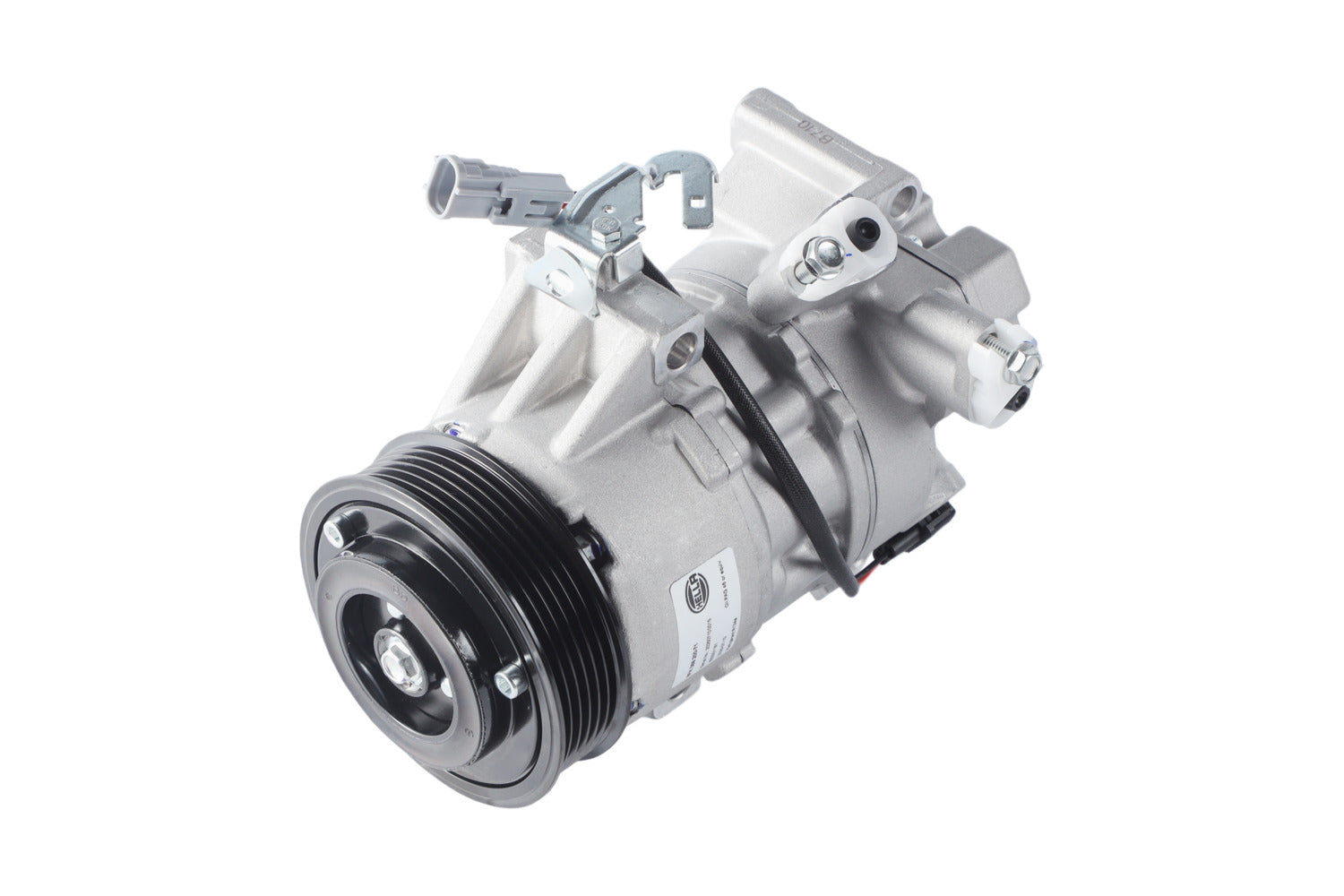

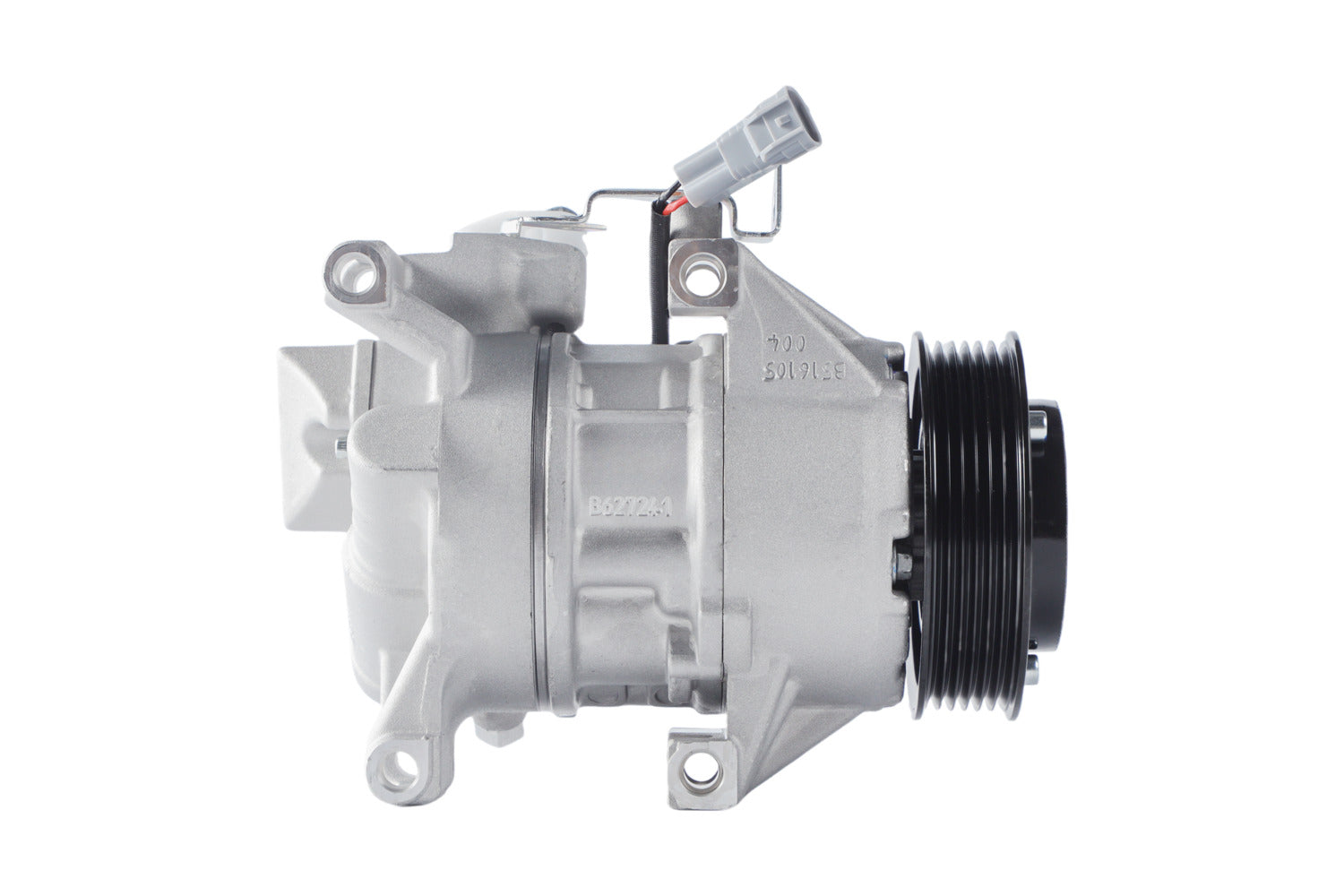

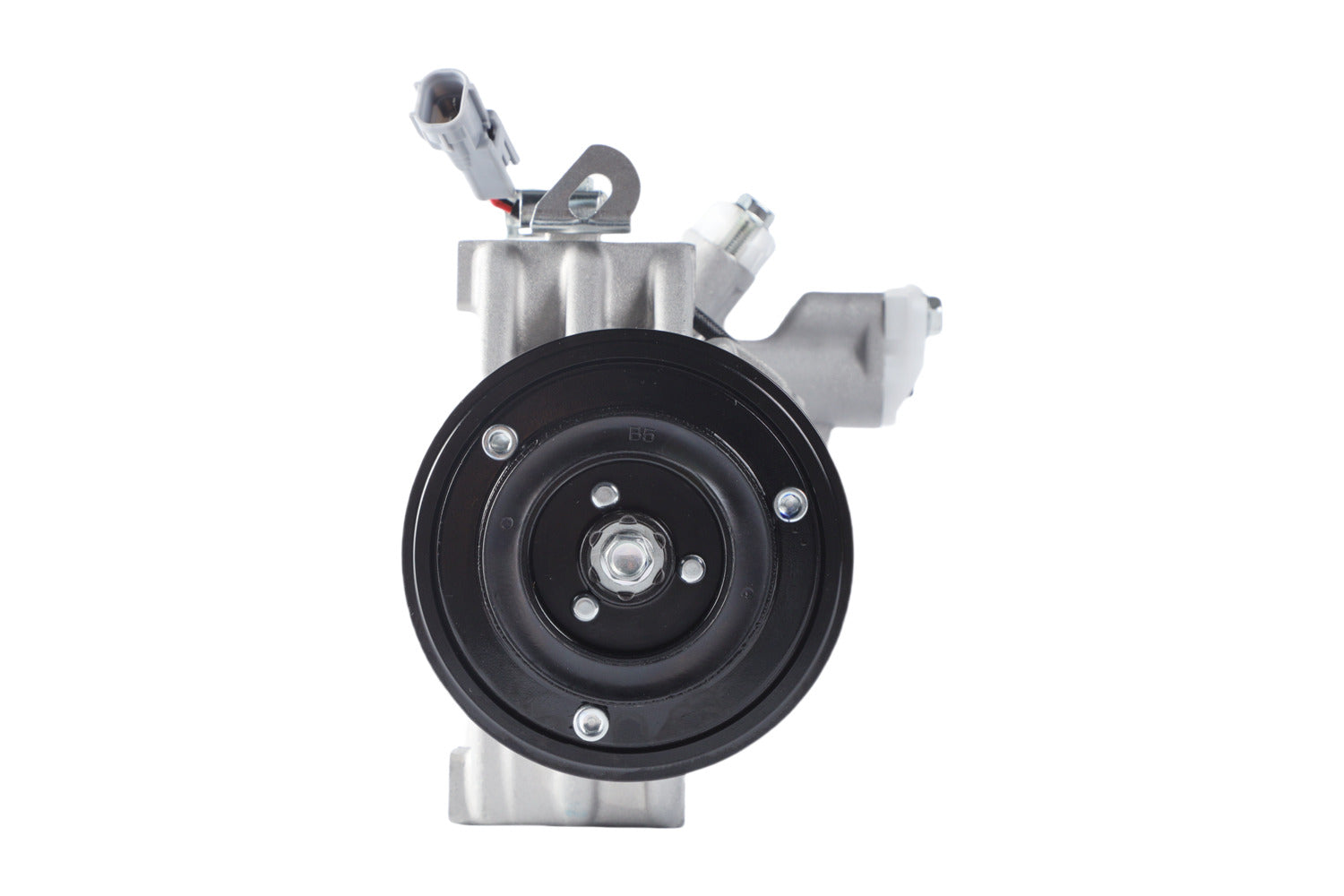

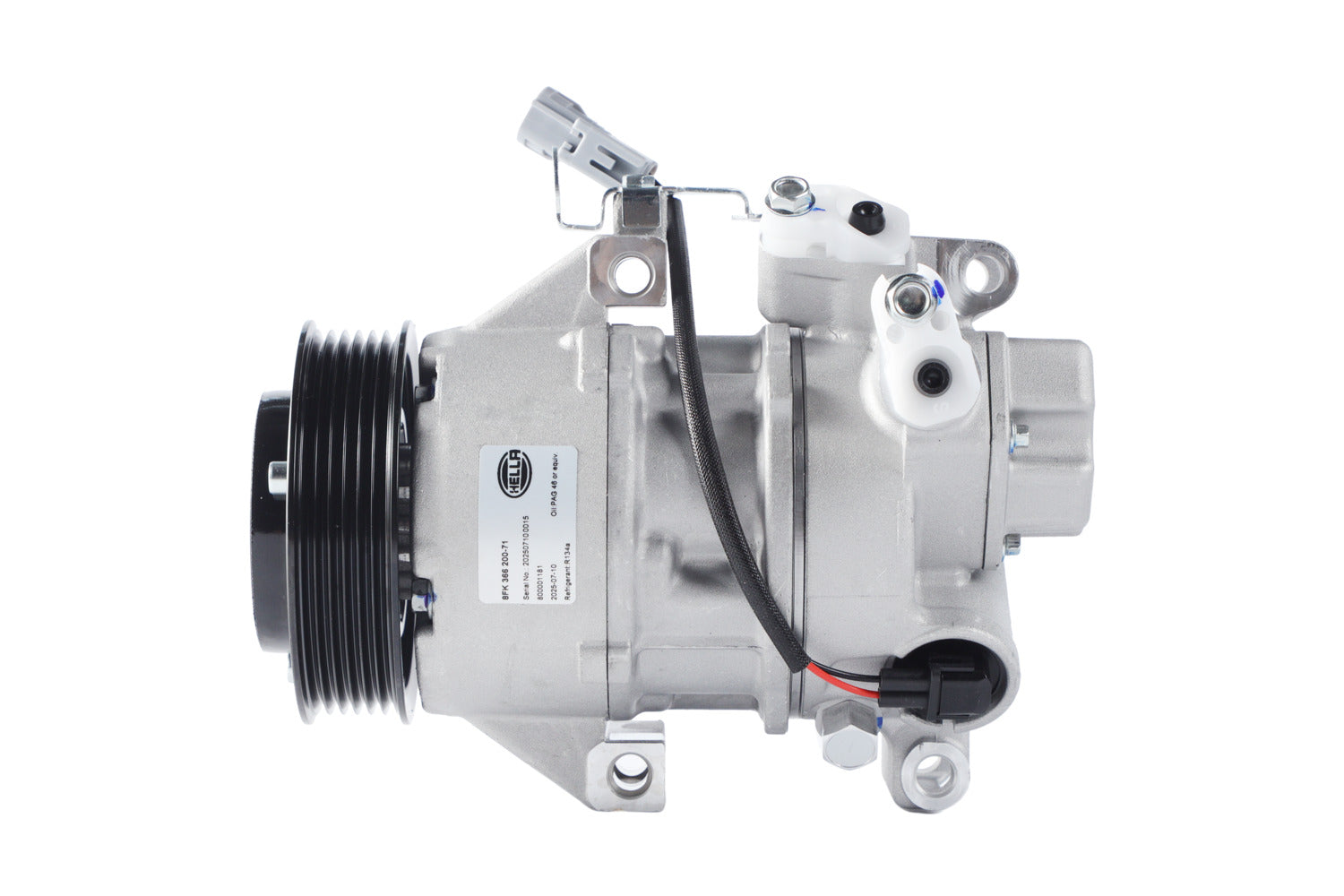

Hella Aircon Compressor 8FK366200-711

Compressor, air conditioning - 5SER09C - 12V - R 134a - PAG 46 - 90ml - with magnetic clutch/with seal ring/with PAG compressor oil

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. TOYOTA YARIS (_P9_) 1.0 GPL (please check exact vehicle application)
• Compressor ID: 5SER09C - for manufacturer: Denso - Voltage: 12V

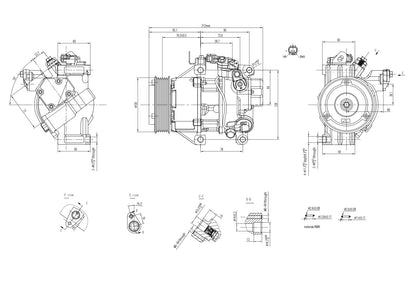

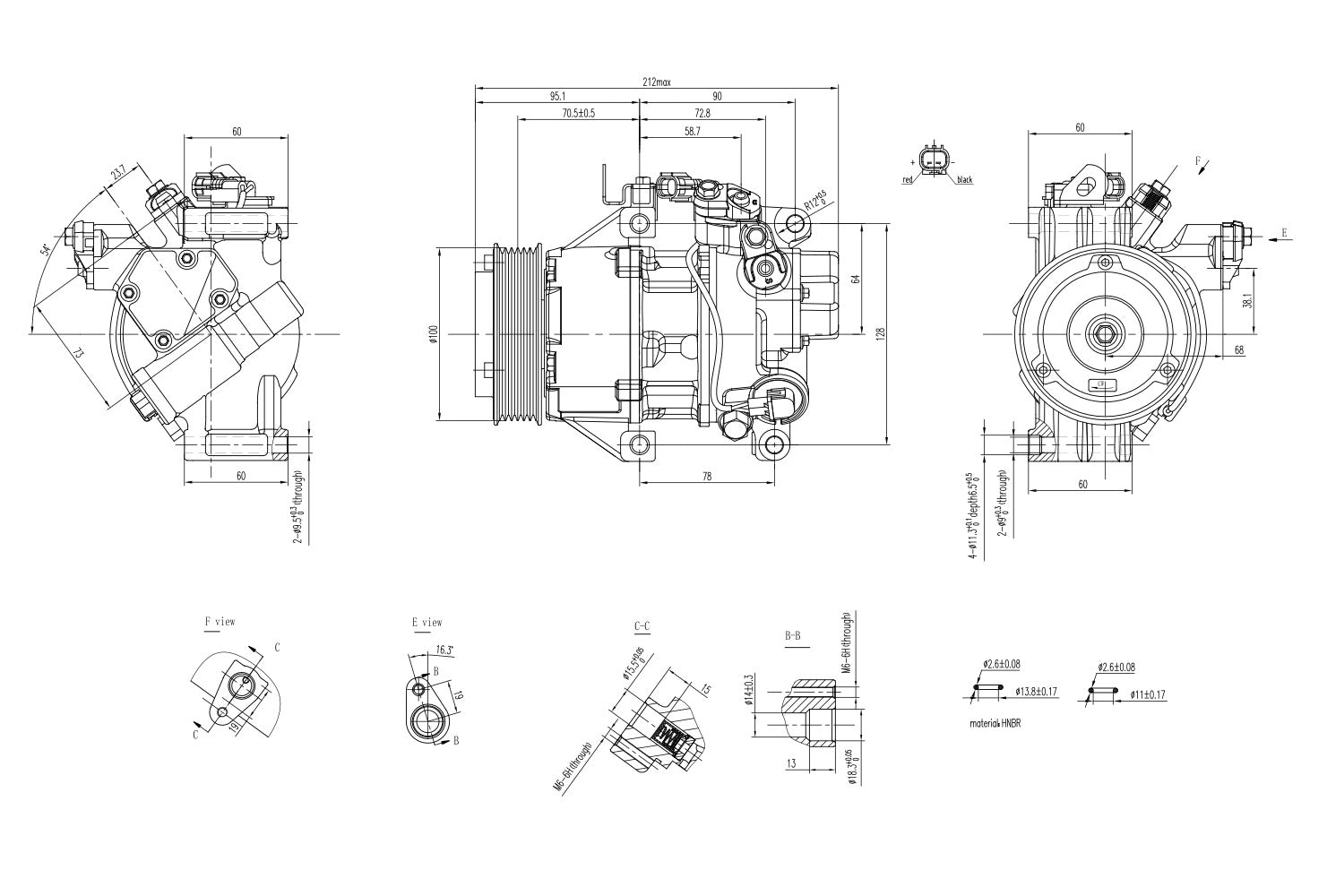

• Inlet Ø: 18.3mm - Outlet Ø: 15.5mm - with V-ribbed belt pulley - Belt Pulley Ø: 100mmNumber of grooves: 6

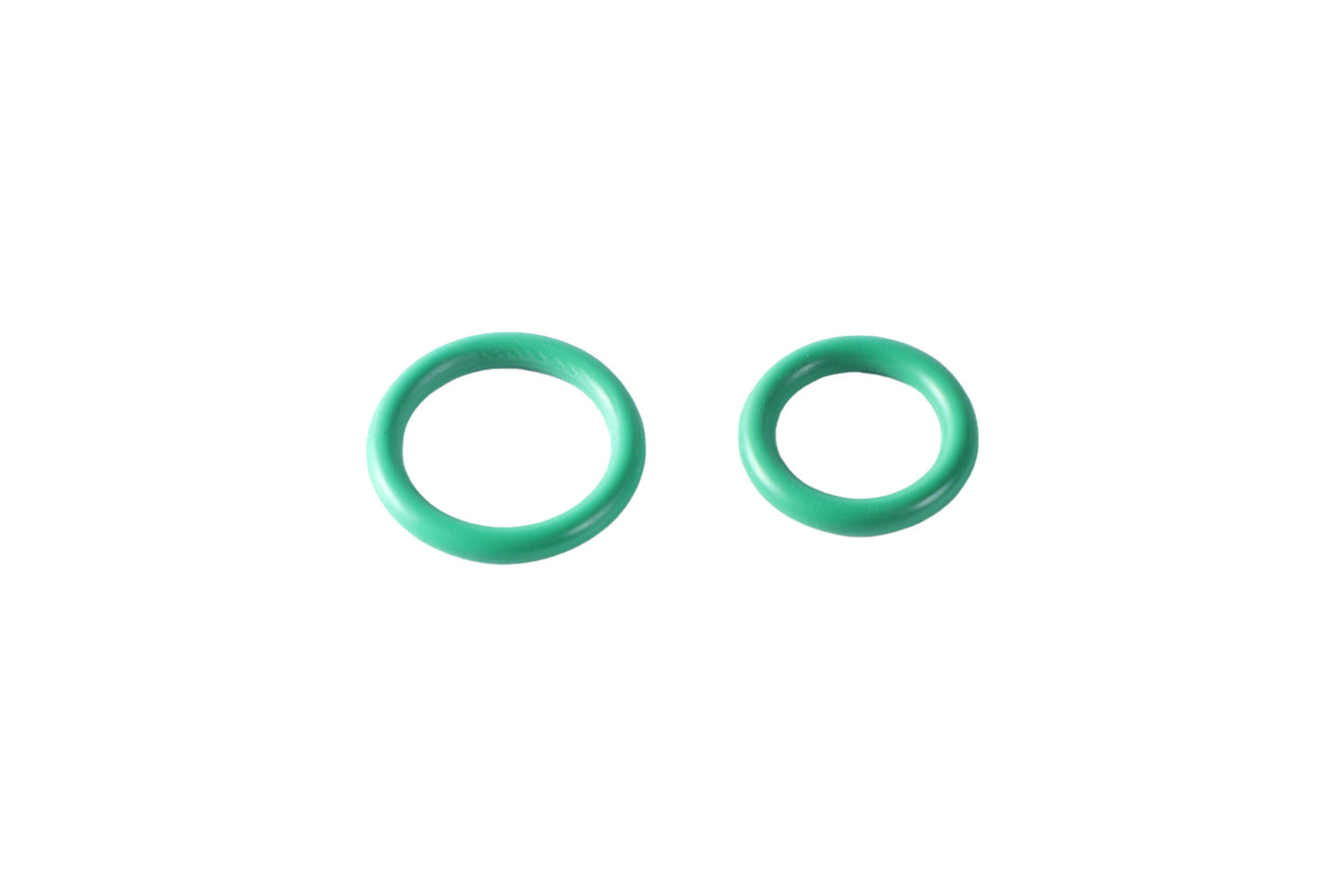

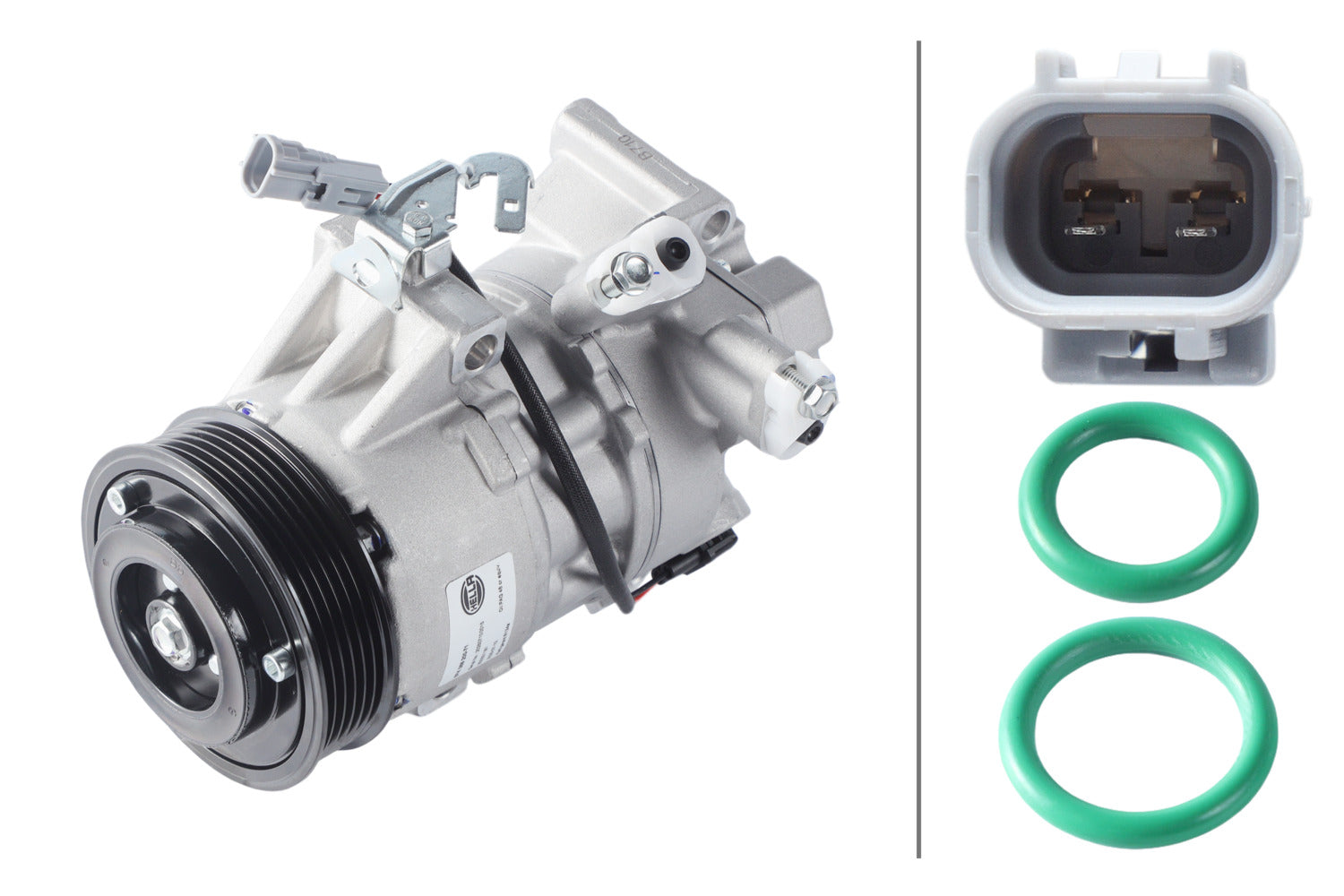

• with magnetic clutch/with seal ring/with PAG compressor oil
• Refrigerant: R 134a - Compressor Oil: PAG 46 - Oil Fill Quantity: 90ml
• Reliability: HELLA compressors are designed for a long service life and reliable performance, they ensure even air conditioning and also contribute to the vehicle's operational safety and driving comfort. They are characterised by a minimised noise and vibration level.
• Easy installation: Developed for a precise fit. HELLA compressors are supplied with pre-filled compressor oil and seals for the pipe connections, all things which make installation easy, whilst reducing workload and costs.

Item Attributes:
for manufacturer: Denso
Compressor ID: 5SER09C
Voltage: 12 V
Supplementary Article/Supplementary Info 2: with seal ring / with PAG compressor oil / with magnetic clutch
Pulleys: with V-ribbed belt pulley
Number of grooves: 6
Belt Pulley Ø: 100 mm
Inlet Ø: 18.3 mm
Outlet Ø: 15.5 mm
Refrigerant: R 134a
Compressor Oil: PAG 46
Oil Fill Quantity: 90 ml
Assembly by qualified personnel required!

Replaces OEM reference(s):
DAIHATSU 883100D320; TOYOTA 8831002390; TOYOTA 8831002470; TOYOTA 8831002630; TOYOTA 8831002640; TOYOTA 883100D200; TOYOTA 883100D201; TOYOTA 883100D202; TOYOTA 883100D230; TOYOTA 883100D231; TOYOTA 883100D232; TOYOTA 883100D320; TOYOTA 883100D330; TOYOTA 883101A680; TOYOTA 883101A800; TOYOTA 883101A820; TOYOTA 8831052590; TOYOTA 8831052591; TOYOTA 8831052592

Replaces aftermarket reference(s):
AUTOGAMMA: 108722, AUTOGAMMA: 118416, AVA: TOAK618, AVA: TOK618, BOSCH: 1986AD1011, DELPHI: CS20480, DENSO: 4471500350, DENSO: DCP50240, DENSO: DCP50246, HOFFER: K15296, HOFFER: K15296A, HOFFER: K15316, KRIOS: 15296, KRIOS: 15316, KRIOS: 15296A, MAHLE BEHR INDUSTRY: ACP43000P, MAHLE BEHR INDUSTRY: ACP43000S, MEAT & DORIA: K15296, MEAT & DORIA: K15296A, MEAT & DORIA: K15316, NISSENS: 89443, NRF: 32736, SIDAT: 15296, SIDAT: 15316, SIDAT: 15296A, VALEO: 690238, VAN WEZEL: 5300K618, VAN WEZEL: 5300K626, WAECO: 8880120465
