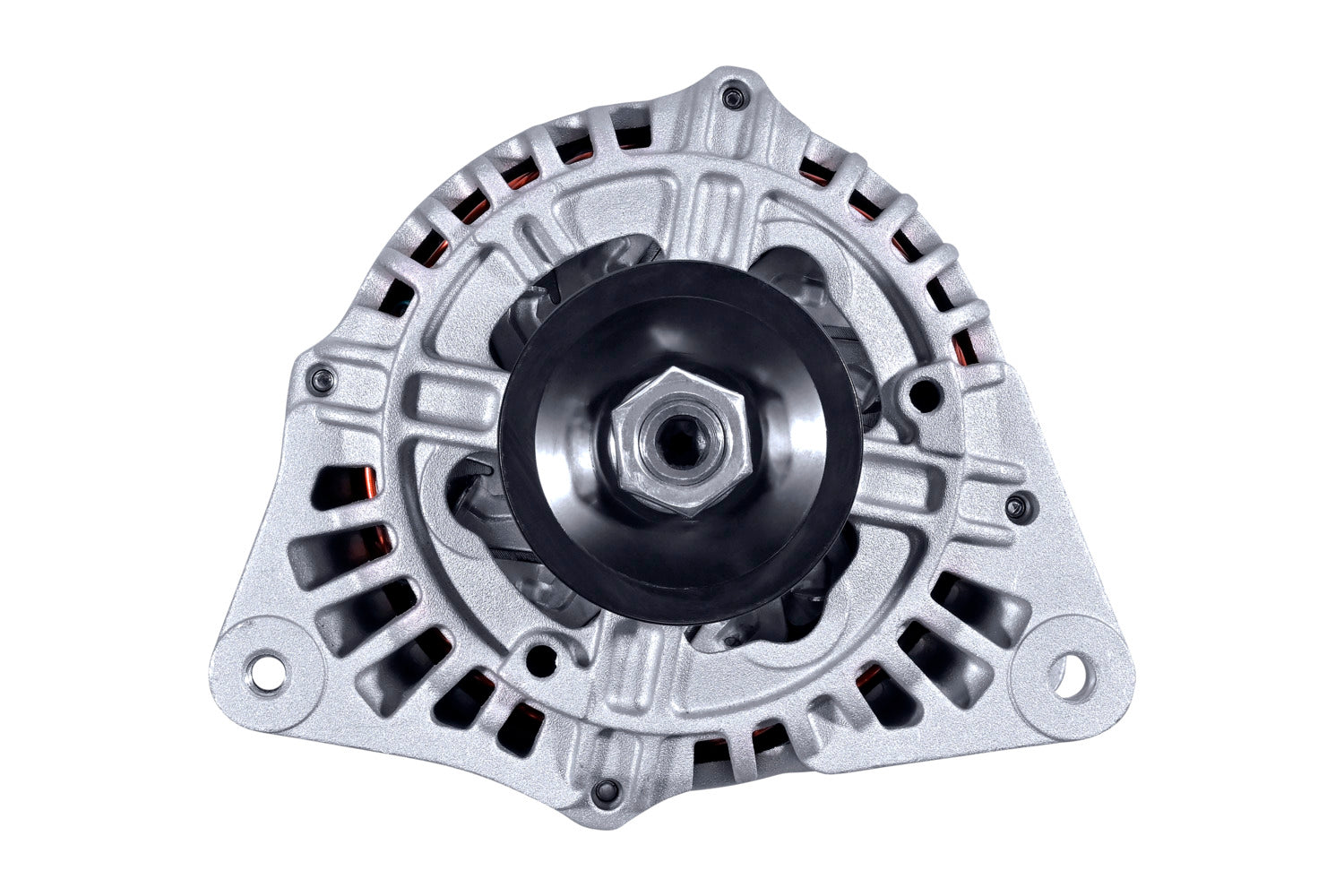

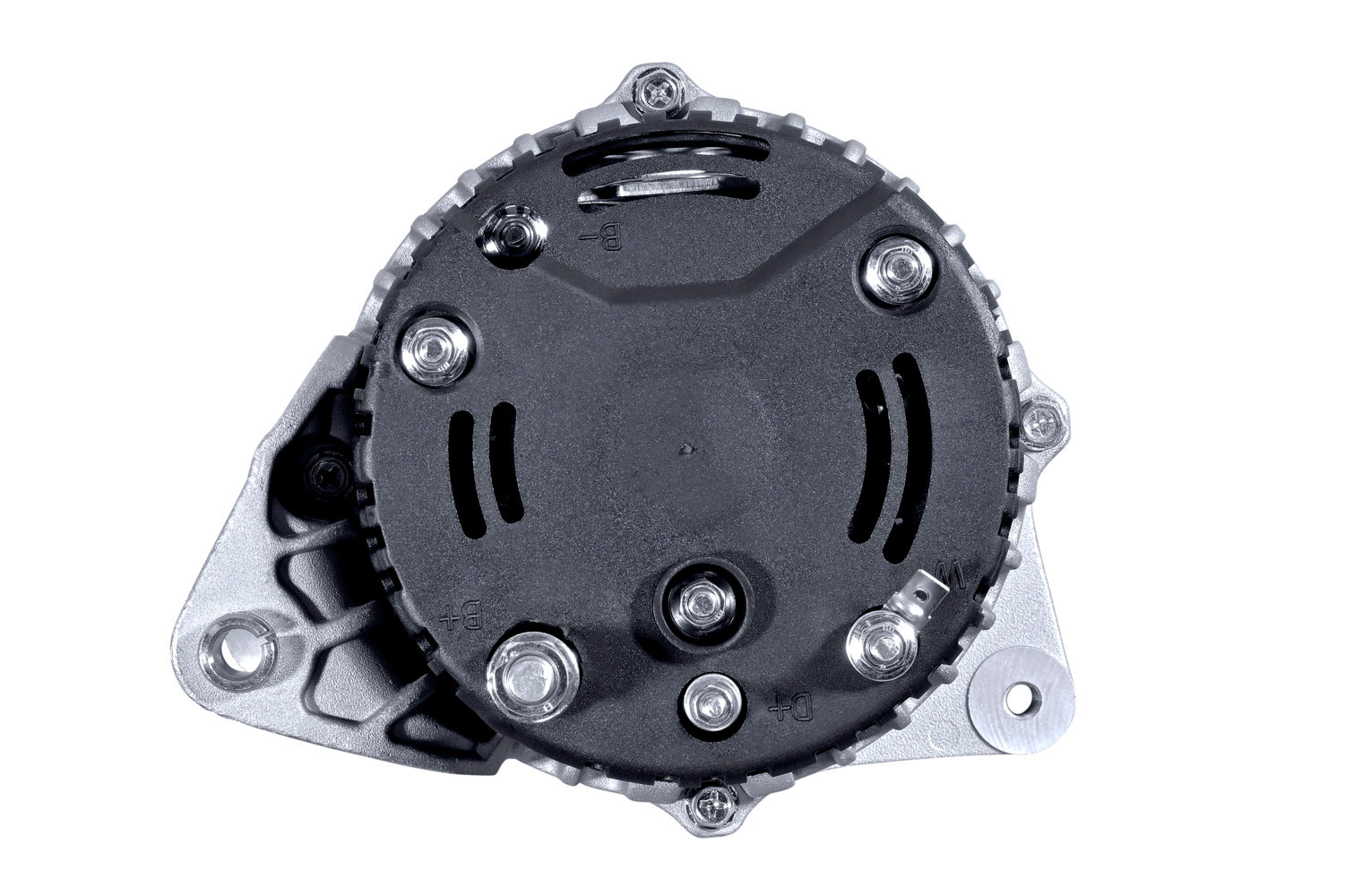

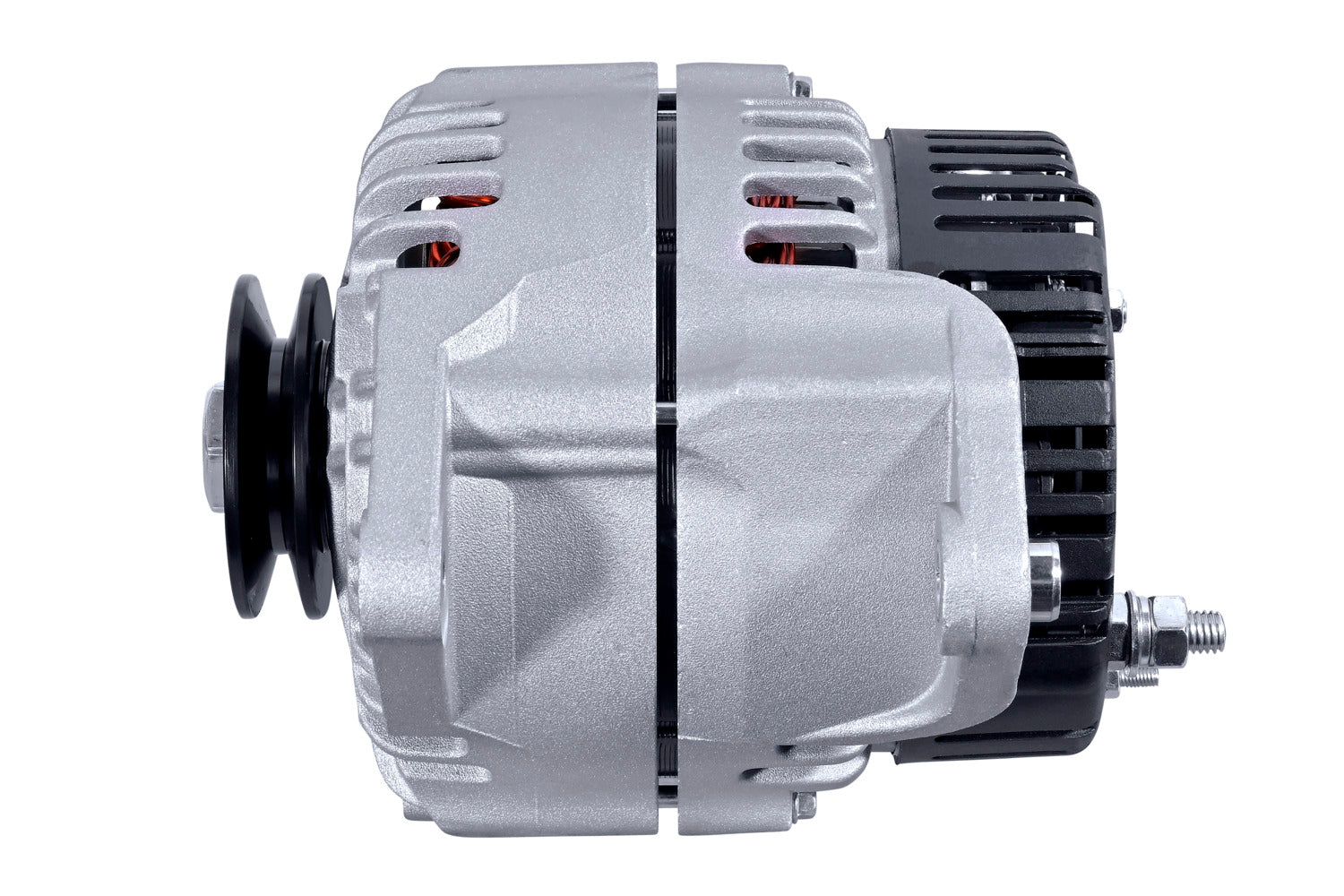

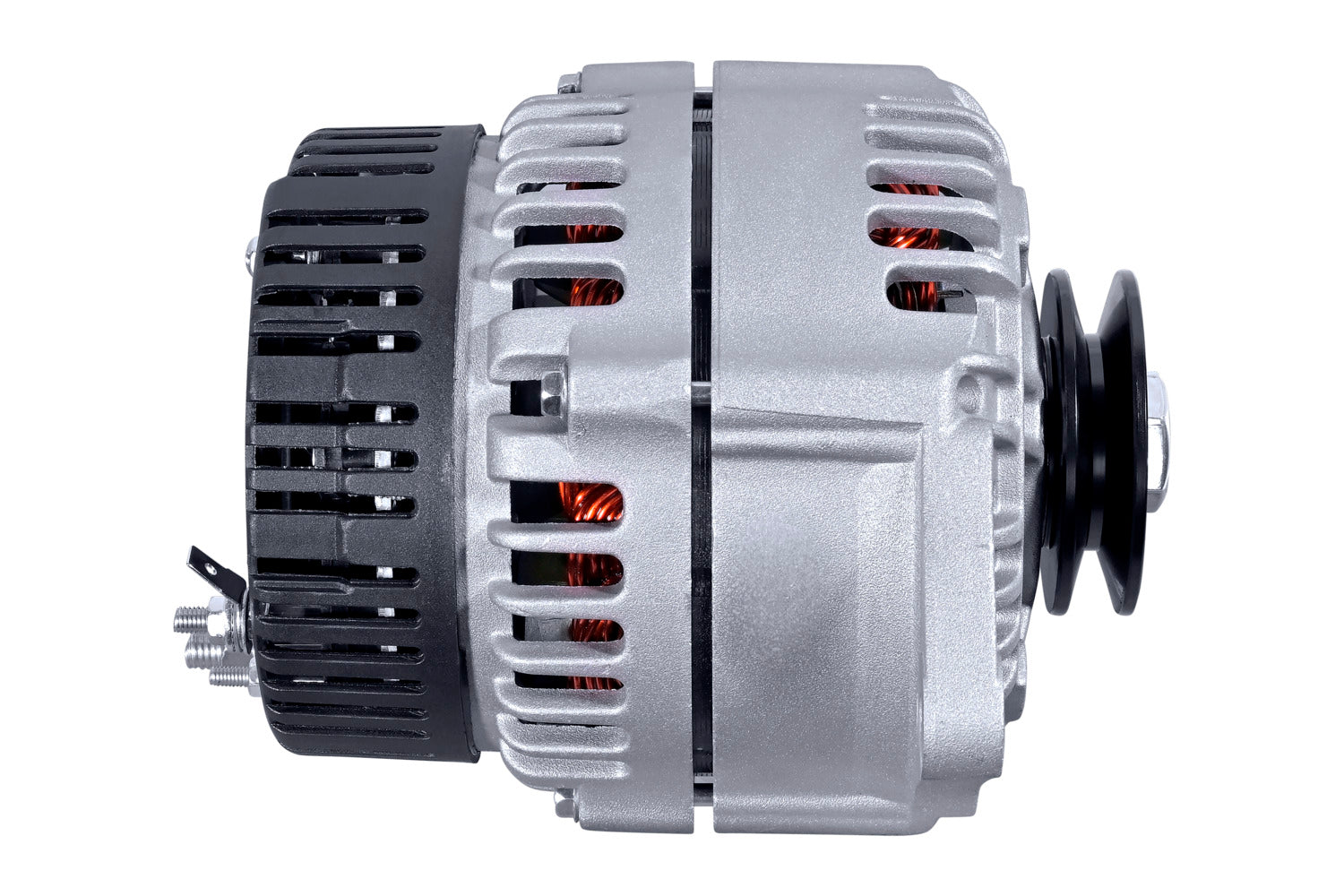

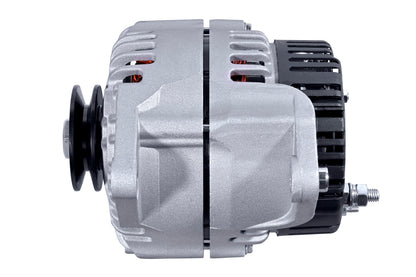

HELLA Alternator - 24V - 55A 8EL015643-771

Alternator - 24V - 55A

High quality standards, no deposit, easy handling and a favourable price - that's what HELLA stands for with its core-free starters and alternators. The product range convinces with a broad programme for passenger cars and commercial vehicles as well as a high market coverage. The ideal solution for customers who expect the optimum. All HELLA new parts without core meet the high quality requirements of the HELLA Competence Centre. Easy handling: By dispensing with the core system, no return of old parts is necessary.

• Pulleys: with belt pulley - Belt Pulley Ø: 65
• Number of grooves: 1
• Starters and alternators from HELLA are the optimal solution for a cost-effective repair that is in line with the current value.
• Simple handling: By dispensing with the deposit system, it is not necessary to return old parts.
• All new HELLA parts without deposit meet the high quality requirements of the HELLA Competence Centre.

Item Attributes:
Alternator Charging Current: 55 A
Voltage: 24 V
Pulleys: with belt pulley
Belt Pulley Ø: 65 mm
Number of grooves: 1
Bore Ø: 8 mm
Bore Distance: 82 mm
Length: 192 mm
Number of mounting bores: 3

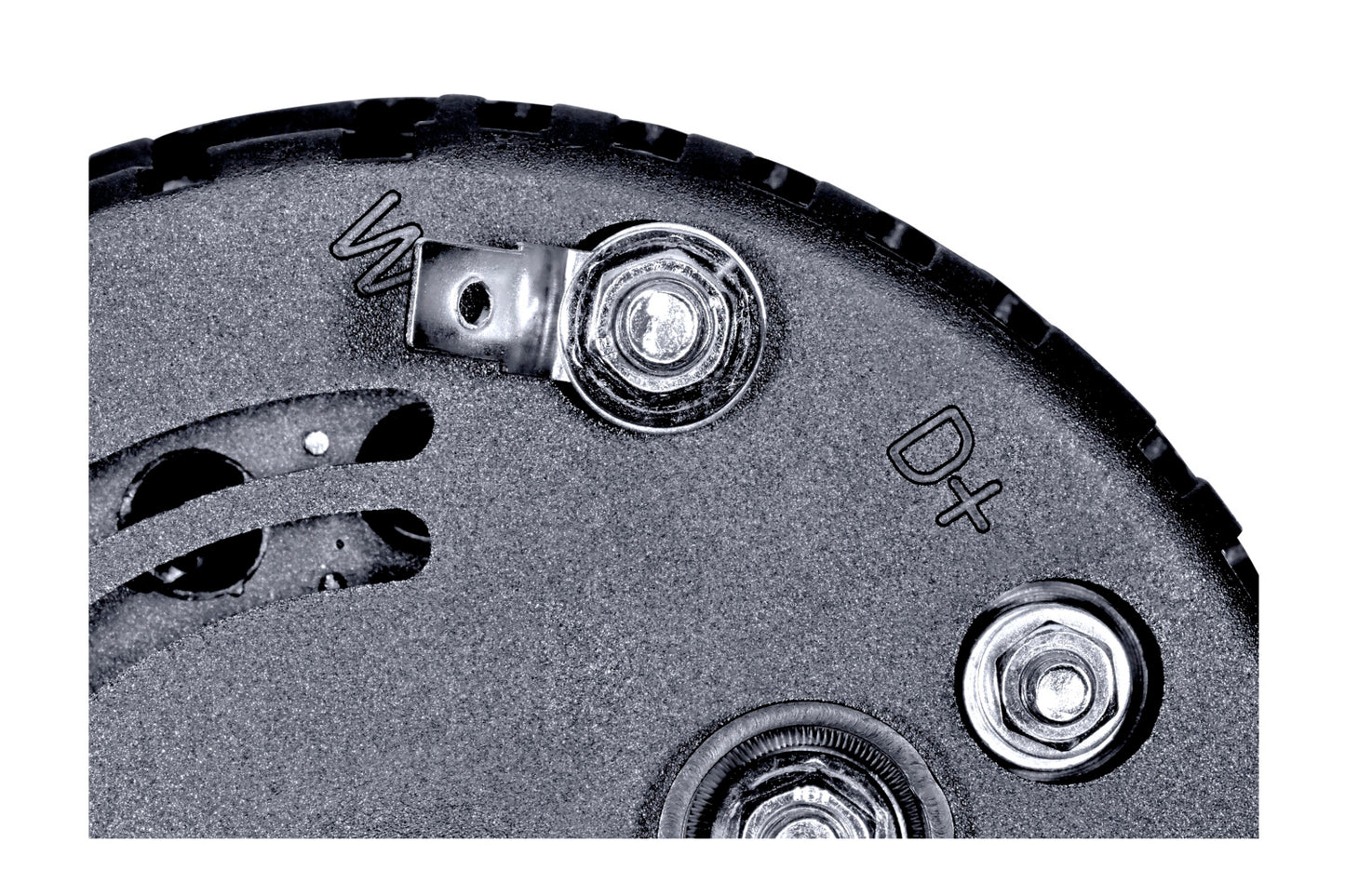

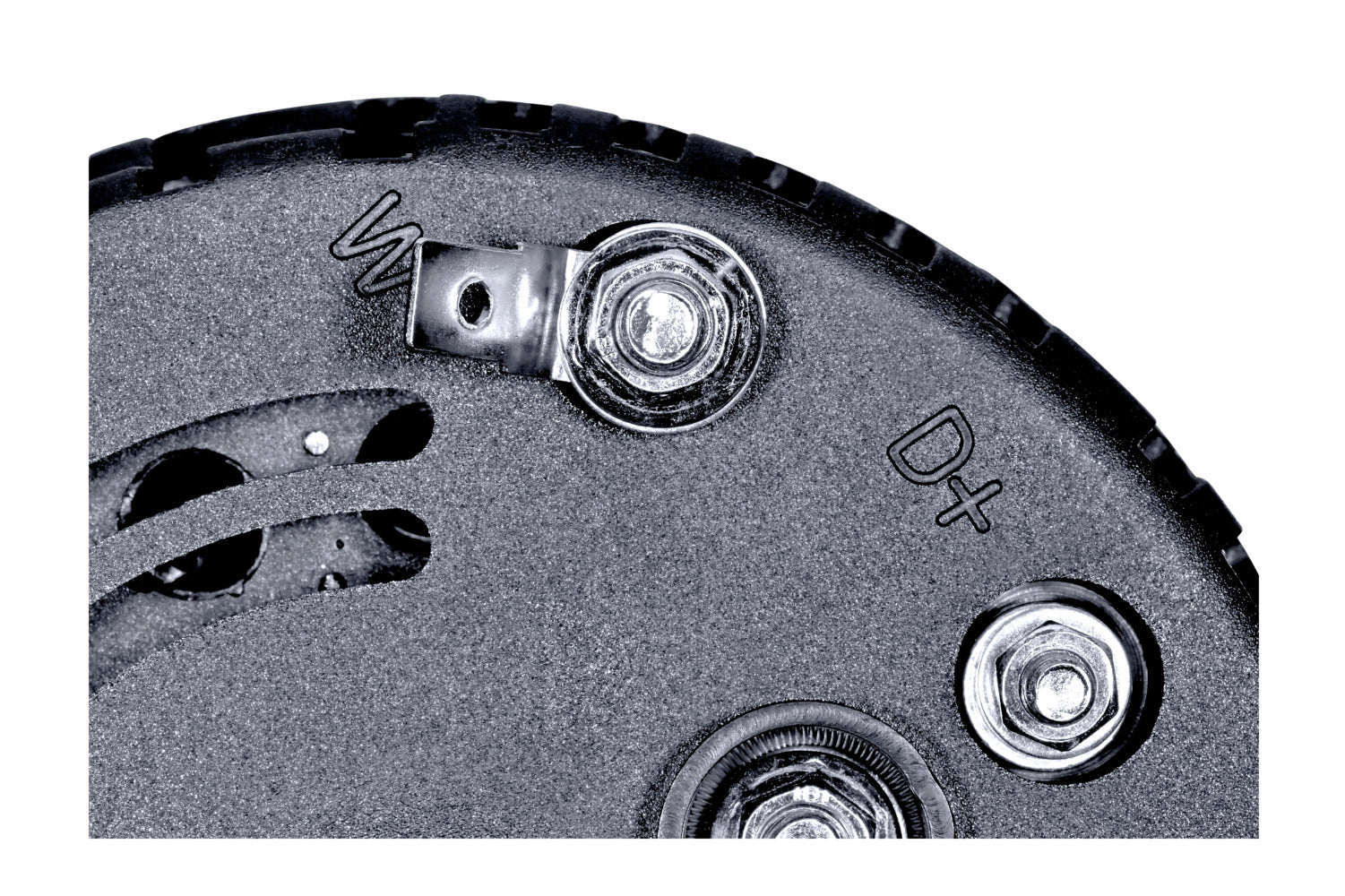

Clamp: D+ (M5) / B+ (M6)
Number of pins: 1 -pin connector
Used part return not compulsory
New part without deposit
Assembly by qualified personnel required!

OE references: DEUTZ-FAHR 0118 3461; DEUTZ-FAHR 0118 3463; DEUTZ-FAHR 0411 4696; DEUTZ-FAHR 0411 5327; DEUTZ-FAHR 0411 8044; DEUTZ-FAHR 0411 8825; DEUTZ-FAHR 0411 9001
