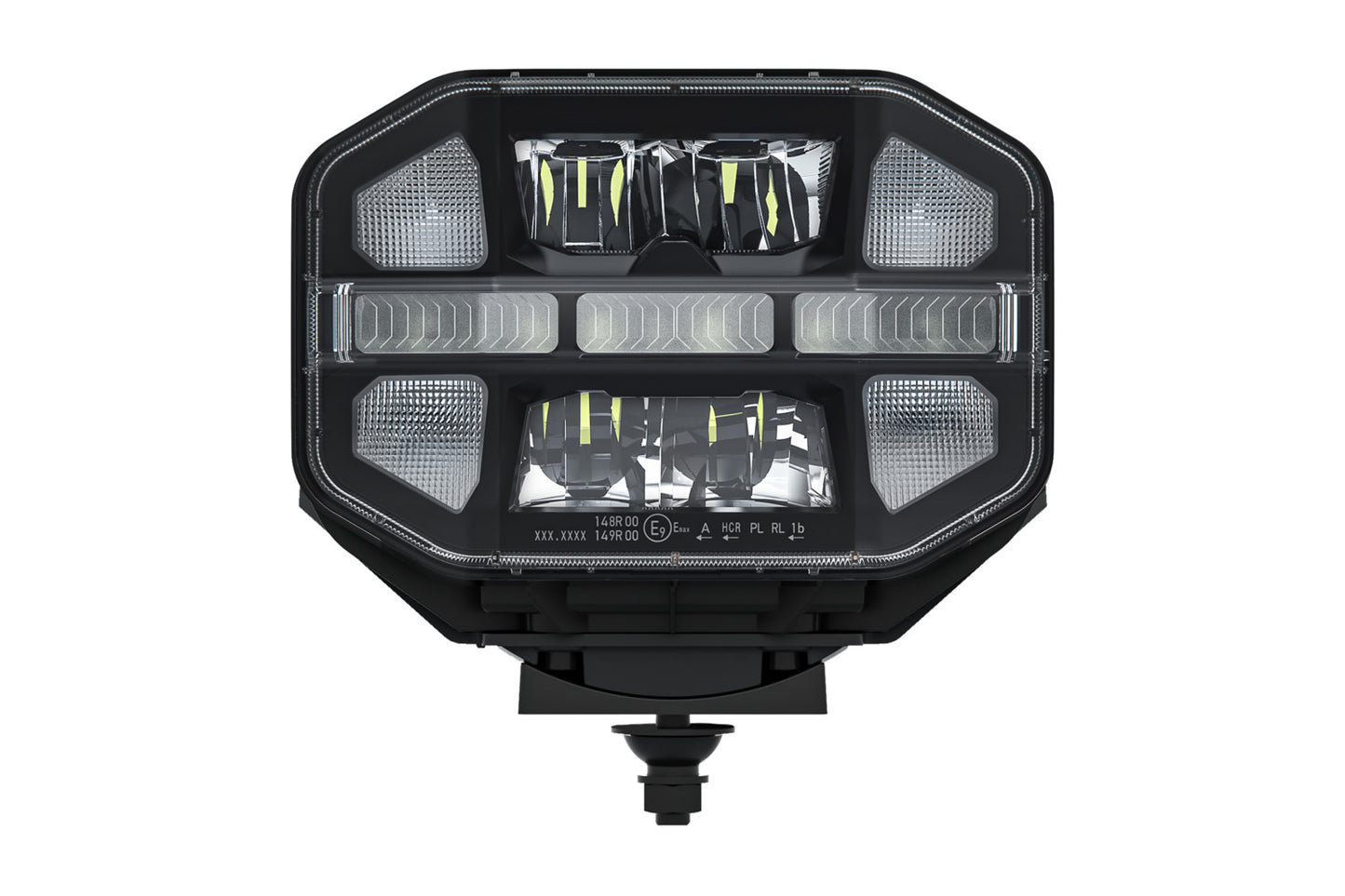

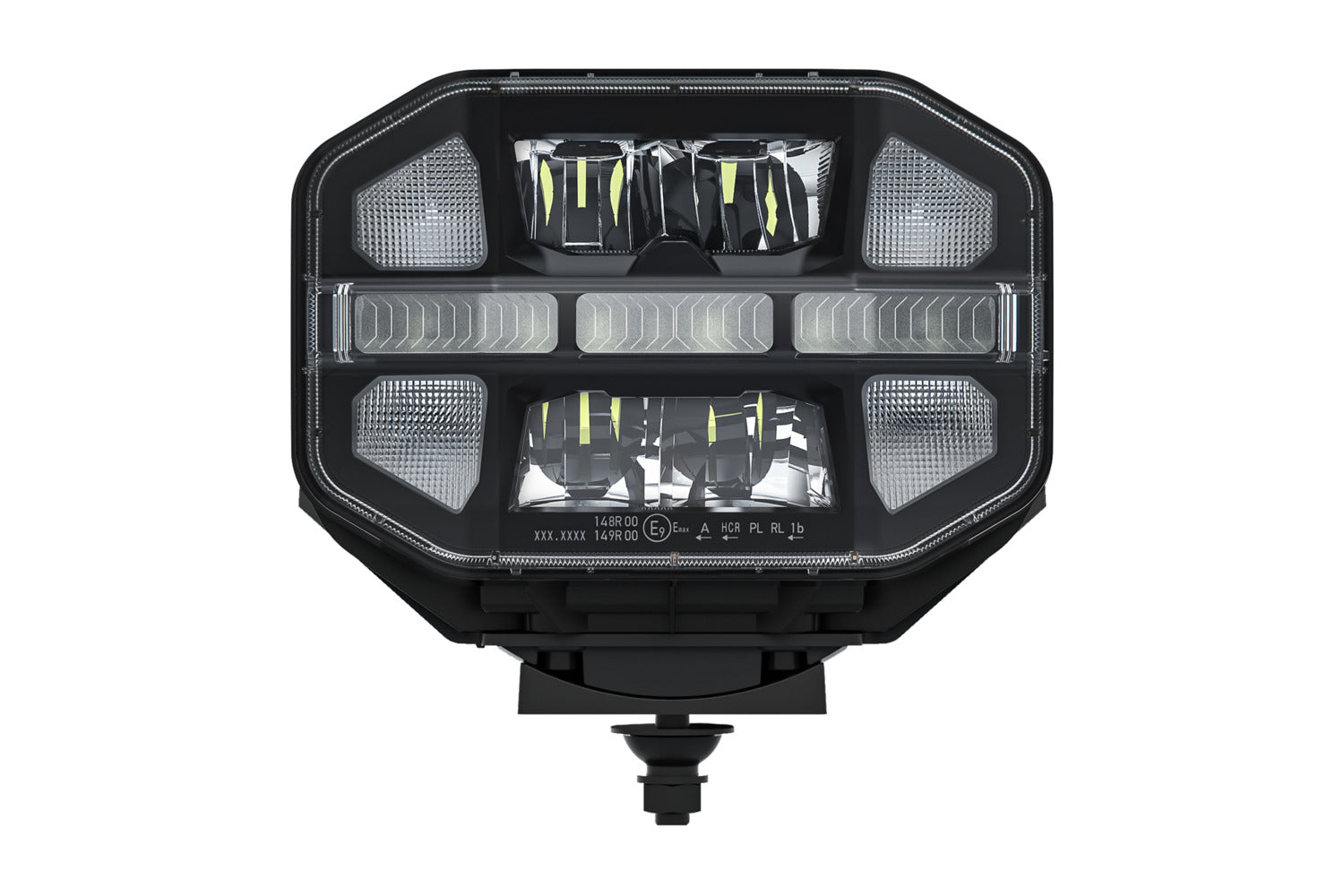

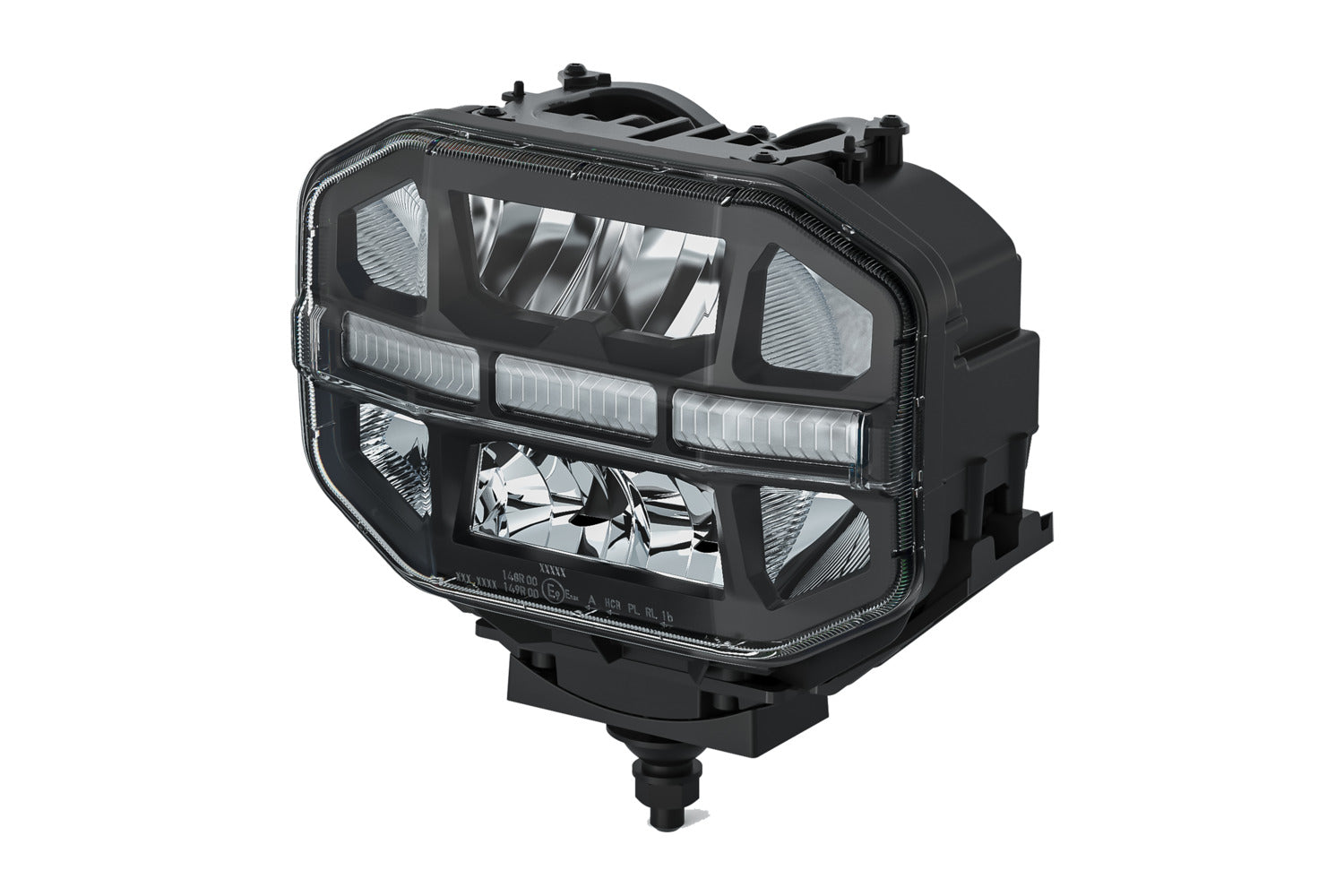

HELLA Asymmetric-Headlight - C240 - 12/24V 1EF328550-231

Asymmetric-Headlight - C240 - 12/24V - ECE - transparent - Plug: DEUTSCH plug - 6-pin connector - left

The C240 LED is a combination headlight in which all lighting functions are implemented using LED technology. The special free-form reflector in conjunction with the LED light source provides significantly better light than headlights with halogen bulbs. Due to the light color being similar to daylight, the light appears significantly brighter to the eye and therefore enables fatigue-free work at night. The main headlight is particularly vibration and shock resistant. Ideal for harsh use on construction vehicles (high vibrations, dust, moisture, mechanical shock, etc.). Thanks to LED technology, a service life can be achieved. The lower LED power consumption compared to a conventional halogen headlight also leads to fuel savings, which can save further costs. The C240 LED meets all ECE and SAE requirements and is suitable and approved for almost worldwide use.

• Cat. 5 with DRL, class B asymmetric, ES, bottom mount, left
• Prot.type (IP Code): IP6K9K
• Housing material: PBT
• with high beam (LED)/with low beam (LED)/with daytime running light (LED)/with position light (LED)/with indicator (LED)
• Width: 245mm - Height: 252mm - Depth: 141mm - Lamp Type: LED - with indicator failure control
• Light functions: 4 - with high beam (LED)/with low beam (LED)/with position light (LED)/with indicator (LED)
• Registration Type: ECE - fulfils ECE standard: R149/R148/R10 - for right-hand traffic - Prot.type (IP Code): IP6K9K

Item Attributes:
Fitting Position: left
Mounting Type: Bolted
Fastening Type: Vertical fastening
Light Function: with high beam (LED) / with position light (LED) / with low beam (LED) / with indicator (LED)
Light functions: 4
Supplementary Article/Supplementary Info 2: with indicator failure control
Version: with side DI
Left-hand/Right-hand Traffic: for right-hand traffic
Lamp Type: LED
Light Design: Asymmetric
Voltage: 24 V / 12 V
Registration Type: ECE
fulfils ECE standard: R10 / R148 / R149
Housing material: PBT
Prot.type (IP Code): IP6K9K
Temperature range from: -40 °C
Temperature range to: +50 °C
Plug: DEUTSCH plug
Number of pins: 6 -pin connector
Height: 252 mm
Width: 245 mm
Depth: 141 mm
Reverse polarity protection: Yes
Lens Colour: transparent
paired article number: 1EF 328 550-241
Housing Colour: black
Diffusing Lens Material: Plastic
Assembly by qualified personnel required!

OE references: AEBI 1381326-0; GRIMME B94.09706
