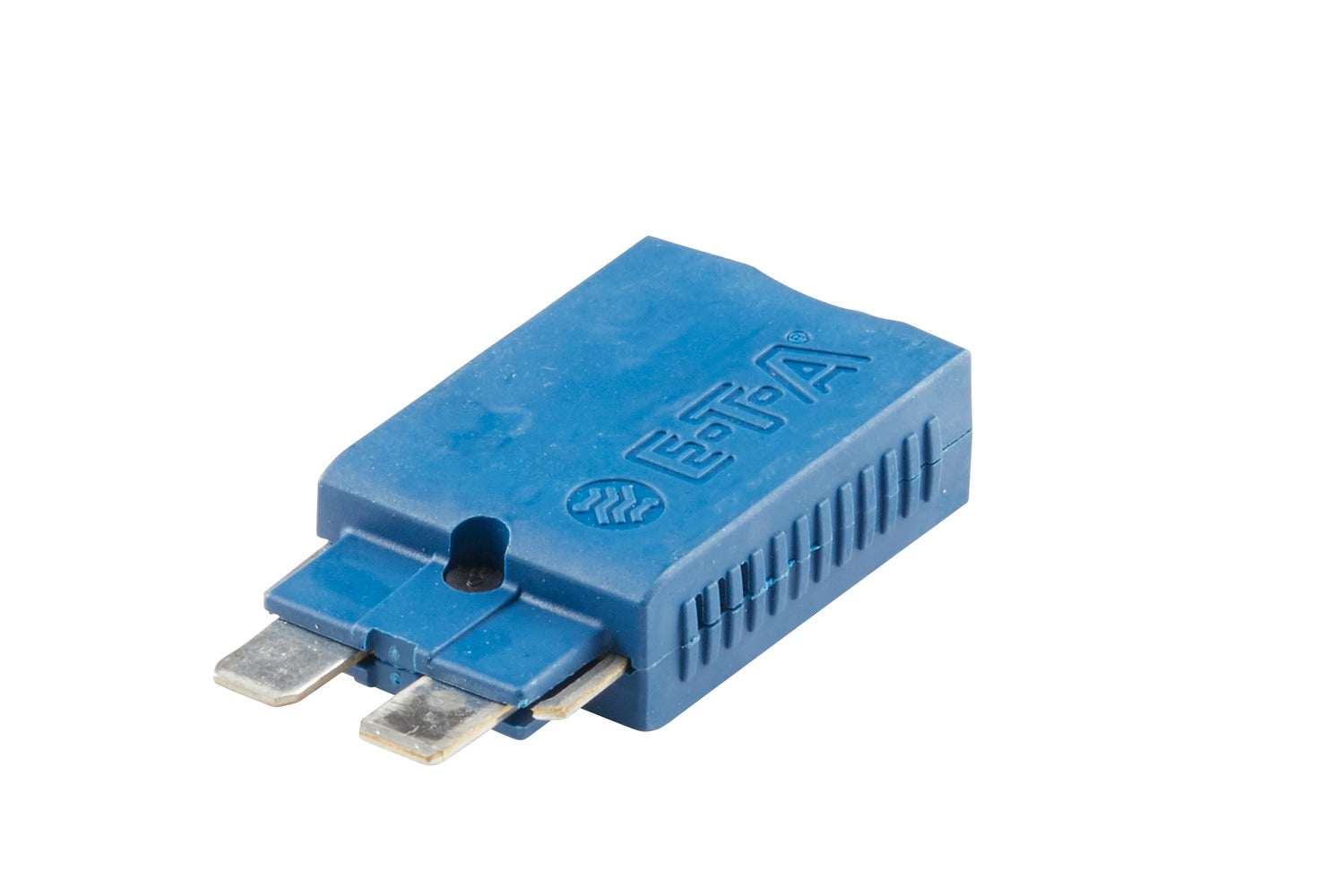

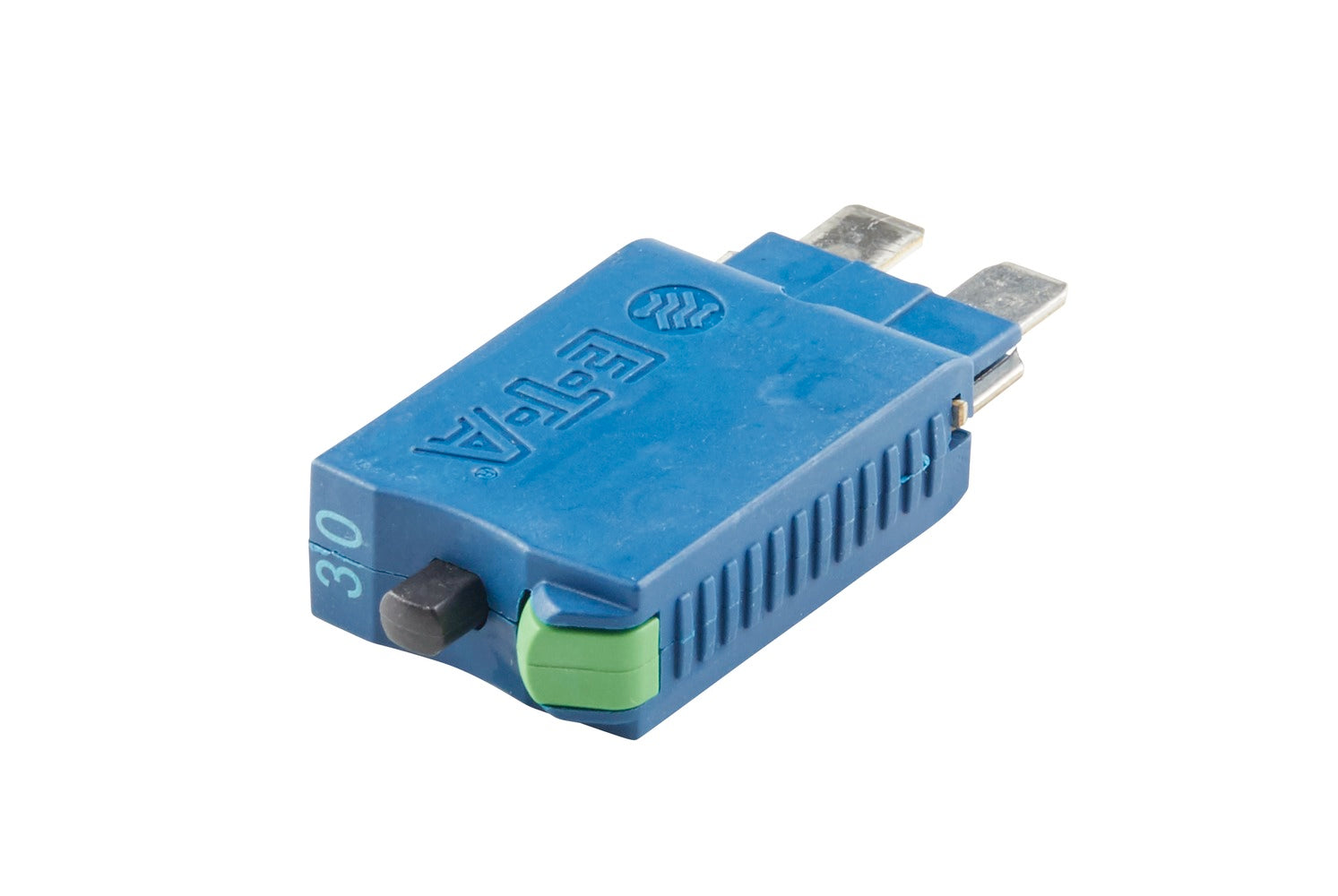

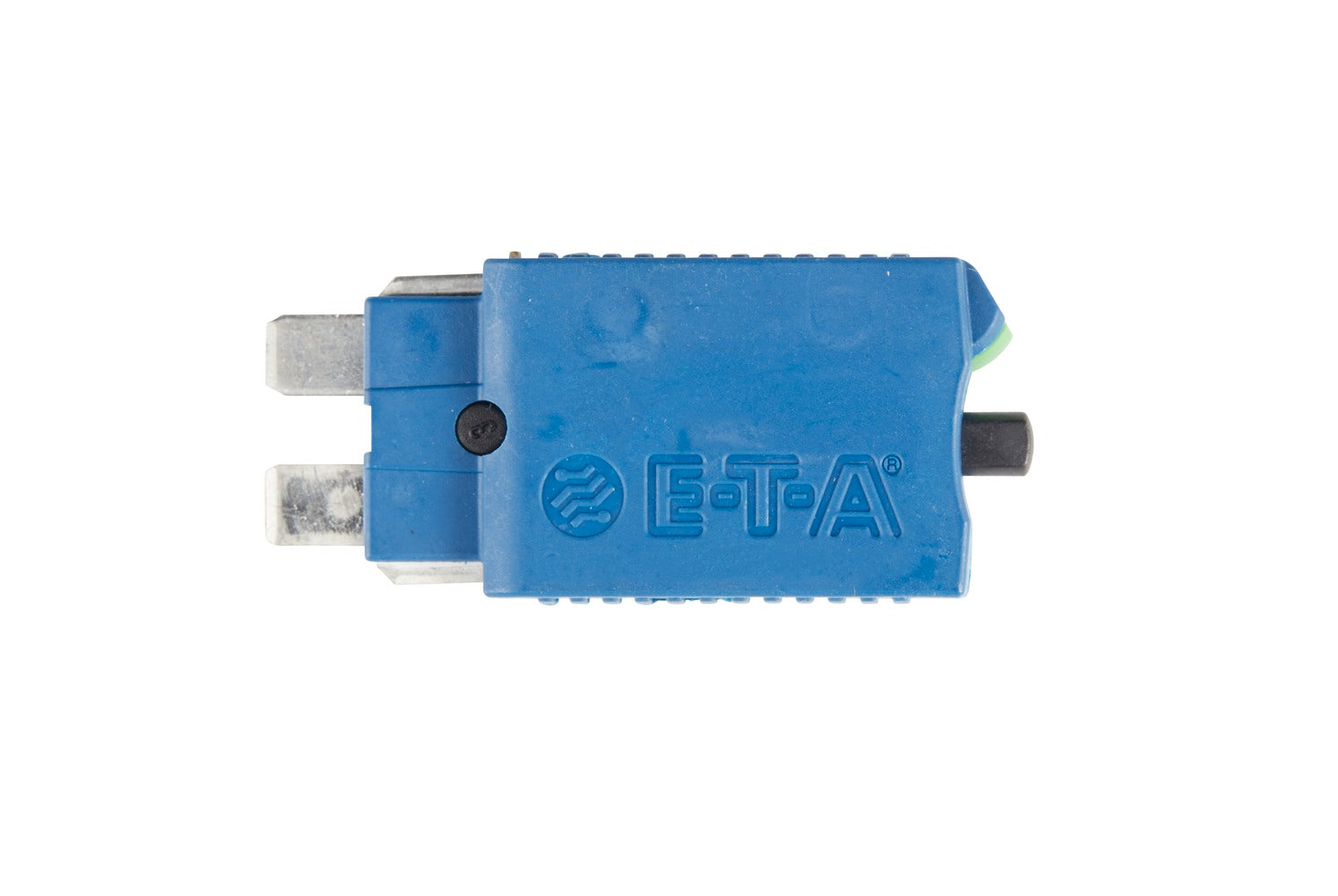

HELLA Automatic Circuit Breaker - light green - Quantity: 1 8JS174326-061

Automatic Circuit Breaker - Voltage to: 48V - light green - Quantity: 1

Just like conventional fuses, circuit breakers serve to protect against overloads and short circuits by interrupting the circuit of the application. Their advantage over a normal fuse is that they can do this many times without having to be replaced each time after tripping. The vending machine can be returned to its original state via automatic or manual reset - saving time and money. The circuit breakers can distinguish between time-limited inrush current and a real overload, so that optimum protection can always be guaranteed without false tripping or wasted energy. The version with manual release gives the user the option of conveniently and quickly interrupting a circuit and then closing it again by manual reset - ideal for a large number of electrical tests, such as those that occur in the automotive workshop.

• Compact design
• Easy, reliable handling due to colour coding and easy-to-read labelling
• Coverage of the most common flat fuse sizes
• Original equipment quality
• Width: 22mm - Height: 51.6mm
• DIN/ISO: 60529

Item Attributes:
Colour: light green
Voltage to: 48 V
Rated Current: 30 A
Height: 51.6 mm
Depth: 9.8 mm
Width: 22 mm
Socket Width: 5.2 mm
Contact surface: Tin-plated
DIN/ISO: 60529
Packaging: Blister
Prot.type (IP Code): IP40
Temperature range from: -40 °C
Temperature range to: +85 °C
Quantity: 1
Assembly by qualified personnel required!
