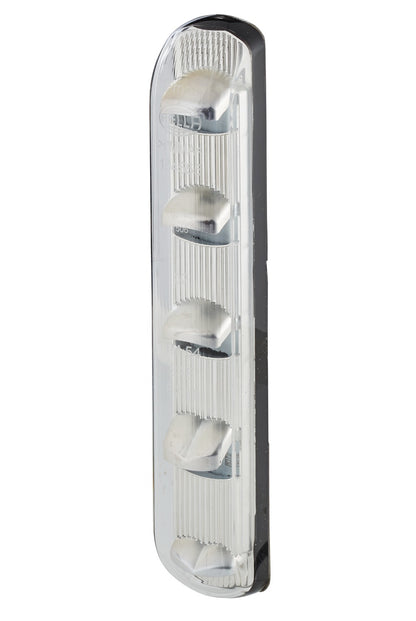

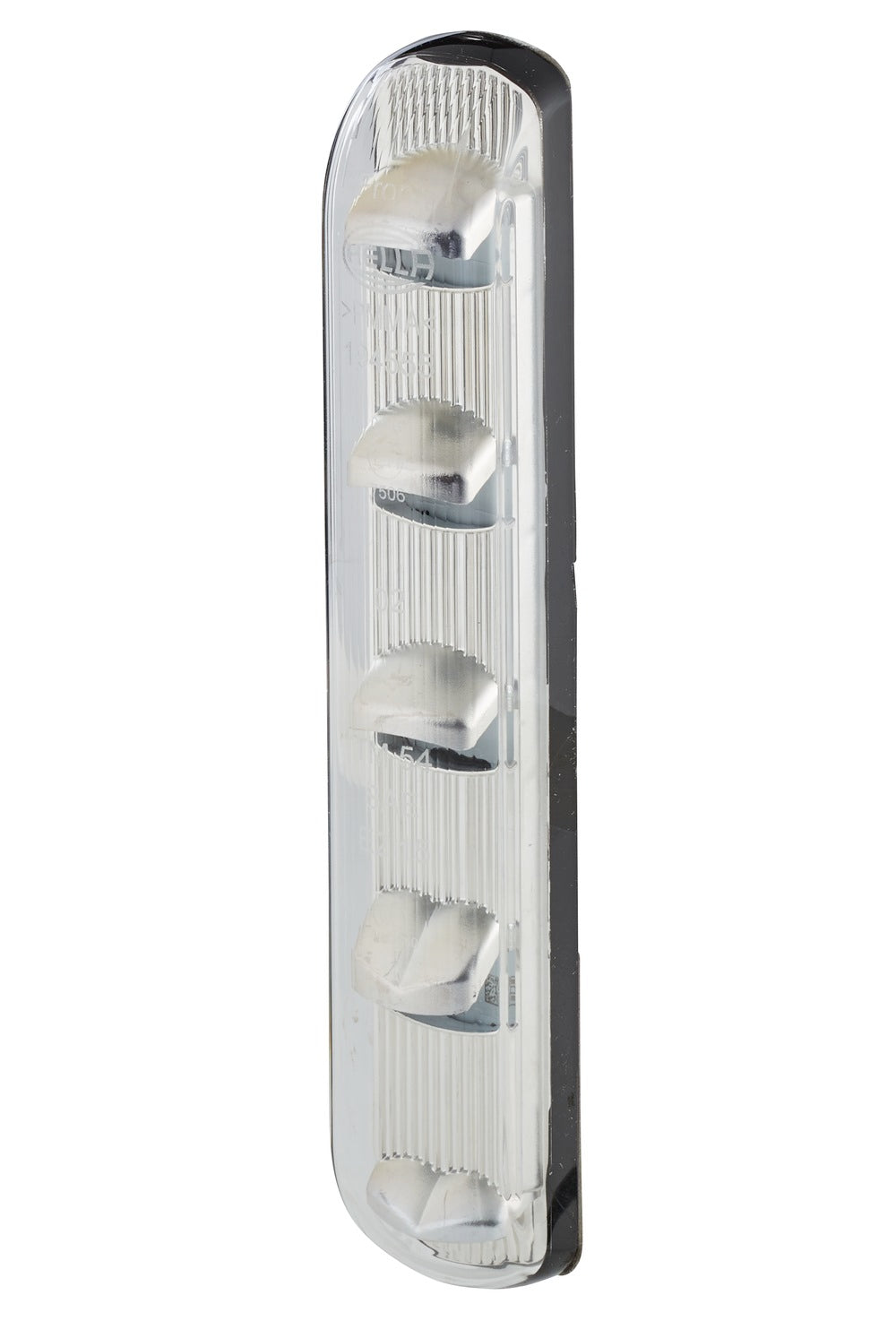

HELLA Auxiliary Direction Indicator - LED - 24V 2BM011788-061

Auxiliary Direction Indicator - LED - 24V - mounting/Glued - CCC/SAE - Lens Colour: Crystal clear - Cable: 500mm - Plug: open cable ends - Lateral Mounting - Quantity: 1

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. We also rely on the highest quality and the use of efficient technologies for these luminaires. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

• State-of-the-art LED technology enables an optimum signal image with low power consumption
• Tested according to IP 6K9, this luminaire is protected against the ingress of dust and water during continuous immersion
• The luminaires have been tested according to HELLA standard 67101 class 6.1 and therefore meet the requirements for buses, trucks and tractors in large series over 6.5 tonnes
• To extend the service life of the luminaire, the components are arranged in a temperature-optimised manner. This prevents the LEDs from overheating at high temperatures.
• Reverse polarity protection: Incorrect contact between poles ensures that the luminaire is not damaged
• Length: 210mm - Width: 64mm - Height: 26mm - Lamp Type: LED - Number of LEDs: 5 - without frame/Electromagnetic Compatibility (EMC)/with pipe
• Light functions: 1 - with indicator (LED)

Item Attributes:
Mounting Type: Glued / mounting
Fastening Type: for horizontal fastening
Voltage: 24 V
Light Design: LED
Lamp Type: LED
Fitting Position: Lateral Mounting
Light Function: with indicator (LED)
Height: 26 mm
Length: 210 mm
Width: 64 mm
Registration Type: CCC / SAE
fulfils ECE standard: R6

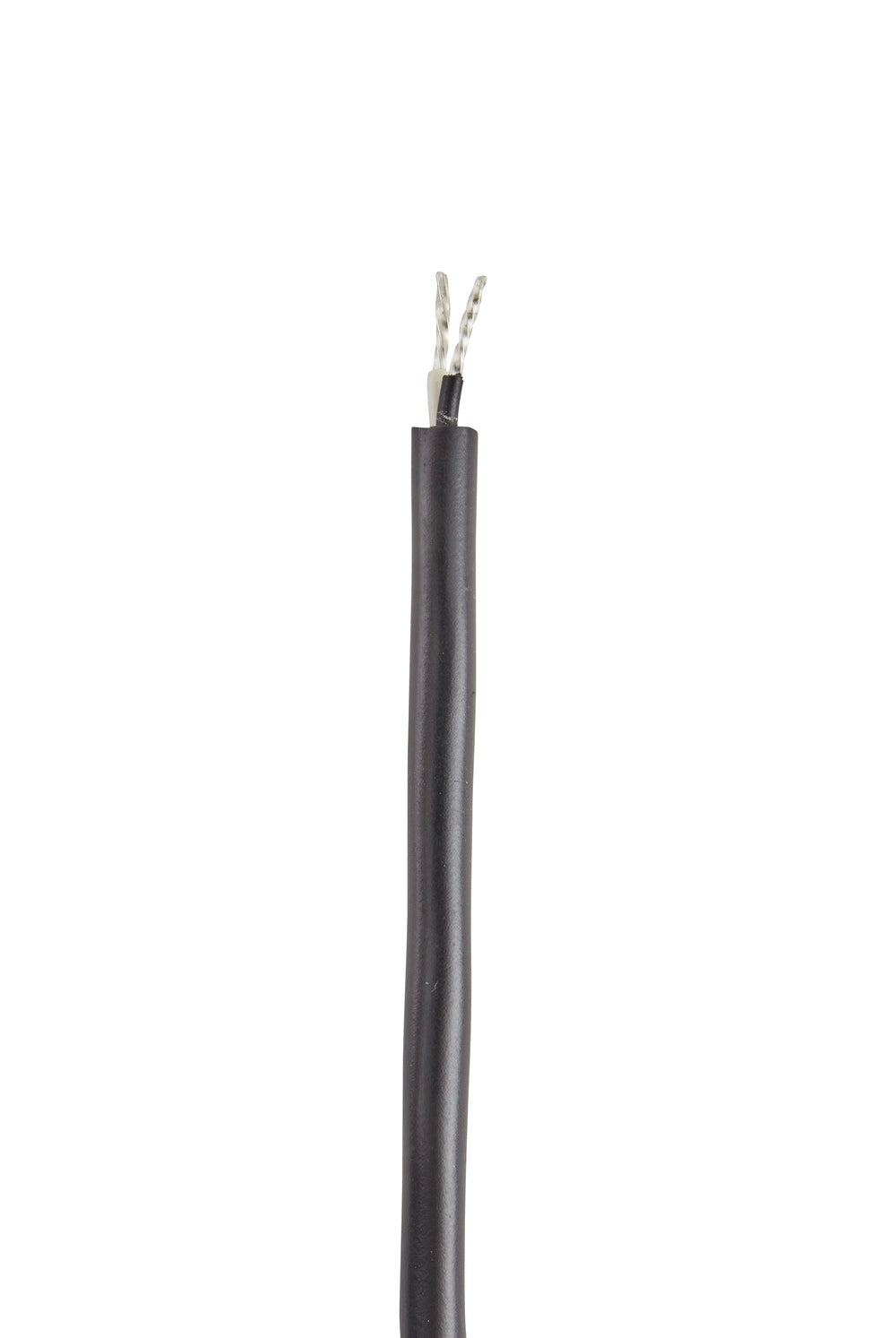

Plug: open cable ends
Number of LEDs: 5
Light functions: 1
Lens Colour: Crystal clear
LED colour: yellow (amber)
Cable: 500 mm
Supplementary Article/Supplementary Info 2: with pipe / without frame / Electromagnetic Compatibility (EMC)
Conductor Number: 2 -conductor
Quantity: 1
SVHC: 1317-36-8; Lead monoxide (lead oxide) / 7439-92-1; Lead / 1303-86-2; Diboron trioxide
Assembly by qualified personnel required!

OE references: TAM 12680028
