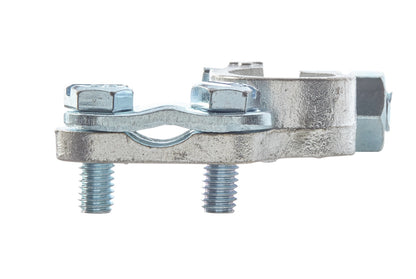

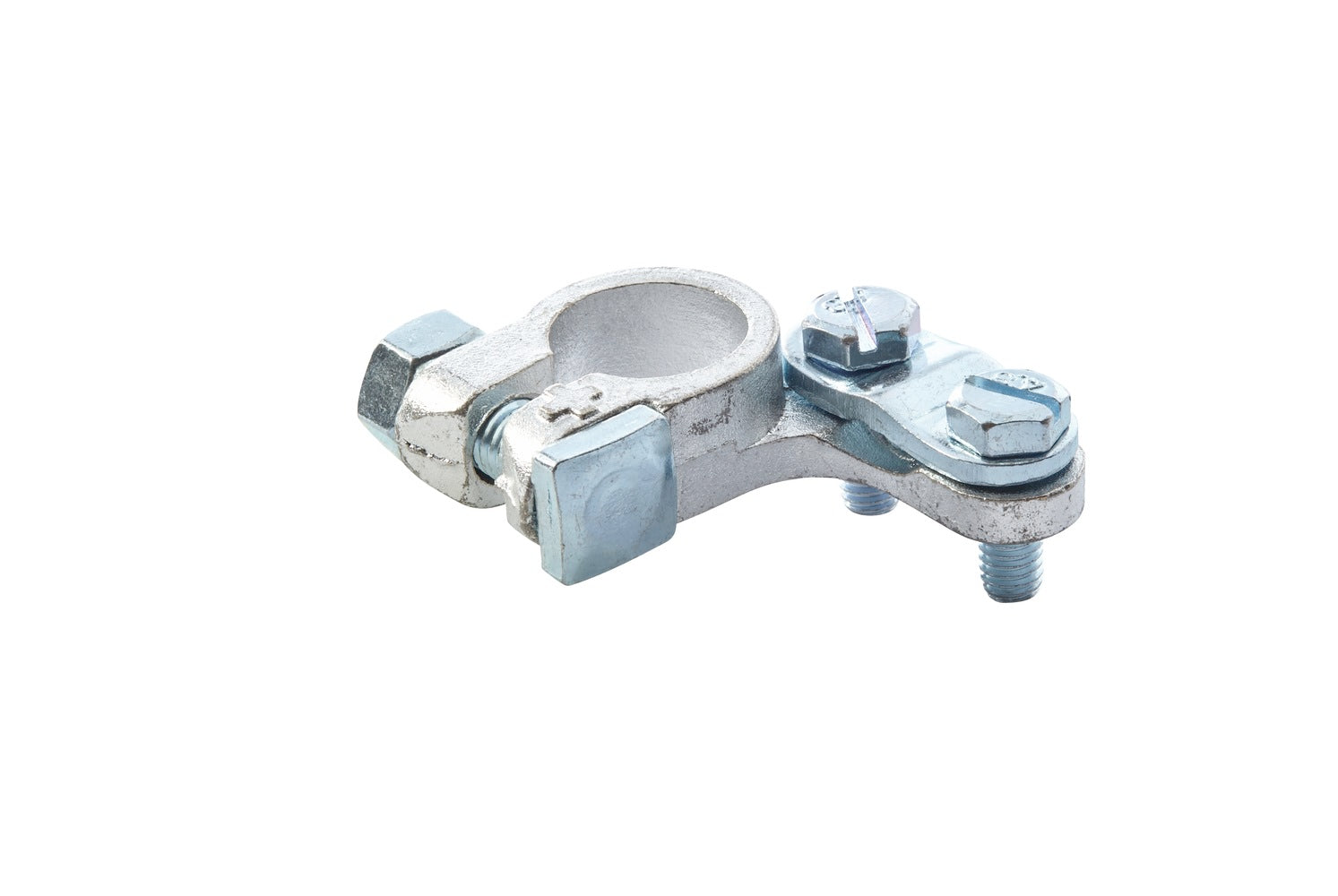

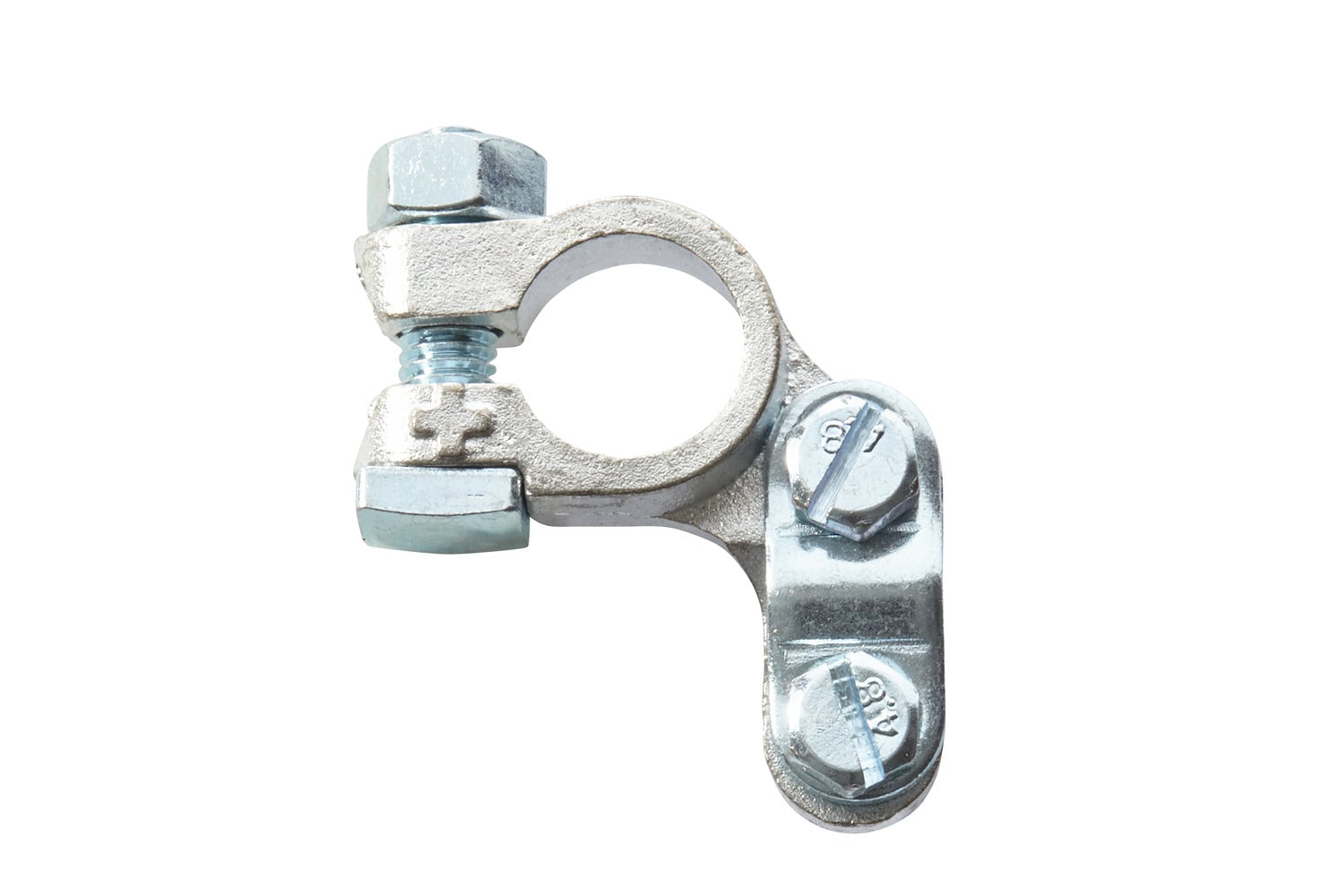

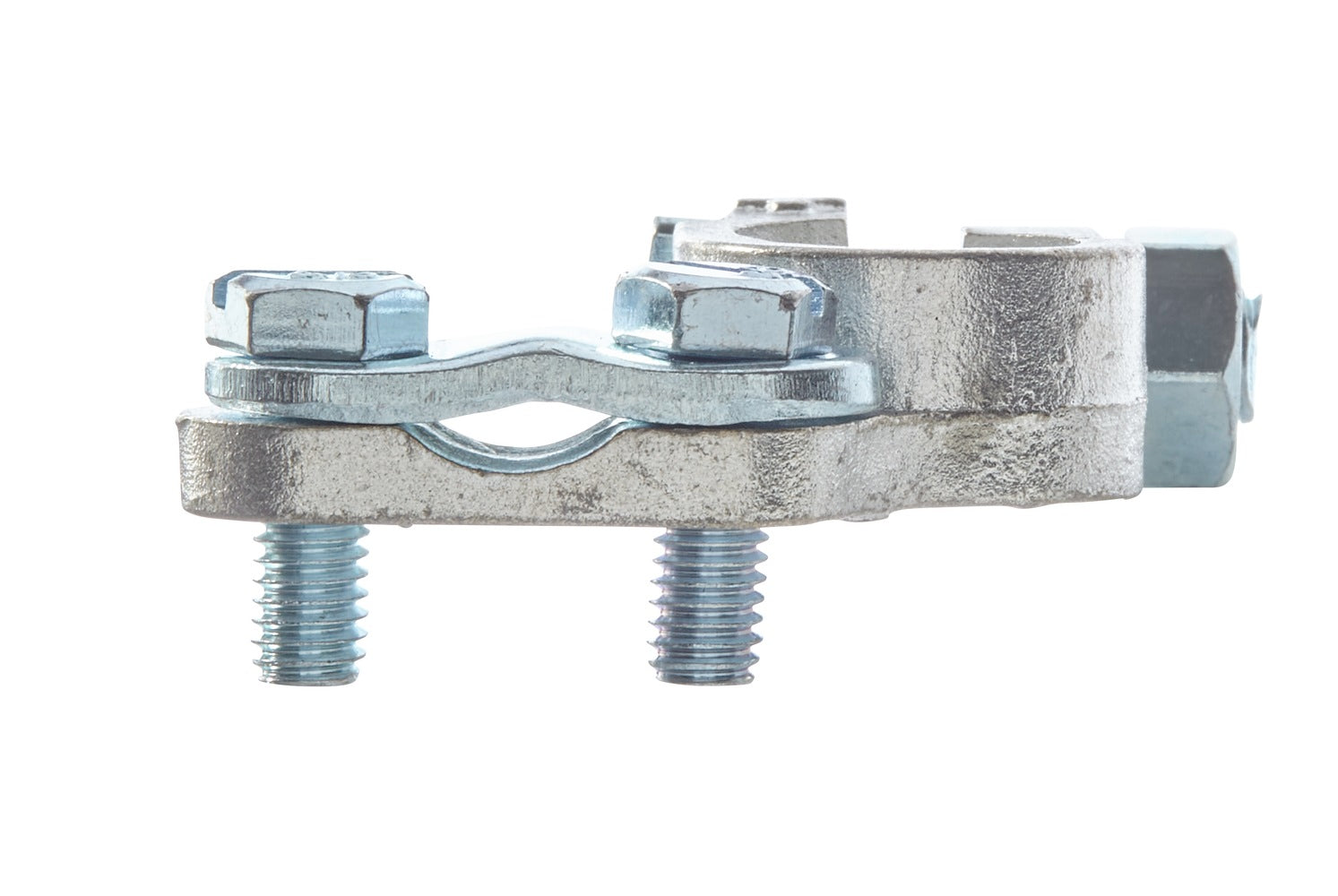

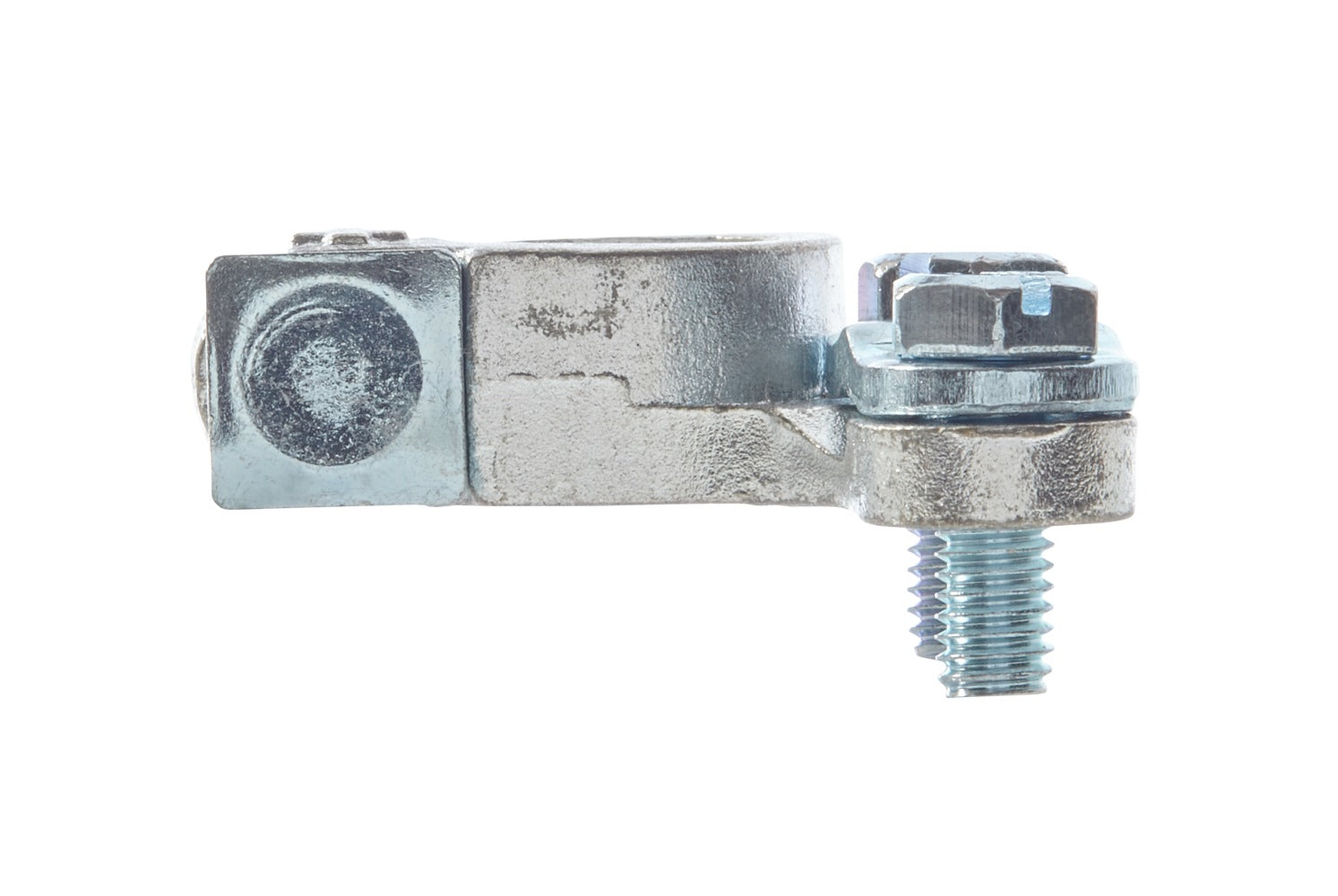

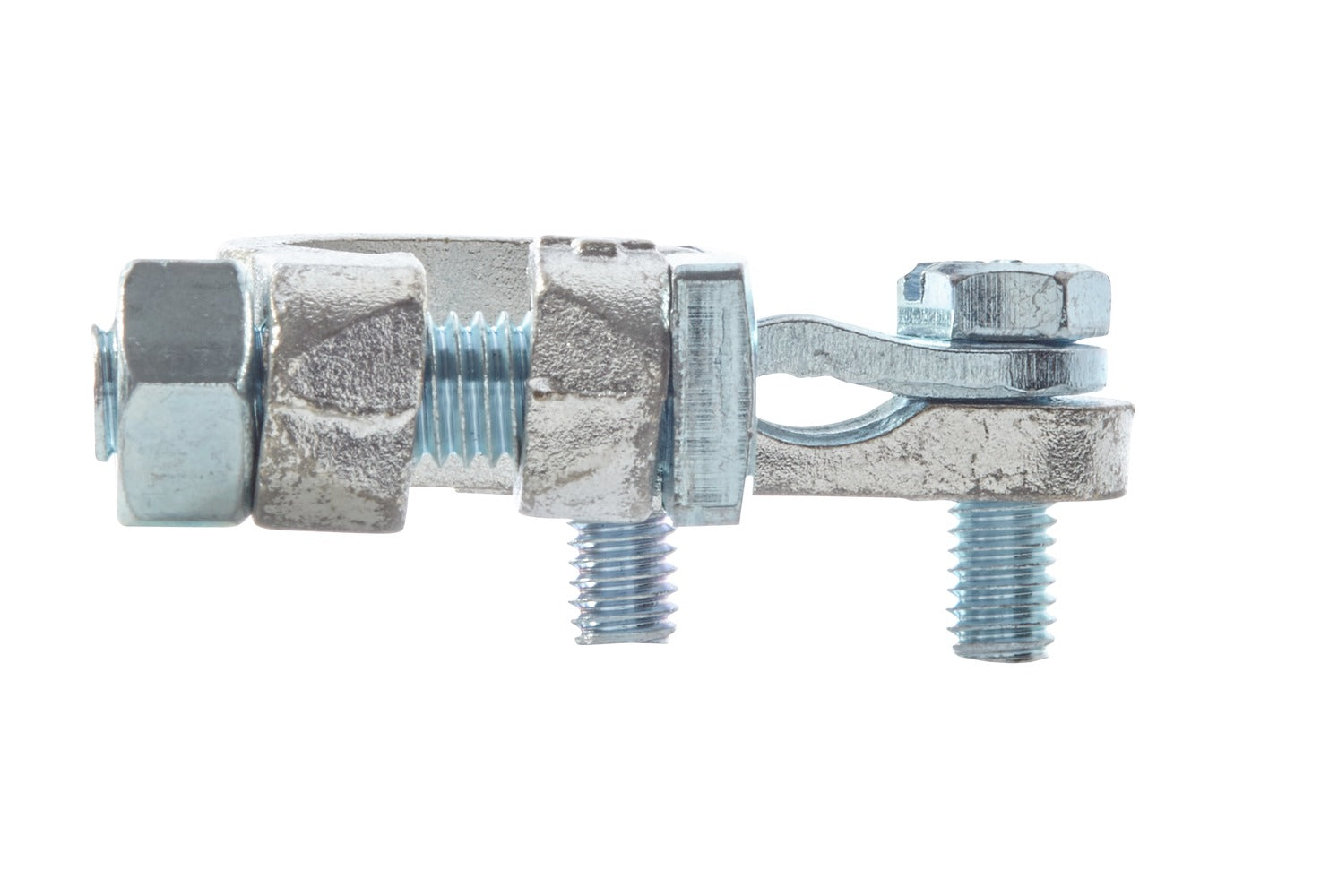

HELLA Battery Terminal Clamp - for positive terminal/Cast Part - Battery Terminal Ø: 1 8KX091450-031

Battery Terminal Clamp - for positive terminal/Cast Part - Battery Terminal Ø: 17.5mm - to: 70mm² - Quantity: 1

Whether as a spare part or as an original equipment component - HELLA universal clamps provide the best service with their high material hardness and corrosion resistance. The programme is strictly oriented towards the common standards for battery terminals.

• Assortment closely based on DIN 72331
• Variety of variants enables application in almost any installation space
• High material hardness and corrosion resistance

Item Attributes:
Press Plate Design (battery terminal clamp): Smooth
Battery Terminal Ø: 17.5 mm
Voltage from: 12 V
Voltage to: 24 V
Material: Brass
Surface: Tin-plated
Colour: grey
similar DIN standards (battery terminal clamps): DIN 72332-1 (solder terminals)
Connector/Clamp: with single-sided mounting of terminal post screw
Battery Terminal Clamp Type: Cast Part / for positive terminal
to: 70 mm²
Shape: A Shape
Packaging: Blister
Fitting Position: left
Quantity: 1
Assembly by qualified personnel required!

OE references: AHLMANN 4191828A; FELDBINDER 003571; HYMER 0864944-00; JOHN DEERE 01 27 25; JOHN DEERE 21 50 0; JOHN DEERE 57 21 234; LIEBHERR 6 132 018 08; ROSENBAUER 023087; SCHMITZ CARGOBULL 980501; SCHWARZMÜLLER 15678; STILL 012725
