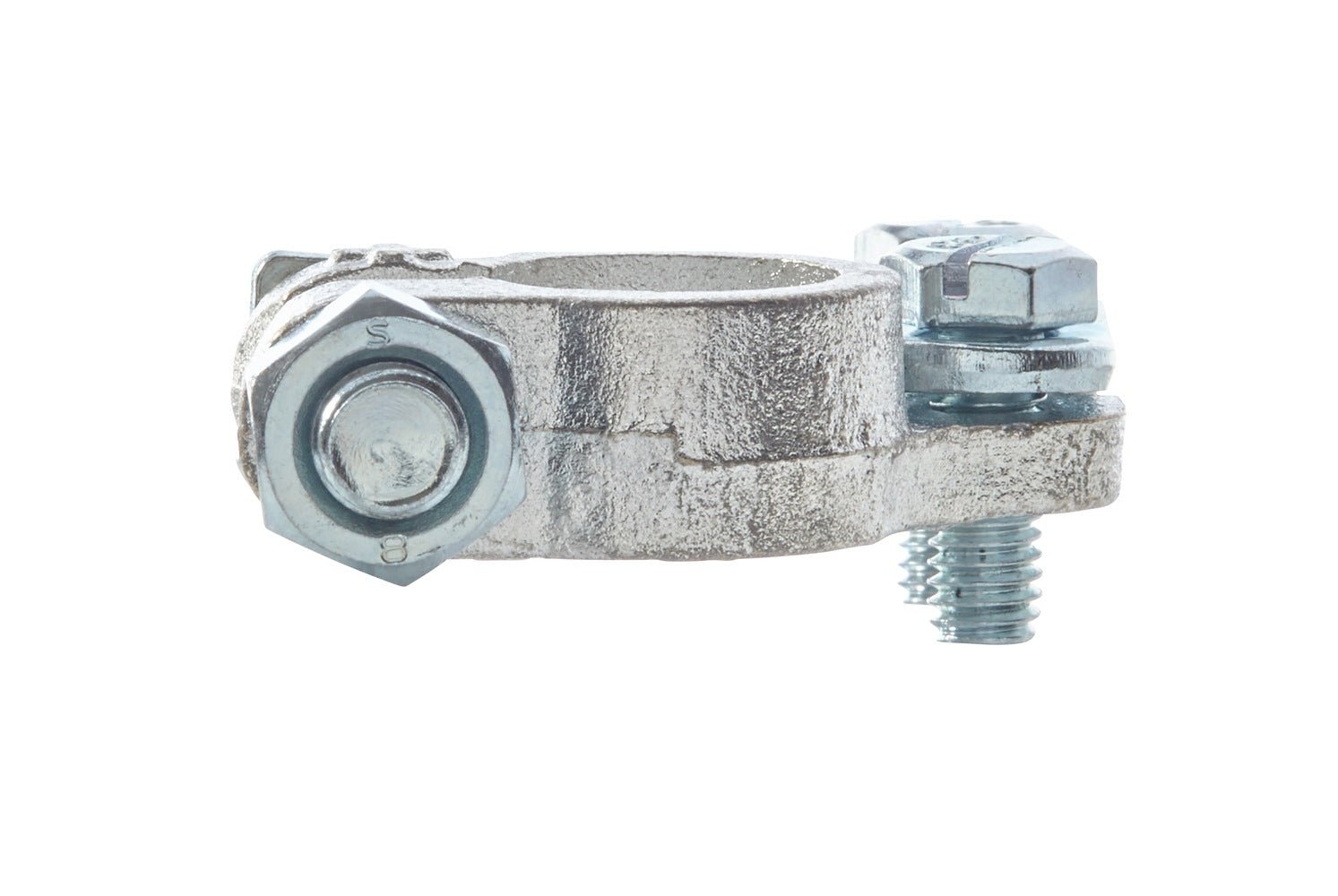

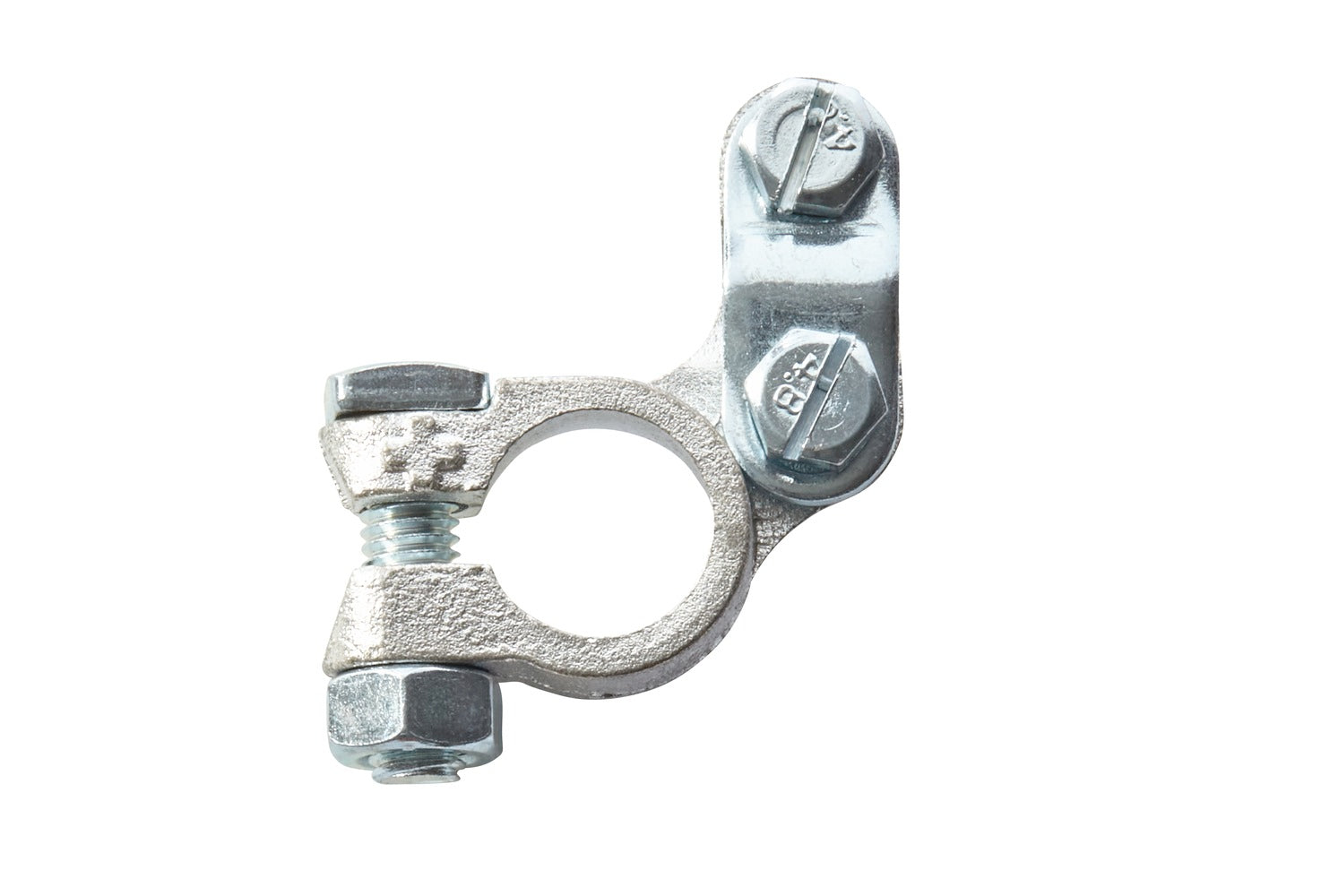

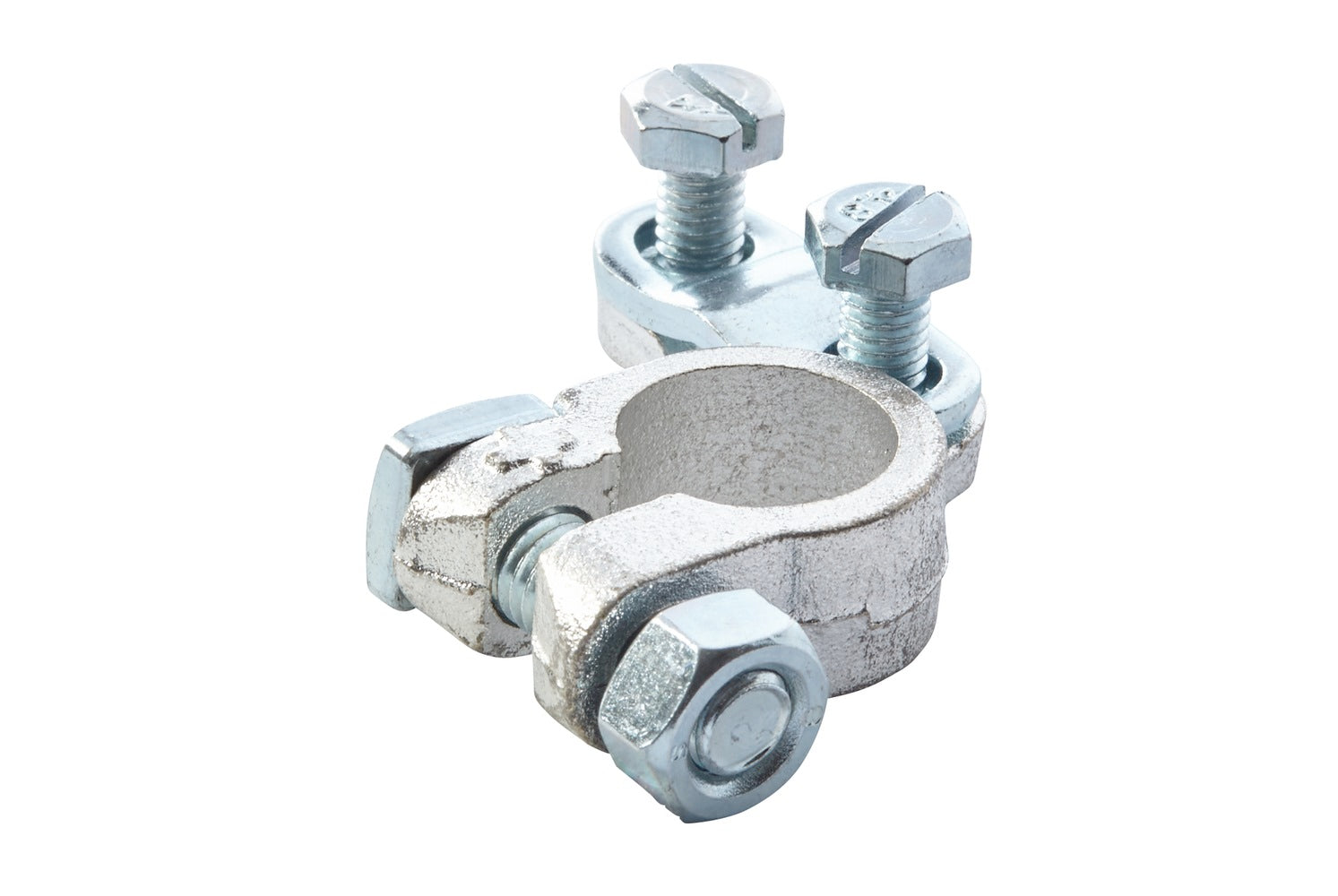

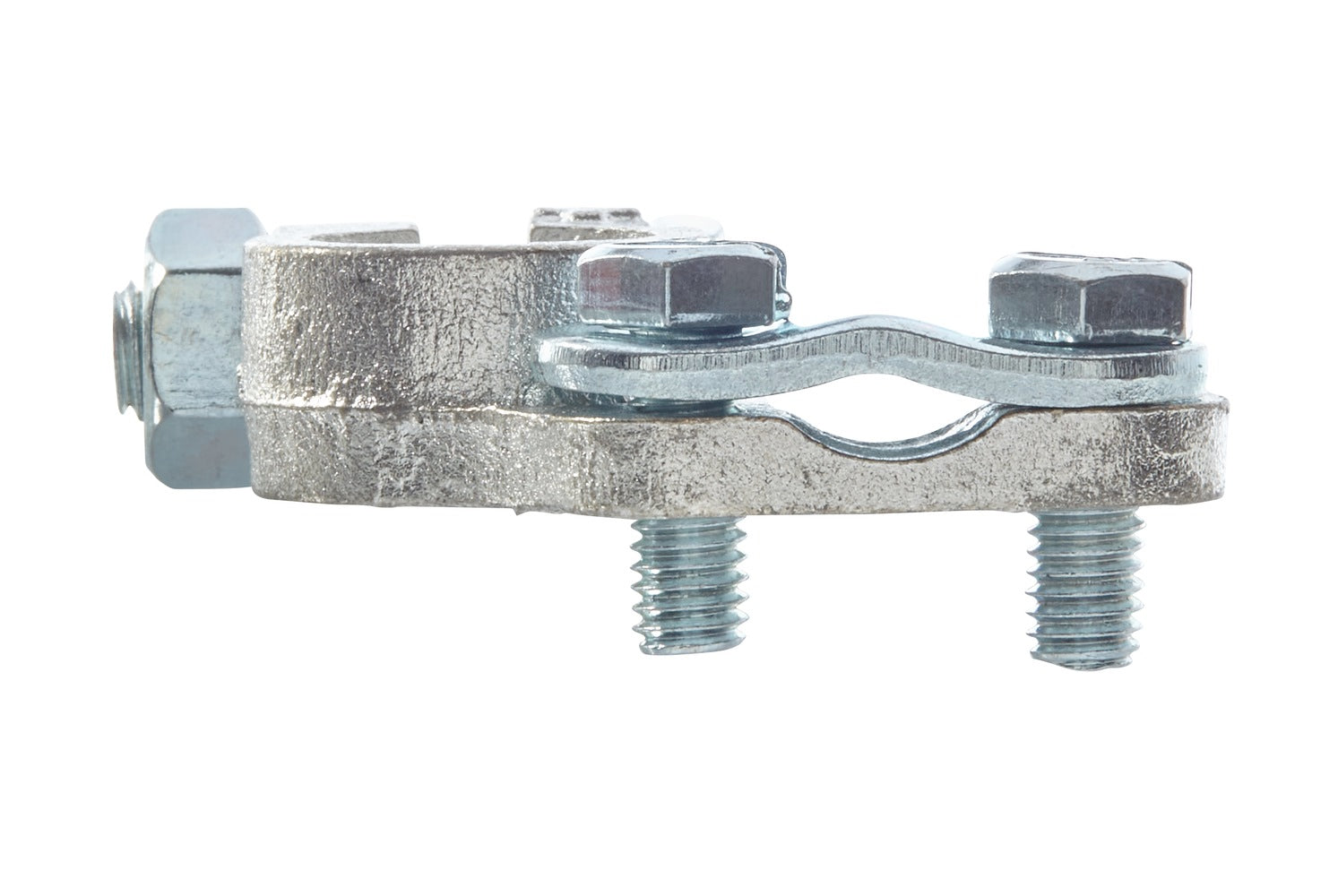

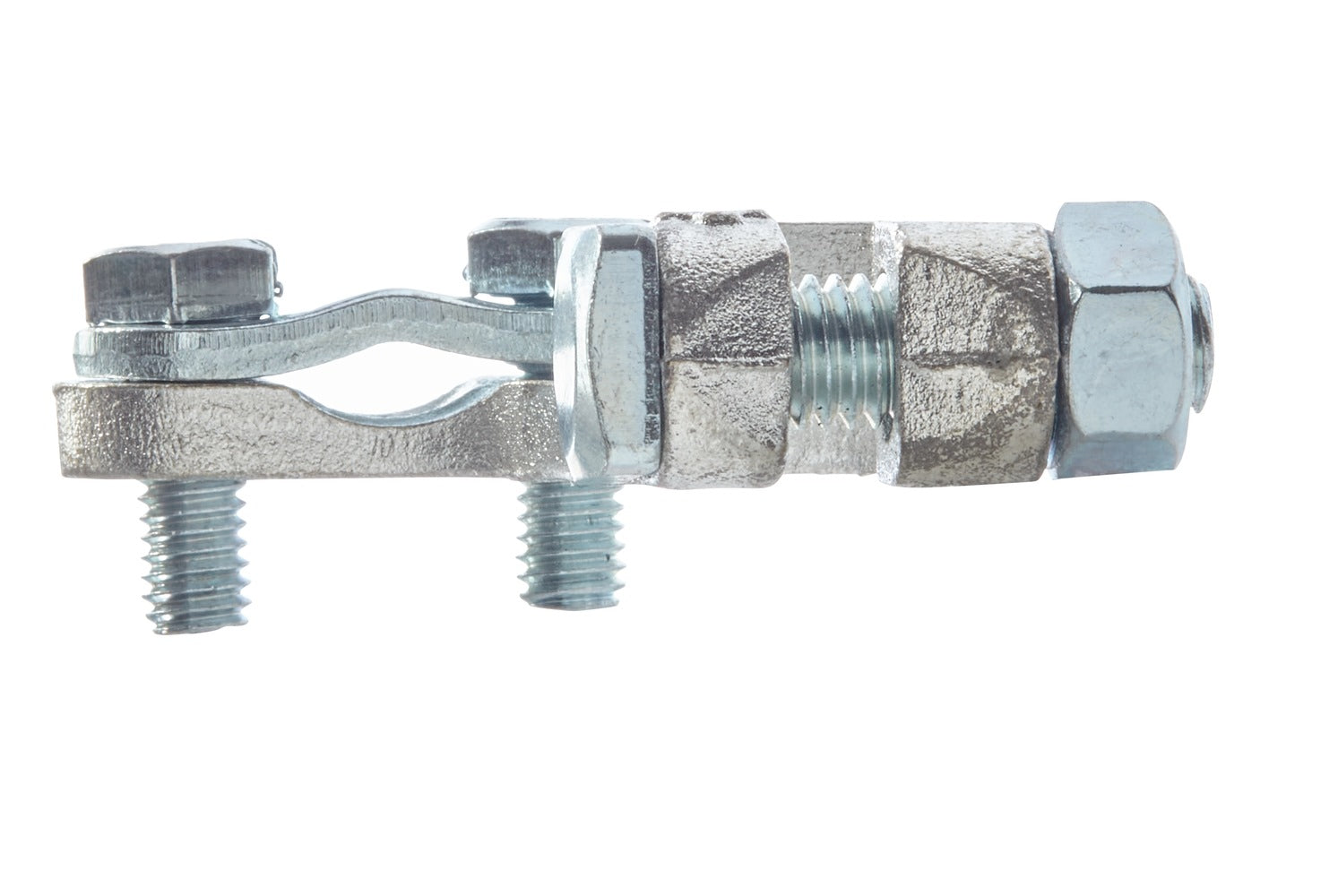

HELLA Battery Terminal Clamp - for positive terminal/Cast Part - Battery Terminal Ø: 1 8KX091451-031

Battery Terminal Clamp - for positive terminal/Cast Part - Battery Terminal Ø: 17.5mm - to: 70mm² - Quantity: 1

Whether as a spare part or as an original equipment component - HELLA universal clamps provide the best service with their high material hardness and corrosion resistance. The programme is strictly oriented towards the common standards for battery terminals.

• Assortment closely based on DIN 72331
• Variety of variants enables application in almost any installation space
• High material hardness and corrosion resistance

Item Attributes:
Press Plate Design (battery terminal clamp): Smooth
Battery Terminal Ø: 17.5 mm
Voltage from: 12 V
Voltage to: 24 V
Material: Brass
Surface: Tin-plated
Colour: grey
similar DIN standards (battery terminal clamps): DIN 72332-1 (solder terminals)
Connector/Clamp: with single-sided mounting of terminal post screw
Battery Terminal Clamp Type: for positive terminal / Cast Part
to: 70 mm²
Shape: C Shape
Packaging: Blister
Fitting Position: right
Quantity: 1
Assembly by qualified personnel required!

OE references: FENDT X 830 020 010; FENDT X830020010; GENERAL MOTORS 90166273; HAKO 14 99501 9; HAKO 19-49501-9; JUNGHEINRICH 50149438; KNAUS 600094; KRONE 0944050/0; LANGENDORF 1134705; LIEBHERR 613201708; OPEL 90166273; SCHMITZ CARGOBULL 060457; TEREX 0448884
