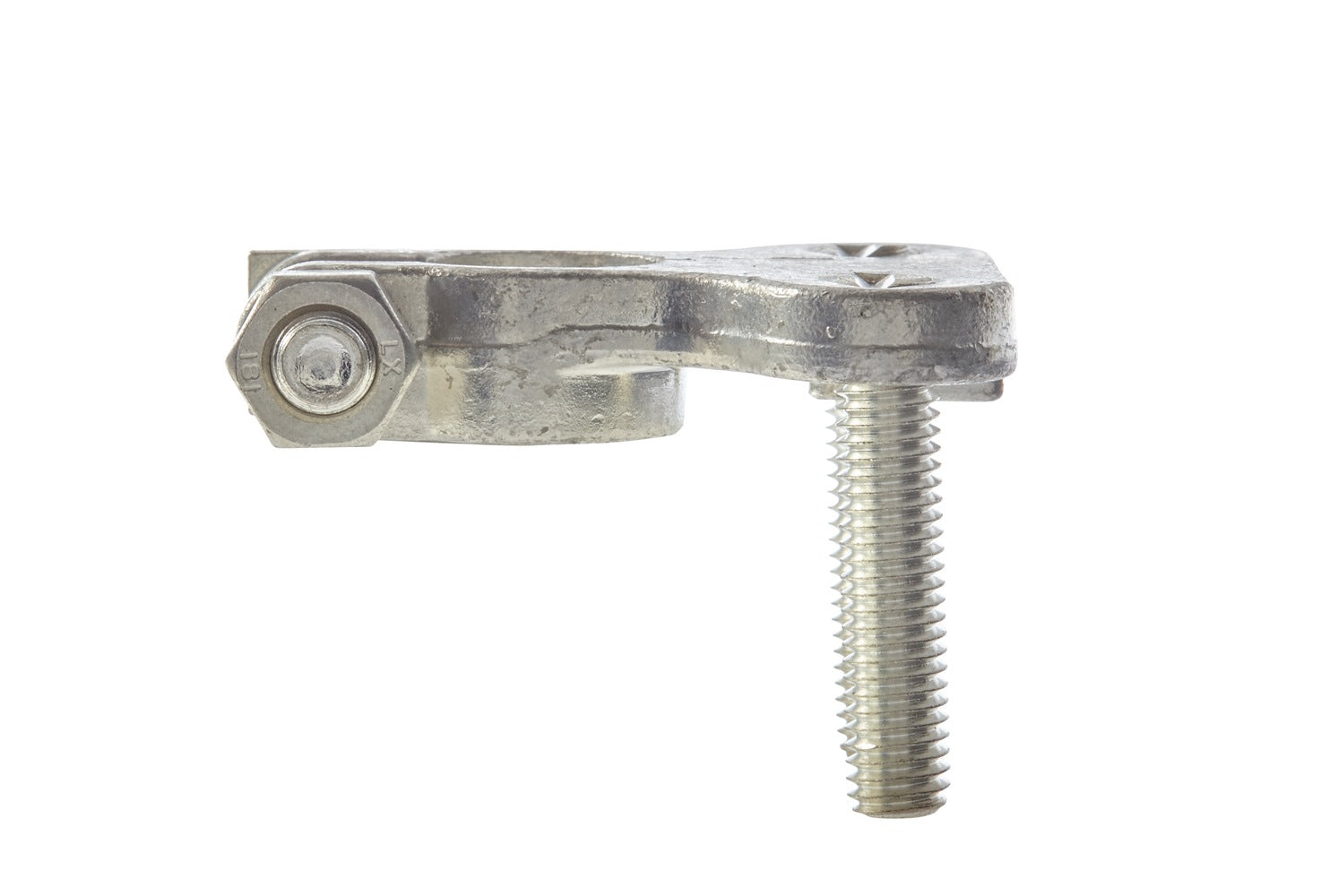

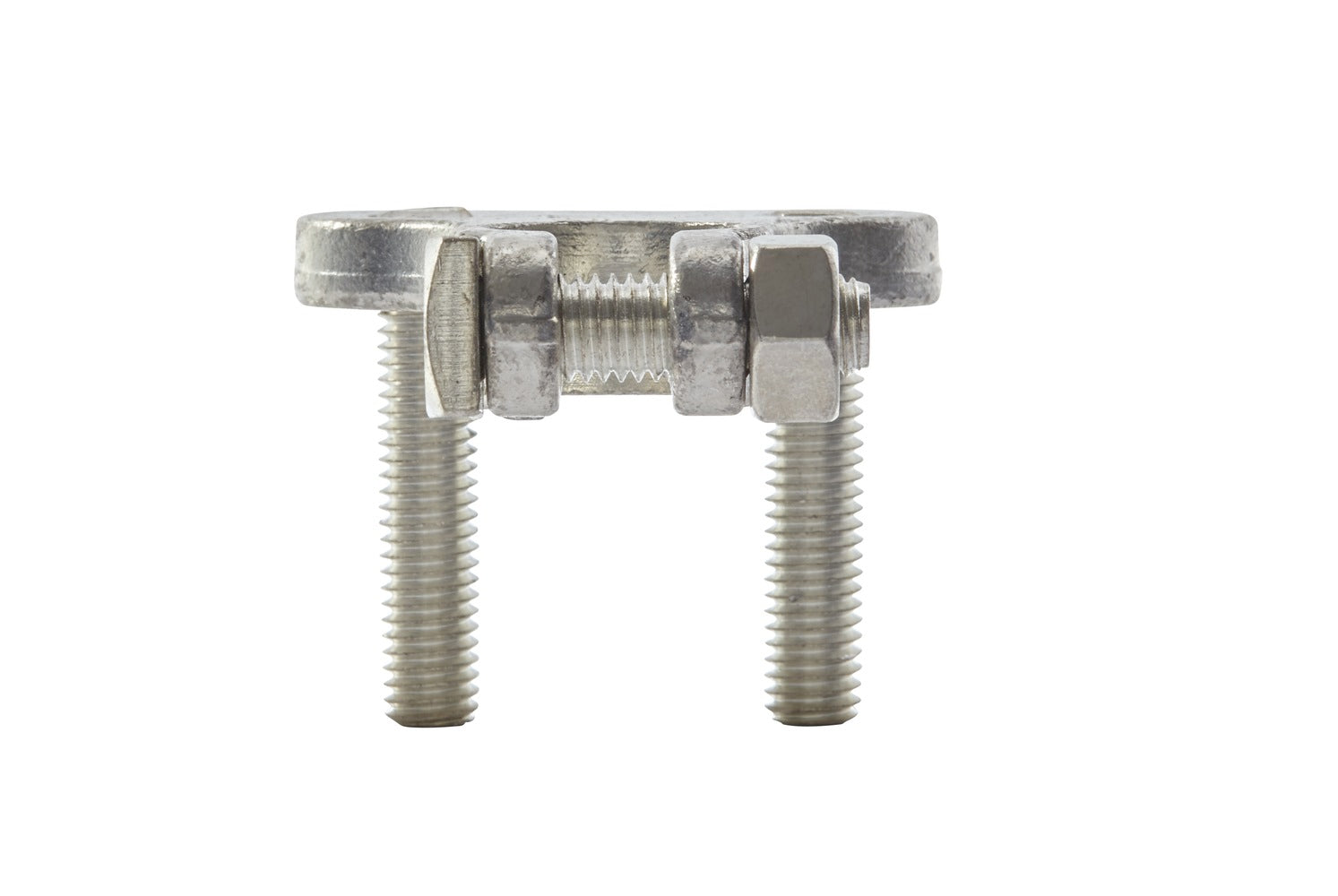

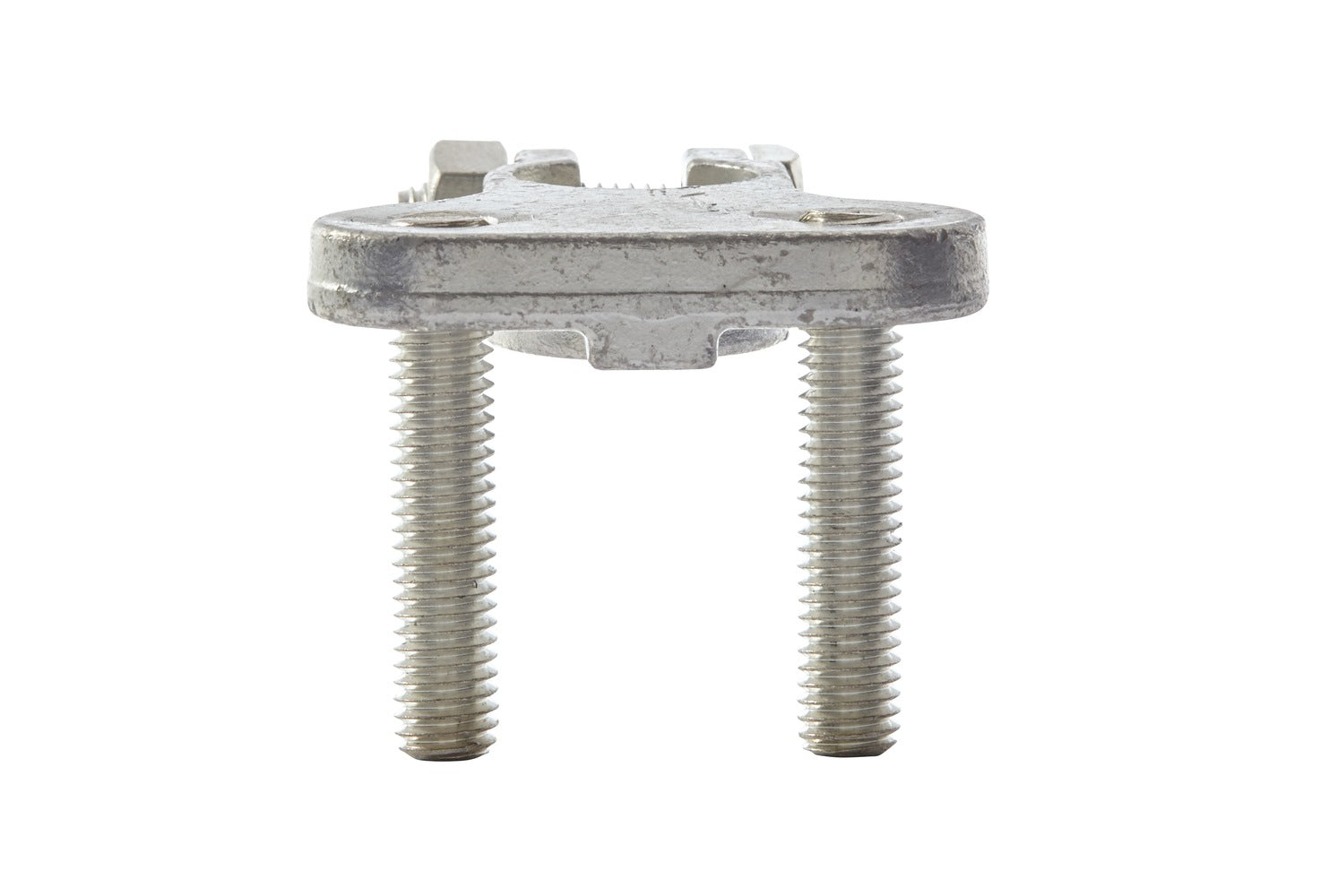

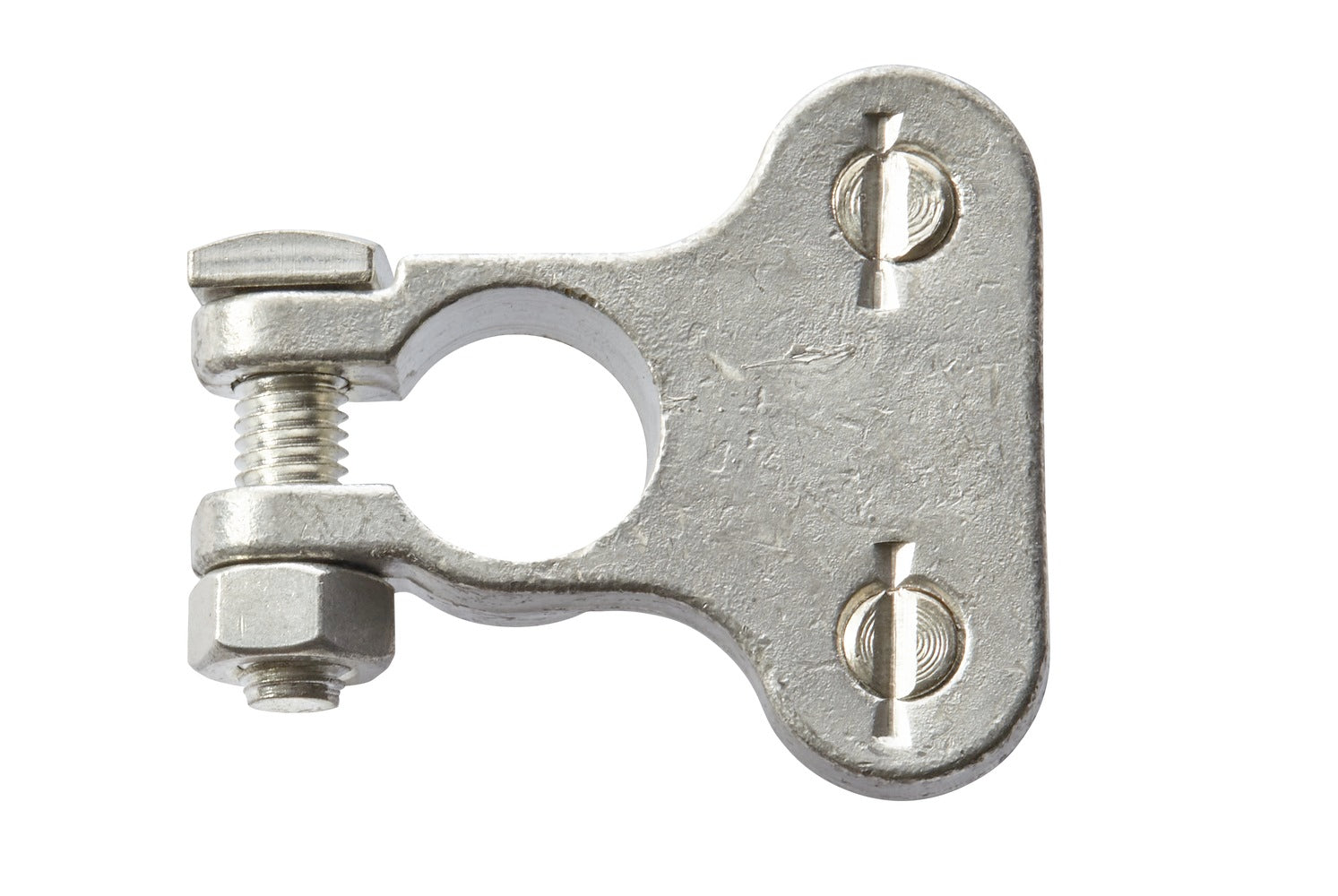

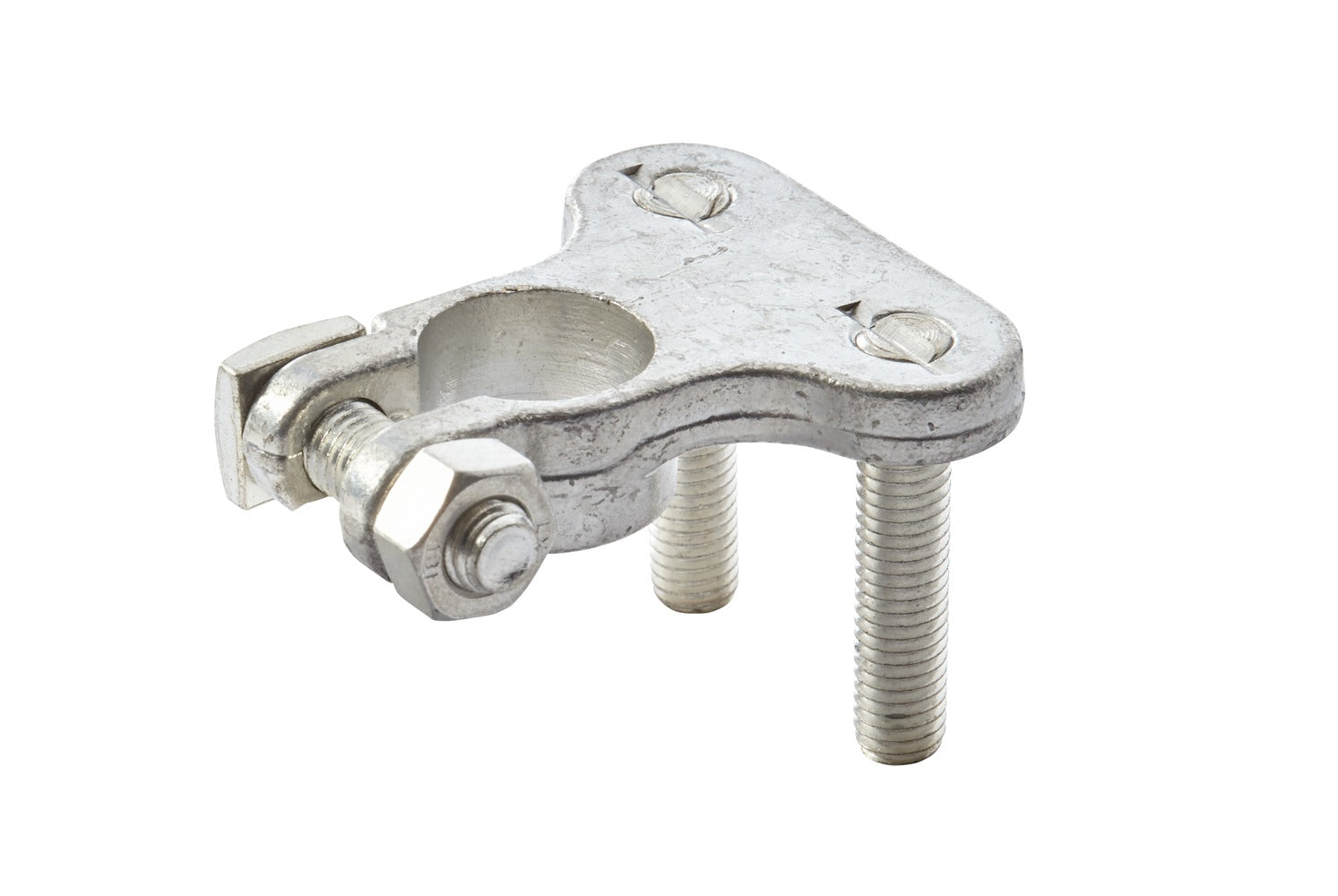

HELLA Battery Terminal Clamp - for positive terminal/Pressed Part - Battery Terminal Ø 8KX747875-011

Battery Terminal Clamp - for positive terminal/Pressed Part - Battery Terminal Ø: 17.5mm - Length: 30mm - Number of pins: 2 - Quantity: 1

Strip fuses - or blade fuses - essentially consist of a punched-out fuse plate strip. In addition to the open variant without jacket material, closed types with plastic insulating body or ceramic housing are also common. Due to the more solid design, these fuse types are mainly used to protect electrical systems with higher current & voltage ratings.

• Original equipment quality
• For use in conjunction with pole fuses and insulating nuts
• Different variants for a wide range of applications
• For protecting electrical systems against short circuits
• Height: 40mm

Item Attributes:
Length: 30 mm
Height: 40 mm
Thread Size: M8
Battery Terminal Ø: 17.5 mm
Voltage from: 12 V
Voltage to: 24 V
Material: Brass
Surface: Tin-plated
Colour: grey
Connector/Clamp: with single-sided mounting of terminal post screw
Battery Terminal Clamp Type: for positive terminal / Pressed Part
Number of pins: 2 -pin connector
Fitting Position: Centre
Quantity: 1
Assembly by qualified personnel required!

OE references: AMAZONE NZ109; KRONE 515030123; PUTZMEISTER 634713
