HELLA Brake Drum - 61007 - for e.g. FORD / MAZDA 8DT355300-161

Brake Drum - 61007 - for e.g. FORD / MAZDA

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. FORD / MAZDA (please check exact vehicle application)
• with wheel hub/without wheel bearing/with wheel studs
• Bolt Hole Circle Ø: 108mm
• Outer brake drum diameter: 216mm - Weight: 4.2kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

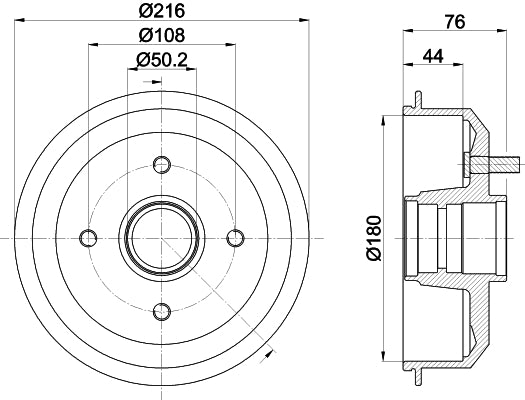

Item Attributes:
Fitting Position: Rear Axle
Outer brake drum diameter: 216 mm
Total brake drum height: 76 mm
Inner brake drum diameter: 180 mm
Inner brake drum height: 44 mm
max. brake drum reboring dimension: 181 mm
Num. of holes: 4
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 50.2 mm
Wheel Bolt Bore Ø: 12.7 mm
Supplementary Article/Supplementary Info 2: without wheel bearing / with wheel studs / with wheel hub
Weight: 4.2 kg
Assembly by qualified personnel required!

OE references: FORD 1 045 392; FORD 1 045 654; FORD 3052385; FORD 4 034 886; FORD 6 176 743; FORD 6 492 327; FORD 6 560 026; FORD 6 920 710; FORD 7 296 356; FORD 89FB1113AD; FORD 96FB1113AB; FORD 97FB1113AA; FORD 97FB1113BA; FORD 98FB1113AA; FORD ASIA & OCEANIA 1 045 392; FORD ASIA & OCEANIA 1 045 654; FORD ASIA & OCEANIA 4 034 886; FORD ASIA & OCEANIA 6 176 743; FORD ASIA & OCEANIA 6 492 327; FORD ASIA & OCEANIA 6 560 026; FORD ASIA & OCEANIA 6 920 710; FORD ASIA & OCEANIA 7 296 356; FORD ASIA & OCEANIA 96FB1113AB; FORD ASIA & OCEANIA 97FB1113AA
