HELLA Brake Drum - 61239 - for e.g. OPEL / SUZUKI / VAUXHALL 8DT355300-381

Brake Drum - 61239 - for e.g. OPEL / SUZUKI / VAUXHALL

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. OPEL / SUZUKI / VAUXHALL (please check exact vehicle application)
• with wheel hub/without wheel bearing/without wheel studs
• Bolt Hole Circle Ø: 100mm
• Outer brake drum diameter: 208mm - Weight: 4kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

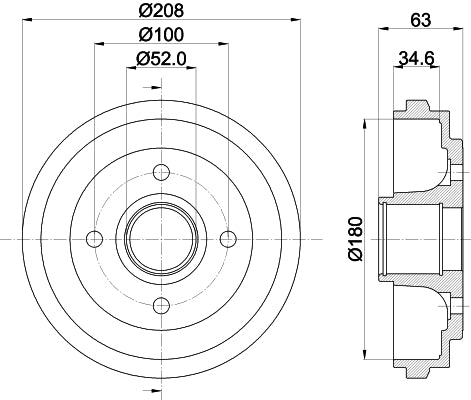

Item Attributes:
Fitting Position: Rear Axle
Outer brake drum diameter: 208 mm
Total brake drum height: 63 mm
Inner brake drum diameter: 180 mm
Inner brake drum height: 35 mm
max. brake drum reboring dimension: 182 mm
Num. of holes: 4
Bolt Hole Circle Ø: 100 mm
Centering Diameter: 52 mm
Wheel Bolt Bore Ø: 12 mm
Supplementary Article/Supplementary Info 2: without wheel studs / without wheel bearing / with wheel hub
Weight: 4 kg
Assembly by qualified personnel required!

OE references: NISSAN 432004A00A; NISSAN 432004A00B; OPEL 47 04 579; OPEL 47 04 595; OPEL 92 08 532; SUZUKI 4351183E00; SUZUKI 4351183E50; SUZUKI 43511M79G50; VAUXHALL 47 04 579; VAUXHALL 4704595; VAUXHALL 9208531; VAUXHALL 9208532
