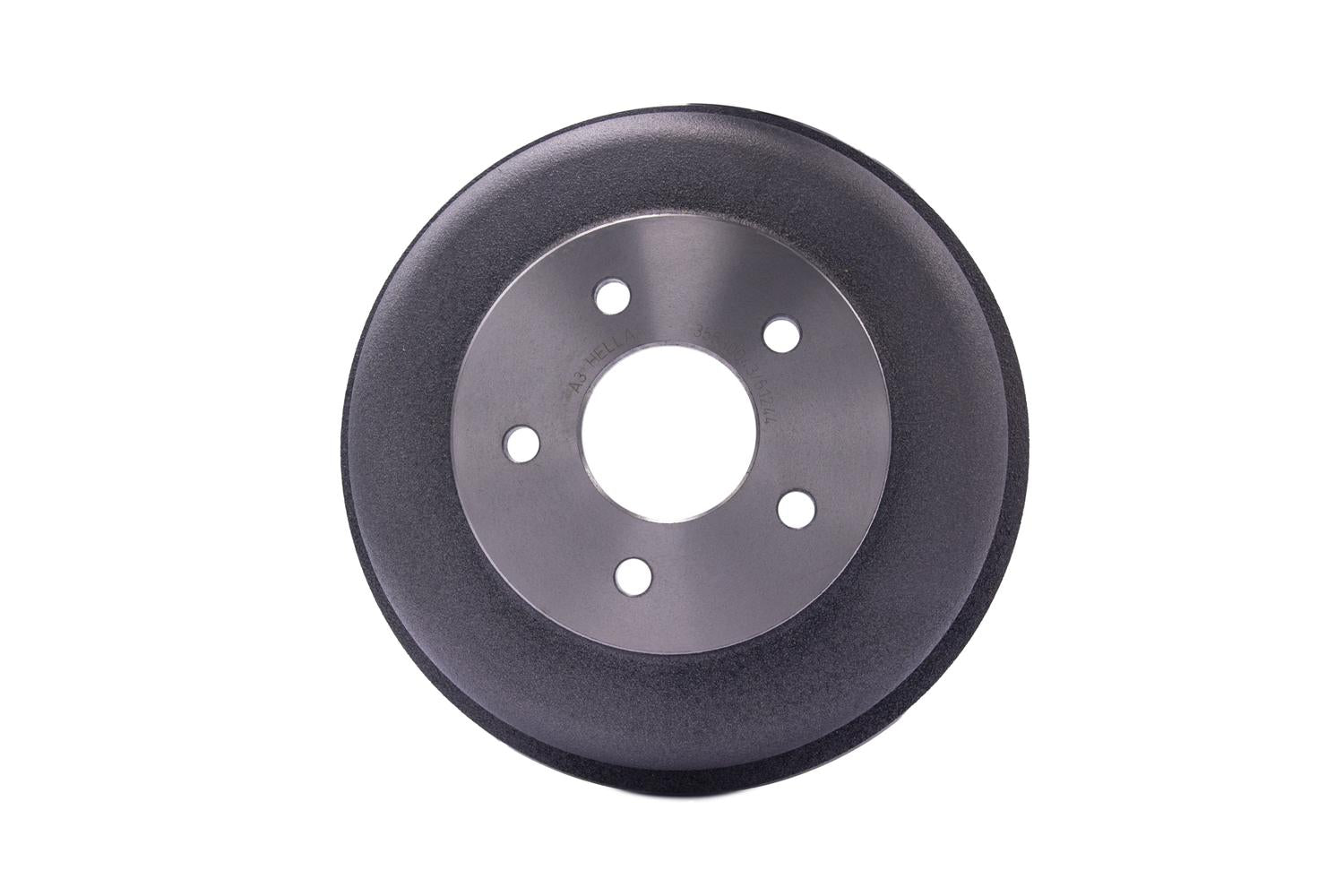

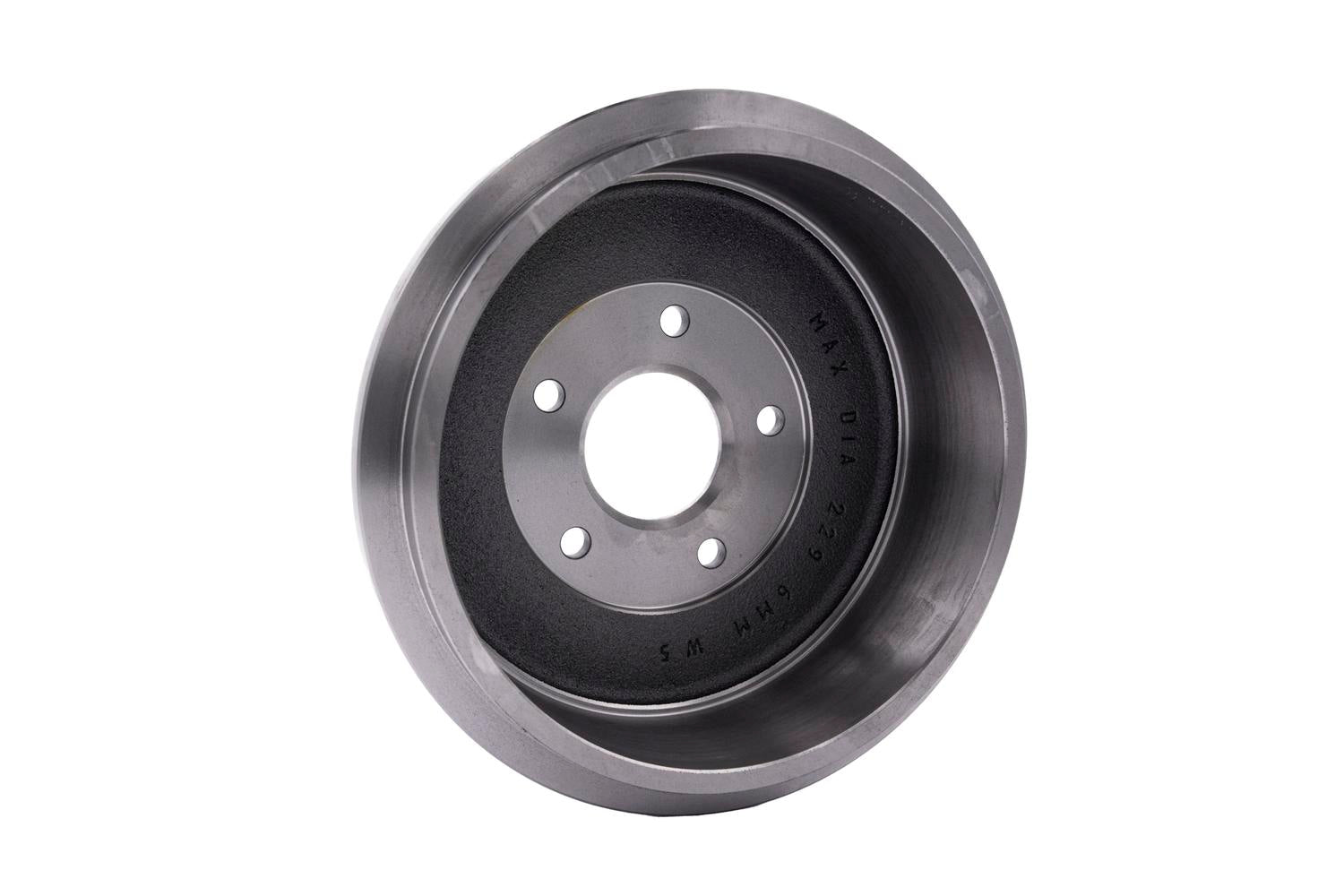

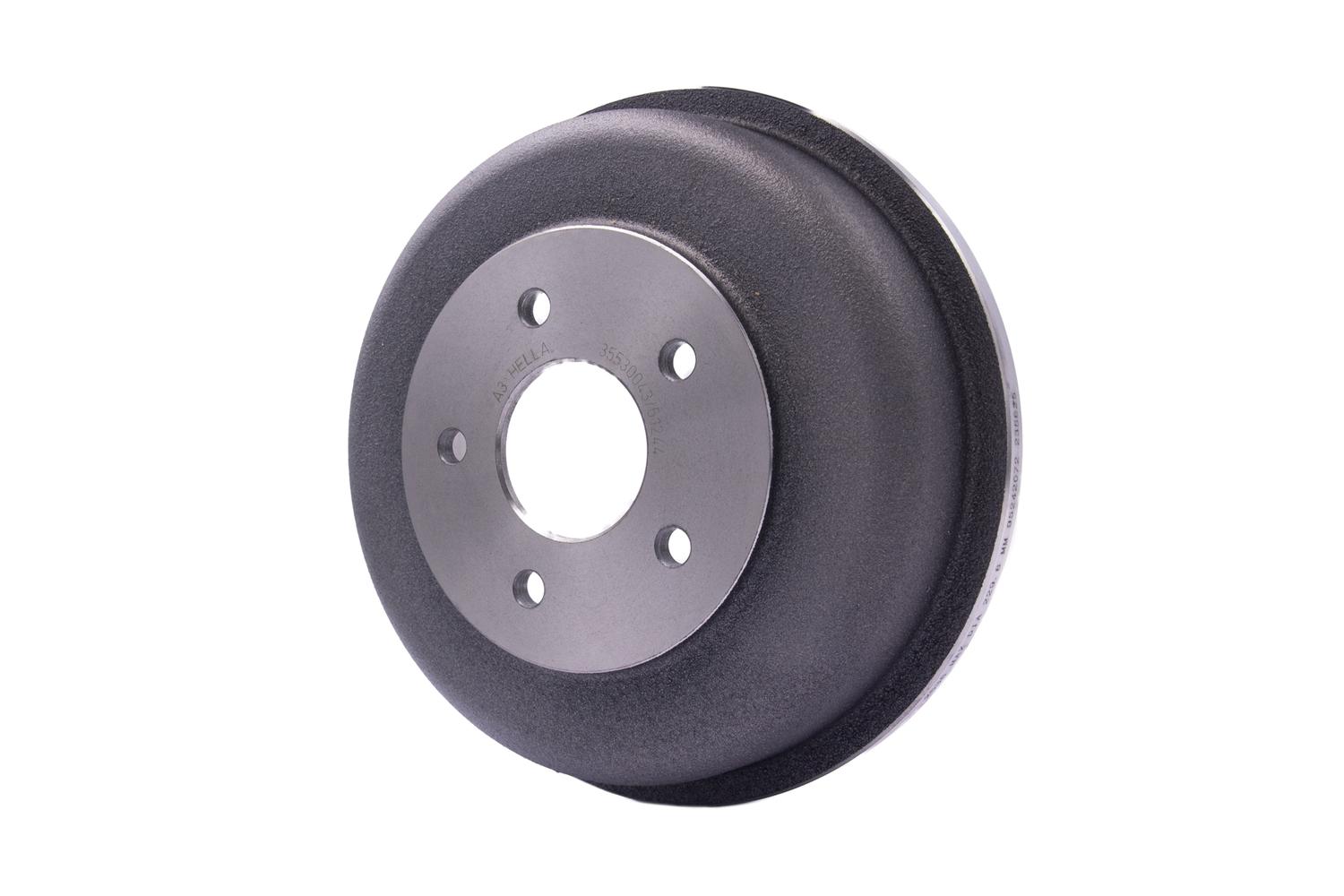

HELLA Brake Drum - 61244 - for e.g. FORD TRANSIT CONNECT (P65_, P70_, P80_) 8DT355300-431

Brake Drum - 61244 - for e.g. FORD TRANSIT CONNECT (P65_, P70_, P80_)

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. FORD TRANSIT CONNECT (P65_, P70_, P80_) (please check exact vehicle application)
• without wheel hub/without wheel bearing/without wheel studs
• Bolt Hole Circle Ø: 108mm
• Outer brake drum diameter: 279mm - Weight: 7.9kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

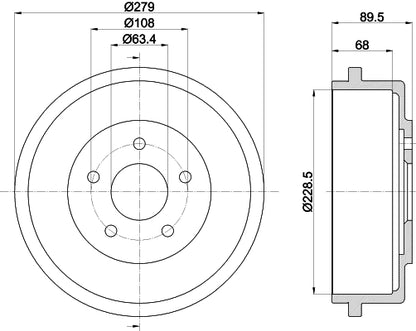

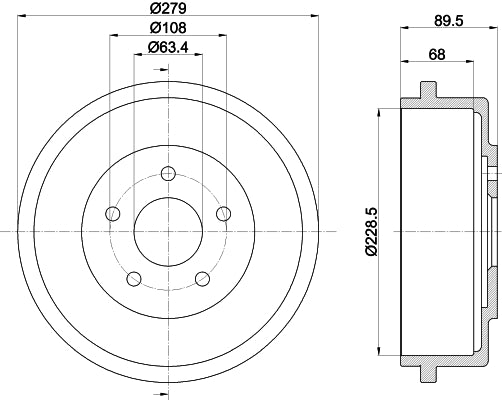

Item Attributes:
Fitting Position: Rear Axle
Outer brake drum diameter: 279 mm
Total brake drum height: 90 mm
Inner brake drum diameter: 229 mm
Inner brake drum height: 68 mm
max. brake drum reboring dimension: 229.6 mm
Num. of holes: 5
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 63.4 mm
Wheel Bolt Bore Ø: 12.9 mm
Supplementary Article/Supplementary Info 2: without wheel studs / without wheel hub / without wheel bearing
Weight: 7.9 kg
Assembly by qualified personnel required!

OE references: FORD 1 334 975; FORD 1 361 302; FORD 1 361 304; FORD 2T141126CA; FORD 2T141126CB; FORD 2T141126CD; FORD 2T141126DA; FORD 2T141126DB; FORD 2T141126DD; FORD 4 367 102; FORD 4 367 103; FORD 4 455 981; FORD 4 467 600; FORD 4 937 319; FORD 4 937 320; FORD 4937322; FORD 5 135 045; FORD AT161126AA
