HELLA Brake Drum - 61249 - for e.g. PEUGEOT 306 Hatchback 8DT355300-481

Brake Drum - 61249 - for e.g. PEUGEOT 306 Hatchback

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. PEUGEOT 306 Hatchback (please check exact vehicle application)
• with wheel hub/without wheel bearing/without wheel studs
• Bolt Hole Circle Ø: 108mm
• Outer brake drum diameter: 247mm - Weight: 6.9kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

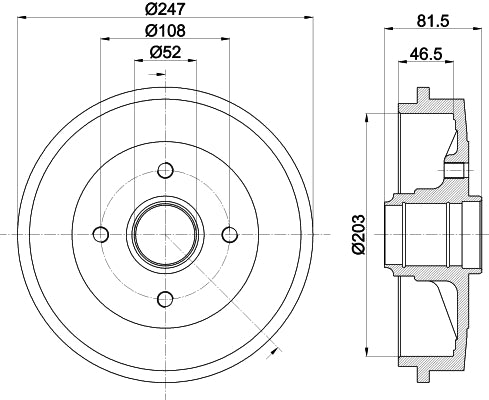

Item Attributes:
Fitting Position: Rear Axle
Outer brake drum diameter: 247 mm
Total brake drum height: 82 mm
Inner brake drum diameter: 203 mm
Inner brake drum height: 47 mm
max. brake drum reboring dimension: 204.5 mm
Num. of holes: 4
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 52 mm
Wheel Bolt Bore Ø: 12 mm
Supplementary Article/Supplementary Info 2: without wheel studs / with wheel hub / without wheel bearing
Weight: 6.9 kg
Assembly by qualified personnel required!

OE references: CITROËN 424740; PEUGEOT 4247.40
