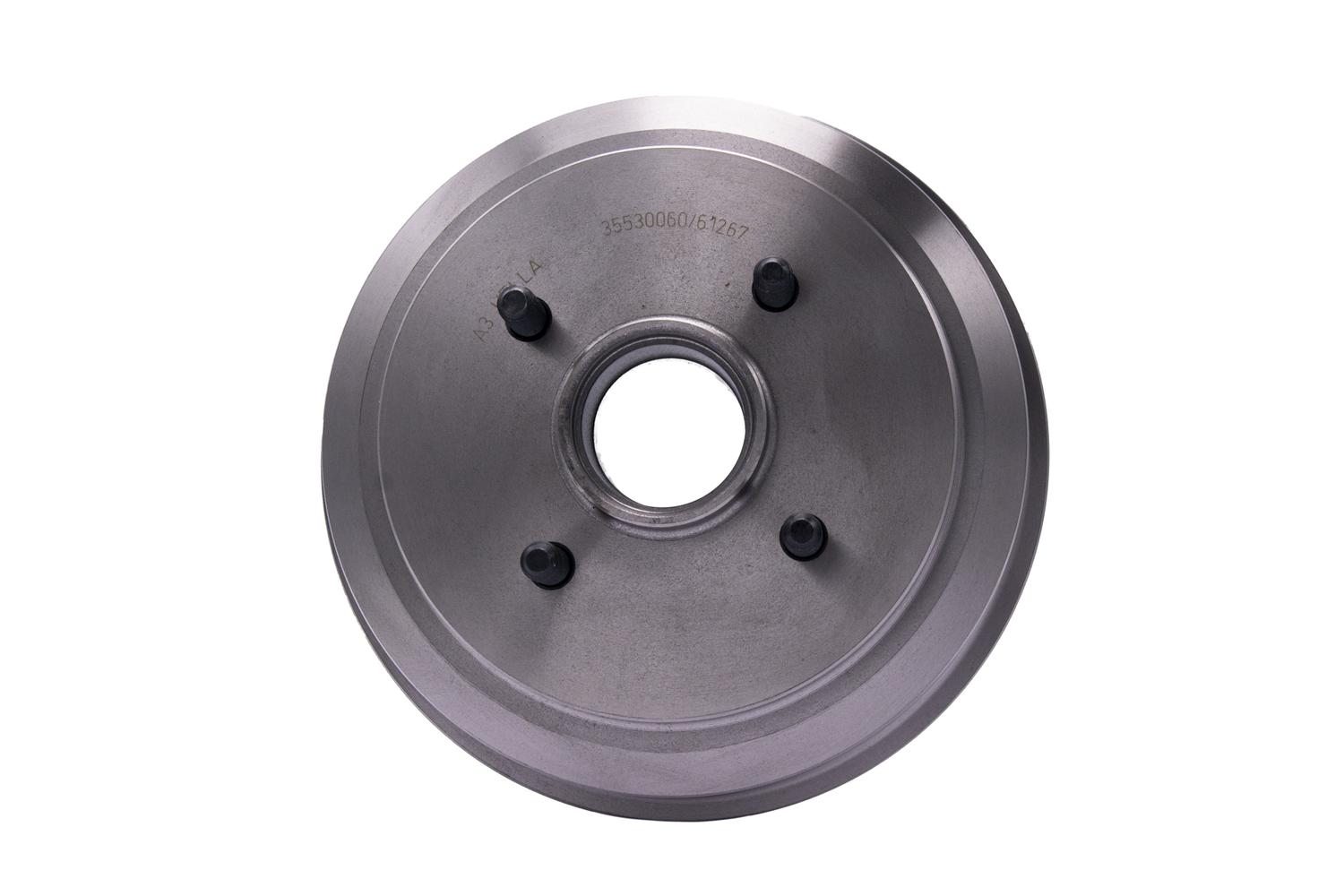

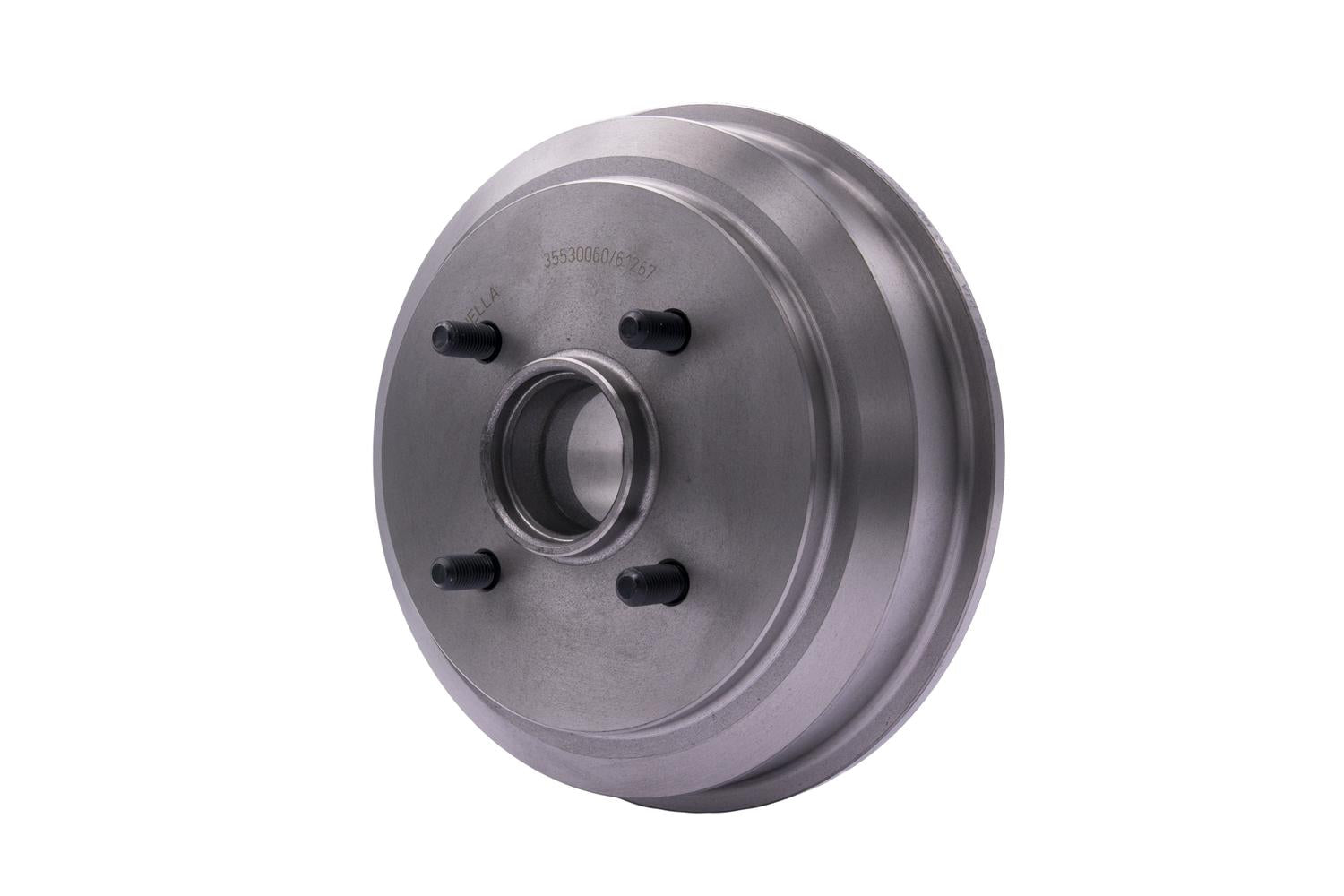

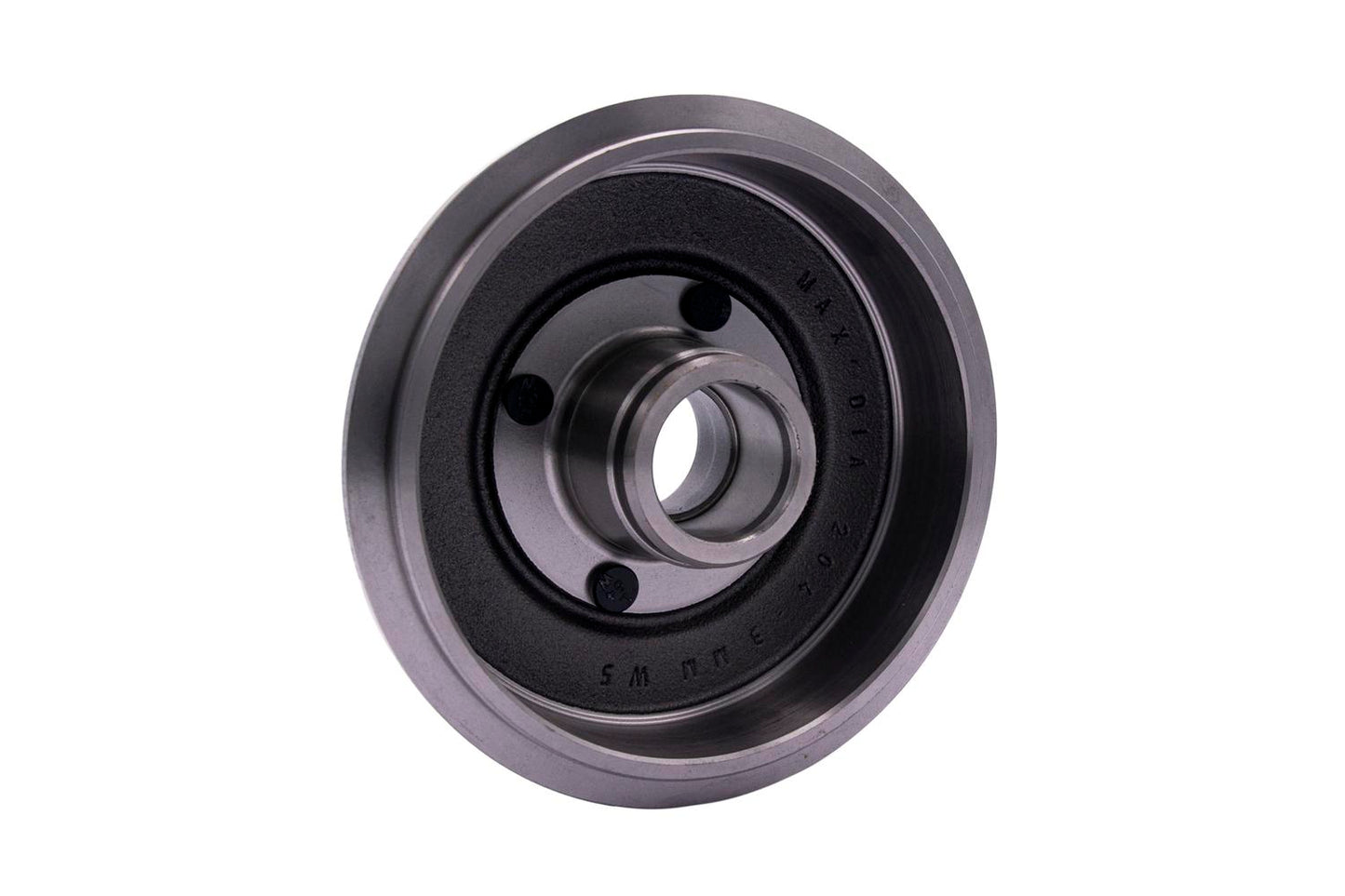

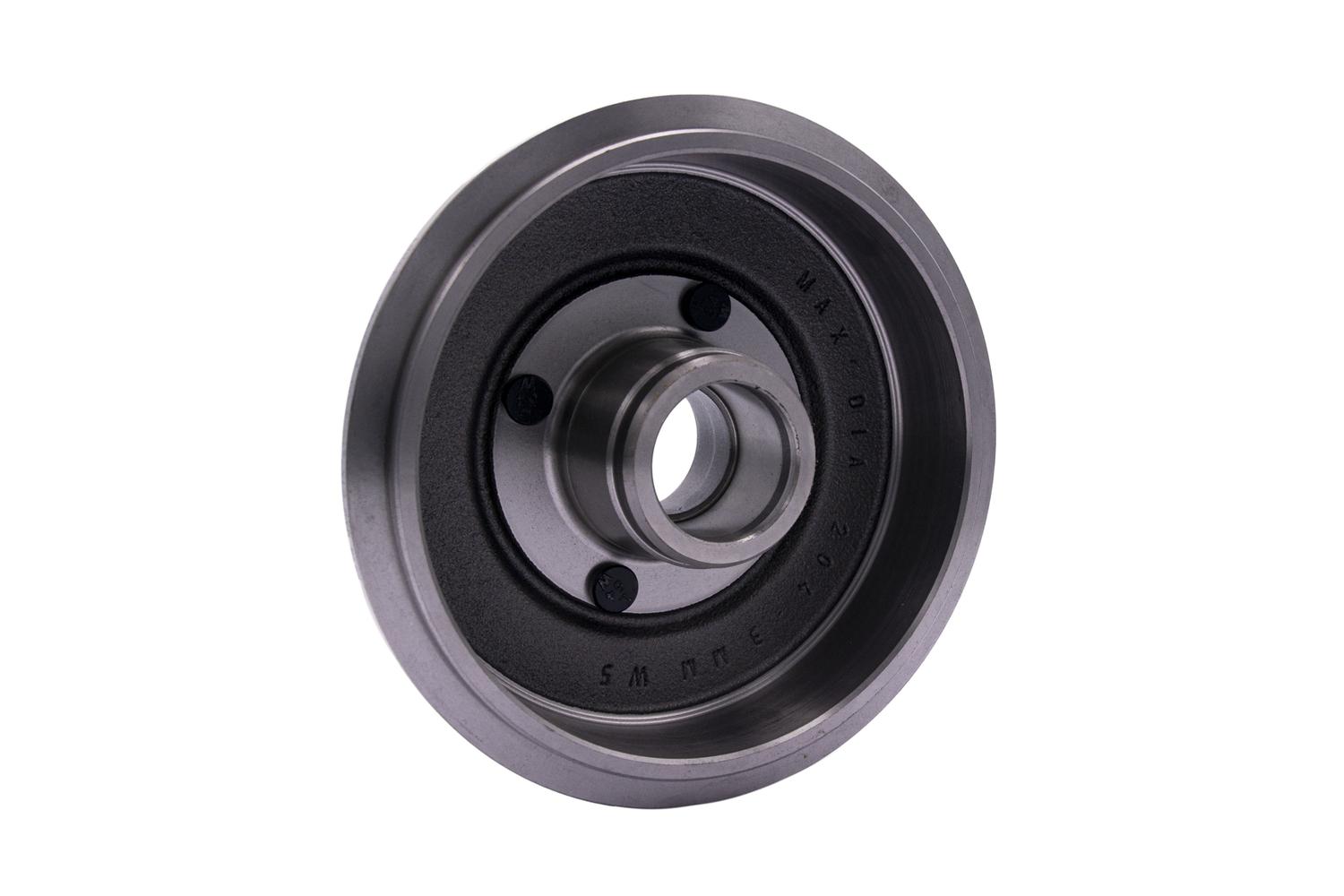

HELLA Brake Drum - 61267 - for e.g. FORD FIESTA Saloon 1.6 8DT355300-601

Brake Drum - 61267 - for e.g. FORD FIESTA Saloon 1.6

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. FORD FIESTA Saloon 1.6 (please check exact vehicle application)
• with wheel hub/without wheel bearing/with wheel studs
• Bolt Hole Circle Ø: 108mm
• Outer brake drum diameter: 243mm - Weight: 6.9kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

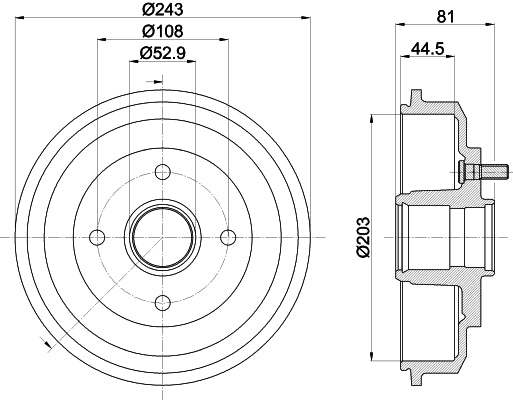

Item Attributes:
Fitting Position: Rear Axle
Outer brake drum diameter: 243 mm
Total brake drum height: 81 mm
Inner brake drum diameter: 203 mm
Inner brake drum height: 45 mm
max. brake drum reboring dimension: 204.3 mm
Num. of holes: 4
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 52.9 mm
Wheel Bolt Bore Ø: 12.4 mm
Supplementary Article/Supplementary Info 2: with wheel studs / without wheel bearing / with wheel hub
Weight: 6.9 kg
Assembly by qualified personnel required!

OE references: FORD 1 151 001; FORD 1 213 352; FORD 1 315 740; FORD 1 468 774; FORD 1 507 055; FORD 2S611113A1K; FORD 2S611113AG; FORD 2S611113AH; FORD 2S611113AJ; FORD 2S611113AK; FORD 4 329 656; FORD 4 345 314; FORD 4 376 842; FORD 7S611113AA; FORD 81AB1113AF; FORD VP2S6W1113AA; MAZDA DD3226250; MAZDA DD3226250A; MAZDA DG4026250
