HELLA Brake Drum - 61392 - for e.g. DACIA / LADA / NISSAN / RENAULT 8DT355303-111

Brake Drum - 61392 - for e.g. DACIA / LADA / NISSAN / RENAULT

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. DACIA / LADA / NISSAN / RENAULT (please check exact vehicle application)
• with wheel hub/with integrated magnetic sensor ring/with wheel bearing/without wheel studs
• Hole Pitch/Number: 04/04 - Bolt Hole Circle Ø: 100mm
• Outer brake drum diameter: 272mm - Weight: 10.6kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

Item Attributes:

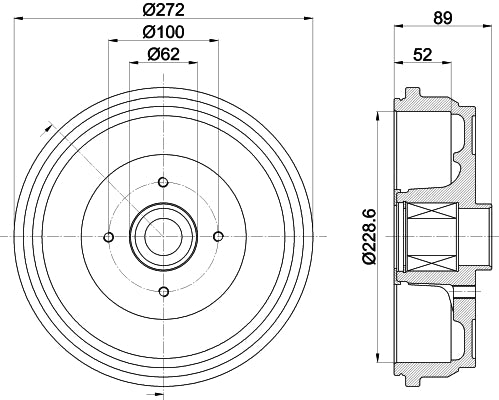

Outer brake drum diameter: 272 mm
Total brake drum height: 89 mm
Inner brake drum diameter: 229 mm
Inner brake drum height: 52 mm
max. brake drum reboring dimension: 229.5 mm
Hole Pitch/Number: 04/04
Bolt Hole Circle Ø: 100 mm
Centering Diameter: 62 mm
Stub Axle Ø: 30 mm
Wheel Bolt Bore Ø: 12 mm
Supplementary Article/Supplementary Info 2: with wheel hub / with wheel bearing / with integrated magnetic sensor ring / without wheel studs
Weight: 10.6 kg
Assembly by qualified personnel required!

OE references: DACIA 432001324R; DACIA 432001501R; DACIA 432004197R; DACIA 432005573R; DACIA 432007320R; DACIA 6001548985; DACIA 6001550813; DACIA 8200381151; MERCEDES-BENZ 4154230101; MERCEDES-BENZ A 415 423 01 01 ; RENAULT 432000505R; RENAULT 432007320R; RENAULT 6001550813; RENAULT 8200381151
