HELLA Brake Drum - 61417 - for e.g. RENAULT 8DT355302-761

Brake Drum - 61417 - for e.g. RENAULT

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. RENAULT (please check exact vehicle application)
• with wheel hub/with ABS sensor ring/with wheel bearing/without wheel studs
• Hole Pitch/Number: 04/04 - Bolt Hole Circle Ø: 100mm
• Outer brake drum diameter: 237mm - Weight: 6.2kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

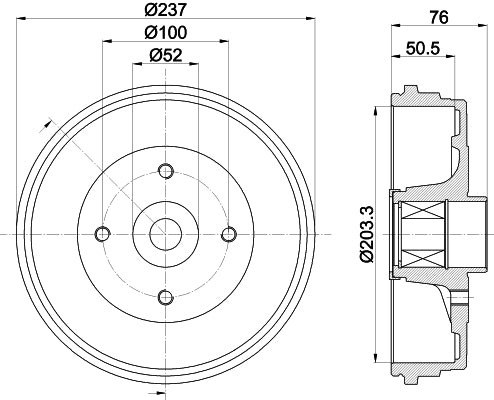

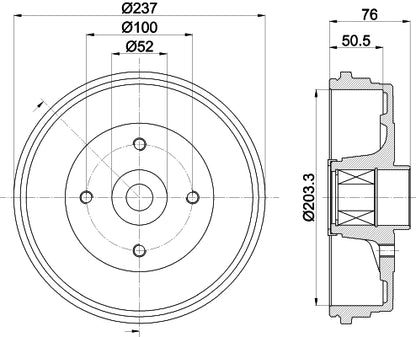

Item Attributes:
Outer brake drum diameter: 237 mm
Total brake drum height: 76 mm
Inner brake drum diameter: 203 mm
Inner brake drum height: 51 mm
max. brake drum reboring dimension: 204.5 mm
Hole Pitch/Number: 04/04
Bolt Hole Circle Ø: 100 mm
Centering Diameter: 52 mm
Stub Axle Ø: 25 mm
Wheel Bolt Bore Ø: 12 mm
Supplementary Article/Supplementary Info 2: with wheel hub / without wheel studs / with wheel bearing / with ABS sensor ring
Weight: 6.2 kg
Assembly by qualified personnel required!

OE references: RENAULT 432021782R; RENAULT 8200276843; RENAULT TRUCKS 8200276843; RENAULT TRUCKS 8200584555
