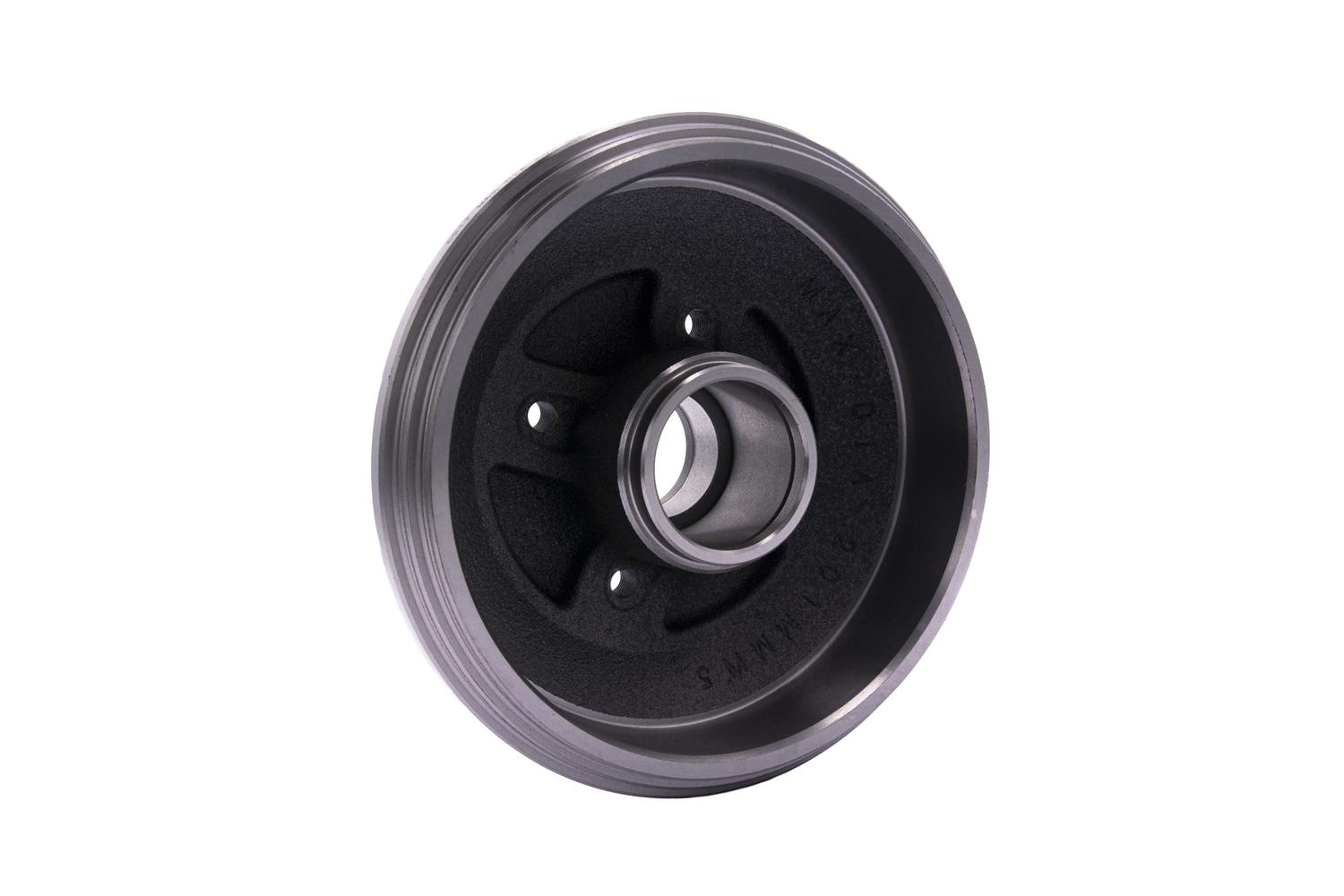

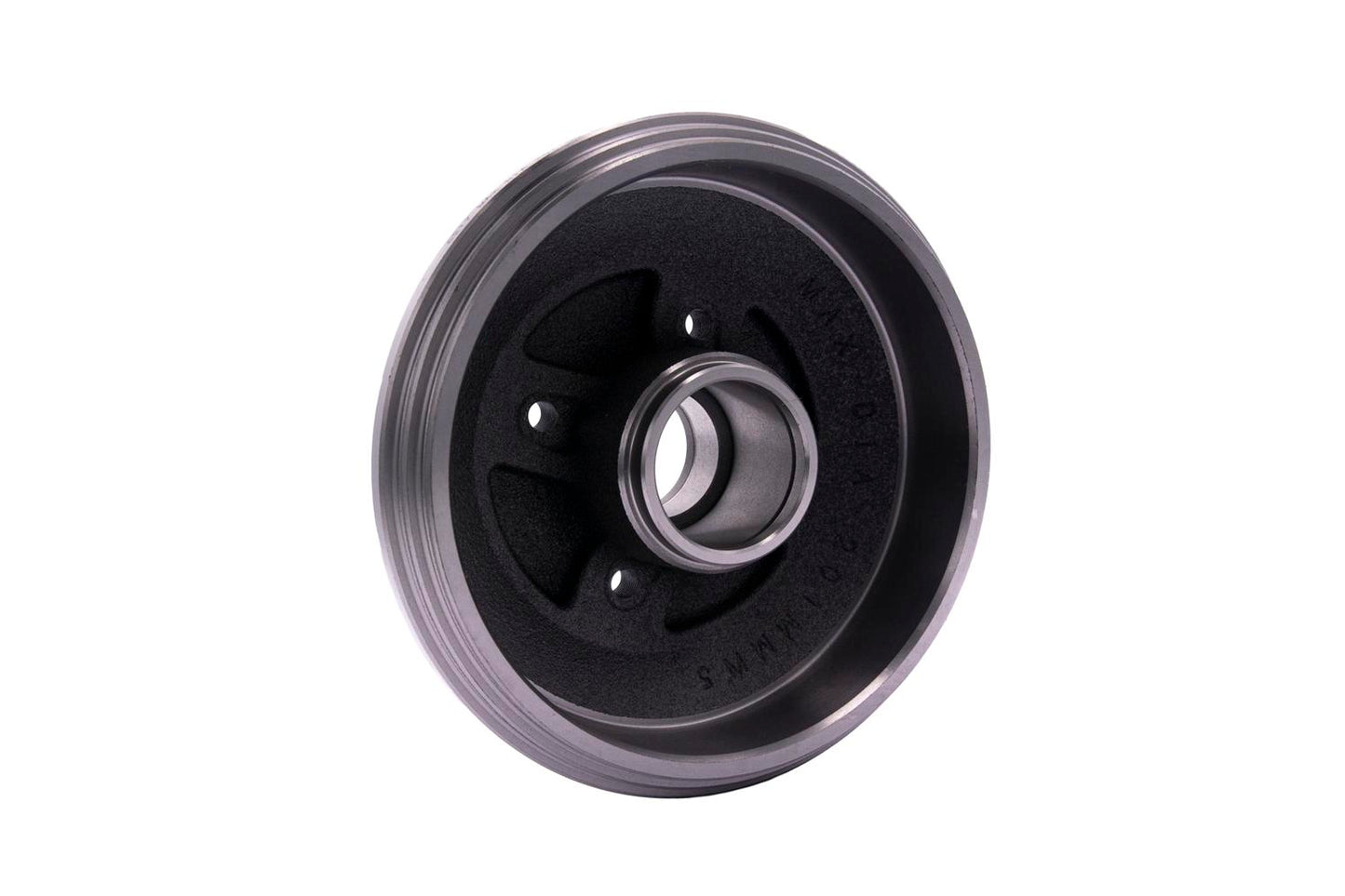

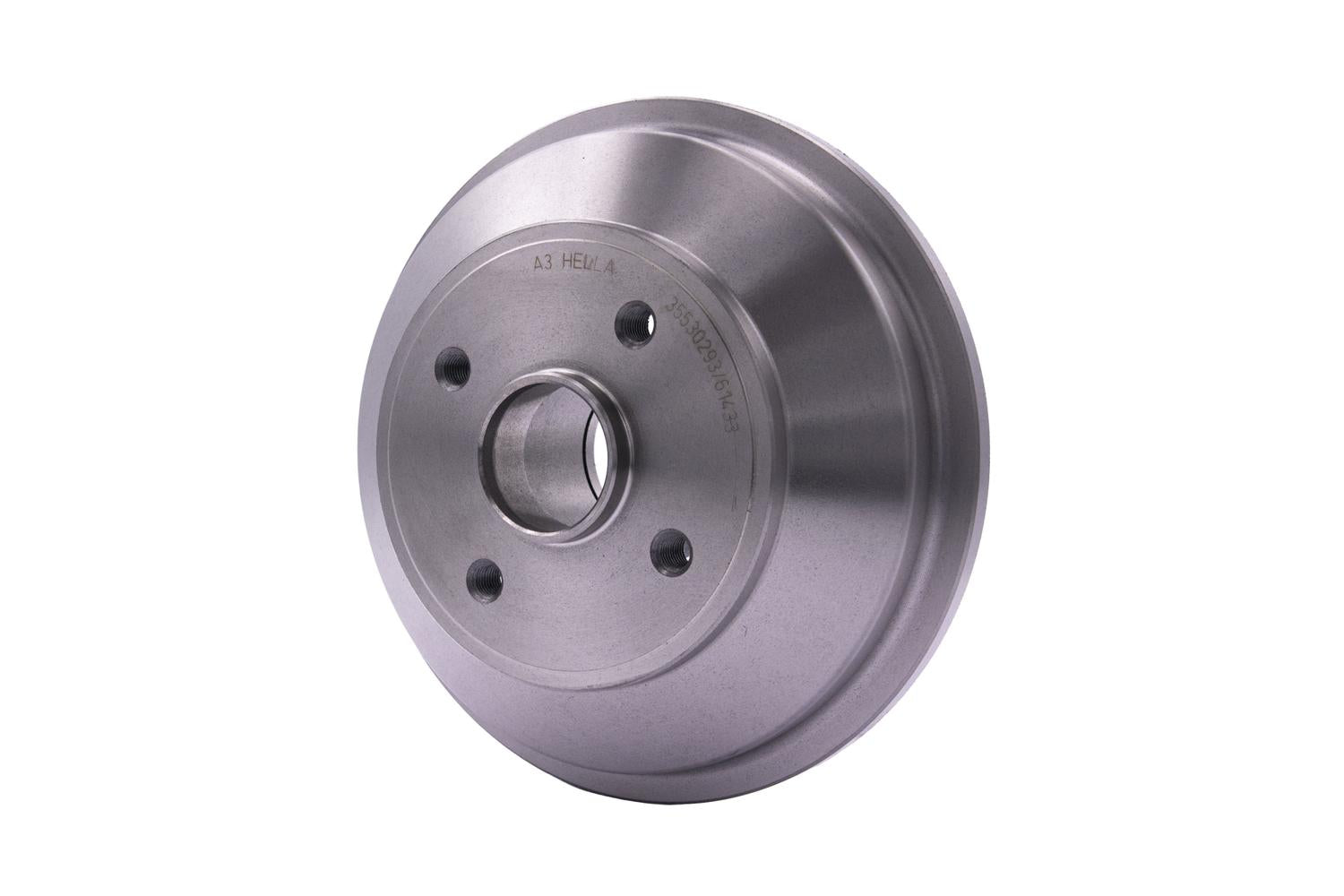

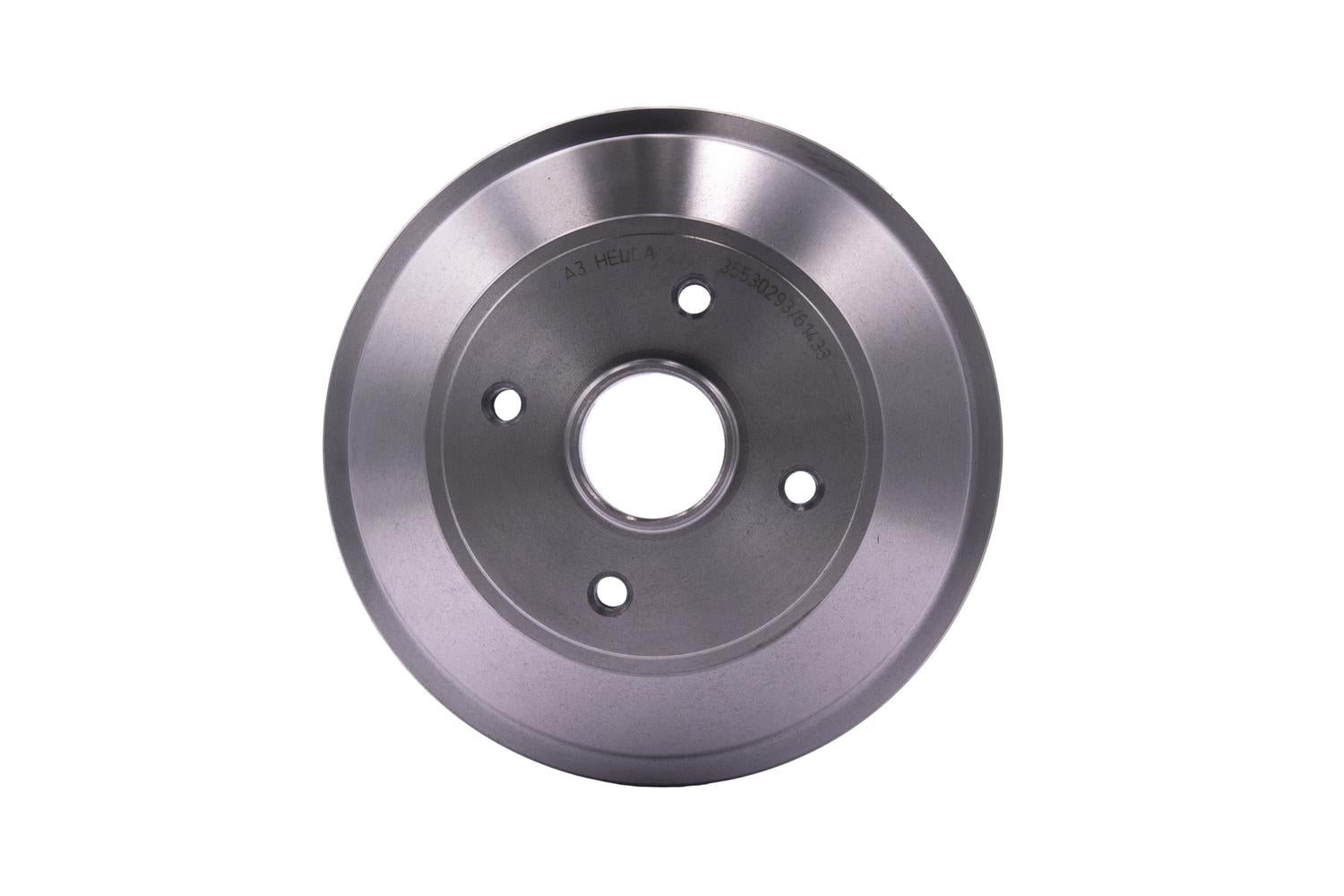

HELLA Brake Drum - 61433 - for e.g. SUZUKI 8DT355302-931

Brake Drum - 61433 - for e.g. SUZUKI

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. SUZUKI (please check exact vehicle application)
• with wheel hub/without wheel bearing/without wheel studs
• Hole Pitch/Number: 04/04 - Bolt Hole Circle Ø: 100mm
• Outer brake drum diameter: 238mm - Weight: 5.7kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

Item Attributes:

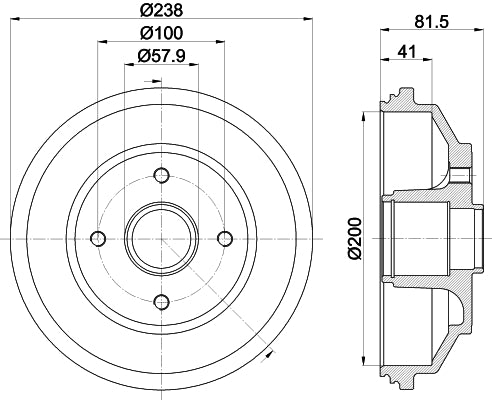

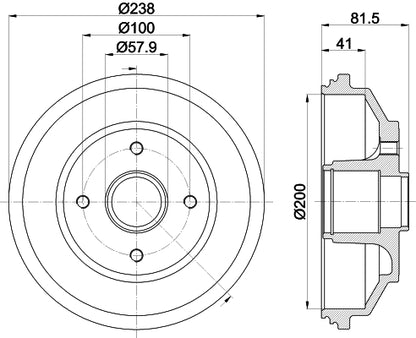

Outer brake drum diameter: 238 mm
Total brake drum height: 82 mm
Inner brake drum diameter: 200 mm
Inner brake drum height: 41 mm
max. brake drum reboring dimension: 201 mm
Hole Pitch/Number: 04/04
Bolt Hole Circle Ø: 100 mm
Centering Diameter: 57.9 mm
Wheel Bolt Bore Ø: 12 mm
Supplementary Article/Supplementary Info 2: without wheel studs / with wheel hub / without wheel bearing
Weight: 5.7 kg
Assembly by qualified personnel required!

OE references: OPEL 4708277; OPEL 93193100; SUBARU 4351162J00; SUBARU 4351163J10; SUZUKI 4351162J00; SUZUKI 4351162J00000; SUZUKI 4351162J10; SUZUKI 4351162J10000; SUZUKI 4351162J11; VAUXHALL 4708277; VAUXHALL 93193100
