HELLA Brake Drum - 62912 - for e.g. FORD ESCORT VI 8DT355301-361

Brake Drum - 62912 - for e.g. FORD ESCORT VI

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. FORD ESCORT VI (please check exact vehicle application)
• with wheel hub/without wheel bearing/with wheel studs
• Bolt Hole Circle Ø: 108mm
• Outer brake drum diameter: 239mm - Weight: 5.7kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

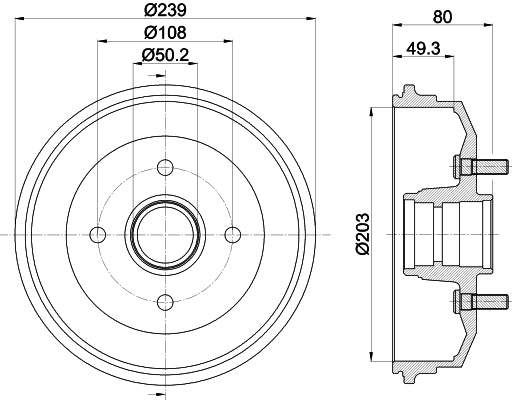

Item Attributes:
Fitting Position: Rear Axle
Outer brake drum diameter: 239 mm
Total brake drum height: 80 mm
Inner brake drum diameter: 203 mm
Inner brake drum height: 49 mm
max. brake drum reboring dimension: 204 mm
Num. of holes: 4
Bolt Hole Circle Ø: 108 mm
Centering Diameter: 50.2 mm
Wheel Bolt Bore Ø: 12.5 mm
Supplementary Article/Supplementary Info 2: with wheel studs / with wheel hub / without wheel bearing
Weight: 5.7 kg
Assembly by qualified personnel required!

OE references: FORD 1 011 288; FORD 1 057 814; FORD 1 499 062; FORD 7 296 355; FORD 7S511113BA; FORD 96AB1113AB; FORD 96AB1113AC; FORD YS6W1113BA
