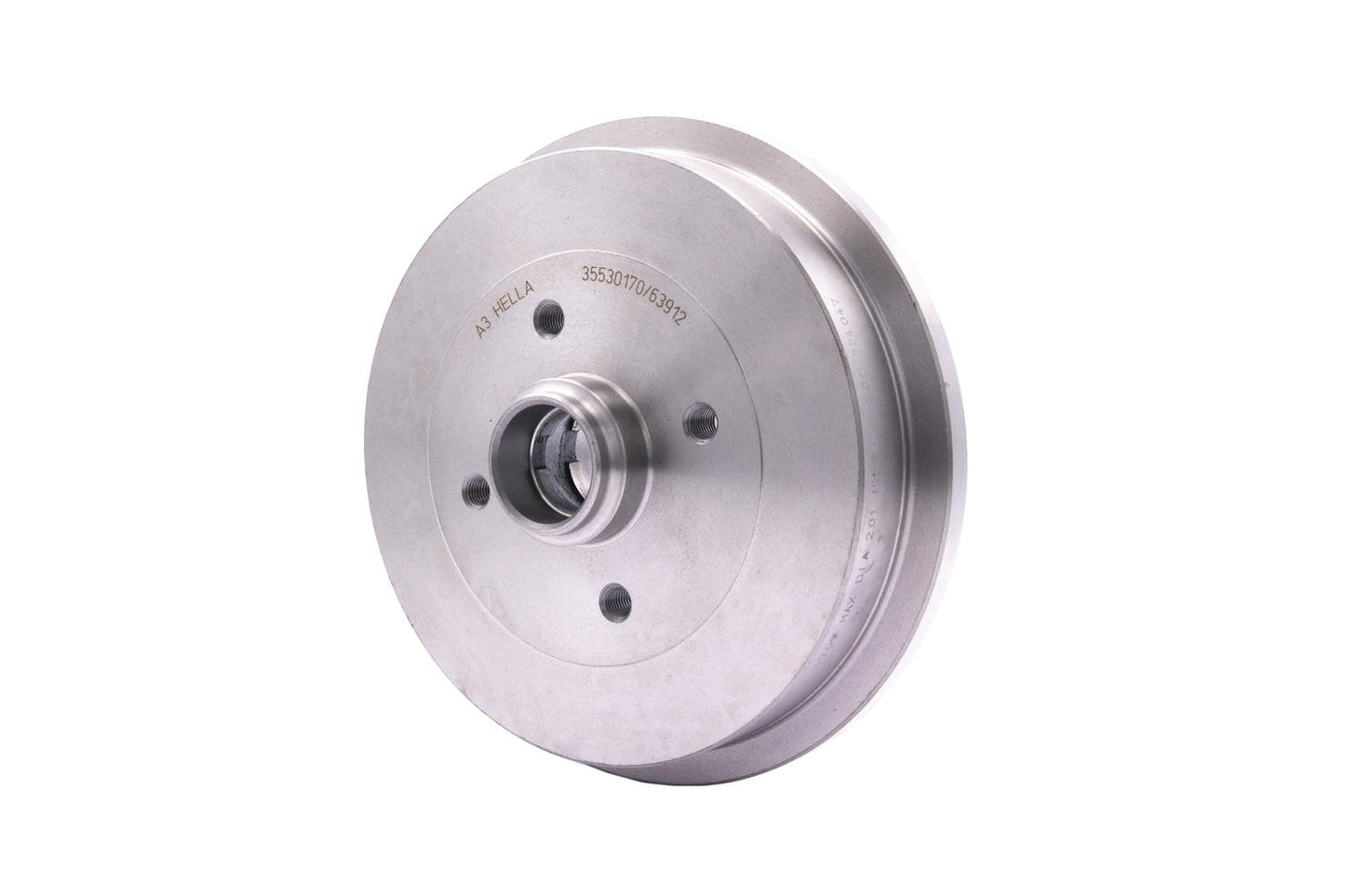

HELLA Brake Drum - 63912 - for e.g. AUDI / SEAT / SKODA / VOLKSWAGEN 8DT355301-701

Brake Drum - 63912 - for e.g. AUDI / SEAT / SKODA / VOLKSWAGEN

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

• fits e.g. AUDI / SEAT / SKODA / VOLKSWAGEN (please check exact vehicle application)
• with wheel hub/without wheel bearing/without wheel studs
• Bolt Hole Circle Ø: 100mm
• Outer brake drum diameter: 240mm - Weight: 5.5kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

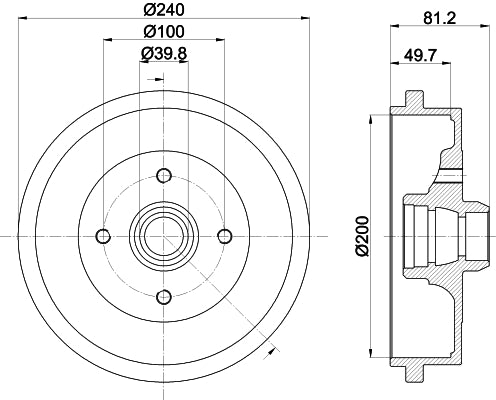

Item Attributes:
Fitting Position: Rear Axle
Outer brake drum diameter: 240 mm
Total brake drum height: 81 mm
Inner brake drum diameter: 200 mm
Inner brake drum height: 50 mm
max. brake drum reboring dimension: 201 mm
Num. of holes: 4
Bolt Hole Circle Ø: 100 mm
Centering Diameter: 39.8 mm
Wheel Bolt Bore Ø: 12 mm
Supplementary Article/Supplementary Info 2: with wheel hub / without wheel bearing / without wheel studs
Weight: 5.5 kg
Assembly by qualified personnel required!

OE references: AUDI 115 330 192; AUDI 191 501 615 A; AUDI 1H0 501 615 A; AUDI 1H0 501 615 B; AUDI 1H0 501 61A; AUDI 1H0 615 601 A; AUDI 1HO 501 615 A; AUDI 323 501 615; AUDI 331 501 615; AUDI 379 501 615 A; AUDI 5U0 501 615 B; AUDI 6U0 501 615; AUDI 6U0 501 615 A; AUDI 6U0 501 615 B; AUDI 841 501 615 A; SEAT 115 330 192; SEAT 191 501 615 A; SEAT 1H0 501 615 A; SEAT 1H0 501 615 B; SEAT 1H0 501 61A; SEAT 1H0 615 601 A; SEAT 1HO 501 615 A; SEAT 323 501 615; SEAT 331 501 615; SEAT 379 501 615 A; SEAT 5U0 501 615 B; SEAT 6U0 501 615; SEAT 6U0 501 615 A; SEAT 6U0 501 615 B; SEAT 841 501 615 A; SKODA 115 330 192; SKODA 191 501 615 A; SKODA 1H0 501 615 A; SKODA 1H0 501 615 B; SKODA 1H0 501 61A; SKODA 1H0 615 601 A; SKODA 1HO 501 615 A; SKODA 323 501 615; SKODA 331 501 615; SKODA 379 501 615 A; SKODA 5U0 501 615 B; SKODA 6U0 501 615; SKODA 6U0 501 615 A; SKODA 6U0 501 615 B; SKODA 841 501 615 A; VW 115 330 192; VW 191 501 615 A; VW 1H0 501 615 A; VW 1H0 501 615 B; VW 1H0 501 61A; VW 1H0 615 601 A; VW 1HO 501 615 A; VW 323 501 615; VW 331 501 615; VW 379 501 615 A; VW 5U0 501 615 B; VW 6U0 501 615; VW 6U0 501 615 A; VW 6U0 501 615 B; VW 841 501 615 A; VW (FAW) 115 330 192; VW (FAW) 191 501 615 A; VW (FAW) 1H0 501 615 A; VW (FAW) 1H0 501 61A; VW (FAW) 1H0 615 601 A; VW (FAW) 1H0501615B; VW (FAW) 1HO501615A; VW (FAW) 323 501 615; VW (FAW) 331 501 615; VW (FAW) 379 501 615 A; VW (FAW) 5U0 501 615 B; VW (FAW) 6U0 501 615; VW (FAW) 6U0 501 615 A; VW (FAW) 6U0 501 615 B; VW (FAW) 841 501 615 A
