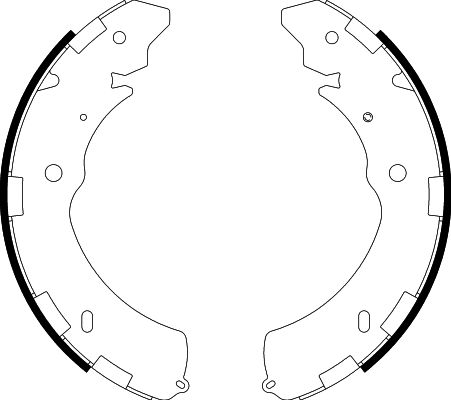

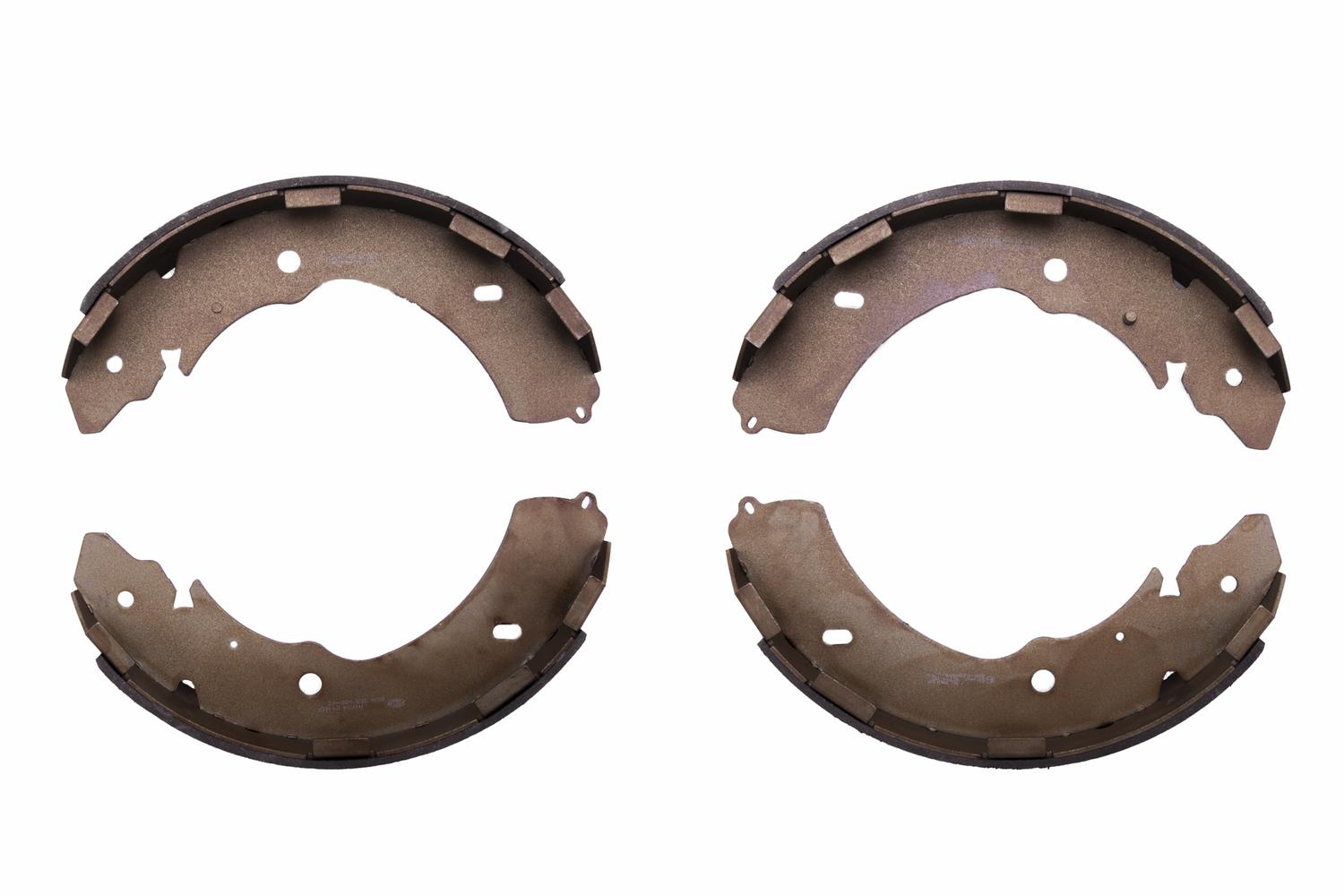

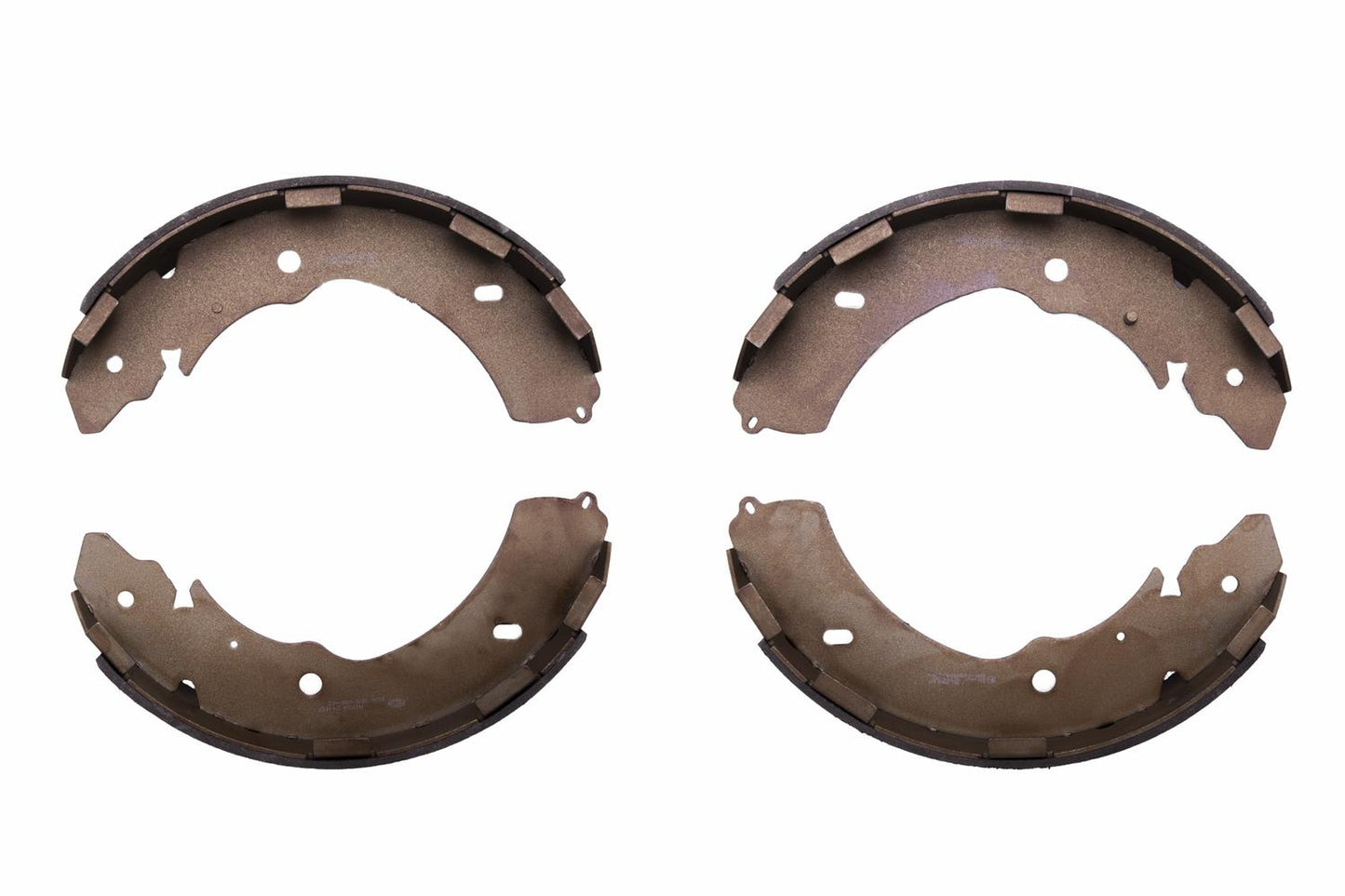

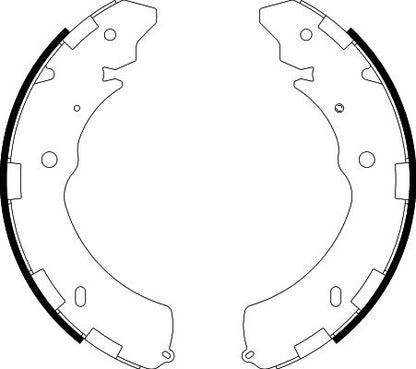

HELLA Brake Shoe Set - H1734 - for e.g. FIAT / ISUZU / MITSUBISHI 8DB355000-421

Brake Shoe Set - H1734 - for e.g. FIAT / ISUZU / MITSUBISHI

With over 400 brake shoes and more than 200 brake shoe kits, HELLA offers an impressive range of drum and hand brakes. Most of the brake shoe kits are already pre-assembled, thus guaranteeing quick, uncomplicated and safe installation.

• fits e.g. FIAT / ISUZU / MITSUBISHI (please check exact vehicle application)
• with accessories - without handbrake lever
• Thickness: 6.8mm - Width: 51mm - Friction Surface Width: 50mm - Weight: 3kg
• Brake shoes in premium quality
• Hella brake shoes far exceed the required specifications of the ECE R90 directive
• A large range of pre-assembled brake shoe kits guarantees quick and uncomplicated installation, which saves a great deal of time during the installation and/or mounting work
• Market coverage of > 92% of European vehicle stocks

Item Attributes:
Inner brake drum diameter: 295 mm
Width: 51 mm
Thickness: 6.8 mm
Friction Surface Width: 50 mm
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: without handbrake lever
Weight: 3 kg
Assembly by qualified personnel required!

OE references: FERRARI 600 0609 727; FIAT 6000609726; FIAT 6000609727; FIAT 6000609728; ISUZU 8979478020; ISUZU 97947802; MITSUBISHI 4600A106; MITSUBISHI 4600A122; MITSUBISHI 4600A198
