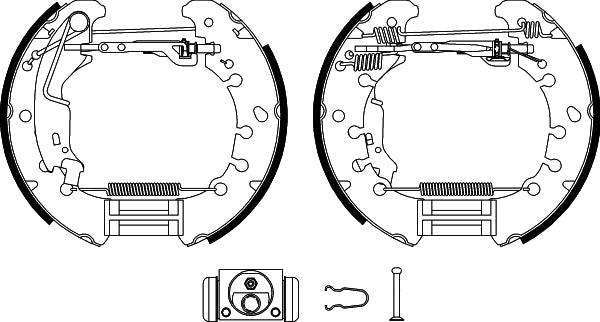

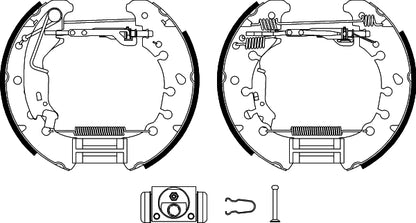

HELLA Brake Shoe Set - R1205 - for e.g. FIAT / LANCIA 8DB355004-881

Brake Shoe Set - R1205 - Brake System: Lockheed - for e.g. FIAT / LANCIA

With over 400 brake shoes and more than 200 brake shoe kits, HELLA offers an impressive range of drum and hand brakes. Most of the brake shoe kits are already pre-assembled, thus guaranteeing quick, uncomplicated and safe installation.

• fits e.g. FIAT / LANCIA (please check exact vehicle application) - Brake System: Lockheed

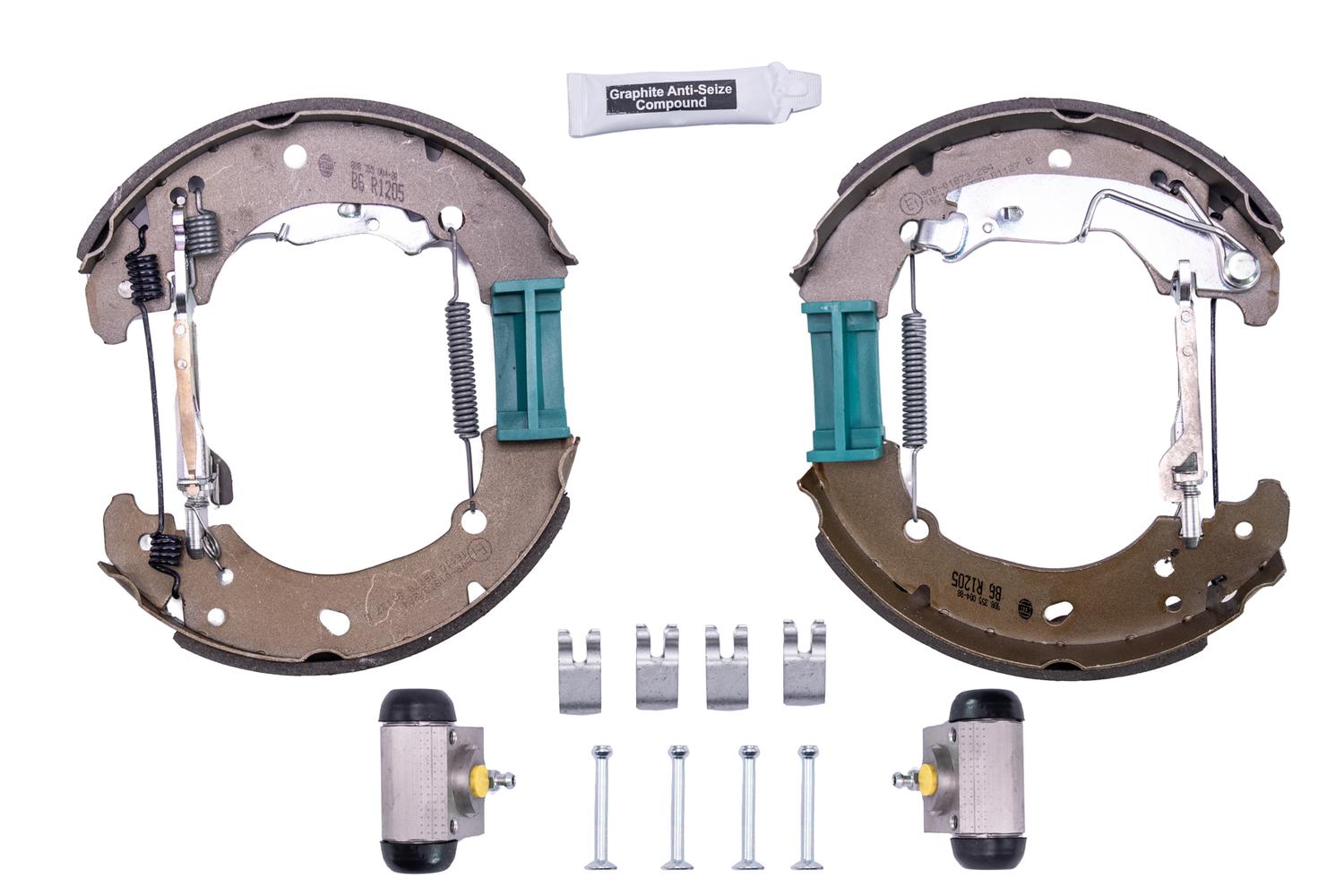

• with accessories/with wheel brake cylinder/with adjuster - with handbrake lever - Pre-assembled
• Thickness: 6mm - Width: 38mm - Friction Surface Width: 37mm - Bore Ø: 21mm - Weight: 2.16kg
• Brake shoes in premium quality
• Hella brake shoes far exceed the required specifications of the ECE R90 directive
• A large range of pre-assembled brake shoe kits guarantees quick and uncomplicated installation, which saves a great deal of time during the installation and/or mounting work
• Market coverage of > 92% of European vehicle stocks

Item Attributes:
Inner brake drum diameter: 203 mm
Width: 38 mm
Thickness: 6 mm
Friction Surface Width: 37 mm
Adjustment: with automatic adjustment
Supplementary Article/Supplementary Info: with wheel brake cylinder / with adjuster / with accessories
Bore Ø: 21 mm
Mounting Type: Pre-assembled
Brake System: Lockheed
Material: Aluminium
Supplementary Article/Supplementary Info 2: with handbrake lever
Weight: 2.16 kg
Assembly by qualified personnel required!

OE references: FERRARI 773 6228 5; FERRARI 773 6244 9; FIAT 77362285; FIAT 77362449; LANCIA 77362285; LANCIA 77362449
