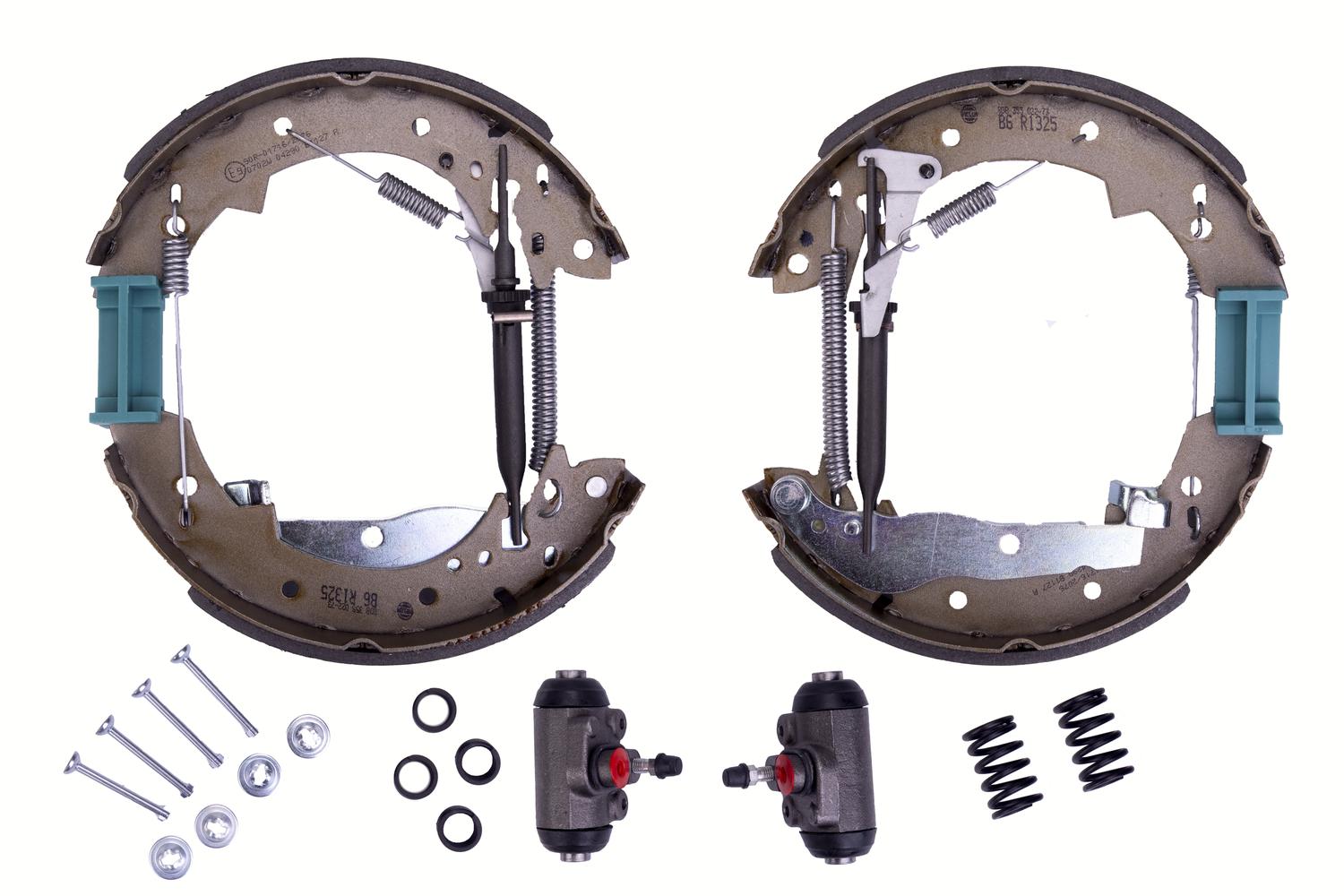

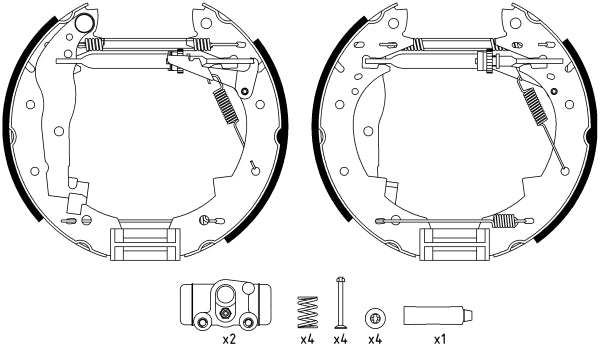

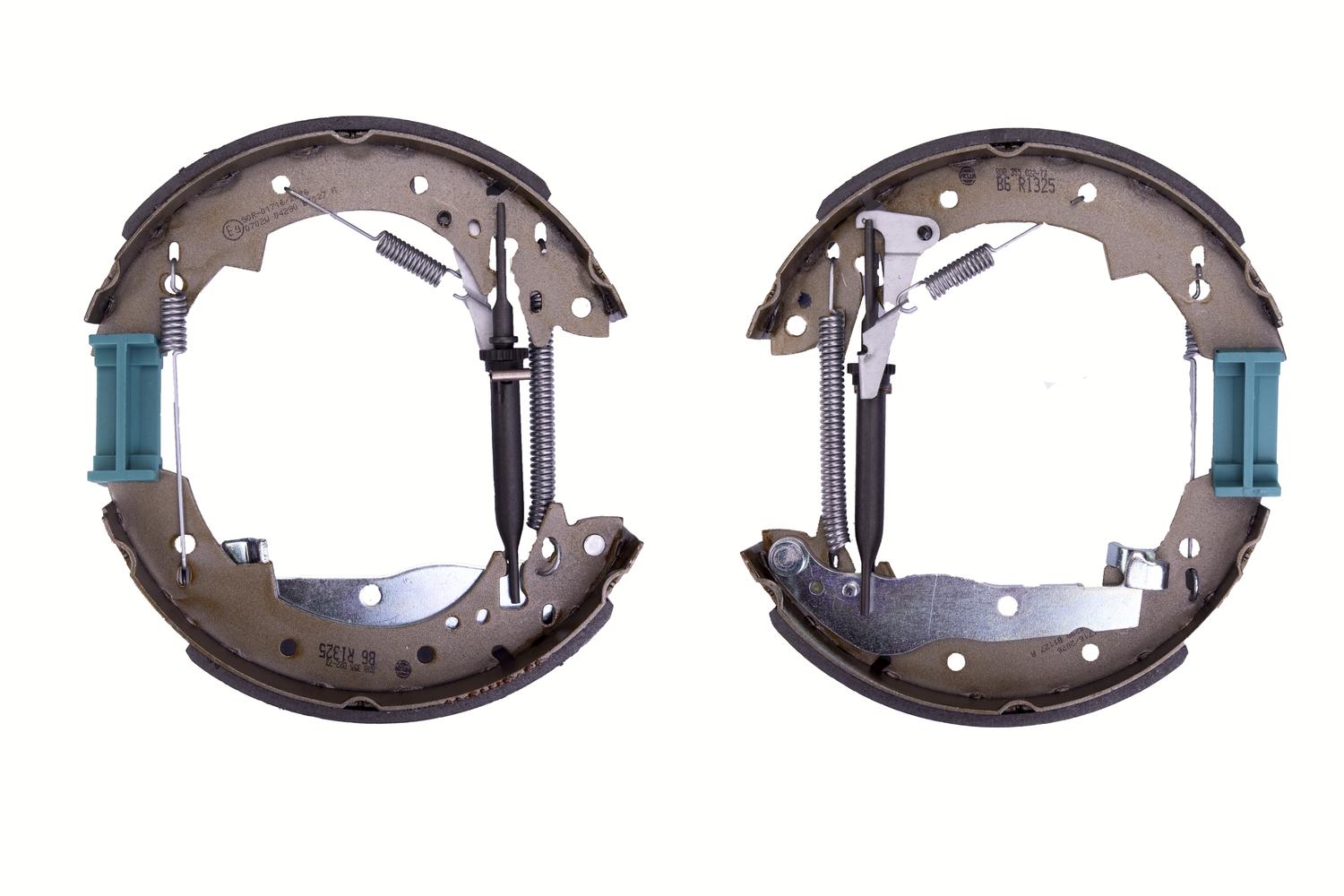

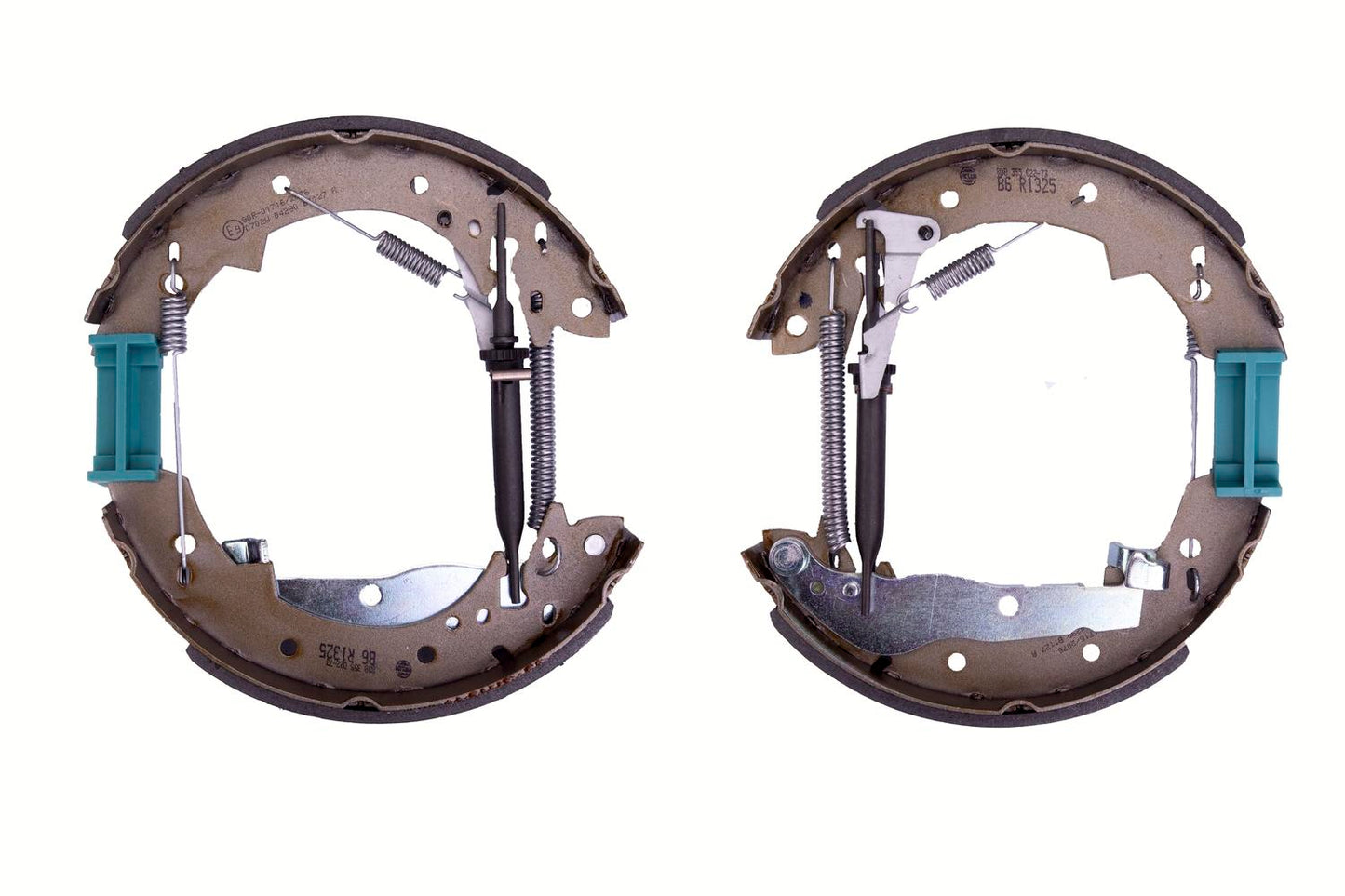

HELLA Brake Shoe Set - R1325 - for e.g. SUZUKI 8DB355022-731

Brake Shoe Set - R1325 - Brake System: Lucas - for e.g. SUZUKI

With over 400 brake shoes and more than 200 brake shoe kits, HELLA offers an impressive range of drum and hand brakes. Most of the brake shoe kits are already pre-assembled, thus guaranteeing quick, uncomplicated and safe installation.

• fits e.g. SUZUKI (please check exact vehicle application) - Brake System: Lucas
• with wheel brake cylinder/with adjuster - Pre-assembled
• Width: 40mm - Bore Ø: 22mm - Weight: 3.09kg
• Brake shoes in premium quality
• Hella brake shoes far exceed the required specifications of the ECE R90 directive
• A large range of pre-assembled brake shoe kits guarantees quick and uncomplicated installation, which saves a great deal of time during the installation and/or mounting work
• Market coverage of > 92% of European vehicle stocks

Item Attributes:
Inner brake drum diameter: 229 mm
Width: 40 mm
Supplementary Article/Supplementary Info: with adjuster / with wheel brake cylinder
Bore Ø: 22 mm
Mounting Type: Pre-assembled
Brake System: Lucas
Material: Grey Cast Iron
Weight: 3.09 kg
Assembly by qualified personnel required!

OE references: SUZUKI 5320060830; SUZUKI 5320060871; SUZUKI 5320070800; SUZUKI 5320070800A00; SUZUKI 5320070800DOM; SUZUKI 5320170A00; SUZUKI 5320170A10; SUZUKI 5320170A20; SUZUKI 5320183300; SUZUKI 5320183310; SUZUKI 5320270A00; SUZUKI 5320270A10; SUZUKI 5320270A20; SUZUKI 5320283300; SUZUKI 5320283310
