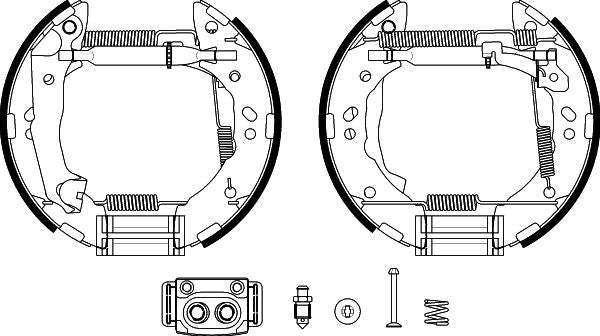

HELLA Brake Shoe Set - R1387 8DB355038-171

Brake Shoe Set - R1387 - Brake System: Mando

With over 400 brake shoes and more than 200 brake shoe kits, HELLA offers an impressive range of drum and hand brakes. Most of the brake shoe kits are already pre-assembled, thus guaranteeing quick, uncomplicated and safe installation.

• Brake System: Mando
• with accessories/with wheel brake cylinder/with adjuster - with handbrake lever - Pre-assembled
• Thickness: 5.6mm - Width: 32mm - Friction Surface Width: 29mm - Bore Ø: 16mm - Weight: 2.2kg
• Brake shoes in premium quality
• Hella brake shoes far exceed the required specifications of the ECE R90 directive
• A large range of pre-assembled brake shoe kits guarantees quick and uncomplicated installation, which saves a great deal of time during the installation and/or mounting work
• Market coverage of > 92% of European vehicle stocks

Item Attributes:
Inner brake drum diameter: 180 mm
Width: 32 mm
Thickness: 5.6 mm
Friction Surface Width: 29 mm
Adjustment: with automatic adjustment
Supplementary Article/Supplementary Info: with wheel brake cylinder / with adjuster / with accessories
Bore Ø: 16 mm
Mounting Type: Pre-assembled
Brake System: Mando
Material: Aluminium
Supplementary Article/Supplementary Info 2: with handbrake lever
Weight: 2.2 kg
Assembly by qualified personnel required!

OE references: AMC 0204114673; AMC 03013703862; AMC 03052046173; AMC 046203; AMC 07710; AMC 090563; AMC 0986487581; AMC 109901215; AMC 111463; AMC 153168; AMC 18492734627; AMC 2734627; AMC 2735; AMC 311700; AMC 311701; AMC 355038171; AMC 362395B; AMC 362395J; AMC 37145330003; AMC 411701; AMC 5186599; AMC 530168; AMC 554875; AMC 55590871; AMC 562996; AMC 5830502A00; AMC 5830502A10; AMC 6255; AMC 650386; AMC 79KT0097C; AMC 810043627; AMC 84056801; AMC 91056801; AMC 9106; AMC BB7264; AMC BK2607; AMC BK2608; AMC BS1066; AMC FSB586; AMC GS8659; AMC H9145; AMC HP1639; AMC IBL4584; AMC J3500509; AMC K30010; AMC KP1105; AMC LS1891; AMC M794; AMC MFR439; AMC MG736; AMC MSP417; AMC OEK696; AMC R1387; AMC RA27350; AMC S30510; AMC SHU590; AMC SPK311700; AMC SPK311701; AMC T0611075; AMC VBS596; AMC VBS597; AMC Z411701; HYUNDAI 5830502A00; HYUNDAI 5830502A10
