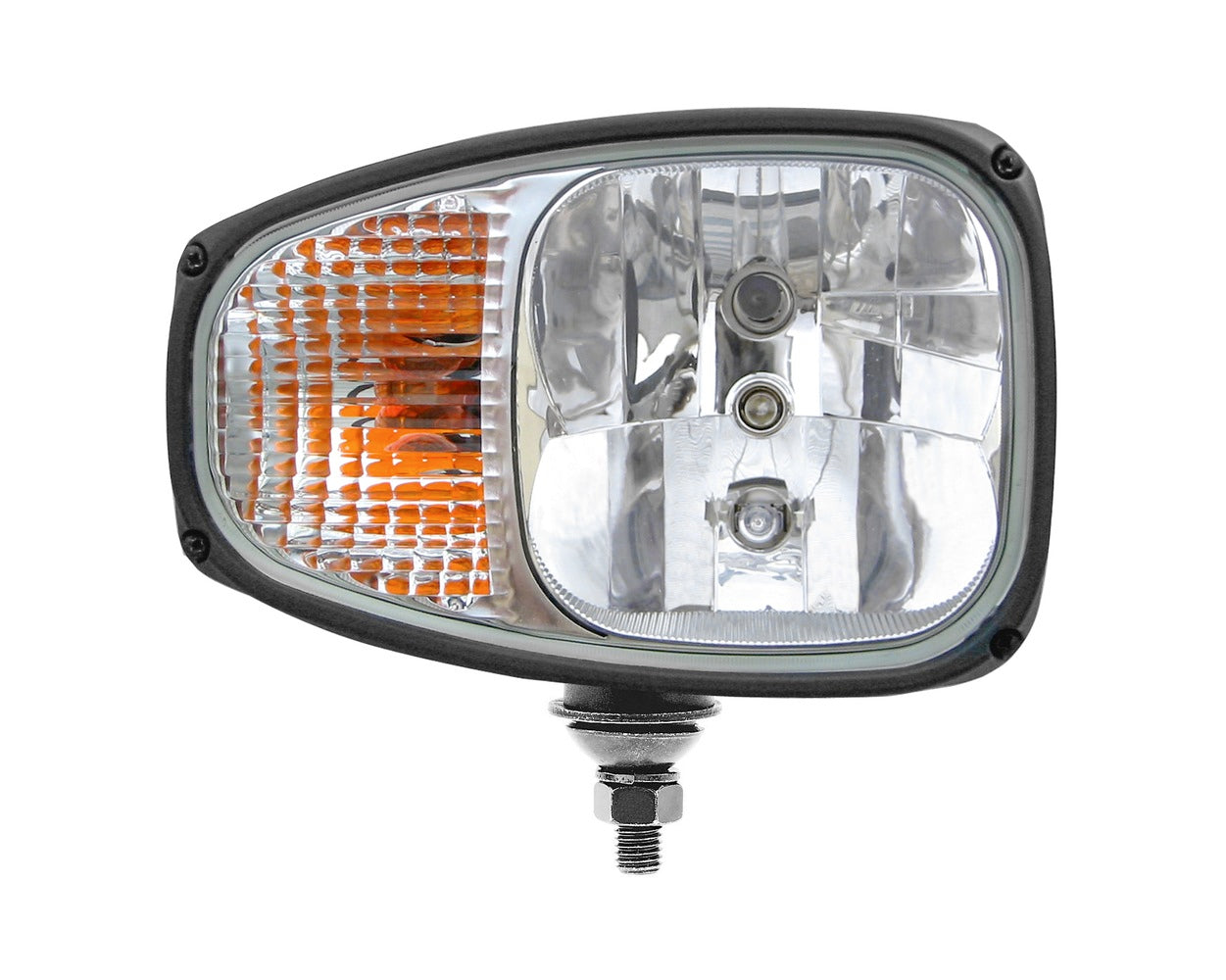

HELLA Bulb-Headlight - Combi 220 - 12/24V 1EE996174-401

Bulb-Headlight - Combi 220 - 12/24V - ECE - Plug: DEUTSCH plug - right

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.

• HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
• It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
• Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
• The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
• Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.
• Width: 225mm - Height: 150mm - Depth: 101mm - Lamp Type: T4W/H3/H7/PY21W - with bulbs
• Light functions: 4 - with position light/with low beam/with high beam/with indicator

Item Attributes:
Mounting Type: Bolted
Fastening Type: Screw-on
Lamp Type: H7 / H3 / PY21W / T4W
Light Design: Bulb
Voltage: 12 V / 24 V
Fitting Position: right
Width: 225 mm
Height: 150 mm
Depth: 101 mm
Light Function: with indicator / with high beam / with position light / with low beam
Light functions: 4
Registration Type: ECE
fulfils ECE standard: R112 / R10
Plug: DEUTSCH plug
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info 2: with bulbs
Prot.type (IP Code): IP6K9K
Housing material: PC (Polycarbonate)
Assembly by qualified personnel required!

OE references: AEBI 1267102-1; AEBI 1268379-5; AMMANN 1505918; AMMANN 1861445; ATLAS COPCO 8061109; BUCHER 09300174-0; MAFI 000,580,0148; MAN 81.25101-6403; MAN 81.25101-6792; MAN 81.AC125.8117; MANITOU 929717; PAUS 556625; SCANIA 20223061; VOLVO 17286451
