HELLA Bulb-Headlight - Combi 220 - 12V 1EE996174-261

Bulb-Headlight - Combi 220 - 12V - ECE/SAE - Plug: DEUTSCH plug - right

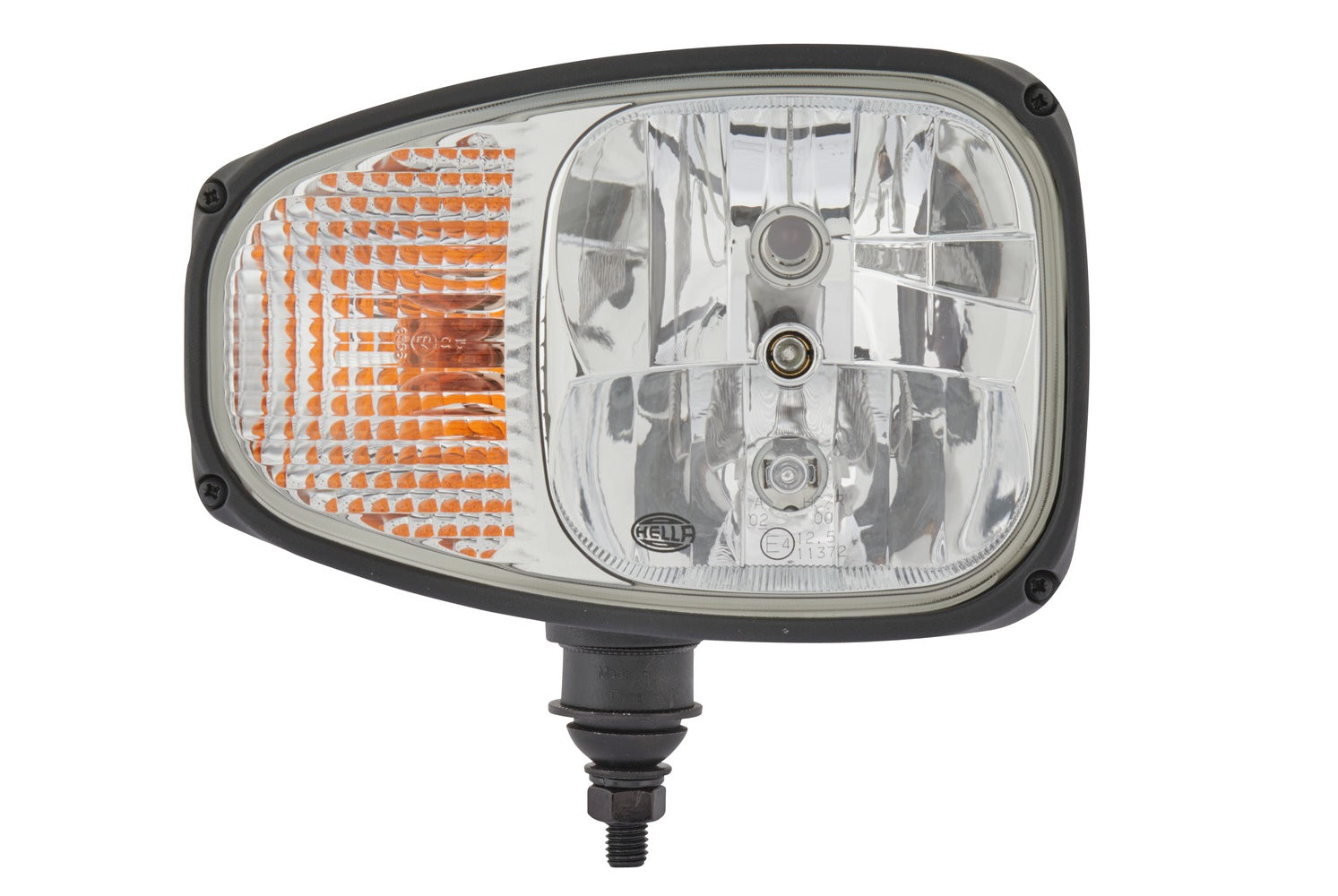

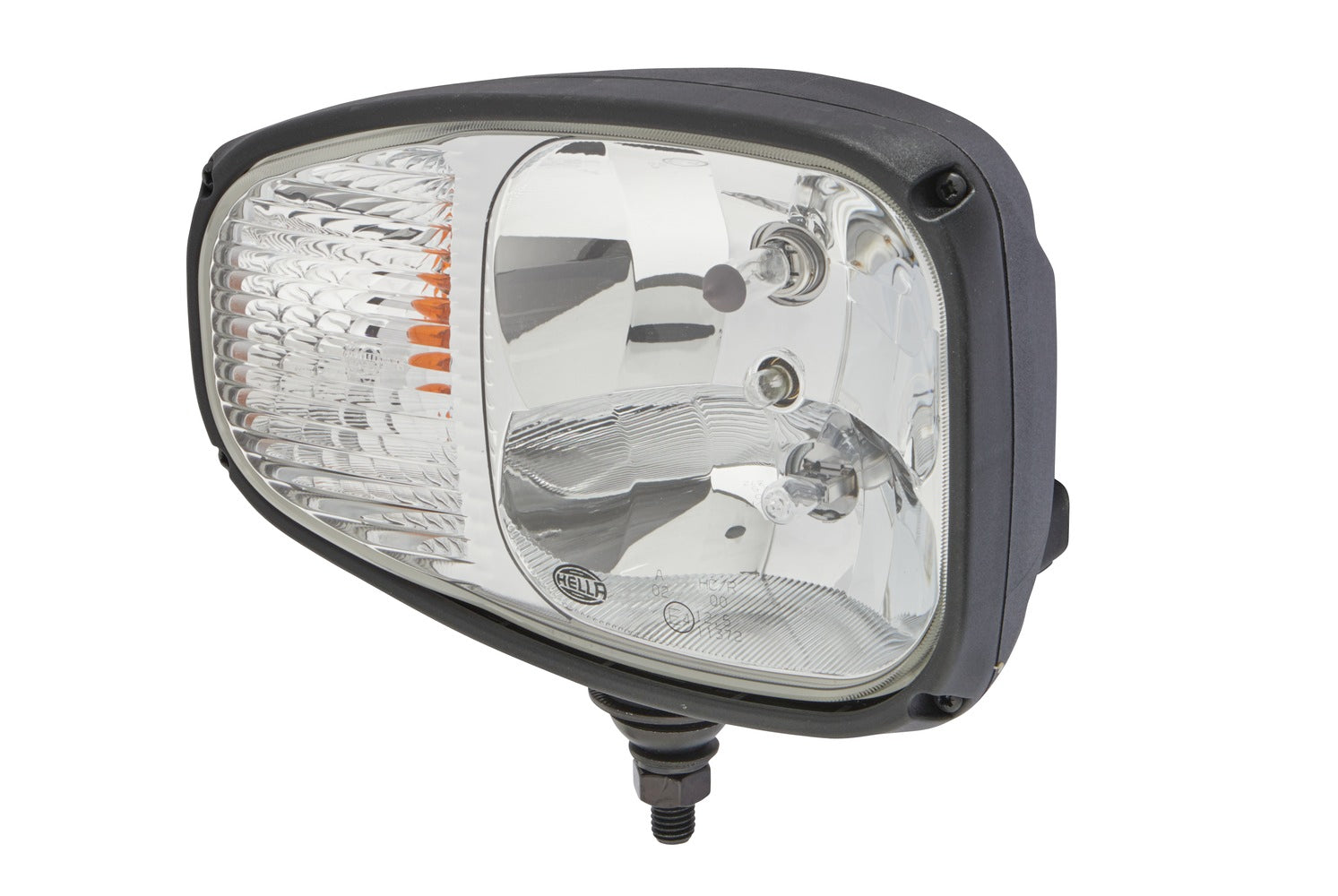

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.

• HELLA's C220 halogen combi-headlamp is a main headlamp without optics.
• It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
• Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
• The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
• Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.
• Width: 225mm - Height: 150mm - Depth: 101mm - Lamp Type: H7/H3/T4W/PY21W
• Light functions: 4 - with low beam/with indicator/with high beam/with position light

Item Attributes:
Mounting Type: mounting
Lamp Type: H7/H3 / T4W / PY21W
Light Design: Bulb
Voltage: 12 V
Fitting Position: right
Width: 225 mm
Height: 150 mm
Depth: 101 mm
Light Function: with high beam / with indicator / with position light / with low beam
Light functions: 4
Registration Type: ECE / SAE
fulfils ECE standard: R112 / R10

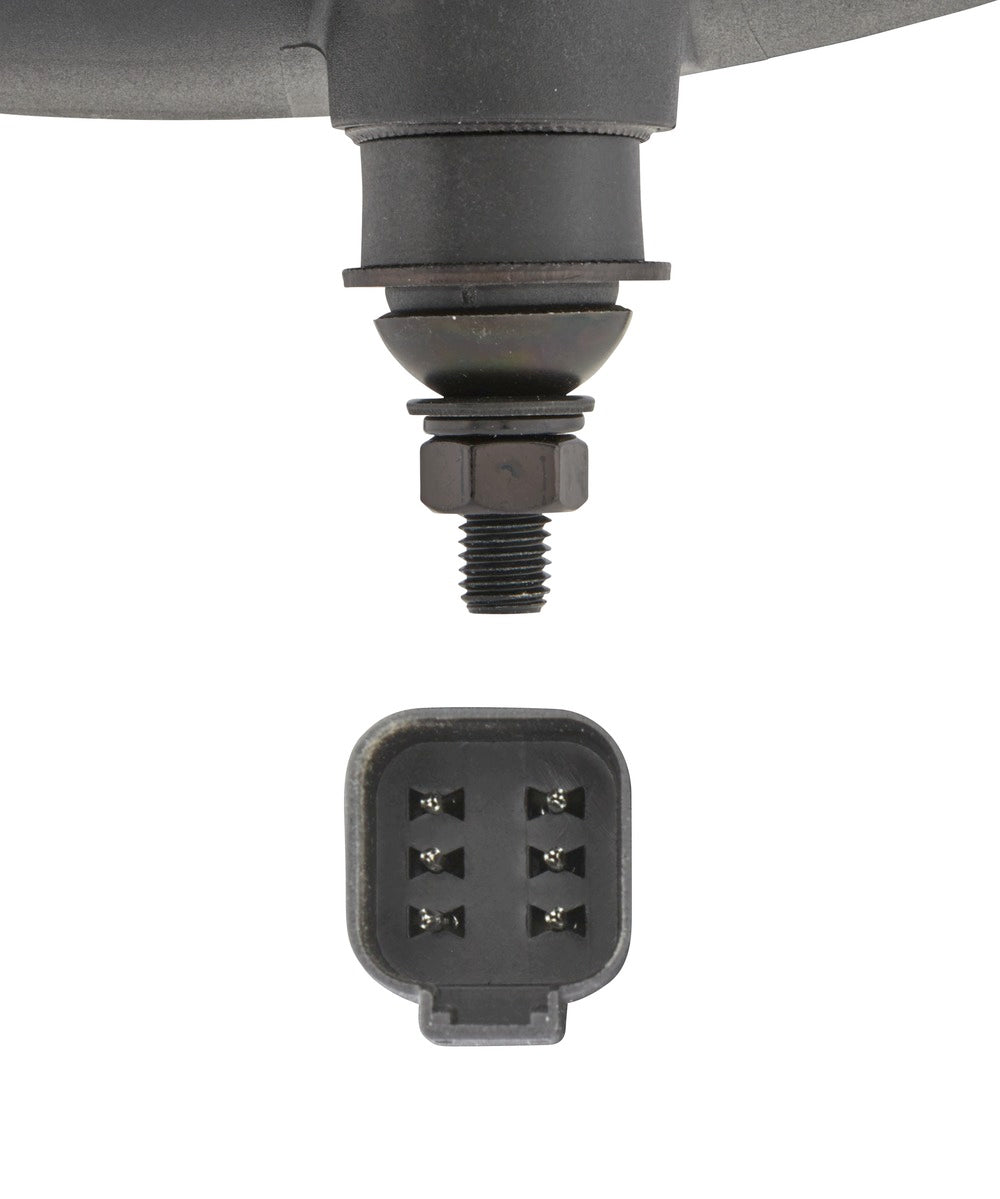

Plug: DEUTSCH plug
Left-hand/Right-hand Traffic: for right-hand traffic
Prot.type (IP Code): IP6K9K
Housing material: PC (Polycarbonate)
Assembly by qualified personnel required!

OE references: AEBI 1268365-1; AEBI 1268889-8; AMMANN 1565933; FARESIN ME11095A39; KOMATSU 42T-06-43150; LIEBHERR 12218799; LIEBHERR 12218799 WIRD -267; MANITOU 265415; MANITOU 265415B; MANITOU J265415; TOYOTA 0050203; WEIRO 28895
