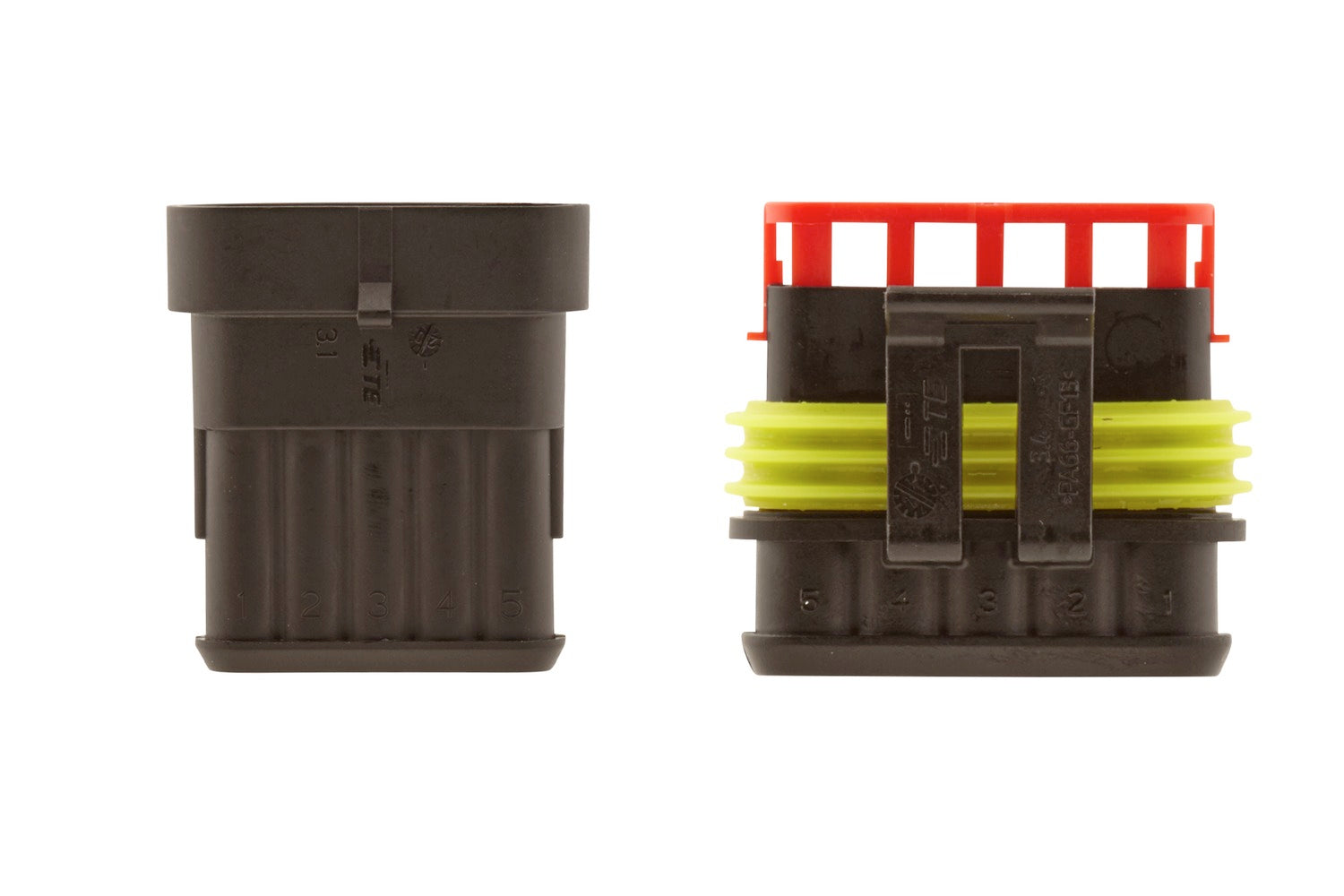

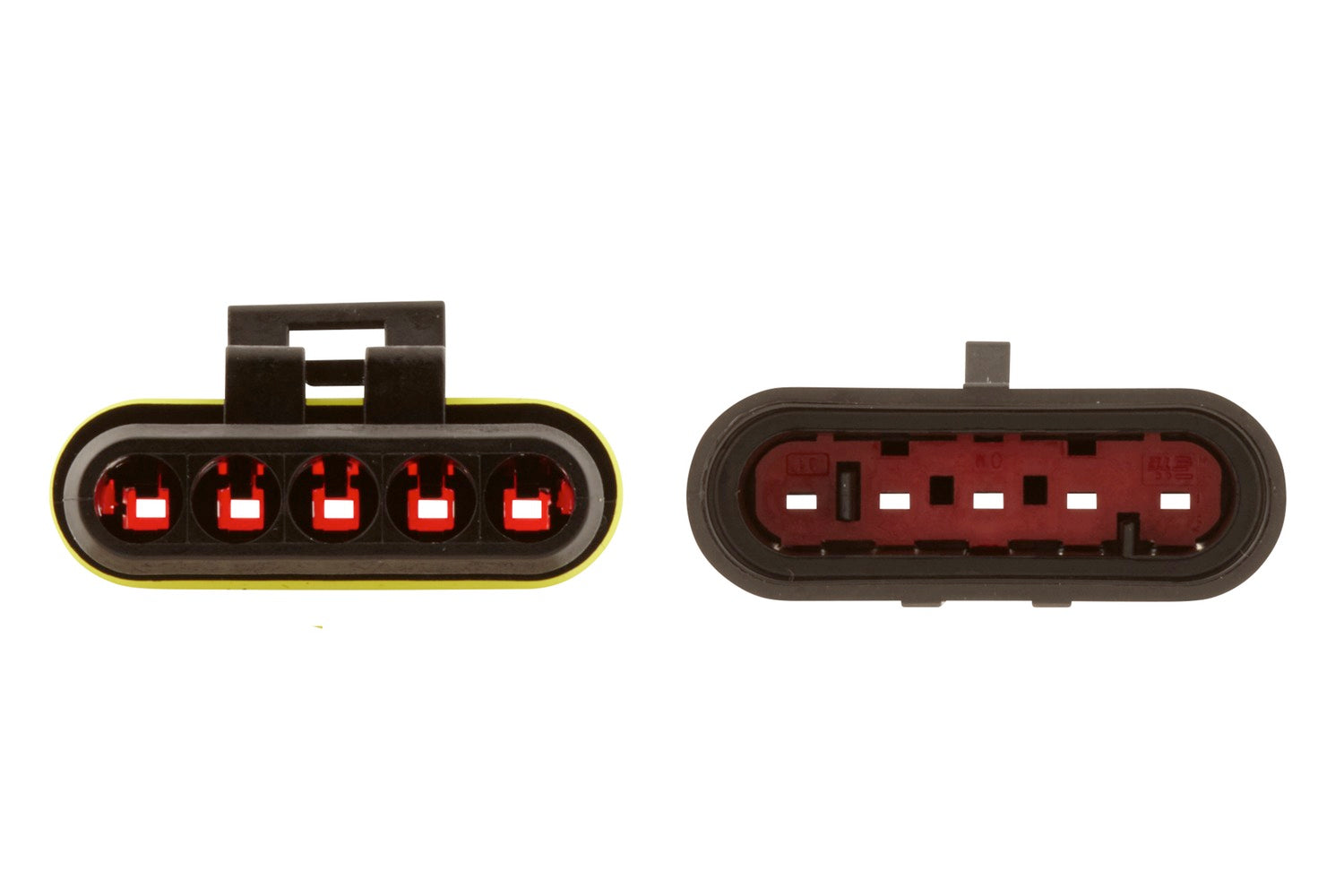

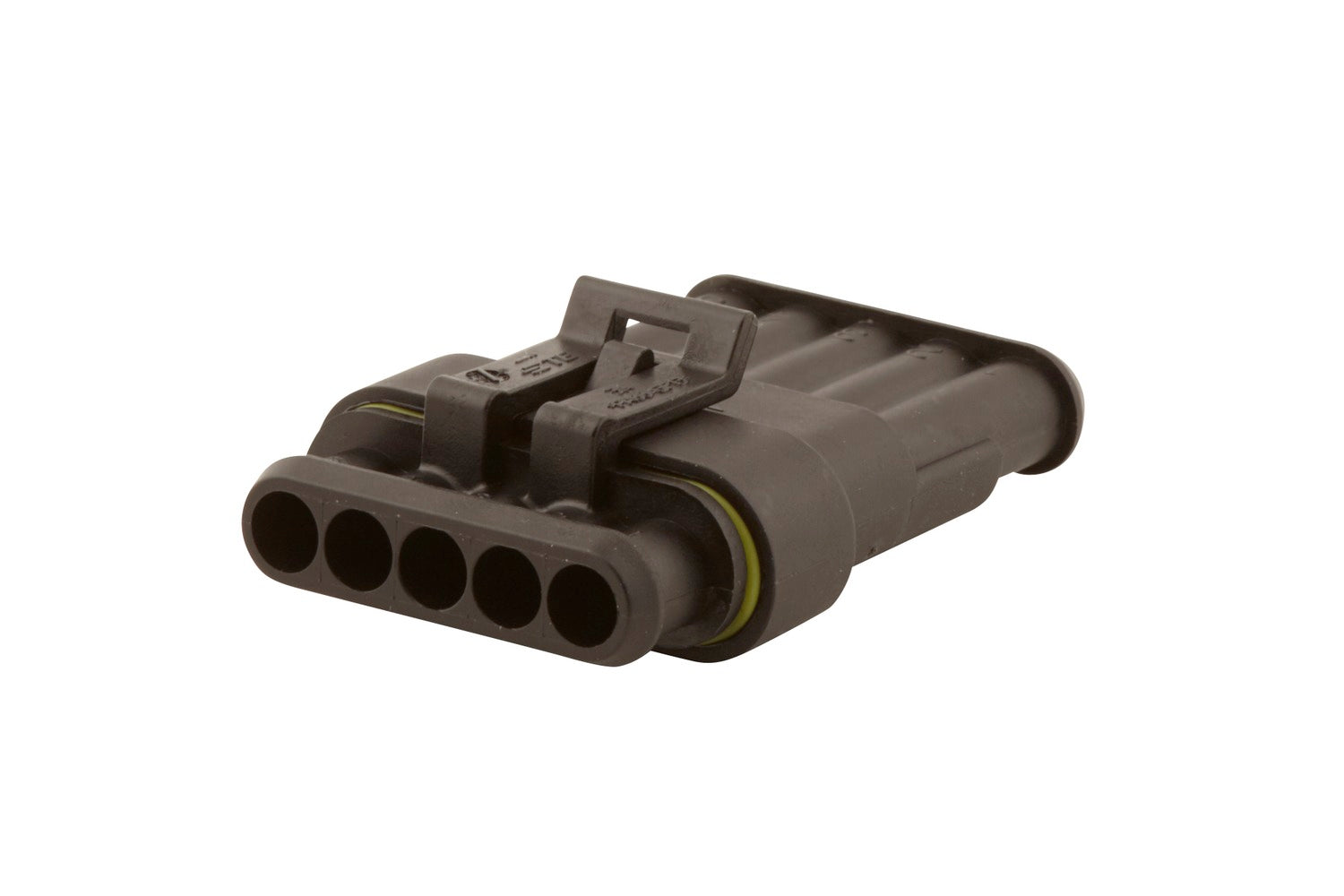

HELLA Cable Connector - 5-pin connector - 0.75mm² - 2.5mm² - Quantity: 1 8KW744809-801

Cable Connector - 5-pin connector - from: 0.75mm² - to: 2.5mm² - Male/Female - Quantity: 1

HELLA offers a comprehensive selection of SUPERSEAL materials - and also the necessary crimping and unlocking tools for installation. HELLA SUPERSEAL plug-in connections comply with the regulations of IEC 529 as well as DIN ISO 40050 and have IP class 67, which guarantees maximum protection against water and dust ingress. Due to their nature, these connections are particularly suitable wherever other connection systems reach their limits due to adverse pressure or moisture conditions.

• Original equipment quality
• Reliable electrical connection
• Maximum protection against external influences and high resistance to vibration and corrosion
• Wide range of products

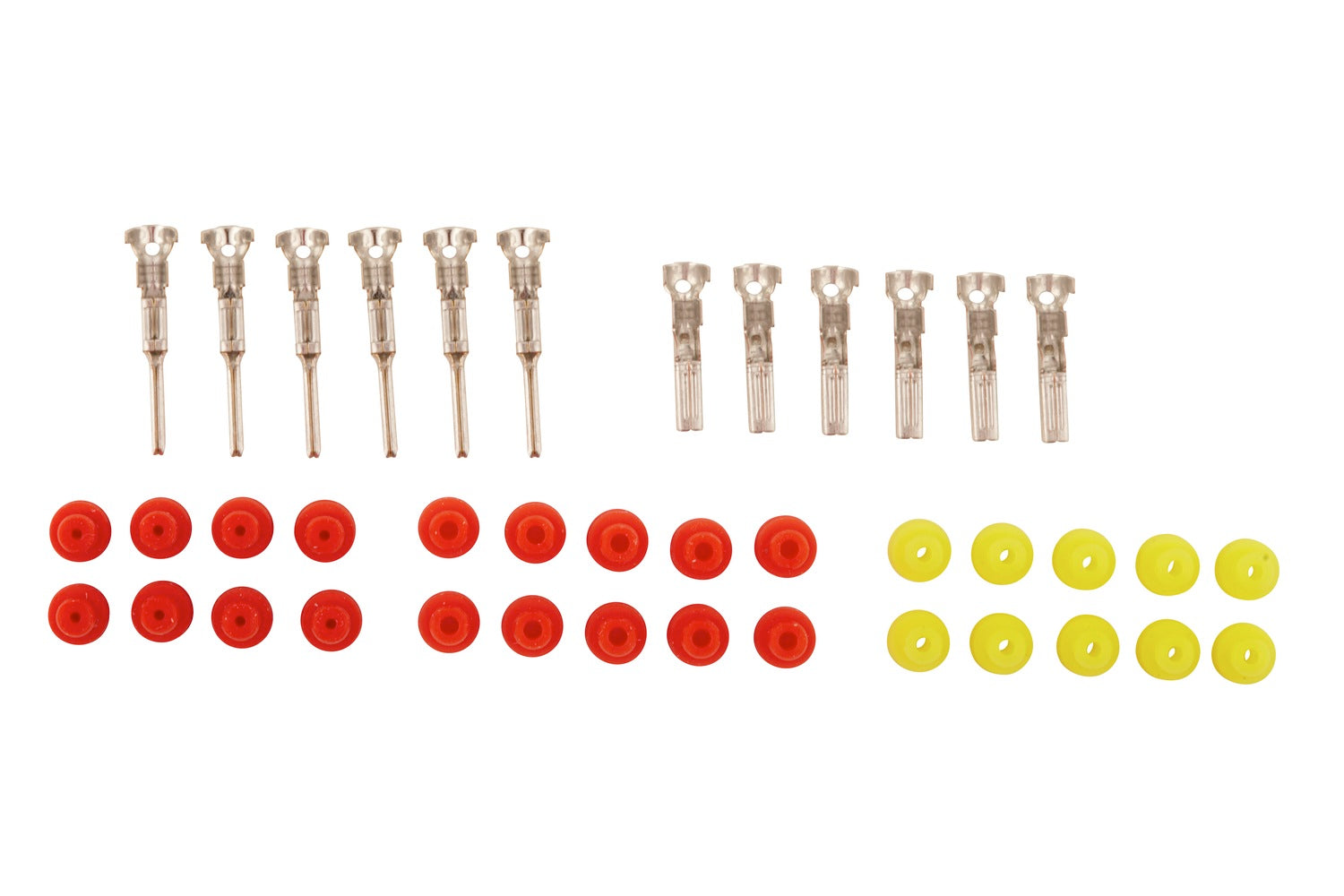

• The SUPERSEAL system is based on a traditional crimp contact concept
• DIN/ISO: 40050

Item Attributes:
Voltage to: 24 V
Prot.type (IP Code): 67
Temperature range from: -40 °C
Temperature range to: 125 °C
Plug: Male/Female
Number of pins: 5 -pin connector
from: 0.75 mm²
to: 2.5 mm²
DIN/ISO: 40050
Packaging: Blister
Quantity: 1
Assembly by qualified personnel required!

OE references: SANY 21004386
