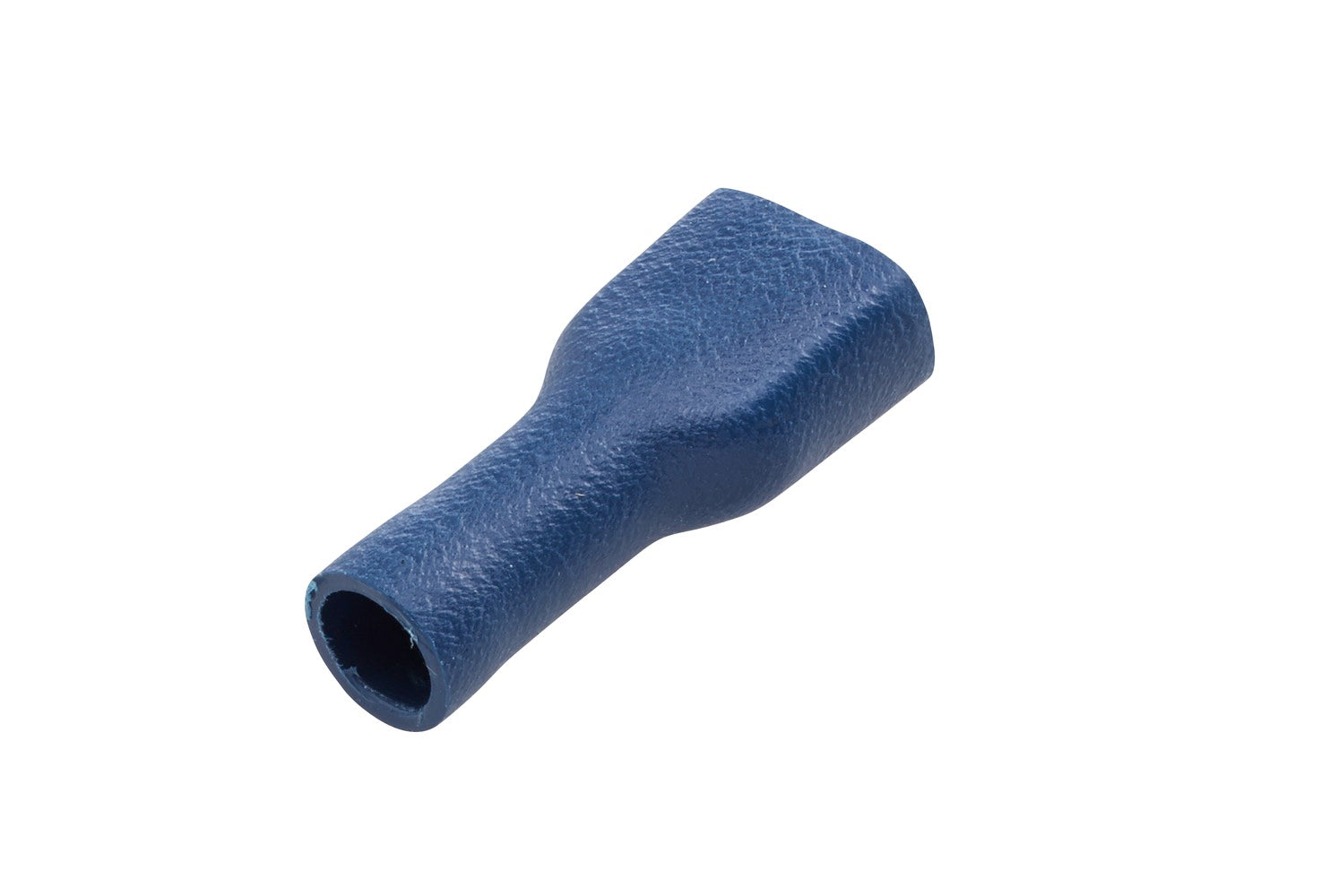

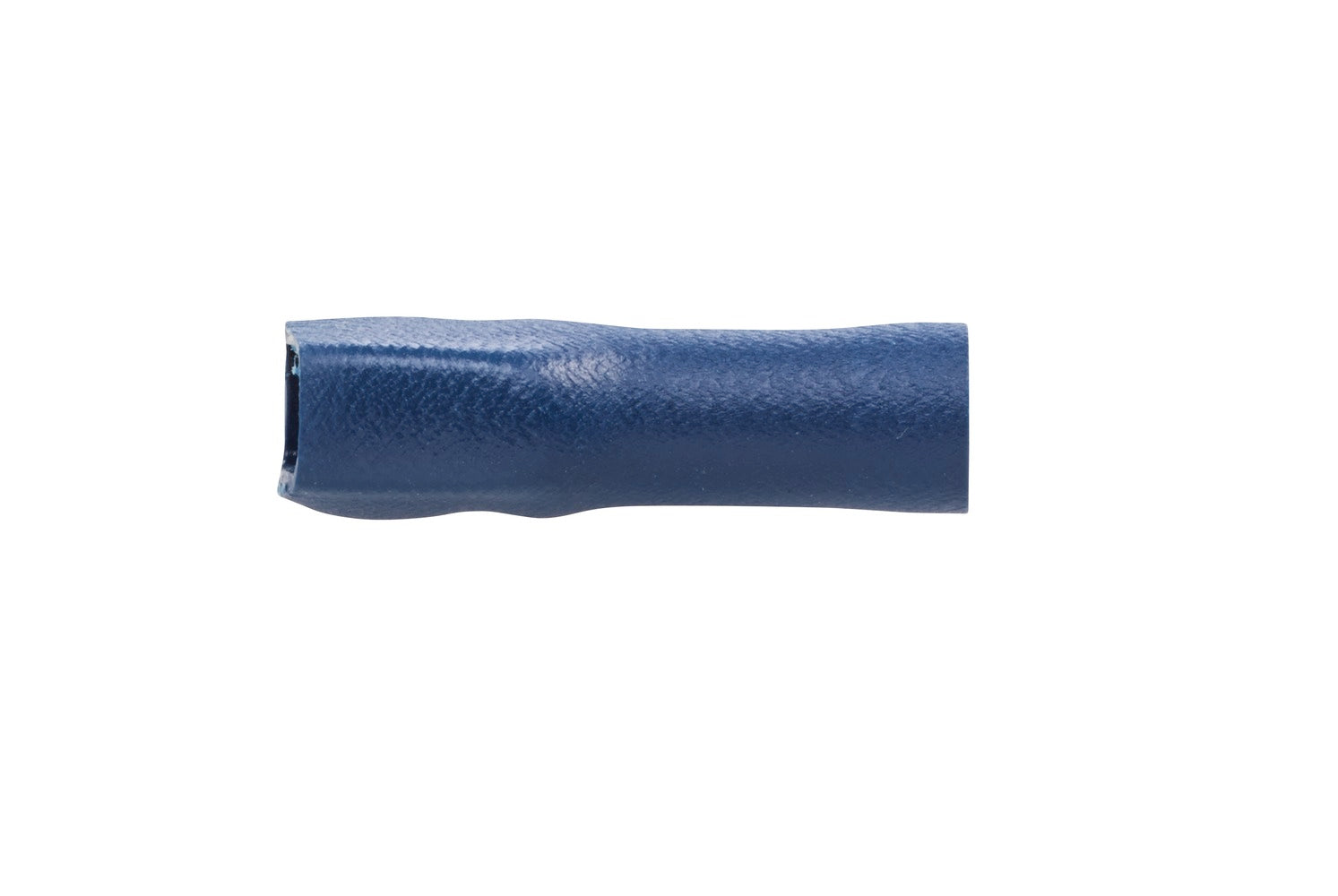

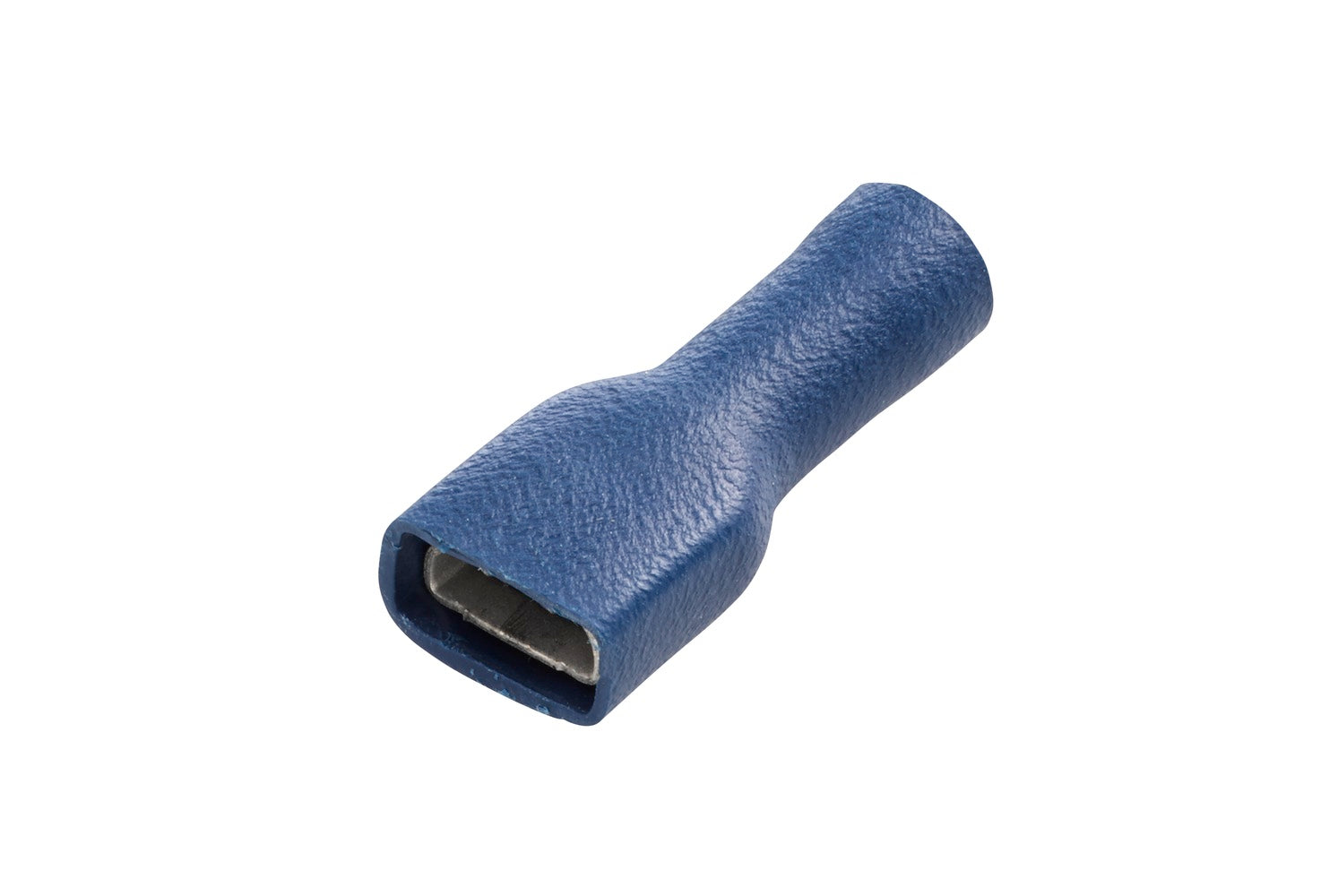

HELLA Cable Connector - blue - 1.5mm² - 2.5mm² - Length: 21.8mm - Brass - Quantity: 8 8KW708374-812

Cable Connector - with dust cover - blue - from: 1.5mm² - to: 2.5mm² - Blade Terminal Sleeve - Length: 21.8mm - Brass - Quantity: 8

Insulated crimp connectors are crimped at the coloured end with an appropriate tool to make a secure, firm contact with the cable. The insulation material is either PVC (max. temperature rating of 80°C) or nylon (max. 105°C). The insulating sleeve has a special "easy-entry" funnel shape to ensure better insertion of the cable. Identification colour red: Crimp connector for cable cross-section 0.5 - 1.0 mm². Identification colour blue: Crimp connector for cable cross-section 1.5 - 2.5 mm². Identification colour yellow: Crimp connector for cable cross-section 4.0 - 6.0 mm².

• Line connection and insulation in one integrated product
• Wide range with all common contacting variants
• Quick and easy connection of cables
• Different identification colours for different cable cross-sections

Item Attributes:
Length: 21.8 mm
Socket Width: 6.3 mm
Socket Height: 0.8 mm
Voltage to: 300 V
Current Strength to: 15 A
Temperature range from: -10 °C
Temperature range to: 75 °C
Plug: Blade Terminal Sleeve
from: 1.5 mm²
to: 2.5 mm²
Material: Brass
Insulation Material: PVC
Surface: Tin-plated
Dust Cover: with dust cover
Colour: blue
Packaging: Blister
Quantity: 8
Version: Easy entry
Assembly by qualified personnel required!
