HELLA Cable Connector - blue - 1.5mm² - 2.5mm² - M6 - Length: 26.9mm - Copper - Quanti 8KW044039-812

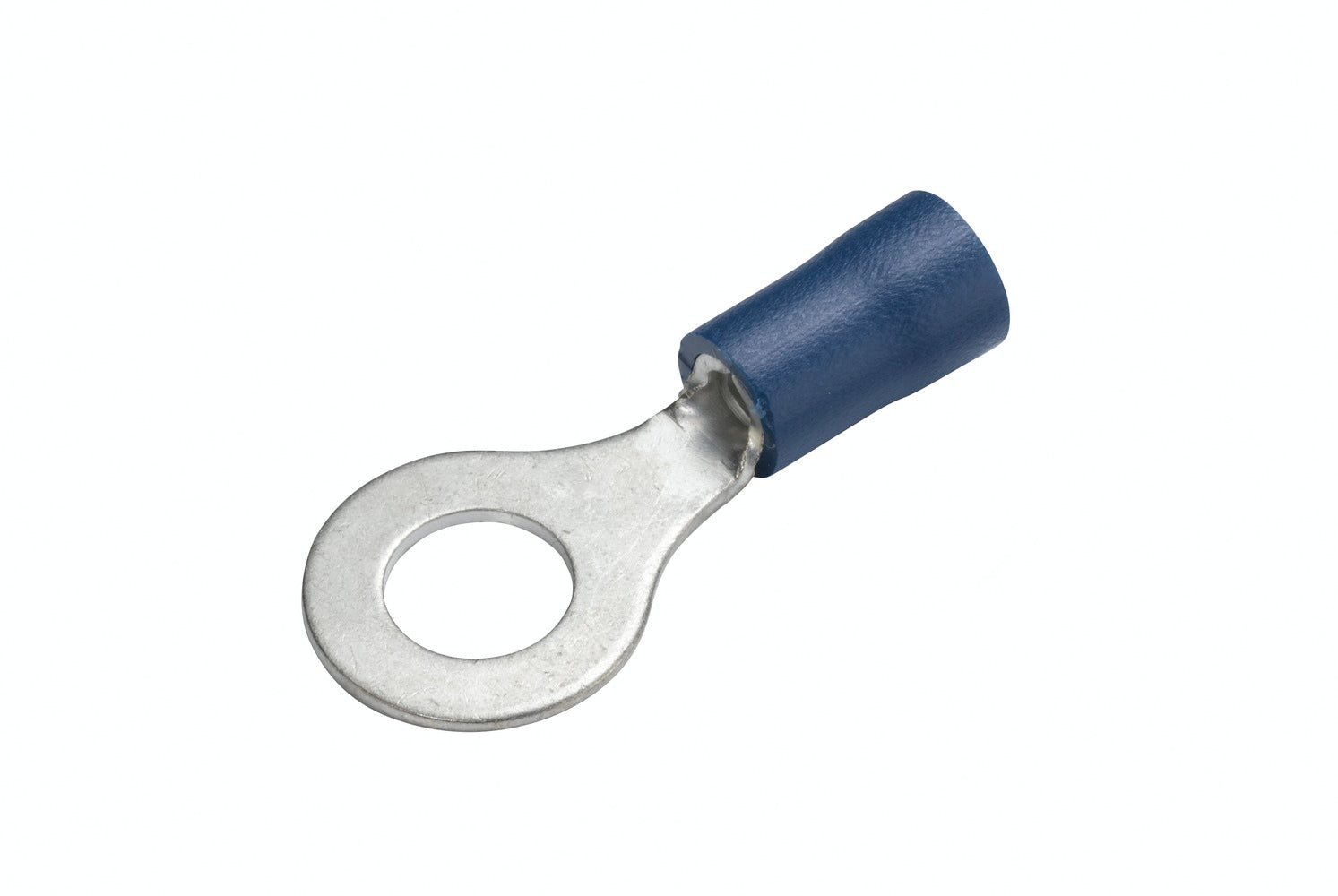

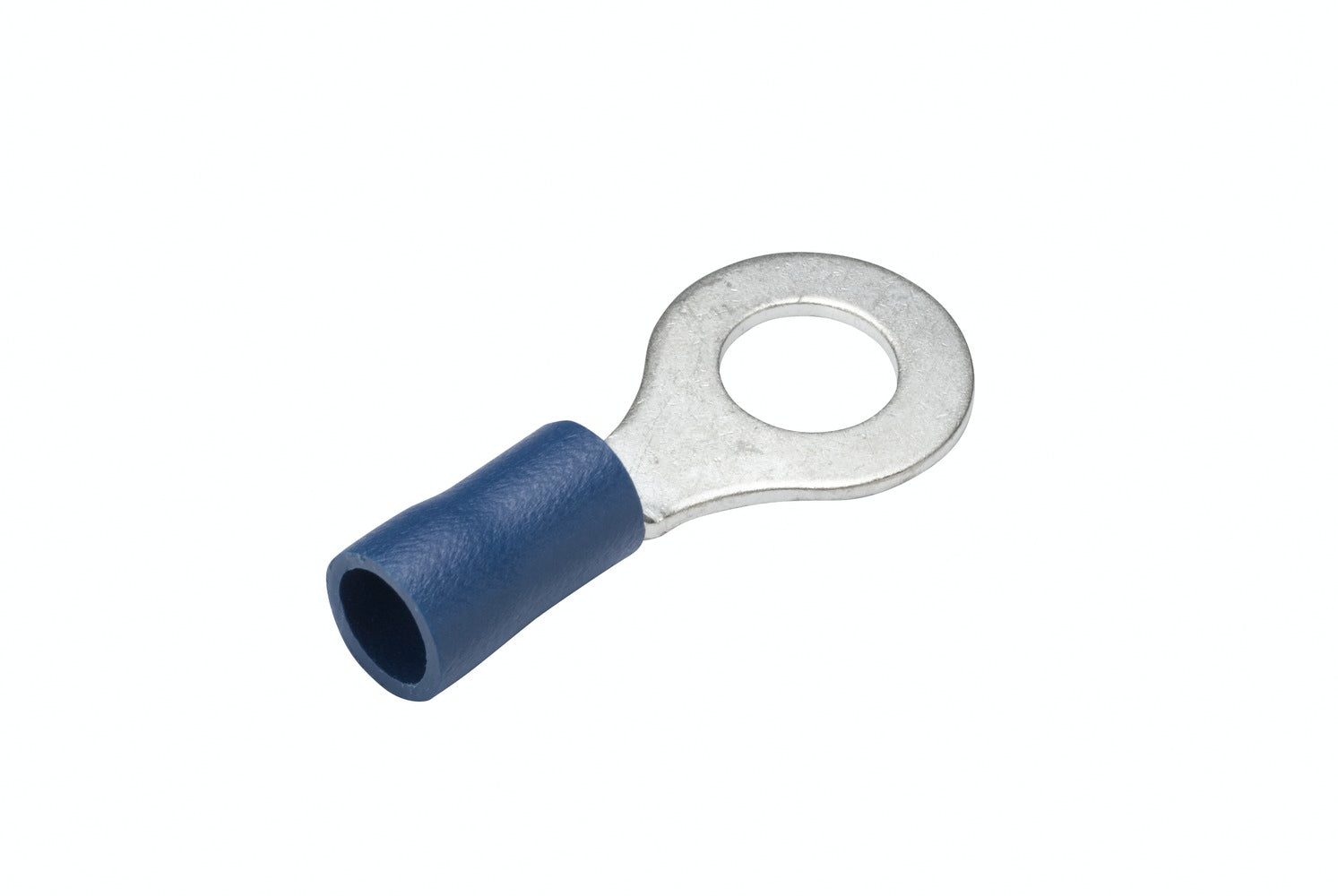

Cable Connector - blue - from: 1.5mm² - to: 2.5mm² - Ring Connector - M6 - Length: 26.9mm - Copper - Quantity: 12

Insulated crimp connectors are crimped at the coloured end with an appropriate tool to make a secure, firm contact with the cable. The insulation material is either PVC (max. temperature rating of 80°C) or nylon (max. 105°C). The insulating sleeve has a special "easy-entry" funnel shape to ensure better insertion of the cable. Identification colour red: Crimp connector for cable cross-section 0.5 - 1.0 mm². Identification colour blue: Crimp connector for cable cross-section 1.5 - 2.5 mm². Identification colour yellow: Crimp connector for cable cross-section 4.0 - 6.0 mm².

• Line connection and insulation in one integrated product
• Wide range with all common contacting variants
• Quick and easy connection of cables
• Different identification colours for different cable cross-sections

Item Attributes:
Length: 26.9 mm
Voltage to: 600 V
Current Strength to: 27 A
Temperature range from: -10 °C
Temperature range to: 75 °C
Plug: Ring Connector
from: 1.5 mm²
to: 2.5 mm²
Material: Copper
Insulation Material: PVC
Surface: Tin-plated
Colour: blue
Plug: M6
Packaging: Blister
Quantity: 12
Version: Standard
Assembly by qualified personnel required!
