HELLA Cable Connector - Red - 0.5mm² - 1.0mm² - 4,8 x 0,5 - Kit - Quantity: 10 8KW705392-812

Cable Connector - Red - from: 0.5mm² - to: 1.0mm² - Blade Terminal Sleeve - 4,8 x 0,5 - Kit - Quantity: 10

Insulated crimp connectors are crimped at the coloured end with an appropriate tool to make a secure, firm contact with the cable. The insulation material is either PVC (max. temperature rating of 80°C) or nylon (max. 105°C). The insulating sleeve has a special "easy-entry" funnel shape to ensure better insertion of the cable. The different identification colours of the cable connectors serve to distinguish for which cable cross-sections they can be used.

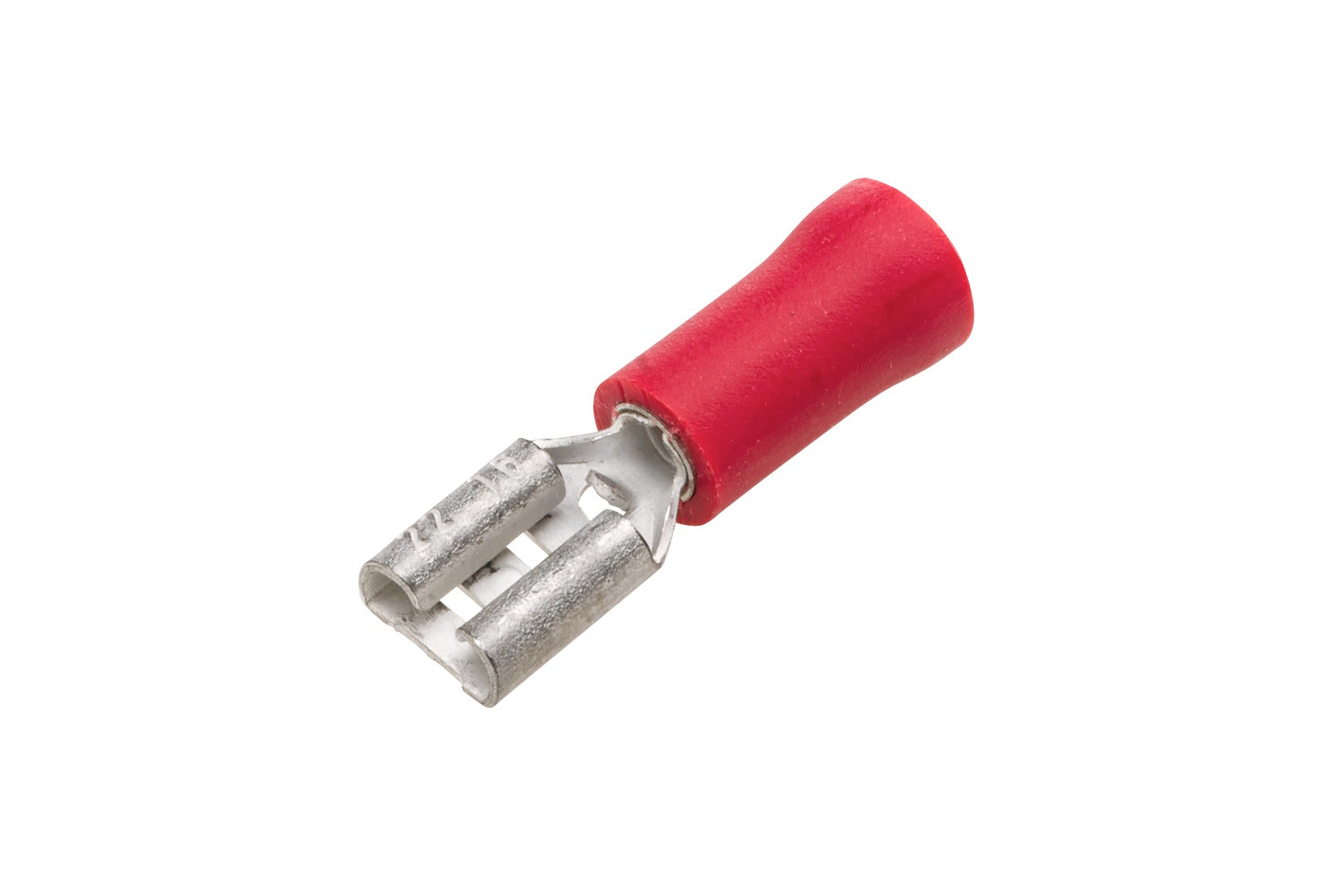

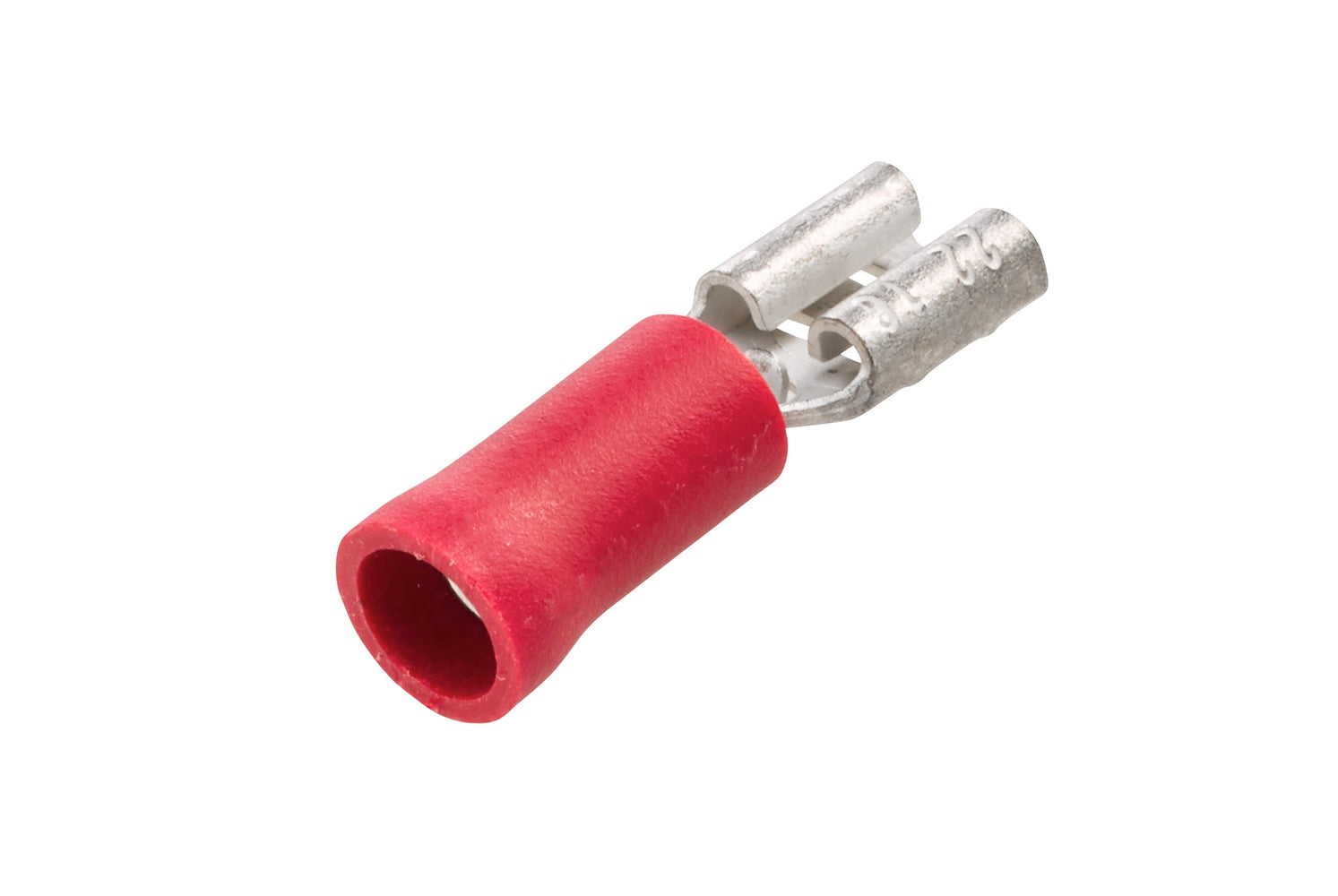

• Crimp connector insulated, flat plug sleeve for flat plug (4.8 x 0.5 mm)
• Line connection and insulation in one integrated product
• For wire cross-sections 0.5 - 1.0 mm² (identification colour red)
• Quick and easy connection of cables
• Wide range with all common contacting variants

Item Attributes:
from: 0.5 mm²
to: 1.0 mm²
Colour: Red
Quantity: 10
Quantity Unit: Kit
Plug: Blade Terminal Sleeve
Plug: 4,8 x 0,5
Assembly by qualified personnel required!
