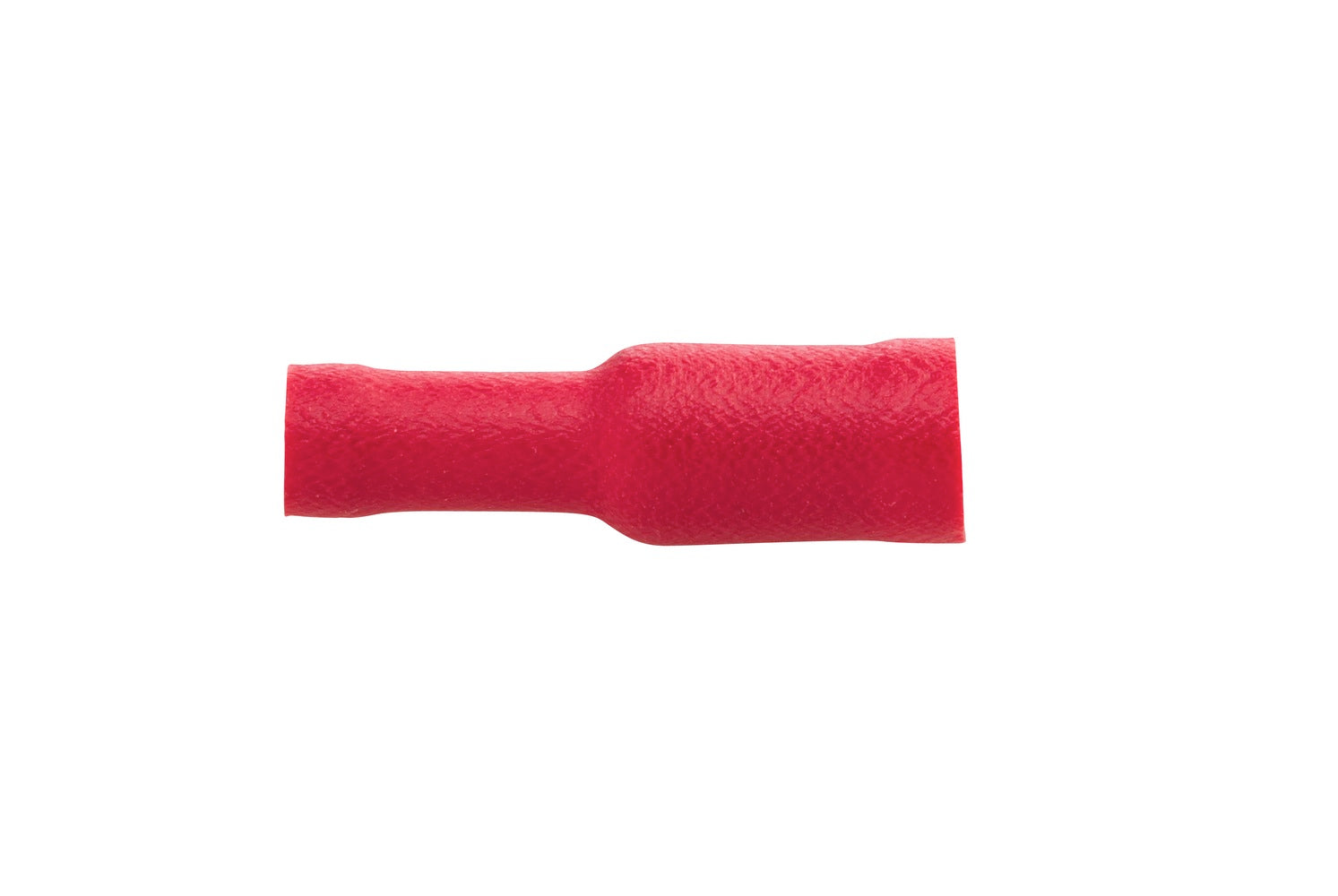

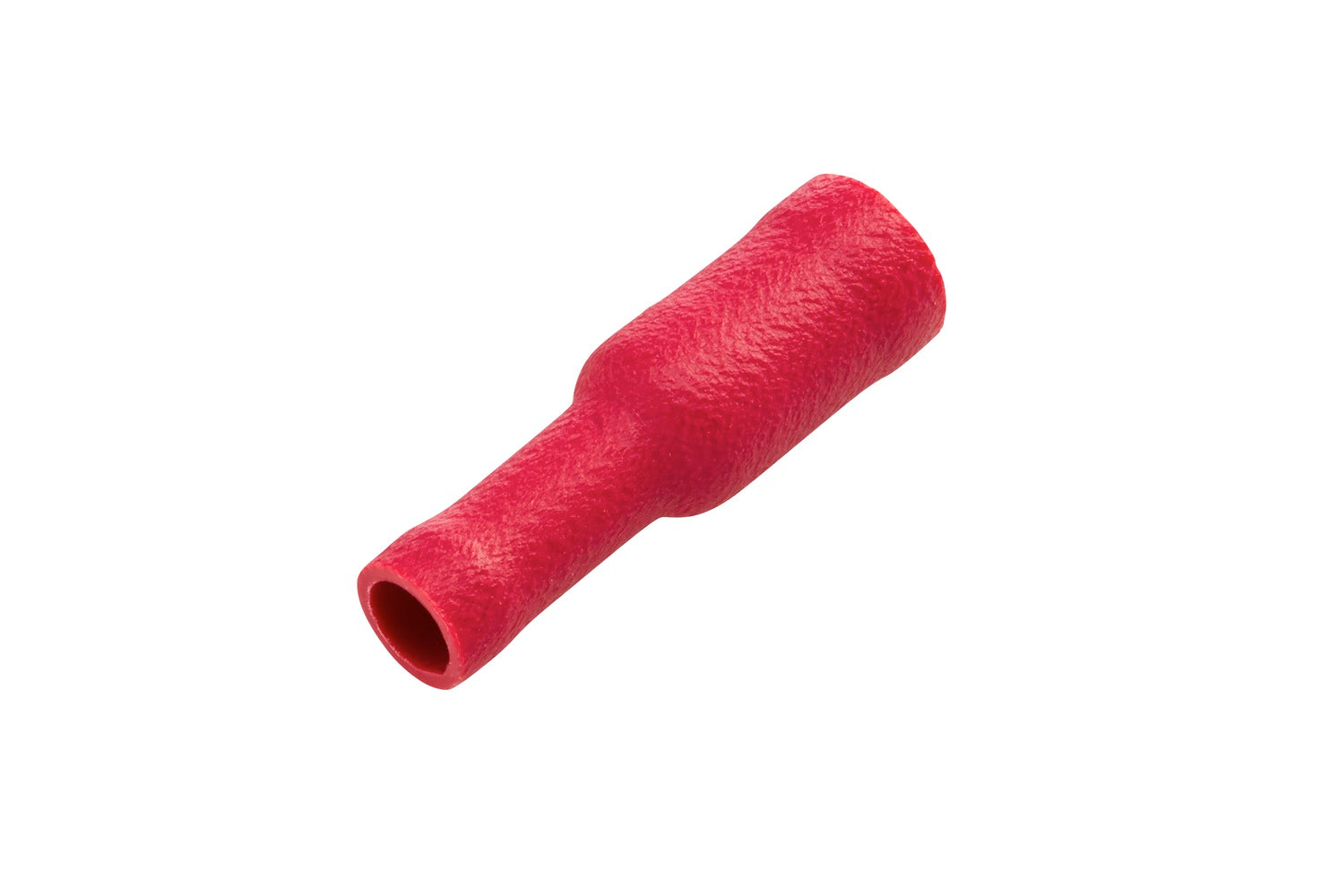

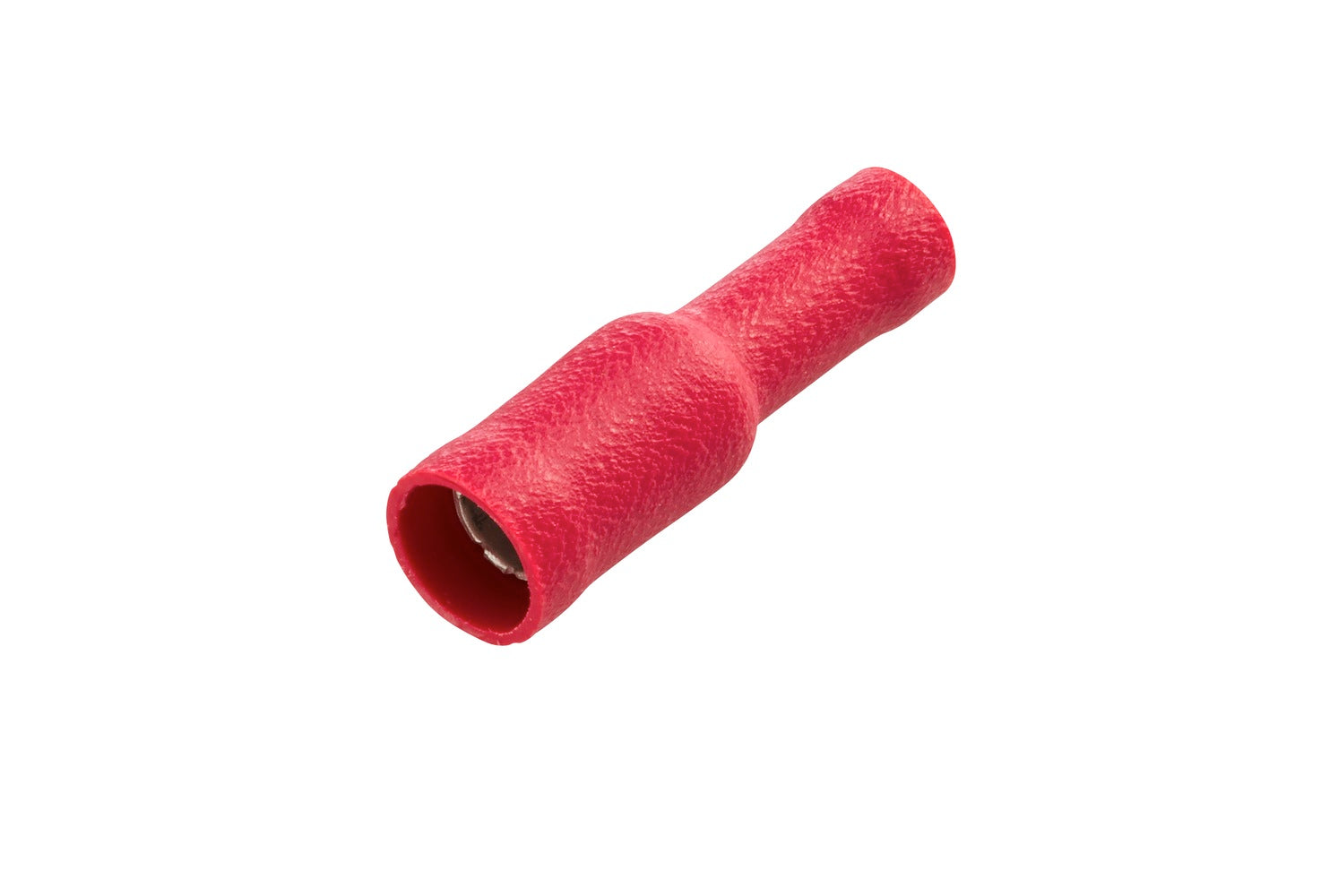

HELLA Cable Connector - red - 0.5mm² - 1.0mm² - Length: 24.5mm - Ø: 4mm - Brass - Quan 8KW045145-812

Cable Connector - red - from: 0.5mm² - to: 1.0mm² - Round Connector Sleeve - Length: 24.5mm - Ø: 4mm - Brass - Quantity: 10

Insulated crimp connectors are crimped at the coloured end with an appropriate tool to make a secure, firm contact with the cable. The insulation material is either PVC (max. temperature rating of 80°C) or nylon (max. 105°C). The insulating sleeve has a special "easy-entry" funnel shape to ensure better insertion of the cable. Identification colour red: Crimp connector for cable cross-section 0.5 - 1.0 mm². Identification colour blue: Crimp connector for cable cross-section 1.5 - 2.5 mm². Identification colour yellow: Crimp connector for cable cross-section 4.0 - 6.0 mm².

• Line connection and insulation in one integrated product
• Wide range with all common contacting variants
• Quick and easy connection of cables
• Different identification colours for different cable cross-sections

Item Attributes:
Ø: 4 mm
Length: 24.5 mm
Voltage to: 300 V
Current Strength to: 10 A
Temperature range from: -10 °C
Temperature range to: 75 °C
Plug: Round Connector Sleeve
from: 0.5 mm²
to: 1.0 mm²
Material: Brass
Insulation Material: PVC
Surface: Tin-plated
Colour: red
Packaging: Blister
Quantity: 10
Version: Easy entry
Assembly by qualified personnel required!
