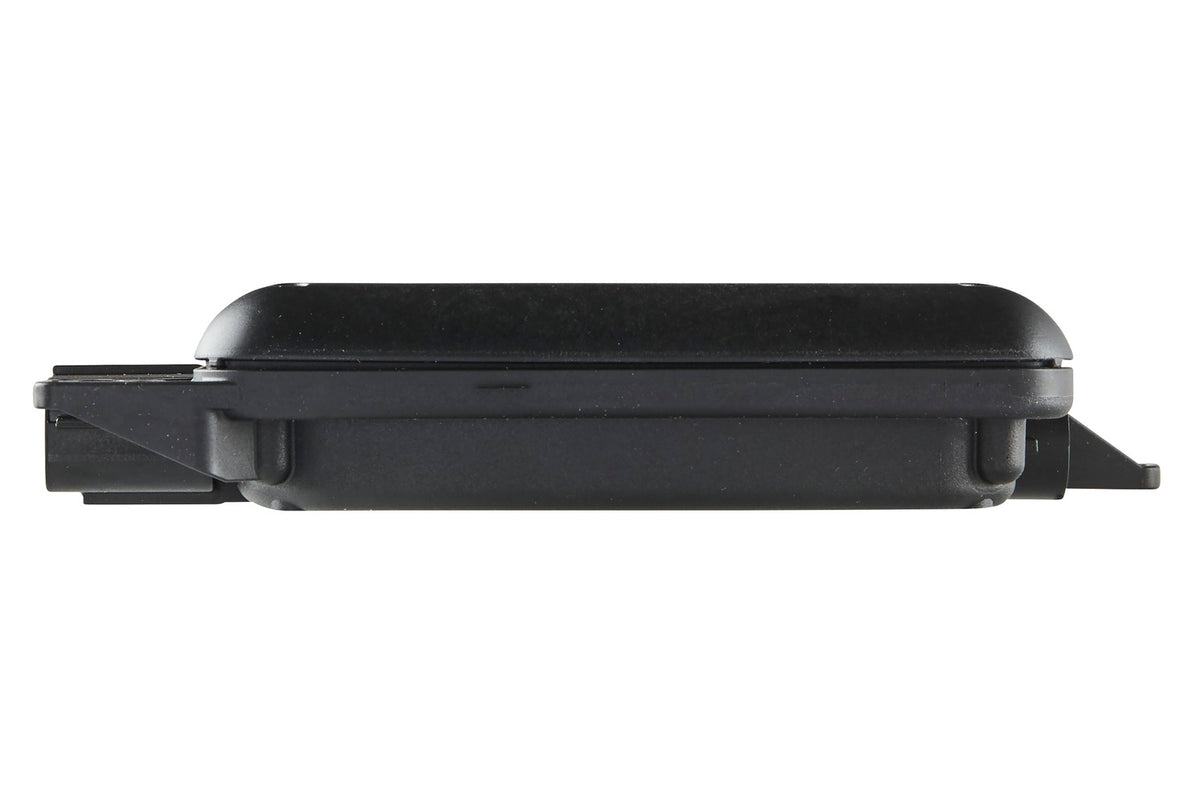

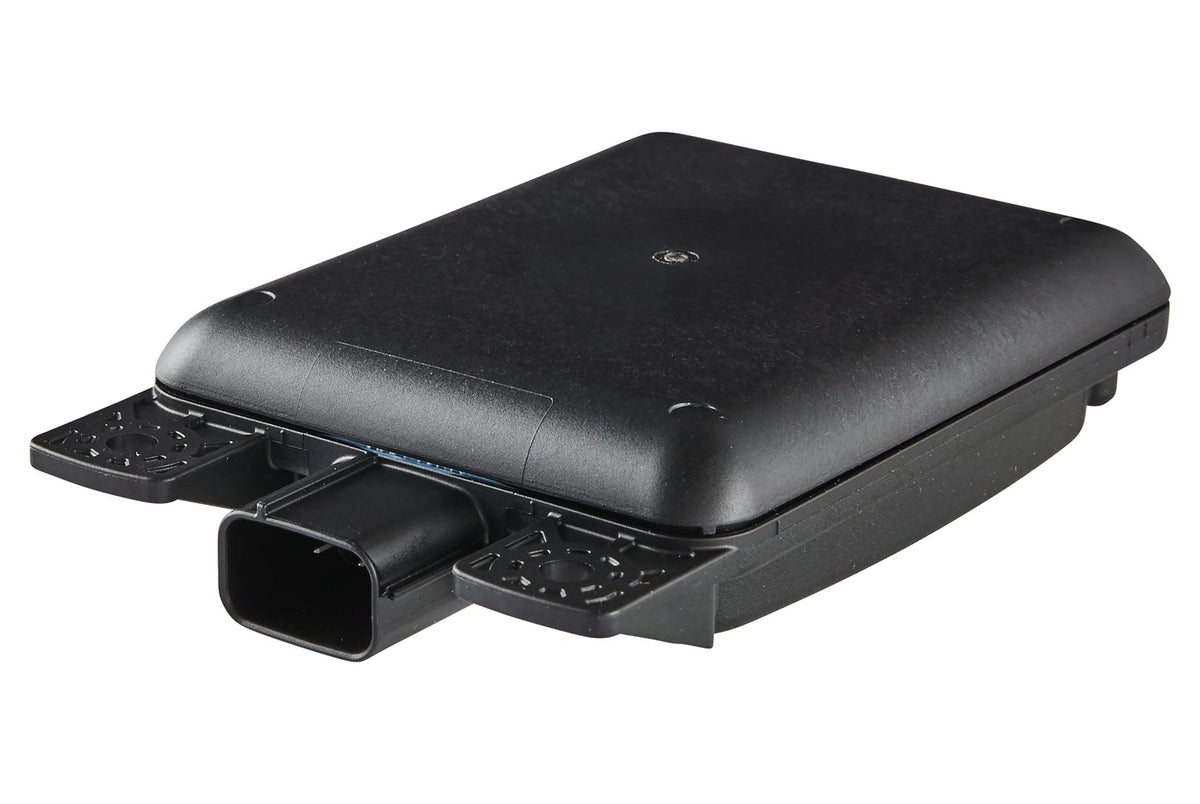

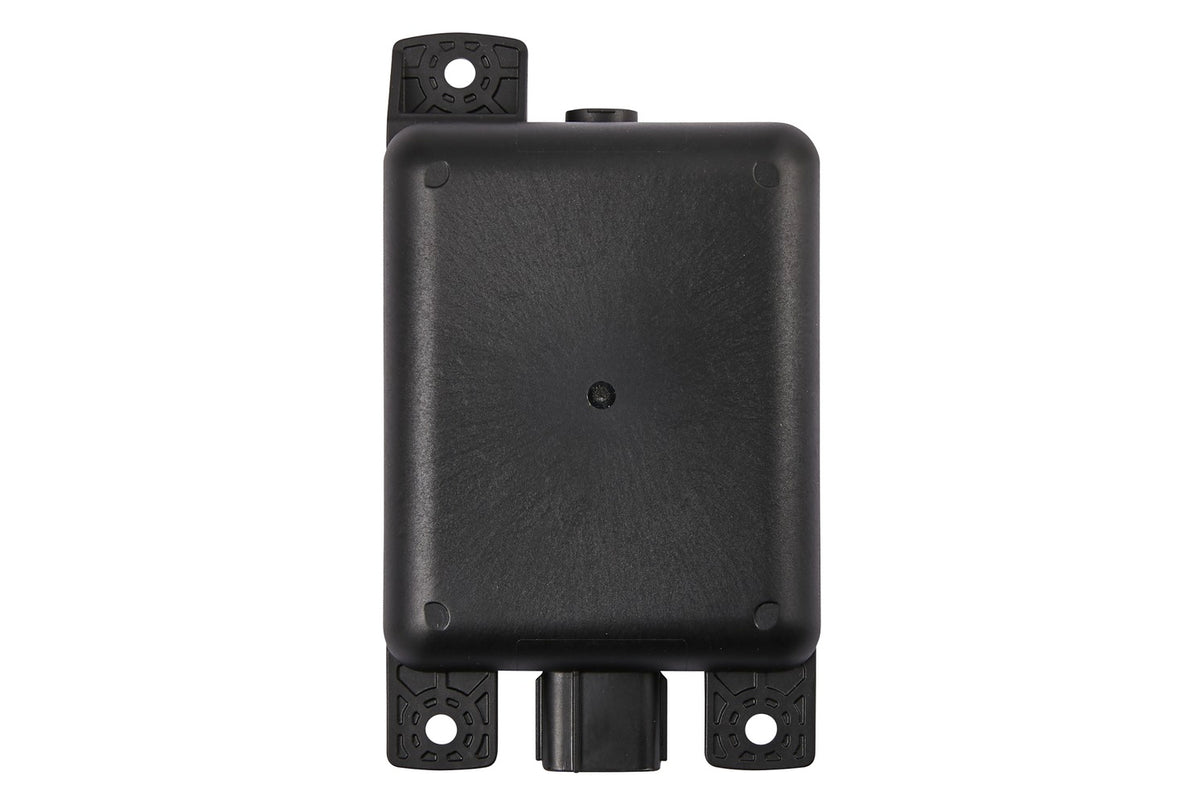

HELLA Control Unit, lane changing assist 6PZ012692-651

Control Unit, lane changing assist - Fitting Position: right

Radar sensor technology is used to implement advanced driver assistance systems, including blind spot monitoring, lane change assist, park assist rear pre-crash system, in all car segments. HELLA is considered a pioneer in the radar sensor market with its 24 GHz radar and the first radar for rear applications. The successful production of more than 120 series at 15 OEMs and more than 13 million sensors sold, as well as the implementation of the cost-effective MMIC technology, which increases the attractiveness for installation in the compact class, clearly show the advantages HELLA radar sensors offer. With the Mega Macs diagnostic series, HELLA offers a professional radar sensor calibration option under HELLA GUTMANN Solutions. The lane change assistant consists of a master and a slave control unit, which are identical in terms of their design. Together with an integrated radar sensor, both control units each form an independent component. Above the radar sensor, the control unit is fitted with a plastic cover. This cover, also known as a "radome", is made of a special material that is optimally penetrated by the radar beams. The control unit "Master" is mounted behind the bumper on the left side and the control unit "Slave" behind the bumper on the right side.

• fits e.g. Mazda Cx-5 (KF) (please check exact vehicle application)
• Activation required
• Activation required
• High increase in vehicle safety
• Pioneer of 24 GHz radars, whose 24Ghz narrowband technology is approved worldwide
• Successful production of more than 120 series at 15 OEMs and more than 13 million sensors sold
• Cost-effective MMIC technology for greater appeal in the compact class

Item Attributes:
Fitting Position: right
Supplementary Article/Supplementary Info 2: Activation required
Assembly by qualified personnel required!

OE references: MAZDA D24H-67Y80-A; MAZDA D24H-67Y80-B; MAZDA D24H-67-Y80D
