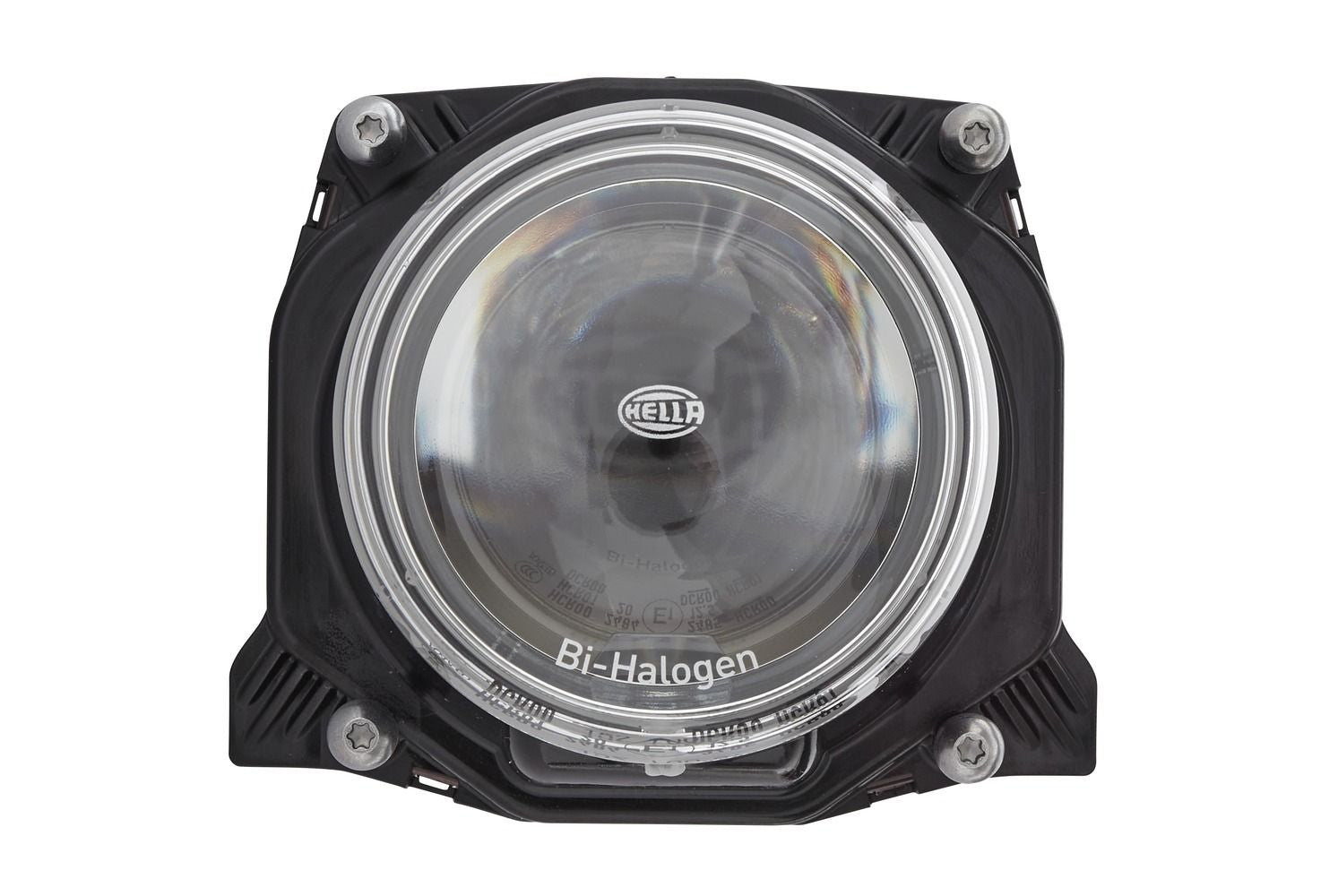

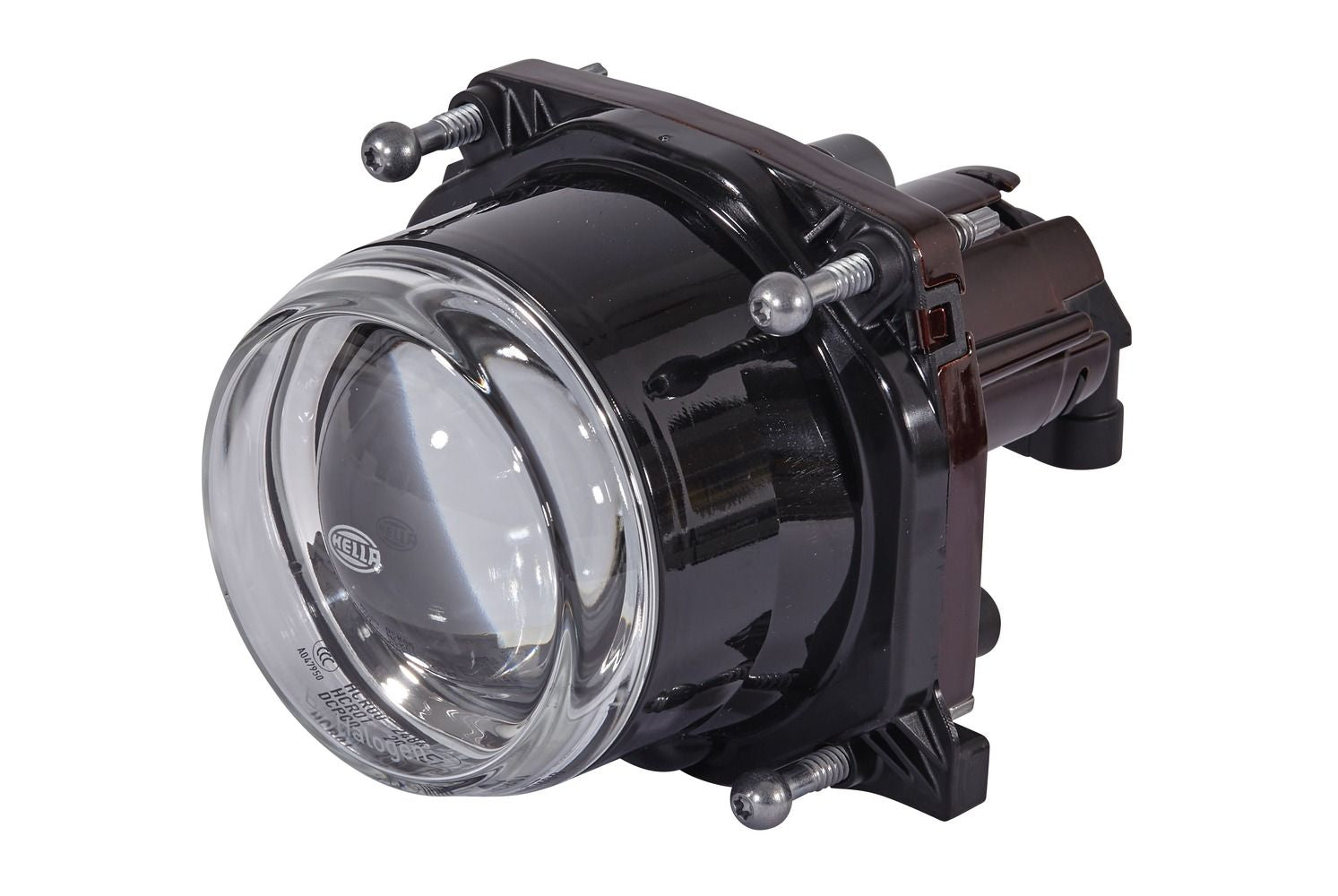

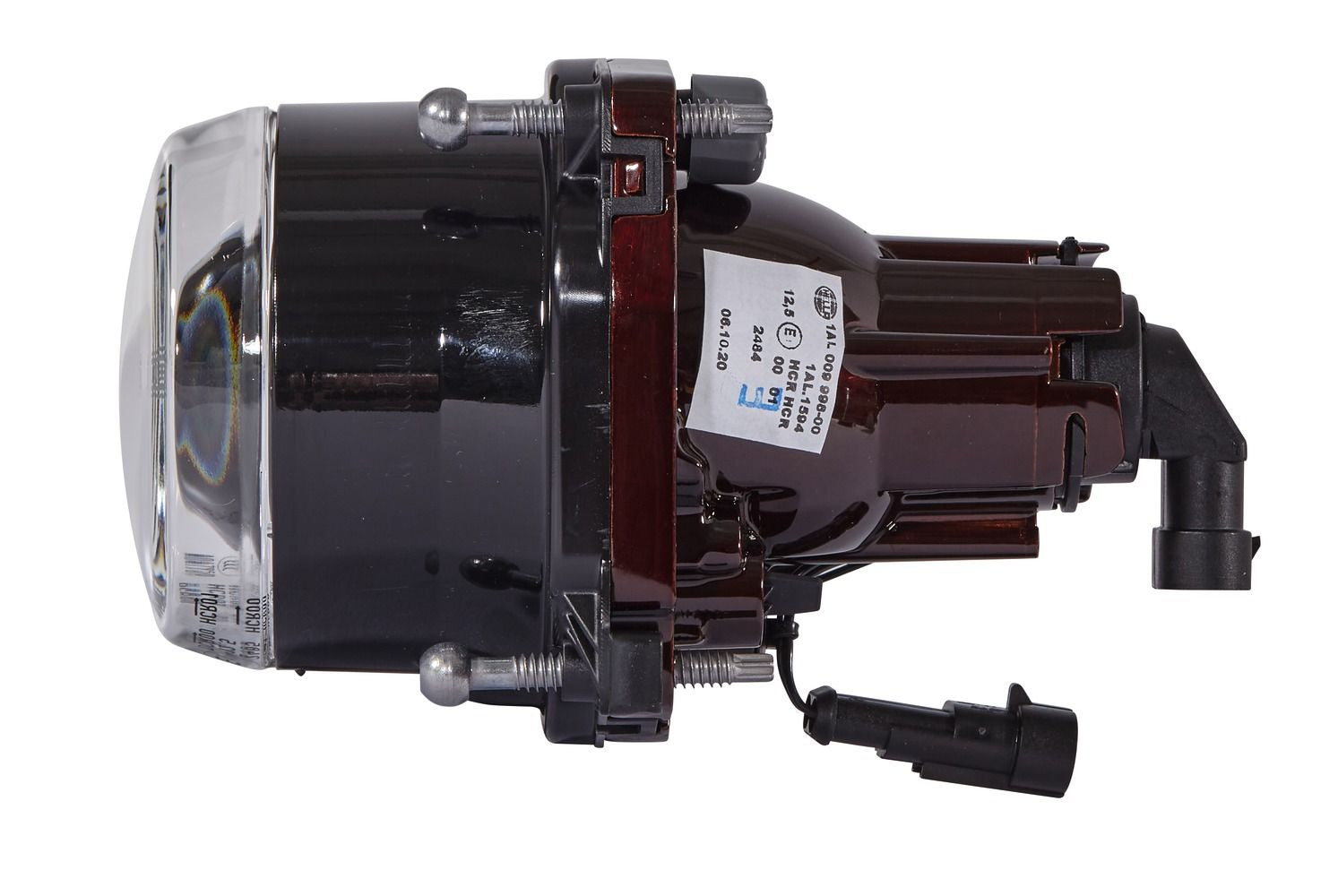

HELLA DE/Halogen-Headlight - 90mm Performance - 12V 1AL009998-001

DE/Halogen-Headlight - 90mm Performance - 12V - round - Reference number: 12.5 - ECE/SAE/CCC - Plug: AMP - left/right

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Excellent light output and extremely homogeneous illumination with little scattered light from a 70 mm optic-free lens

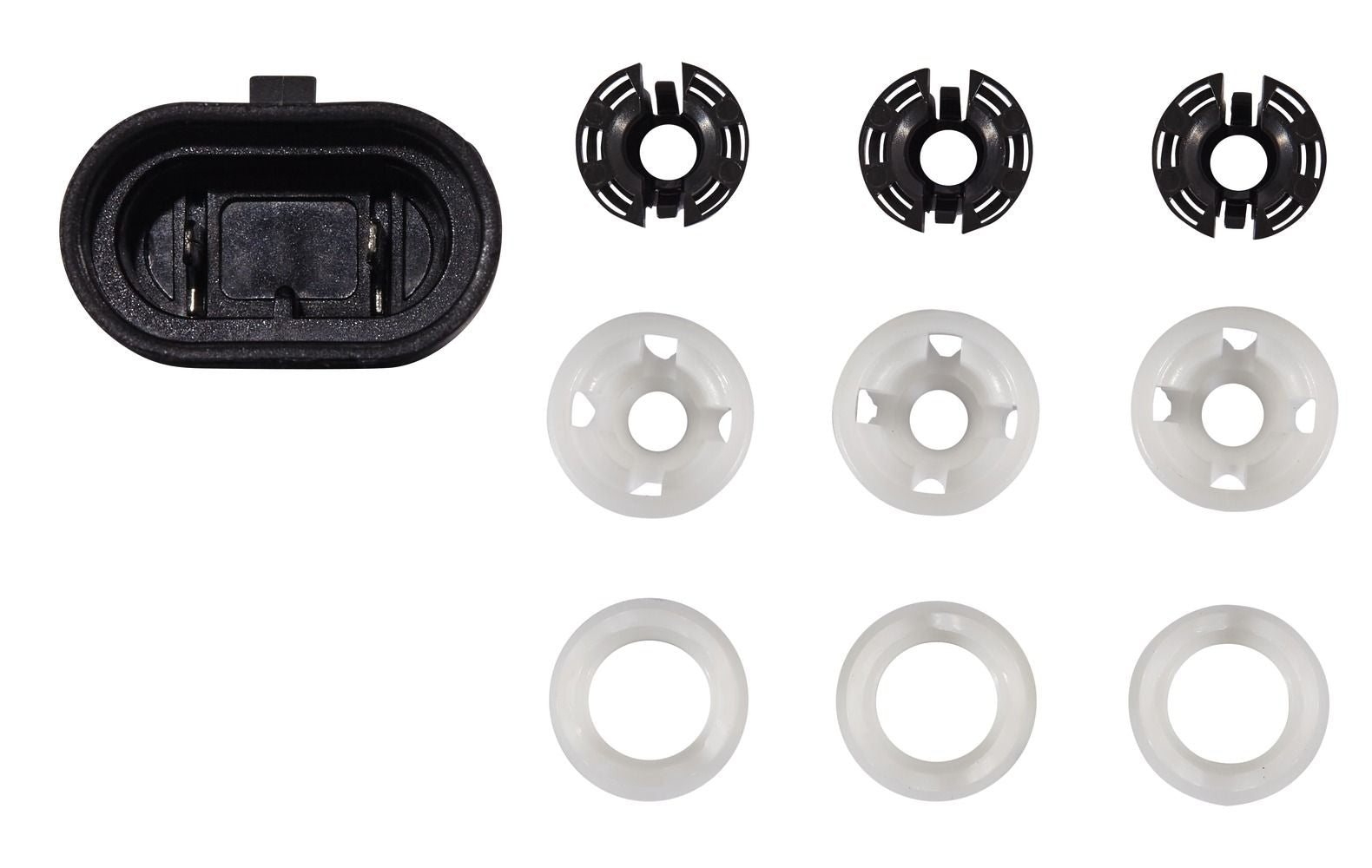

• Simple installation with pre-mounted adjusting screws
• Width: 182mm - Height: 108mm - Depth: 182mm - Lamp Type: H7 - with bulb - with bulbs/Electromagnetic Compatibility (EMC)
• Light functions: 2 - with low beam/with high beam
• Registration Type: ECE/SAE/CCC - for right-hand traffic

Item Attributes:
Mounting Type: Fitting
Fitting Position: right / left
Lamp Type: H7
Light Function: with high beam / with low beam
Light Design: Halogen / DE
Voltage: 12 V
Width: 182 mm
Height: 108 mm
Depth: 182 mm
Outer Diameter: 108 mm
Diffusing Lens Material: Glass

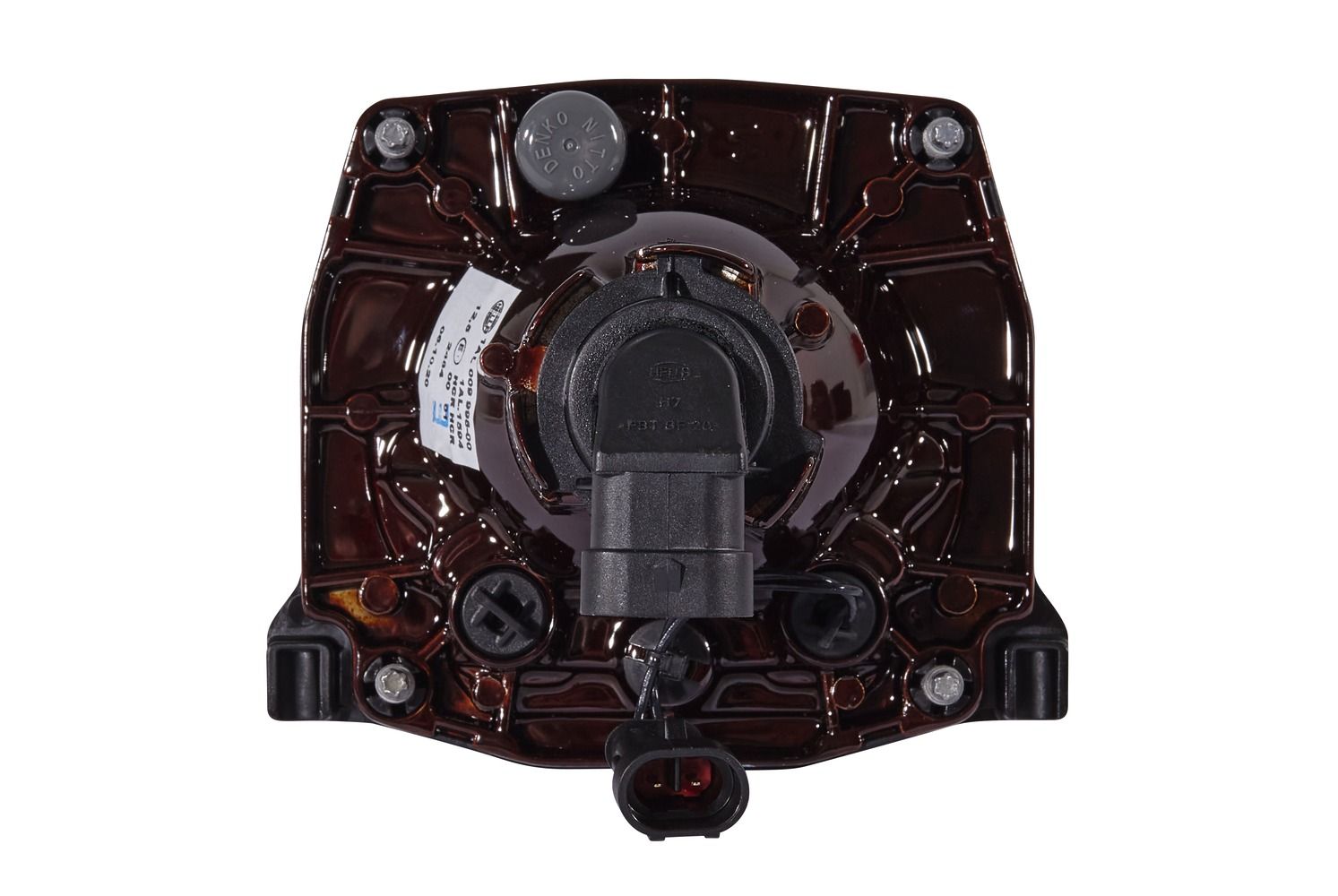

Plug: AMP
Illuminated Area: 90 mm
Light functions: 2
SVHC: 7439-92-1; Lead
Reference number: 12.5
Registration Type: ECE / SAE / CCC
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info: with bulb
Supplementary Article/Supplementary Info 2: with bulbs / Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!

OE references: AEBI R04F401001; AGCO 63595600; AGCO 72477446; AGCO 72618748; AGCO G334 900 160 020; AGCO G334 900 160 021; AGCO MP1186; AGCO V63595600; AMAZONE NA298; BLUECAR T0920-01552; BONETTI 05700243; BUCHER 46-421; CARRARO 452497; CASE IH 47573268; CATERPILLAR 539-0528; CLAAS 21659480; DEUTZ-FAHR 2.8039.313.0; DURSO IE5307.00100; FENDT 72477446; FENDT 72618748; FENDT G 260 900 020 020; FENDT G334.900.160.020; FENDT G334900160021; FIAT 50525990; FIAT 50526148; HAKO 05104150000; HYMER 1640519; HYMER 1893941; HYMER 1893941 H; HYMER 8015920; HYMER X1603.15.164; KOMATSU 20G-06-51530; KRONE 200842950; KUBOTA 3J03122290; KUBOTA 3J03122291; KUBOTA 3J031-22292; LAIKA 1893941; LAIKA 3062615; LANDINI 6603320A1; LINDNER 3005785; MASERATI A0050525990; REFORM 900530209; SAME 2.8039.313.0; STREETSCOOTER A12X213005_02; STREETSCOOTER A12X213022_02; VALMET 63595600; VERSATILE 86066083
