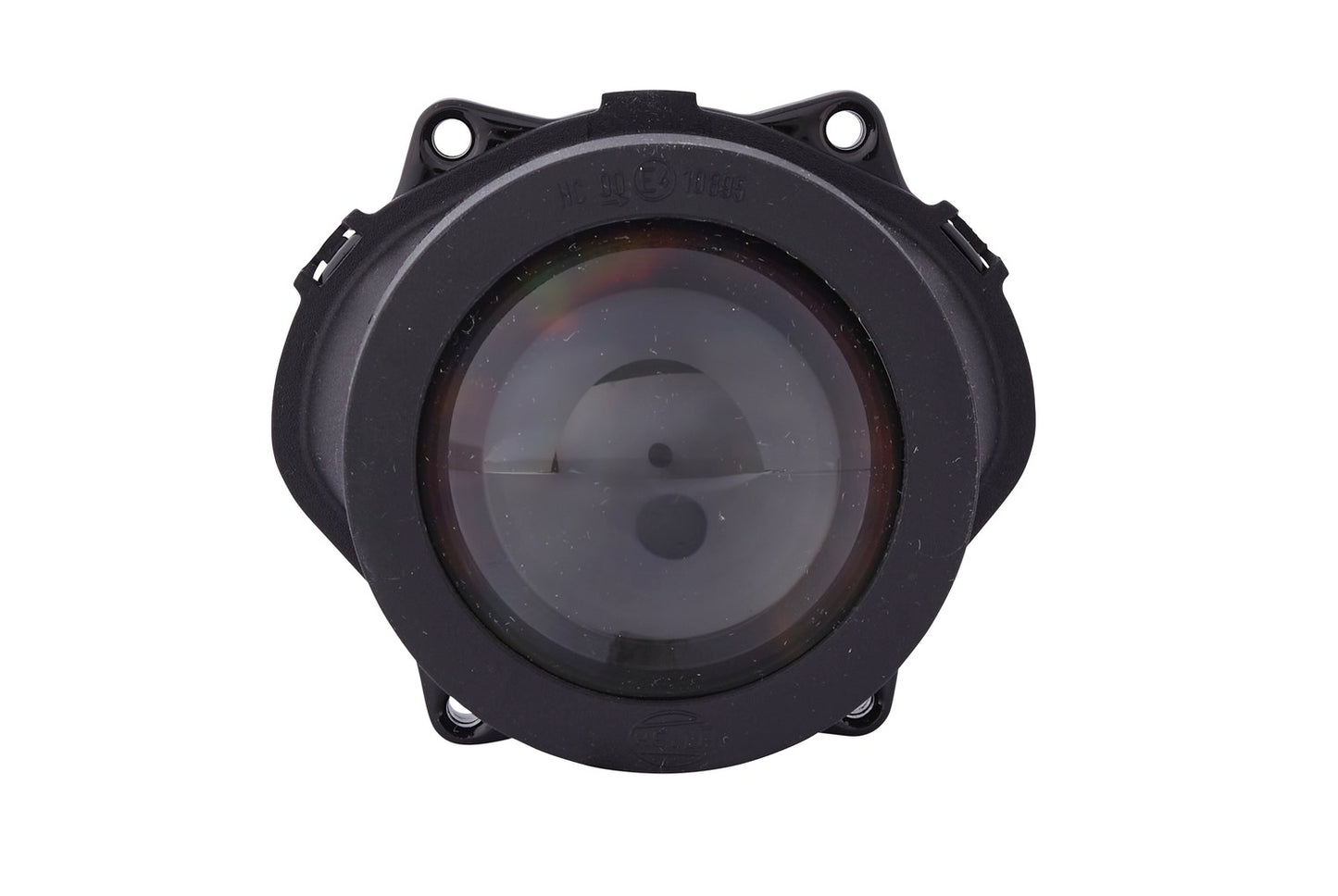

HELLA DE/Halogen-Headlight - Modul 60 - 12/24V 1ML998570-011

DE/Halogen-Headlight - Modul 60 - 12/24V - round - ECE - right/left

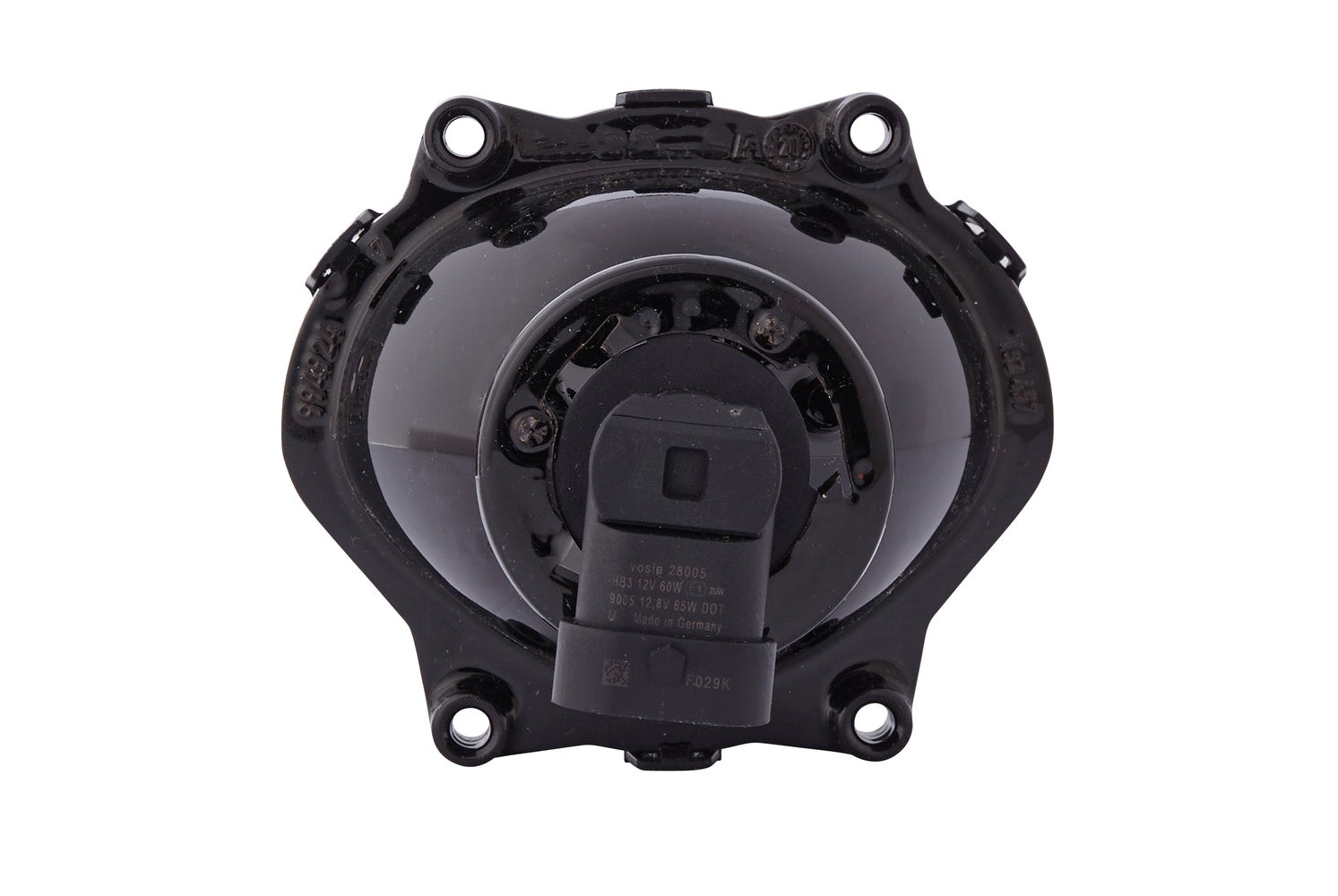

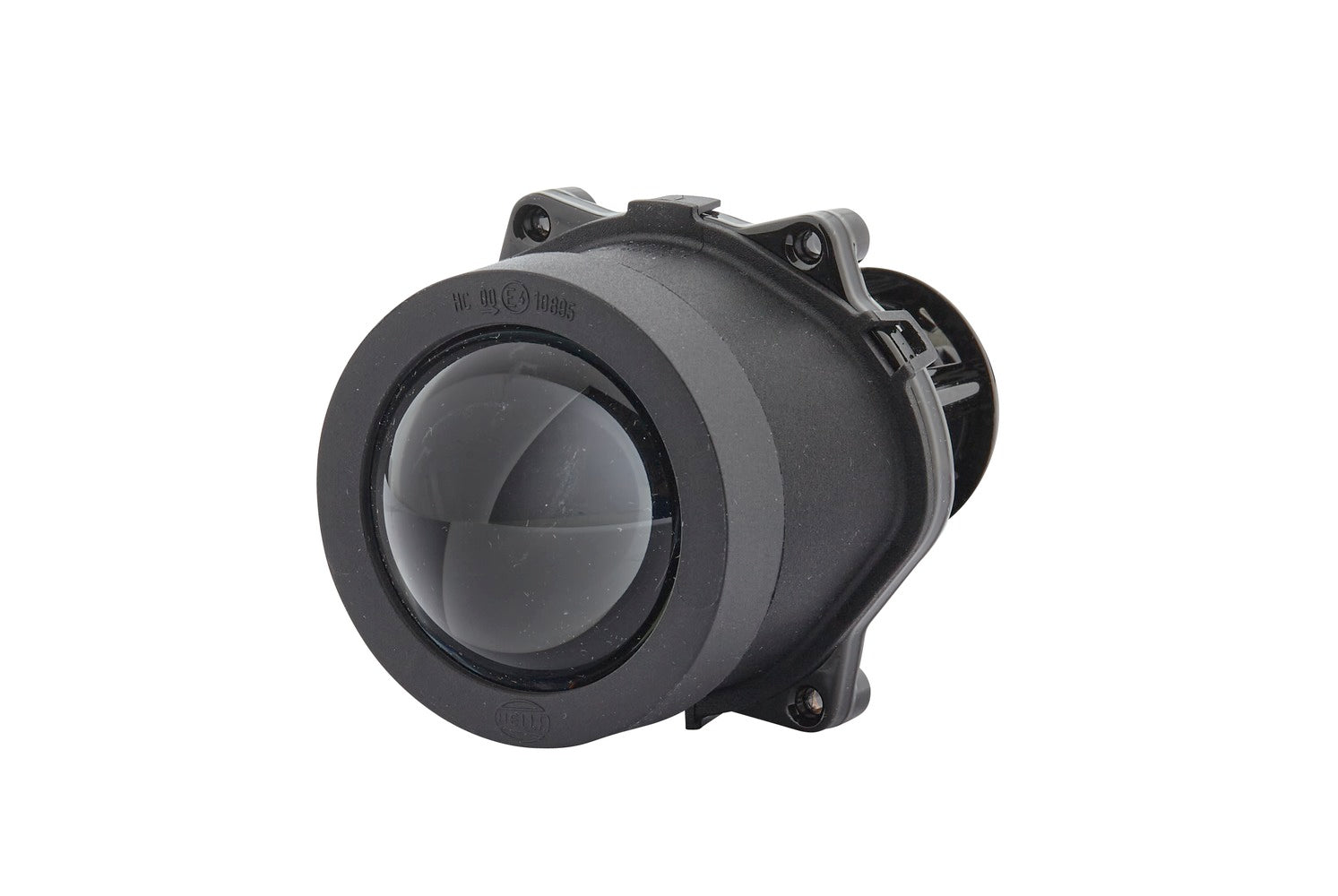

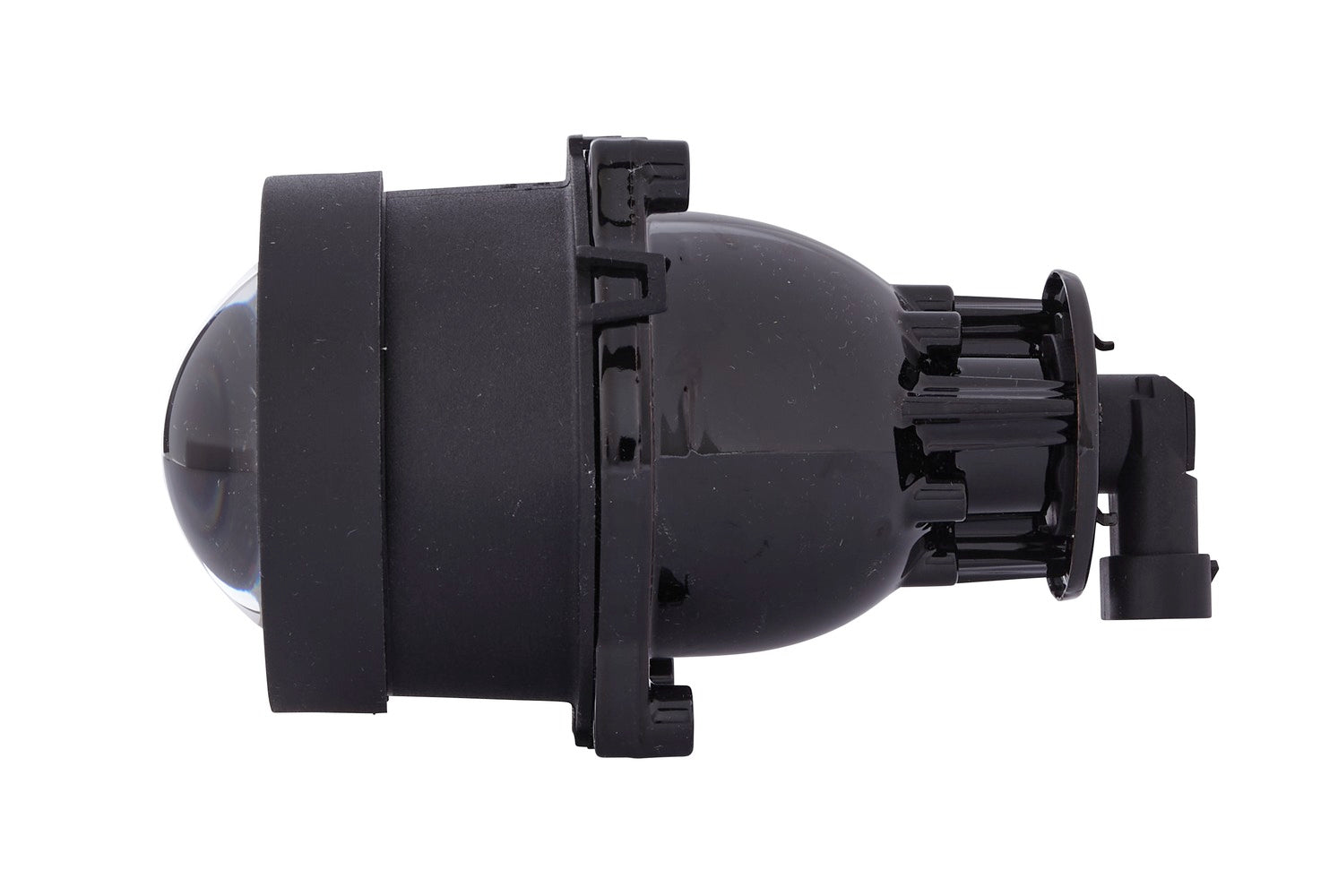

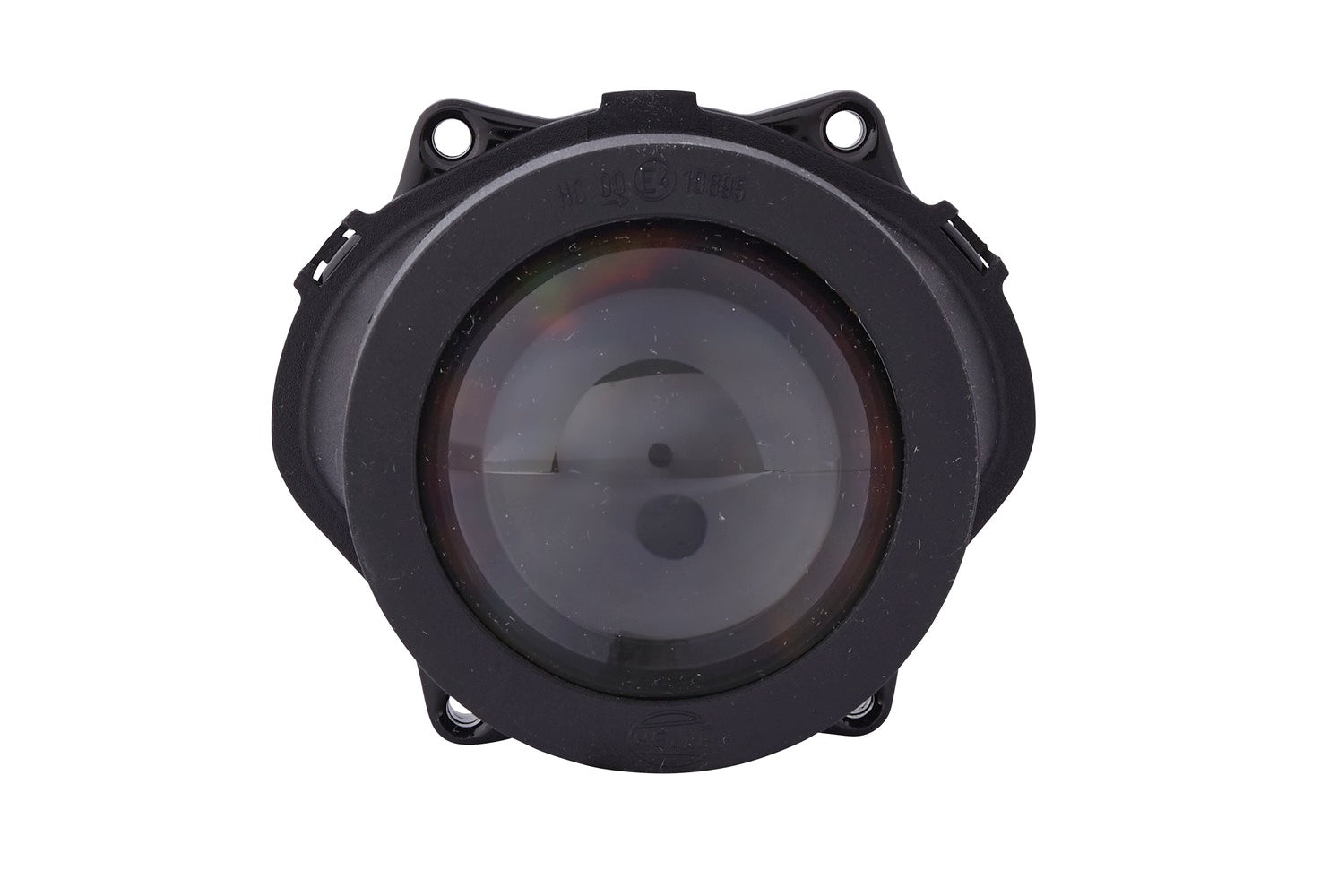

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

• Universally usable
• Compact design
• Outstanding lighting performance
• Width: 103mm - Height: 89mm - Depth: 157mm - Lamp Type: HB3 - with bulb
• Light functions: 1 - with low beam
• Registration Type: ECE - for left-hand traffic
• Housing Colour: Black

Item Attributes:
Mounting Type: Fitting
Lamp Type: HB3
Light Design: Halogen / DE
Voltage: 12 V / 24 V
Fitting Position: left / right
Width: 103 mm
Height: 89 mm
Depth: 157 mm
Light Function: with low beam
Light functions: 1
Registration Type: ECE
Left-hand/Right-hand Traffic: for left-hand traffic
Shape: round
Housing Colour: Black
Illuminated Area: 60 mm
Supplementary Article/Supplementary Info: with bulb
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AEBI 1117904-8; CASE IH 21586870; CLAAS 21586870; DEUTZ-FAHR 2.8039.008.0; ISEKI 1810-650-410-0
