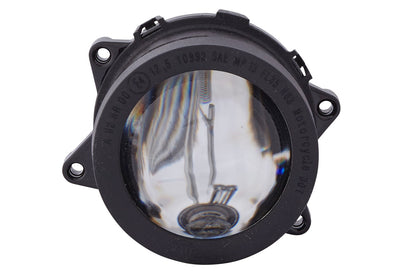

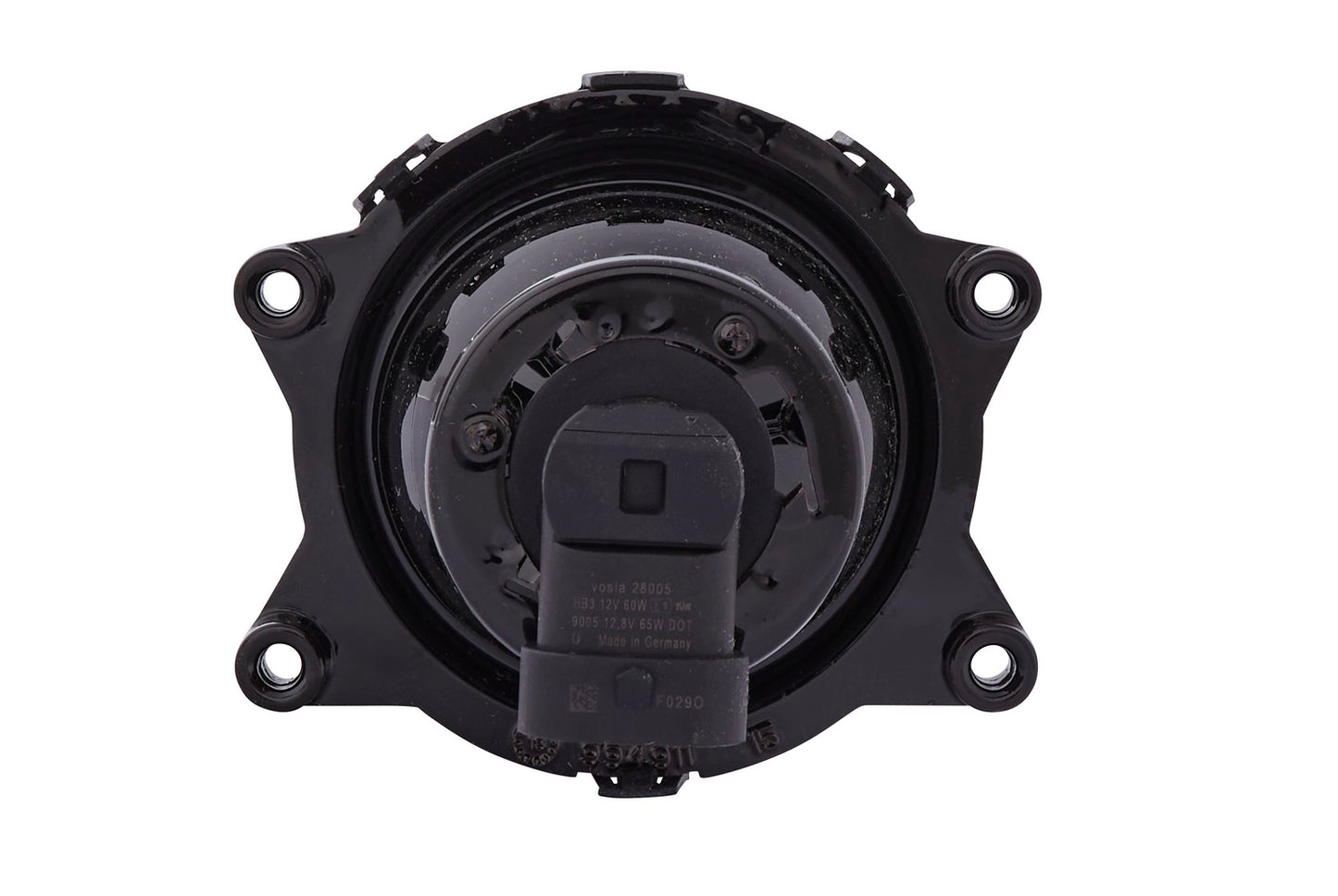

HELLA DE/Halogen-Headlight - Modul 60 - 12V 1KL998570-021

DE/Halogen-Headlight - Modul 60 - 12V - round - Reference number: 12.5 - SAE/ECE - left/right

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

• Universally usable
• Compact design
• Outstanding lighting performance
• Width: 99mm - Height: 89mm - Depth: 157mm - Lamp Type: HB3 - with bulb
• Light functions: 1 - with high beam/without position light
• Registration Type: SAE/ECE - for right-hand traffic
• Housing Colour: Black

Item Attributes:
Mounting Type: Fitting
Lamp Type: HB3
Light Design: Halogen / DE
Voltage: 12 V
Fitting Position: left / right
Width: 99 mm
Height: 89 mm
Depth: 157 mm
Light Function: without position light / with high beam
Light functions: 1
Registration Type: ECE / SAE
Reference number: 12.5
Shape: round
Housing Colour: Black
Illuminated Area: 60 mm
Supplementary Article/Supplementary Info: with bulb
SVHC: 7439-92-1; Lead
Left-hand/Right-hand Traffic: for right-hand traffic
Assembly by qualified personnel required!

OE references: AHLMANN 23119206; BM TRACTORS 4.01.030; CLAAS 21521580; ISEKI 1785-650-210-0; KTM 76414001000
