HELLA DE/Halogen-Headlight - Modul 60 - 12V 1KL998570-621

DE/Halogen-Headlight - Modul 60 - 12V - round - SAE/ECE - transparent - right/left

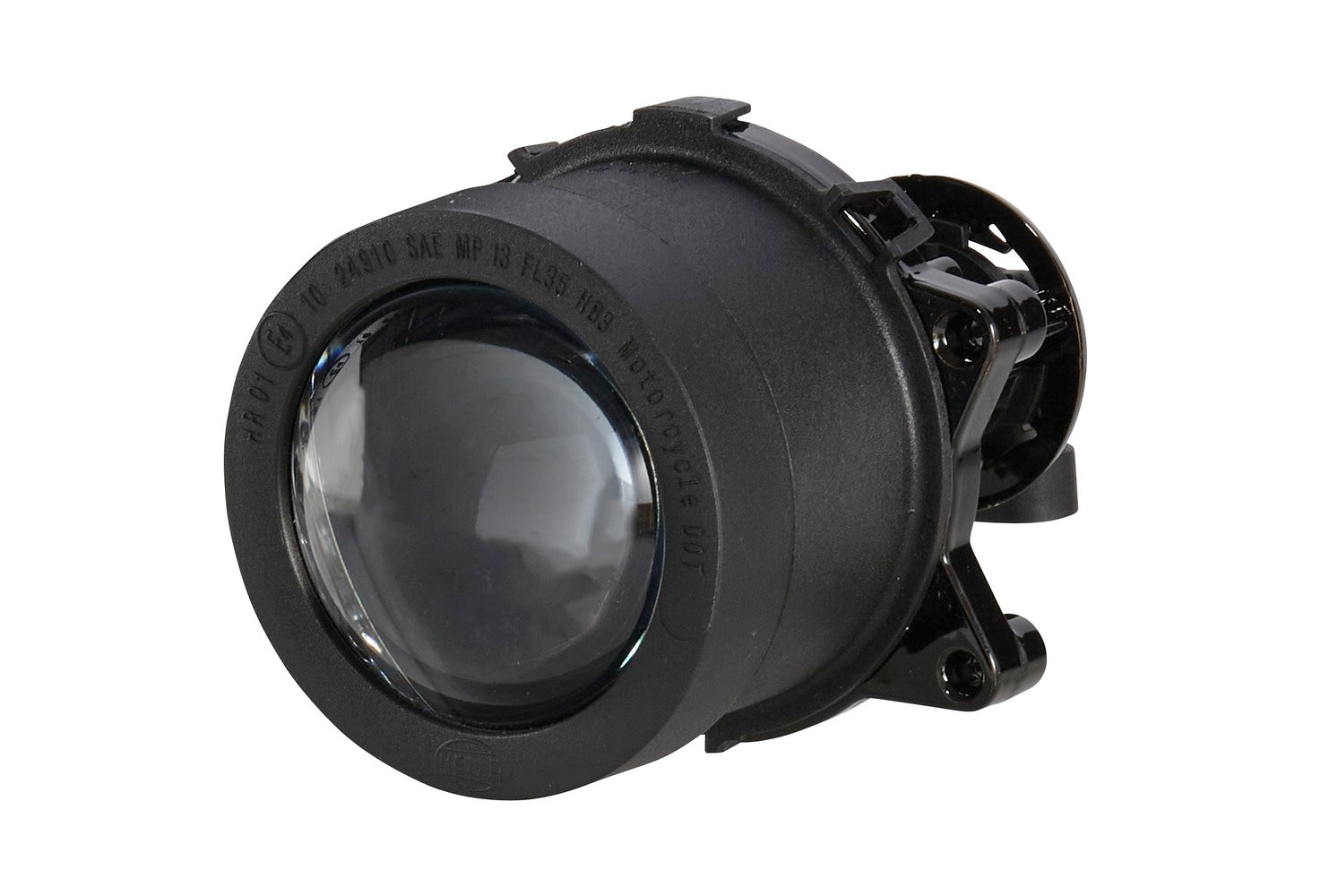

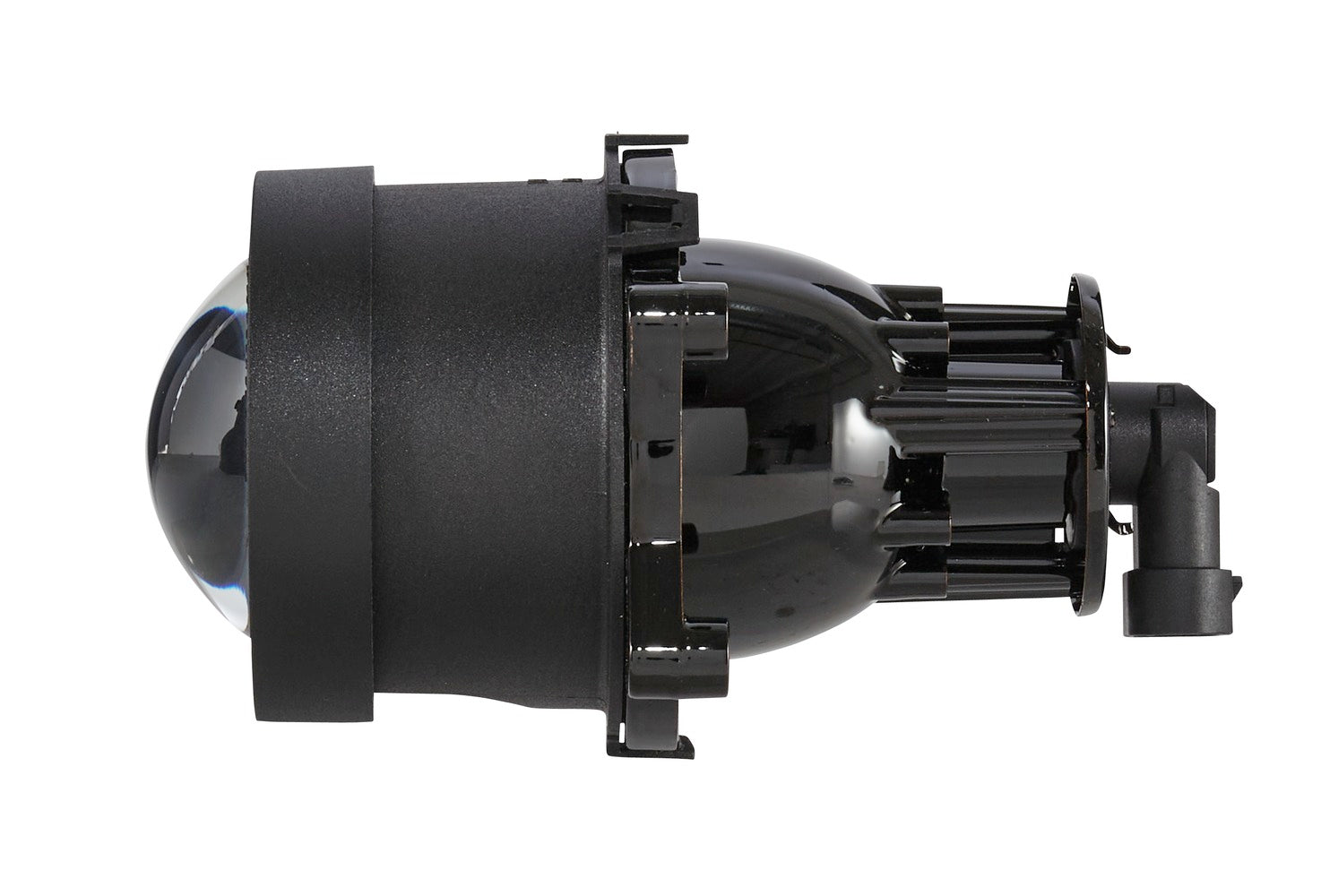

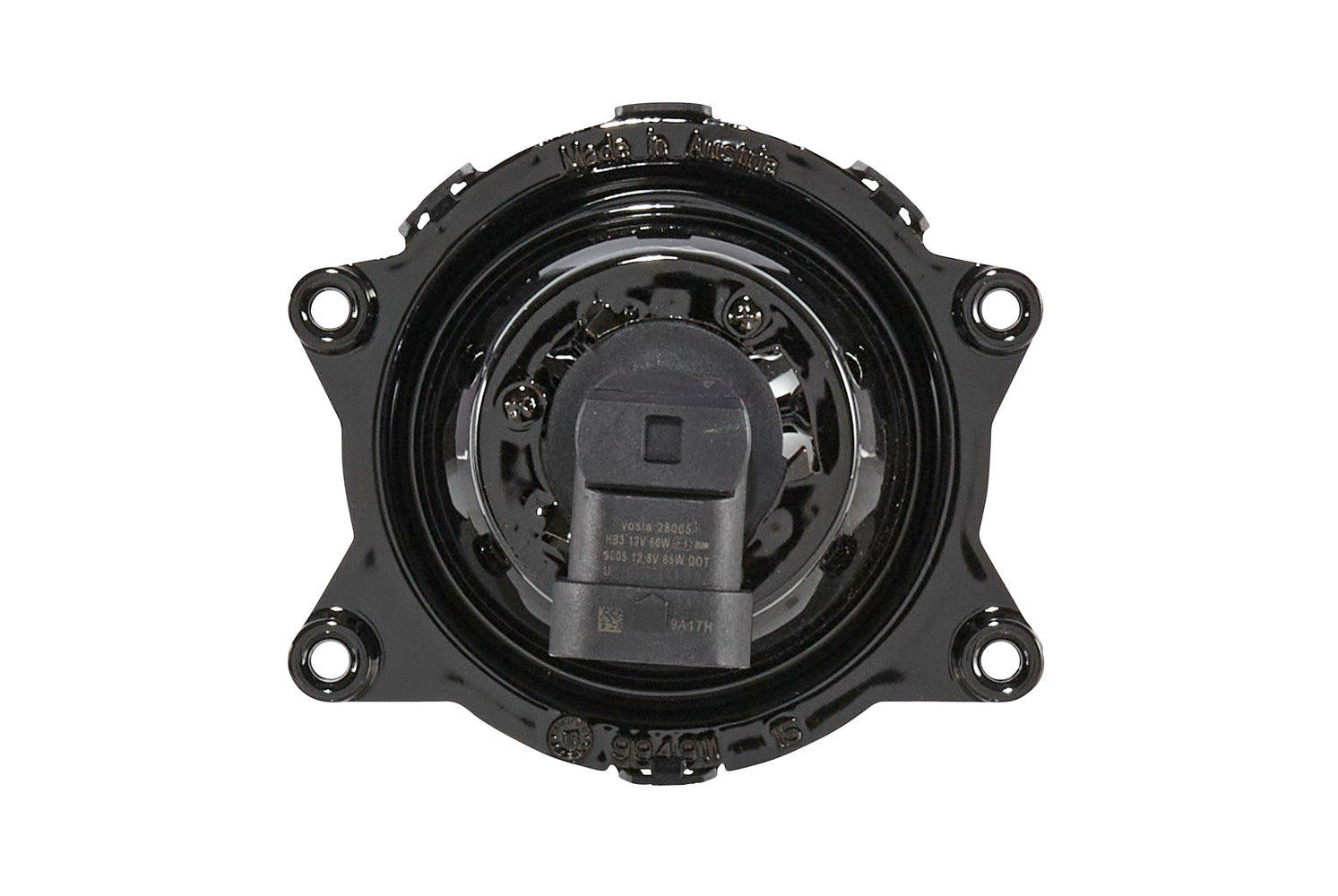

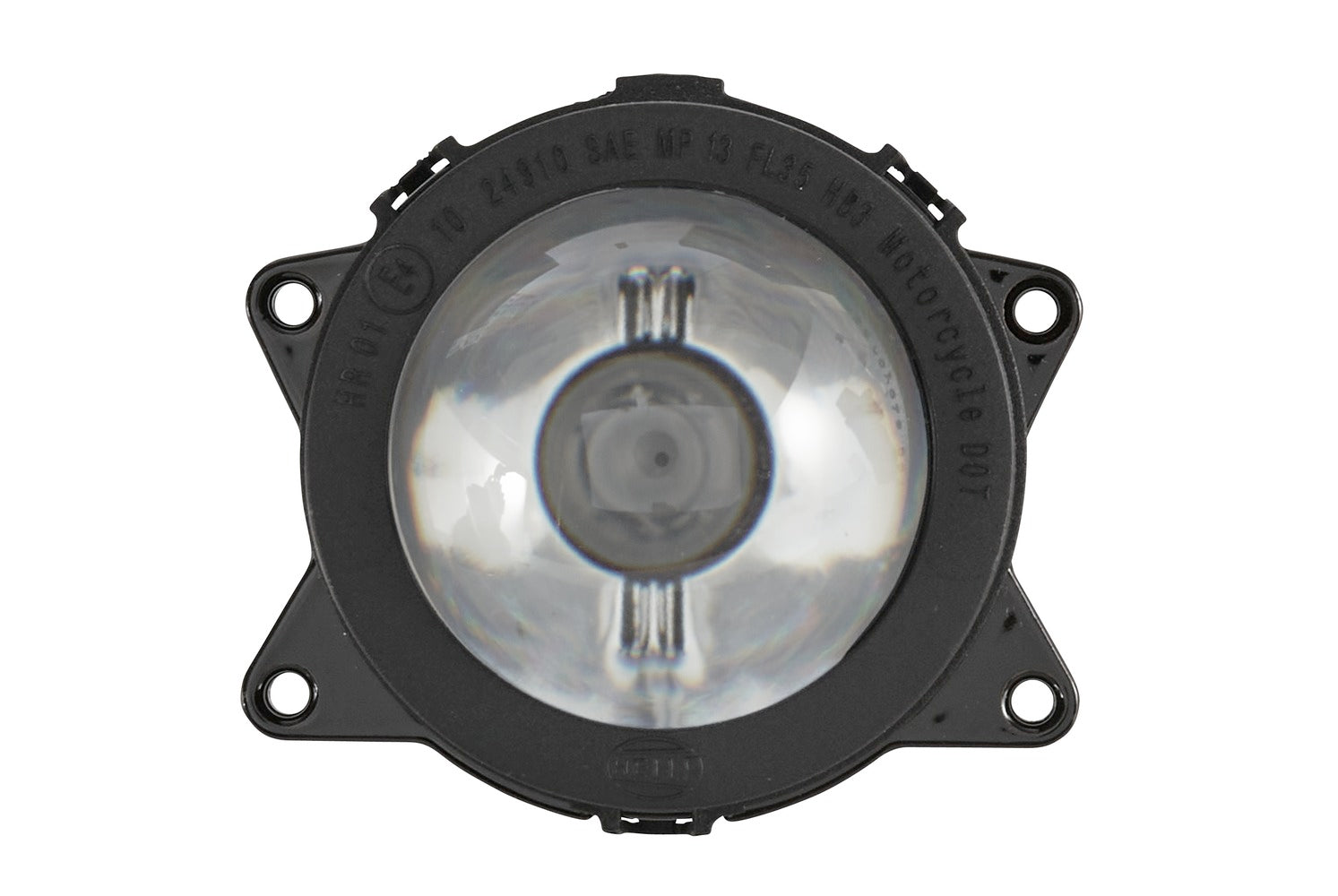

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

• Easy integration into customised design solutions thanks to compact dimensions
• Excellent light output and homogeneous road illumination despite smallest size
• Low weight
• Width: 103mm - Height: 88mm - Depth: 157mm - Lamp Type: HB3 - with bulb
• Light functions: 1 - with high beam/without position light
• Registration Type: SAE/ECE - for left-hand traffic/for right-hand traffic - Prot.type (IP Code): IP65
• Housing Colour: Black - Lens Colour: transparent

Item Attributes:
Mounting Type: Fitting
Fastening Type: Frame holder
Lamp Type: HB3
Light Design: Halogen / DE
Voltage: 12 V
Fitting Position: left / right
Width: 103 mm
Height: 88 mm
Depth: 157 mm
Light Function: without position light / with high beam
Light functions: 1
Prot.type (IP Code): IP65
Registration Type: SAE / ECE
Left-hand/Right-hand Traffic: for left-hand traffic / for right-hand traffic
Shape: round
Housing Colour: Black
Illuminated Area: 60 mm
Lens Colour: transparent
Supplementary Article/Supplementary Info: with bulb
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
