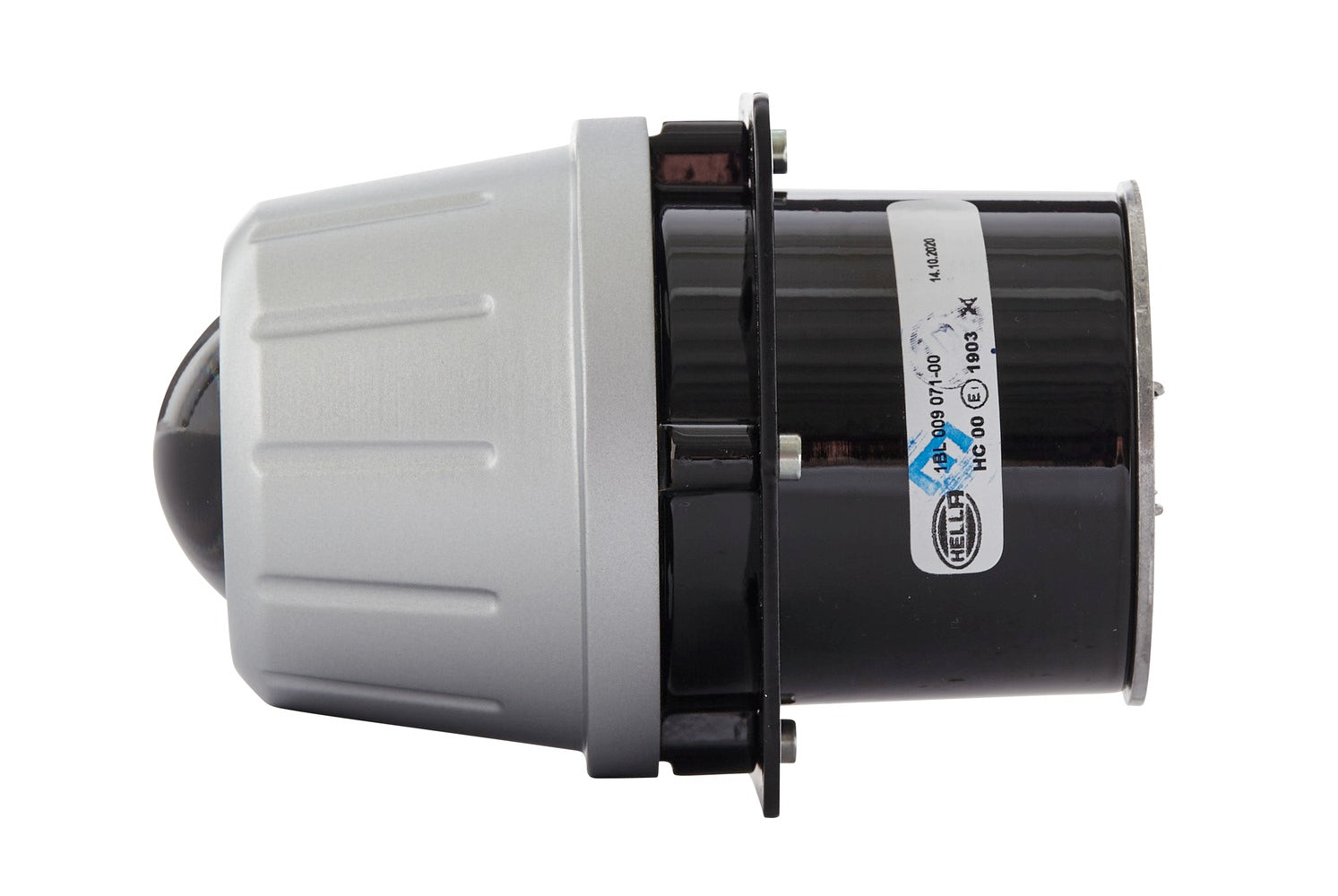

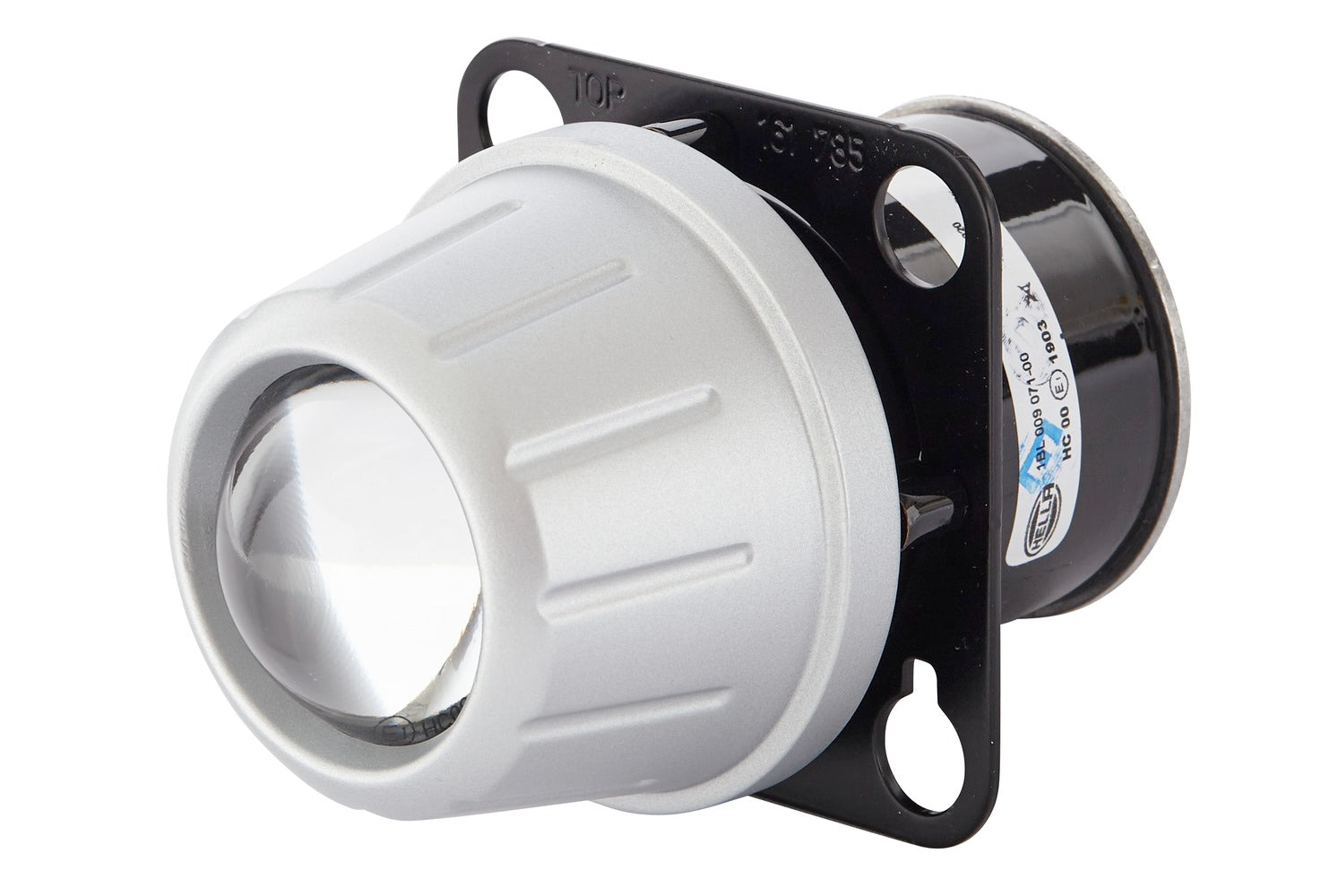

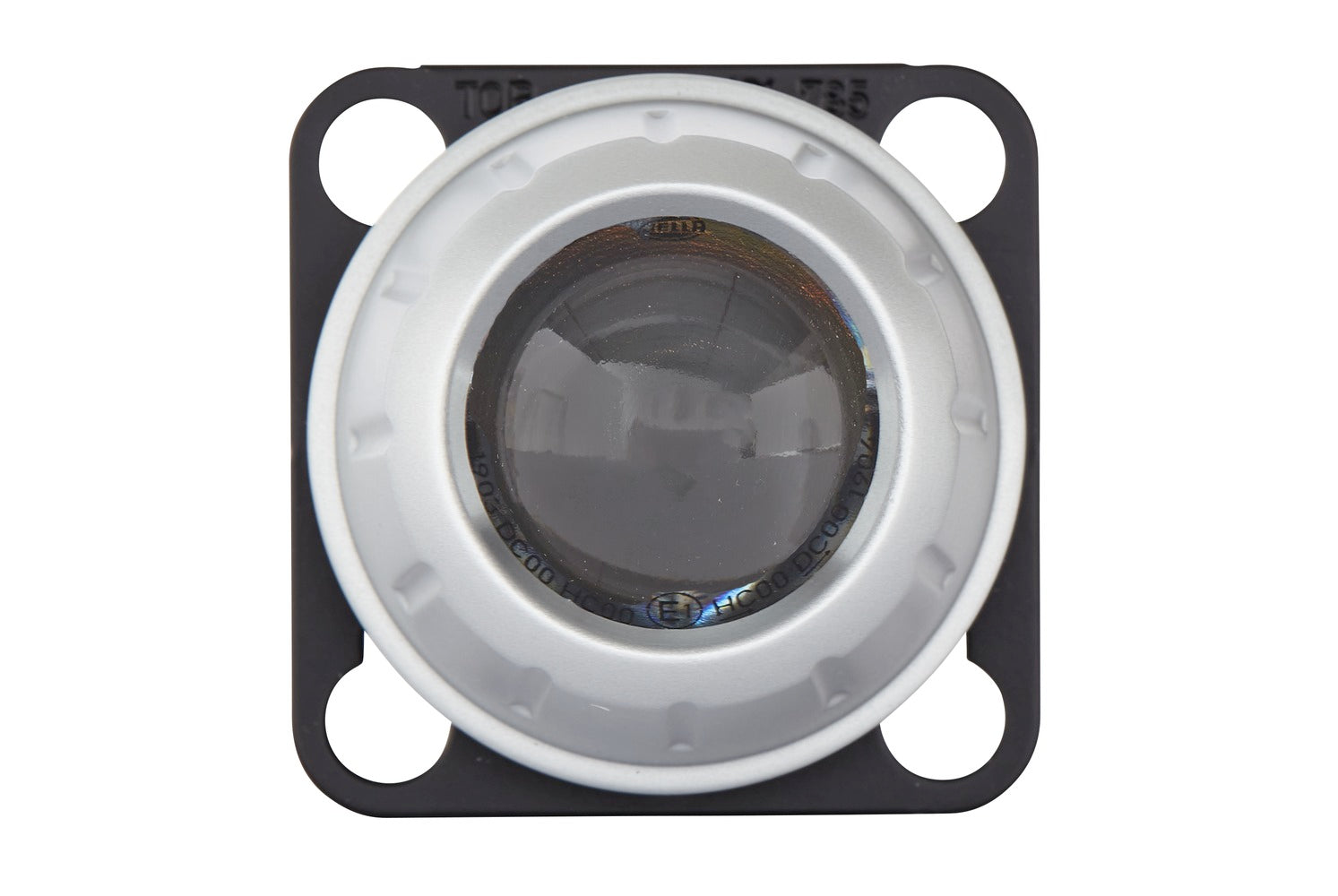

HELLA DE/Halogen-Headlight - Premium 50 - 12V 1BL009071-001

DE/Halogen-Headlight - Premium 50 - 12V - round - ECE - transparent - Plug: Blade Terminal - left/right

This headlamp series has been developed to provide top levels of light output with compact dimensions. A solution for a practical assembly was also important as was a distinctive appearance. We use lens systems in the low beam headlamp and fog lamp. The low beam has a pattern-free lens, while the fog lamp has the familiar structure of the Micro DE headlamp. The low beam and the fog lamp are realised in halogen design.

• Universally usable
• Compact design
• Outstanding lighting performance
• Width: 134mm - Height: 80mm - Depth: 129mm - Lamp Type: H7 - with bulb
• Light functions: 1 - with low beam
• Registration Type: ECE - for right-hand traffic - Prot.type (IP Code): IP5KX/IPX4K/IPX9K
• Housing Colour: black - Lens Colour: transparent

Item Attributes:
Mounting Type: Fitting

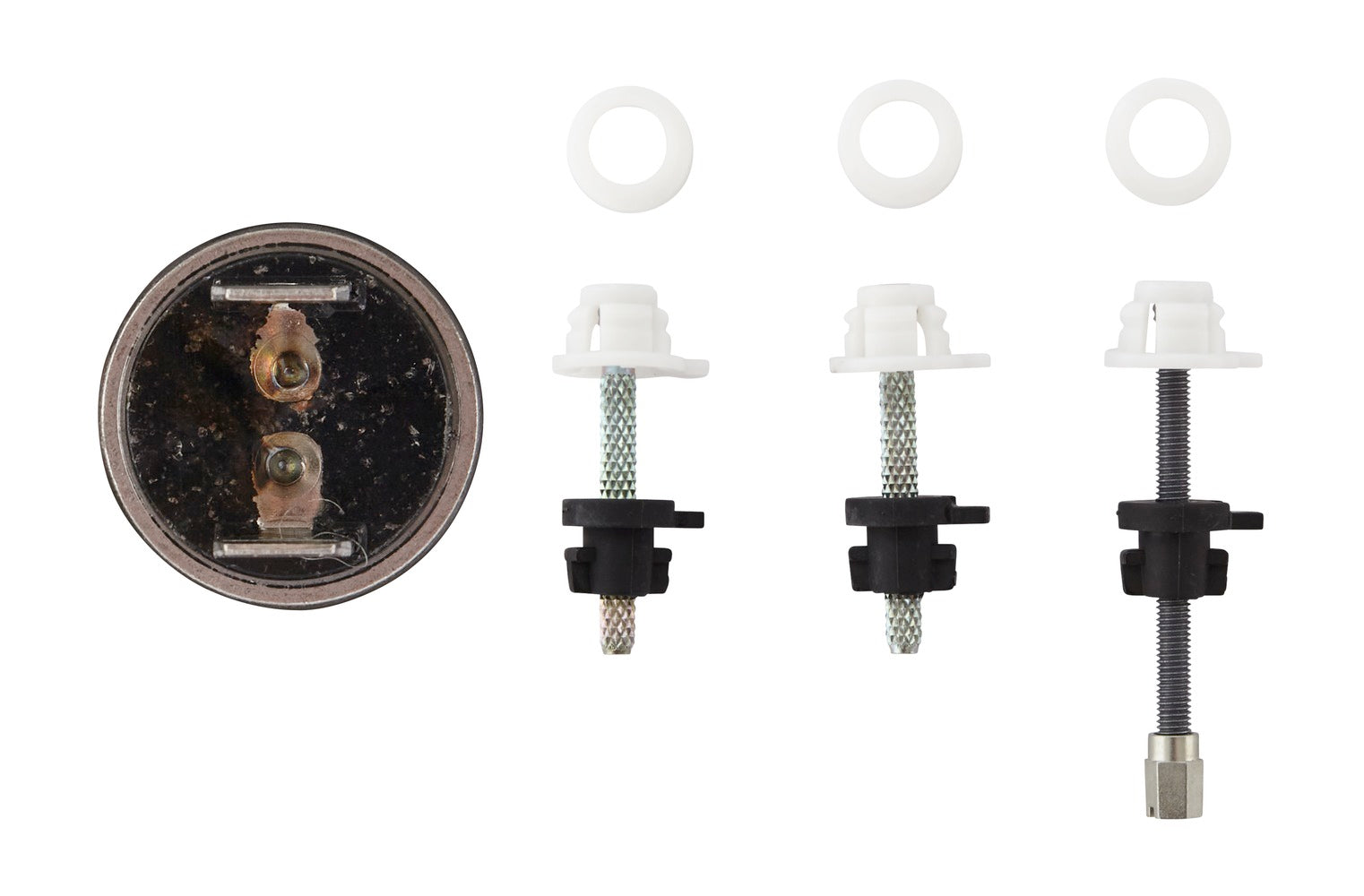

Fastening Type: 3-point attachment
Fitting Position: right / left

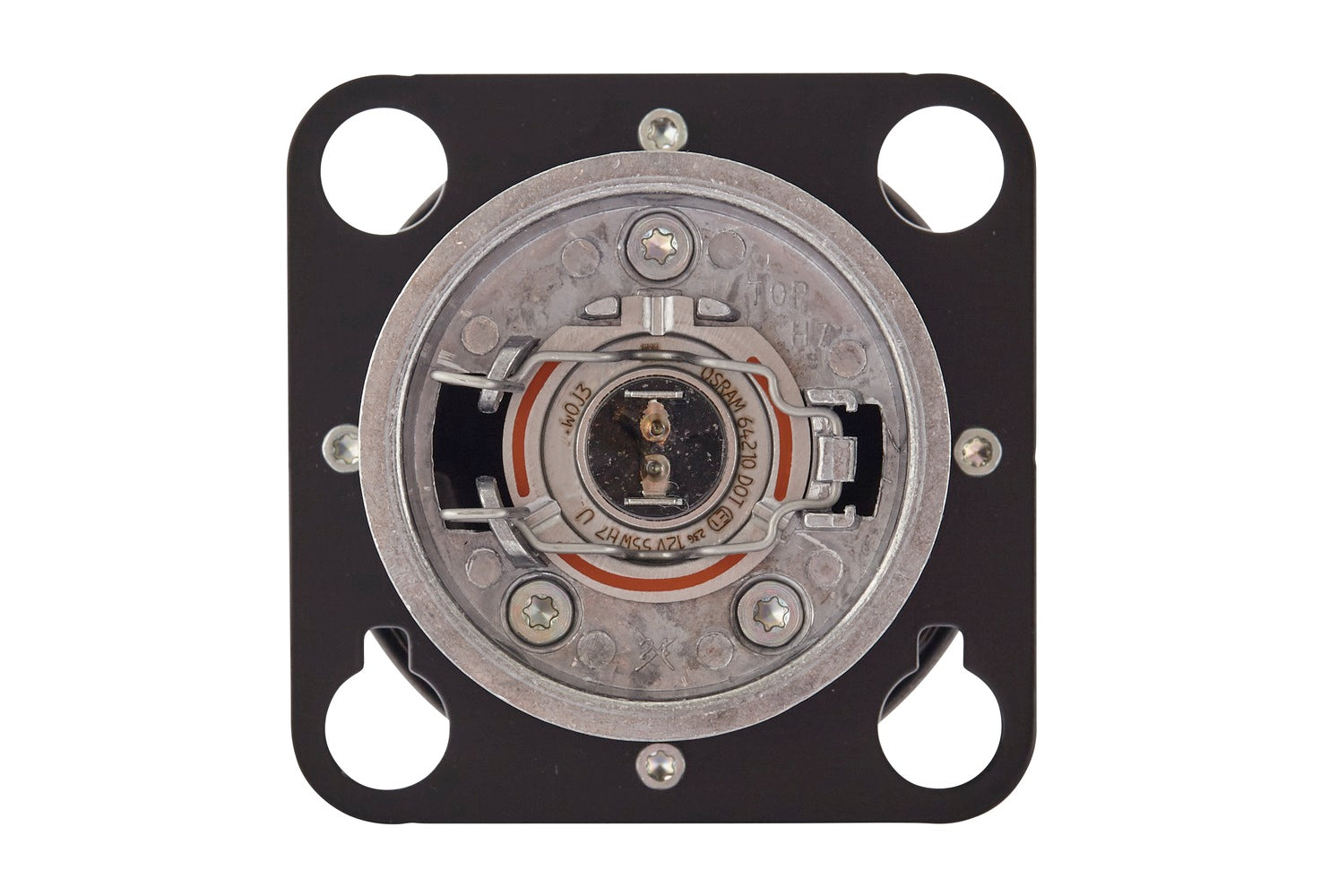

Lamp Type: H7
Light Function: with low beam
Light Design: Halogen / DE
Voltage: 12 V
Width: 134 mm
Height: 80 mm
Depth: 129 mm
Plug: Blade Terminal
Housing Colour: black
Lens Colour: transparent
Prot.type (IP Code): IP5KX / IPX9K / IPX4K
Illuminated Area: 50 mm
Light functions: 1
Registration Type: ECE
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info: with bulb
Assembly by qualified personnel required!

OE references: CARRARO 380529; KUBOTA W21TS07705; ROSENBAUER 539133
