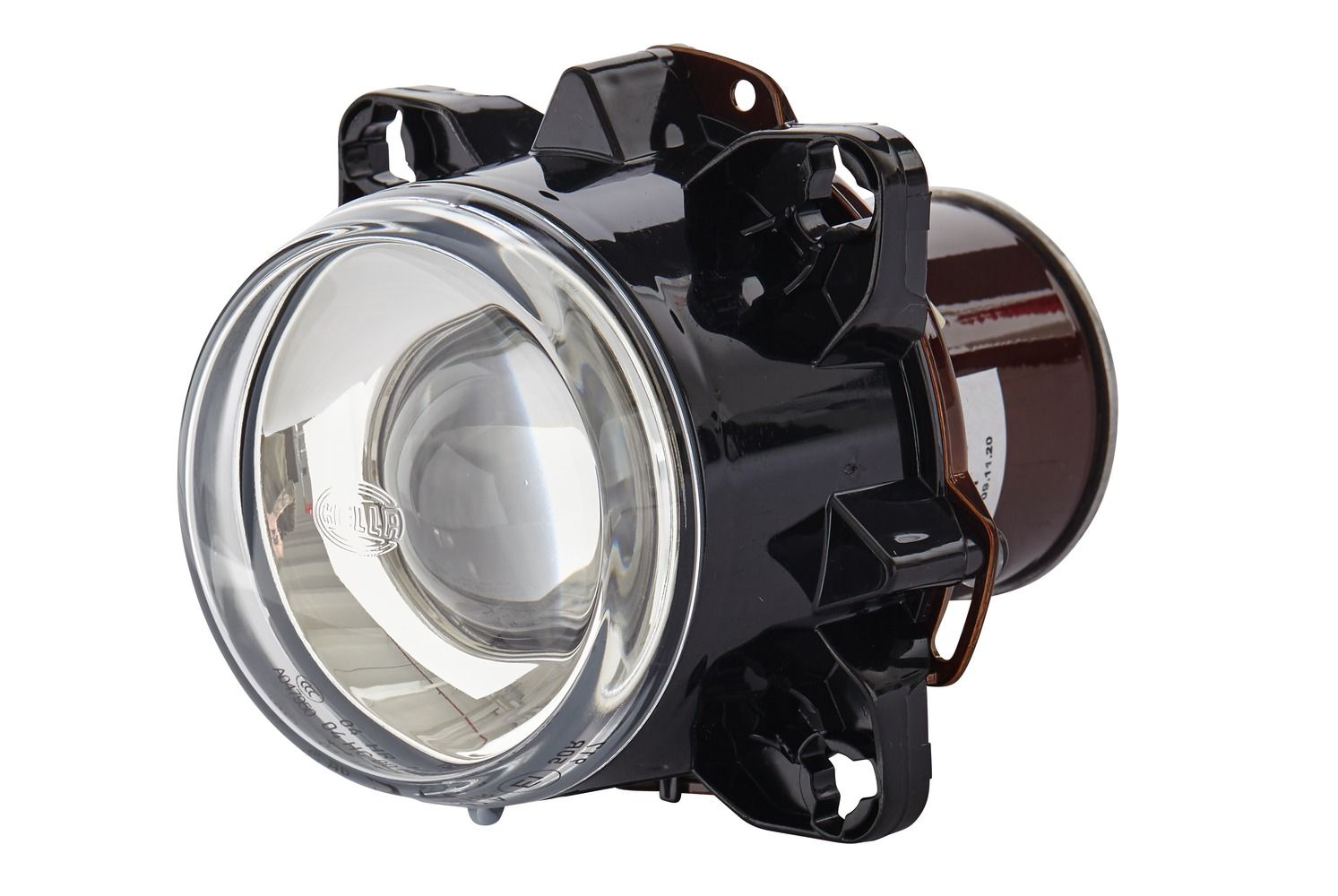

HELLA DE/Halogen-Insert, headlight - 90mm Essential - 12V 1BL008193-001

DE/Halogen-Insert, headlight - 90mm Essential - 12V - round - Reference number: 12.5 - CCC - Crystal clear - Plug: Blade Terminal - left/right - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Ø: 90mm - Length: 140mm - Width: 103mm - Height: 119mm - Depth: 165mm - Lamp Type: H7 - with bulb - with fastening material
• Light functions: 1 - with low beam
• Registration Type: CCC - fulfils ECE standard: R112/R8 - for right-hand traffic
• Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Fitting Position: left / right
Lamp Type: H7
Light Function: with low beam
Light Design: Halogen / DE
Voltage: 12 V
Length: 140 mm
Width: 103 mm
Height: 119 mm
Depth: 165 mm
Ø: 90 mm
Diffusing Lens Material: Glass
Plug: Blade Terminal
Housing Colour: black
Lens Colour: Crystal clear
fulfils ECE standard: R112 / R8
Quantity: 1
Illuminated Area: 90 mm
Light functions: 1
SVHC: 7439-92-1; Lead
Reference number: 12.5
Registration Type: CCC
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info: with bulb

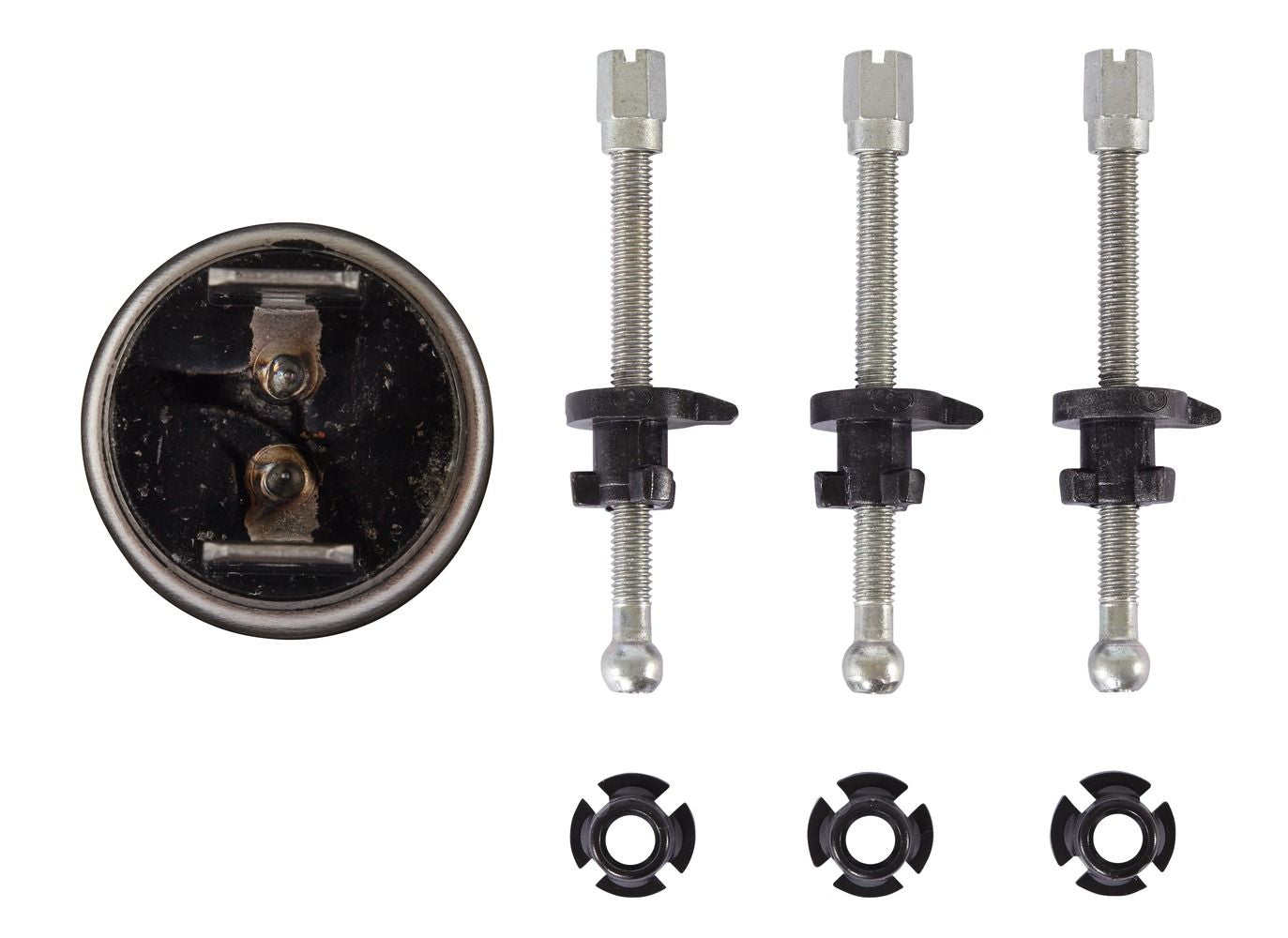

Supplementary Article/Supplementary Info 2: with fastening material
Assembly by qualified personnel required!

OE references: AGCO 7104914M91; AGCO 72437695; AGCO ACW1276090; AGCO G931 900 020 140; AGCO G931 901 020 140; AGCO G931 901 020 141; AMAZONE NA156; BMC 58RS111463; BOMAG 05751178; BUCHER 46/277; CASE IH 47056439.; CASE IH 470564390; CLAAS 00166410; CLAAS 7700066387; DELVANO 8041318; DURSO E4007-05033; FENDT 72437695; FENDT A CW1 276 090; FENDT G 931 901 020 140; FENDT G 931 901 020 141; FENDT G931.900.020.140; GOLDHOFER 251204200; GOLDHOFER 607968; HAKO 45604150000; HOLDER 147243; HYMER 0417288-00; HYMER 0879951-00; HYMER 1017245; HYMER 1025826; HYMER 1053942; HYMER 1266169; HYMER 1603.15.38; HYMER 417288; HYMER 56933; IVECO 69501644; IVECO 71701732MO; JCB 700/50140; JCB 8424/01117; LAIKA 32293; LAIKA 417288; LIEBHERR 1 002 214 0; LINDNER 3005547; MASSEY FERGUSON 4 287 246 M1; MITSUBISHI SMME31640S8; PAGANI CM400.067.10; RENAULT 7700066386; RENAULT 7700066387; ROSENBAUER 071449; SANTANA 35100-86CA0; VOLVO 11117172; VW KSP 941 751 A; WIESMANN 063-05-03-ET-008
