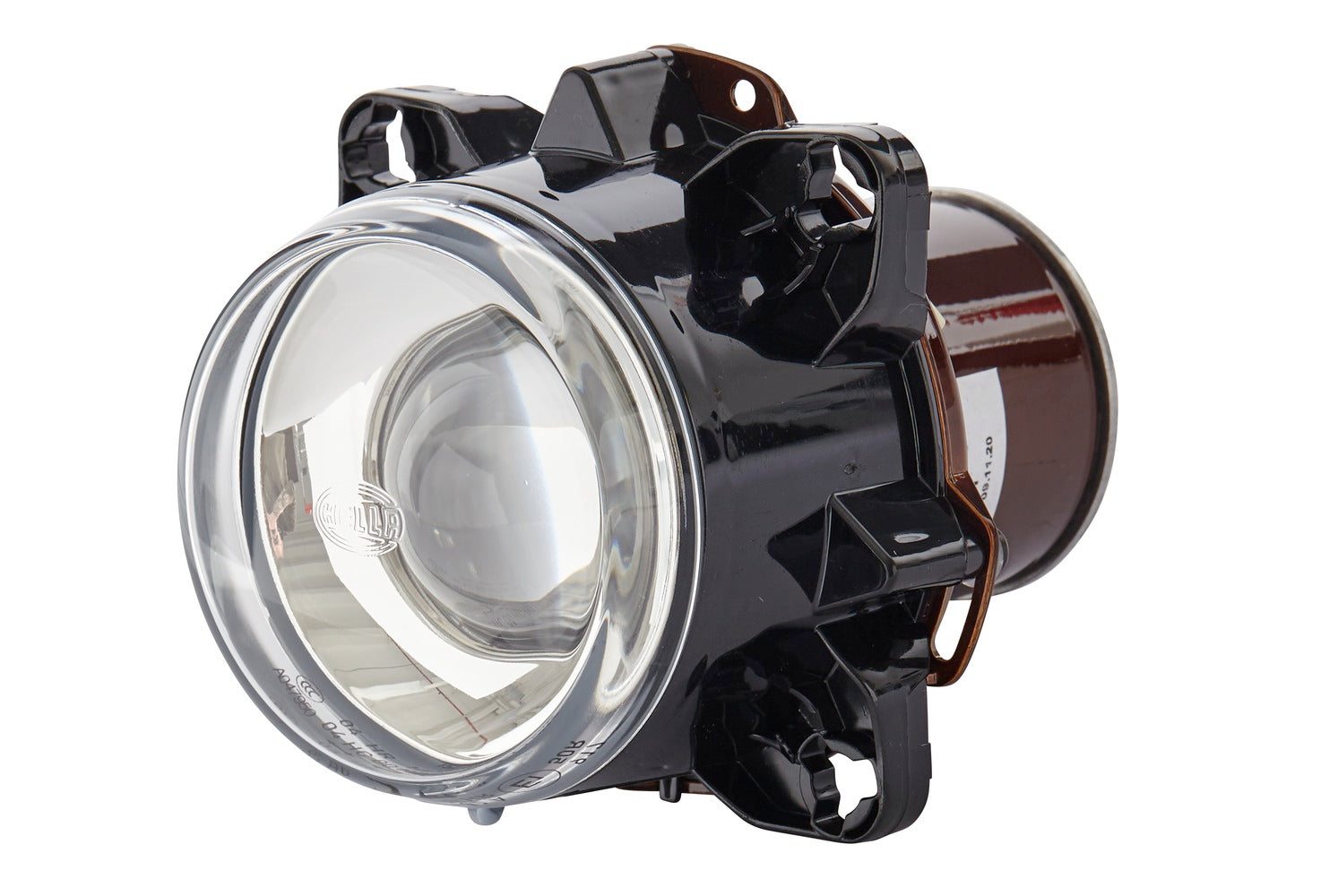

HELLA DE/Halogen-Insert, headlight - 90mm Essential - 24V 1BL008193-011

DE/Halogen-Insert, headlight - 90mm Essential - 24V - round - Reference number: 12.5 - ECE/CCC - Crystal clear - Plug: Blade Terminal - left/right - Quantity: 1

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Ø: 90mm - Length: 140mm - Width: 103mm - Height: 119mm - Depth: 165mm - Lamp Type: H7 - with bulb - with fastening material
• Light functions: 1 - with low beam
• Registration Type: ECE/CCC - fulfils ECE standard: R112/R8 - for right-hand traffic
• Housing Colour: Black - Diffusing Lens Material: Glass - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Fitting Position: right / left
Lamp Type: H7
Light Function: with low beam
Light Design: Halogen / DE
Voltage: 24 V
Length: 140 mm
Width: 103 mm
Height: 119 mm
Depth: 165 mm
Ø: 90 mm
Diffusing Lens Material: Glass
Plug: Blade Terminal
Housing Colour: black
Lens Colour: Crystal clear
fulfils ECE standard: R8 / R112
Quantity: 1
Illuminated Area: 90 mm
Light functions: 1
SVHC: 7439-92-1; Lead
Reference number: 12.5
Registration Type: ECE / CCC
Shape: round
Left-hand/Right-hand Traffic: for right-hand traffic

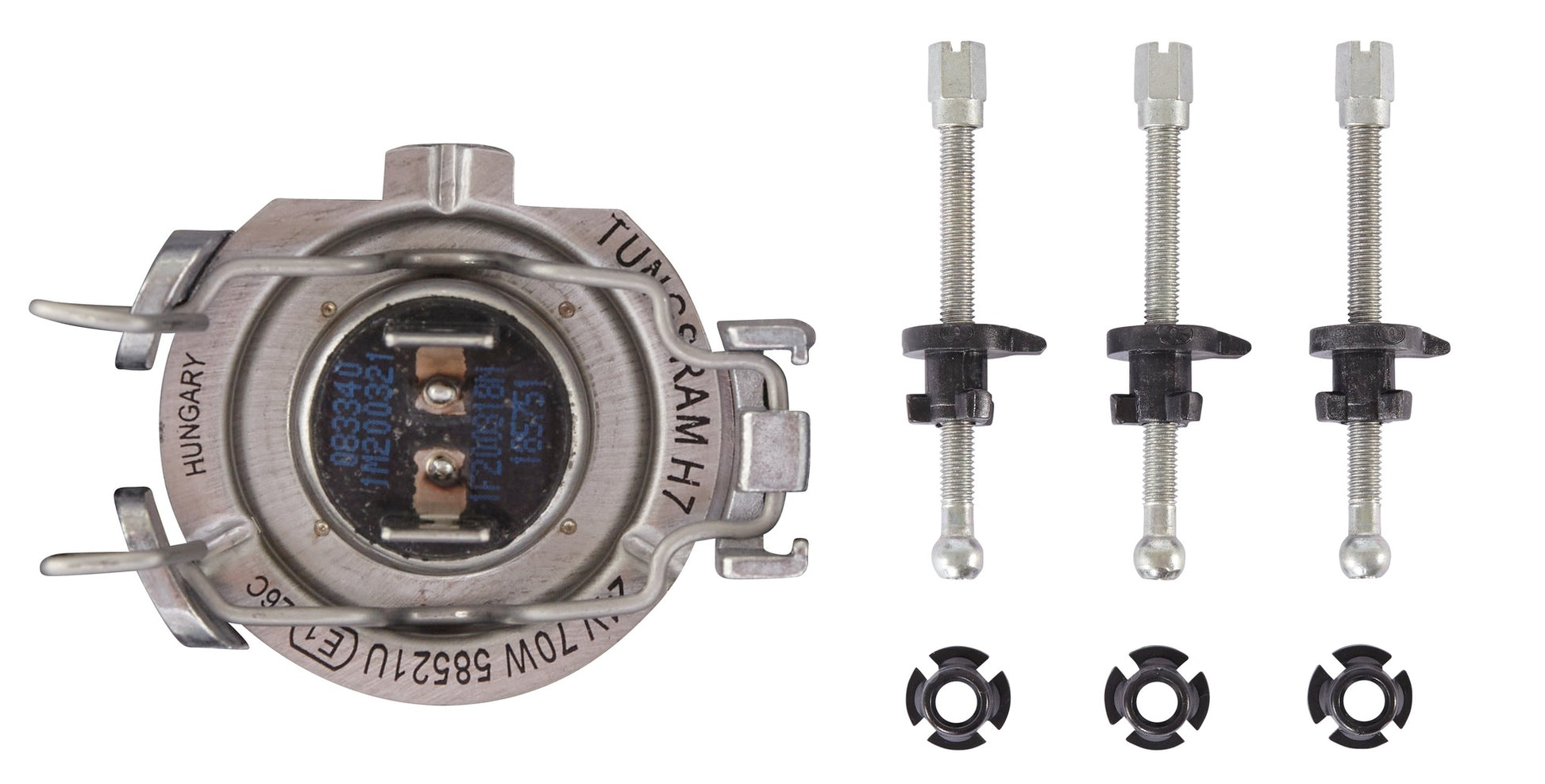

Supplementary Article/Supplementary Info: with bulb
Supplementary Article/Supplementary Info 2: with fastening material
Assembly by qualified personnel required!

OE references: ALEXANDER DENNIS AP103-4007; ALEXANDER DENNIS USE 1LL 008 193-127; AUWÄRTER 11073768; AUWÄRTER 821-HSW036; AUWÄRTER 821-HSW036/FSW007; BMC 58RS170464; BUCHER 46/414; BUSSCAR 10.086604; CATERPILLAR 299-1812; CLAAS 100 221 40; DAF 1541105; DURSO E4007.05033; EVOBUS A000820559-; FORD 3C4613005AA; FORD 3C4613D146AA; GOLDHOFER 257940; HITACHI AA01BAW; IKARUS 700.04-0093-017; IKARUS 70004-93017; ISUZU 387002471051; IVECO 5001021037; IVECO 5006143112; IVECO 503247218; IVECO 8010004117MO; IVECO 8010004117MO/5001021037; KÄSSBOHRER 7.512.037.000.0; KÄSSBOHRER 7.512.037.000.0-EINZELVERPACKUNG; KRAUSS-MAFFEI 10041461; LIEBHERR 1 002 214 0; LOTUS (YOUNGMAN) T4101.130.010; MAN 11073768; MAN 36.25101-6001; MERCEDES-BENZ 000 820 05 59; MERCEDES-BENZ A 000 820 05 59; NEOPLAN 1107.376.8; NEOPLAN 36.25101-6001; NOGE 0270200040; NOVABUS N39427; PLAXTON USE 1LL 008 193-12; PREVOST N39427; ROSENBAUER 43691; ROSENBAUER 566487; SCANIA 1870737; SISU 187-101-3431; SOLARIS 0000-055-820; SOLARIS 1503-193-017; SOLARIS 3400-001-936; TAM 5898218; TAM 5985218; TATA 48 142 39 031; TEREX W631718; VAN HOOL 10719522; VAN HOOL 10719622; VDL 287825; VDL 30000111; VISEON 44.15564-0001; VOLVO 11117172; VOLVO 70324425; VOLVO 70347710; VOLVO 8001331900002; YUTONG 4121-00147
