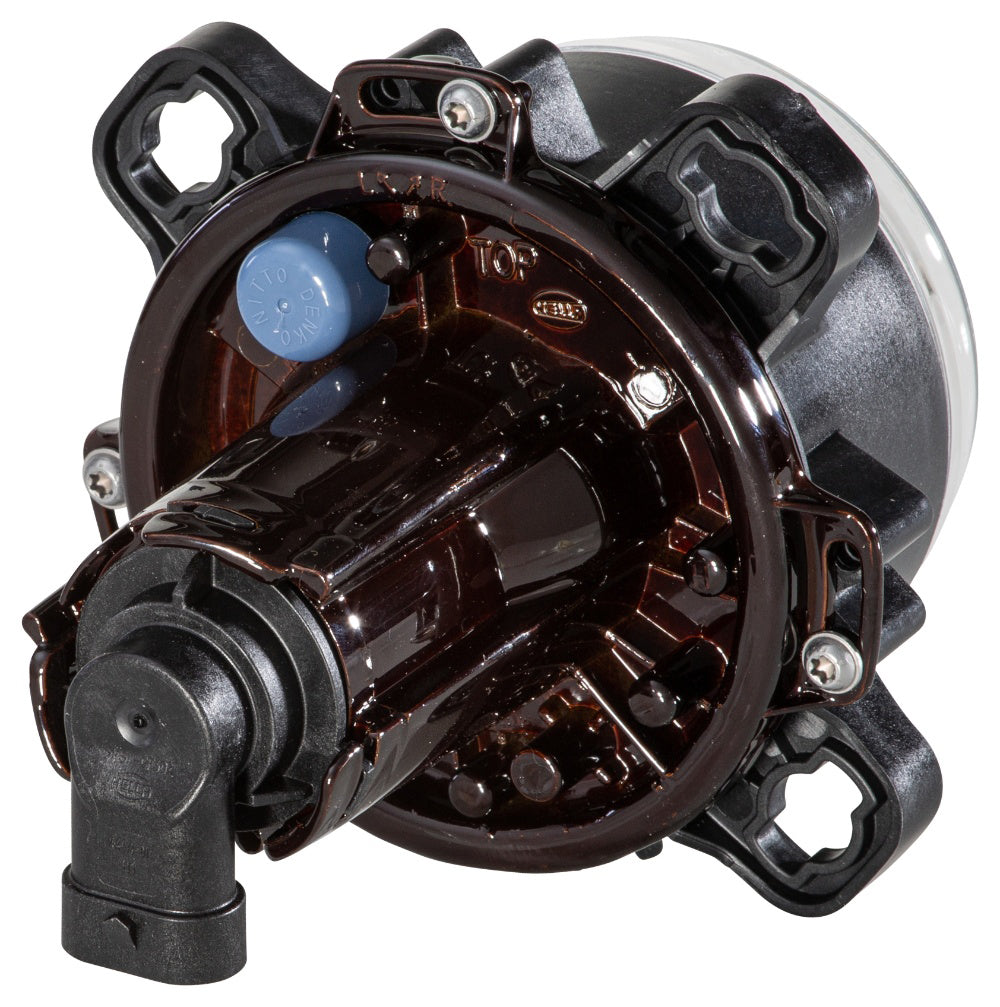

HELLA DE-Headlight - 90mm Performance - 12V 1BL247042-157

DE-Headlight - 90mm Performance - 12V - round - ECE - Hardened diffusing lens - transparent - right/left

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

• Individual front design thanks to modular construction
• Numerous application possibilities even in more demanding environments
• Optimised light output and homogeneous illumination with little stray light
• Water-protected standard plug-in system for incandescent lamps
• Width: 113mm - Height: 113mm - Depth: 160mm - Lamp Type: H1 - with bulb/with accessories
• Light functions: 1 - with low beam
• Registration Type: ECE - for right-hand traffic - Prot.type (IP Code): IPX9K/IPX4K

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Lamp Type: H1
Light Design: DE
Voltage: 12 V
Fitting Position: right / left
Width: 113 mm
Height: 113 mm
Depth: 160 mm
Light Function: with low beam
Light functions: 1
Prot.type (IP Code): IPX9K / IPX4K
Dust Cover: with dust cover
Registration Type: ECE
Left-hand/Right-hand Traffic: for right-hand traffic
Shape: round
Housing Colour: Black
Illuminated Area: 90 mm
Additionally required parts: 8JD 156 151-807
Diffusing Lens Material: Glass
Lens Colour: transparent
Diffusing Lens Type: Hardened diffusing lens

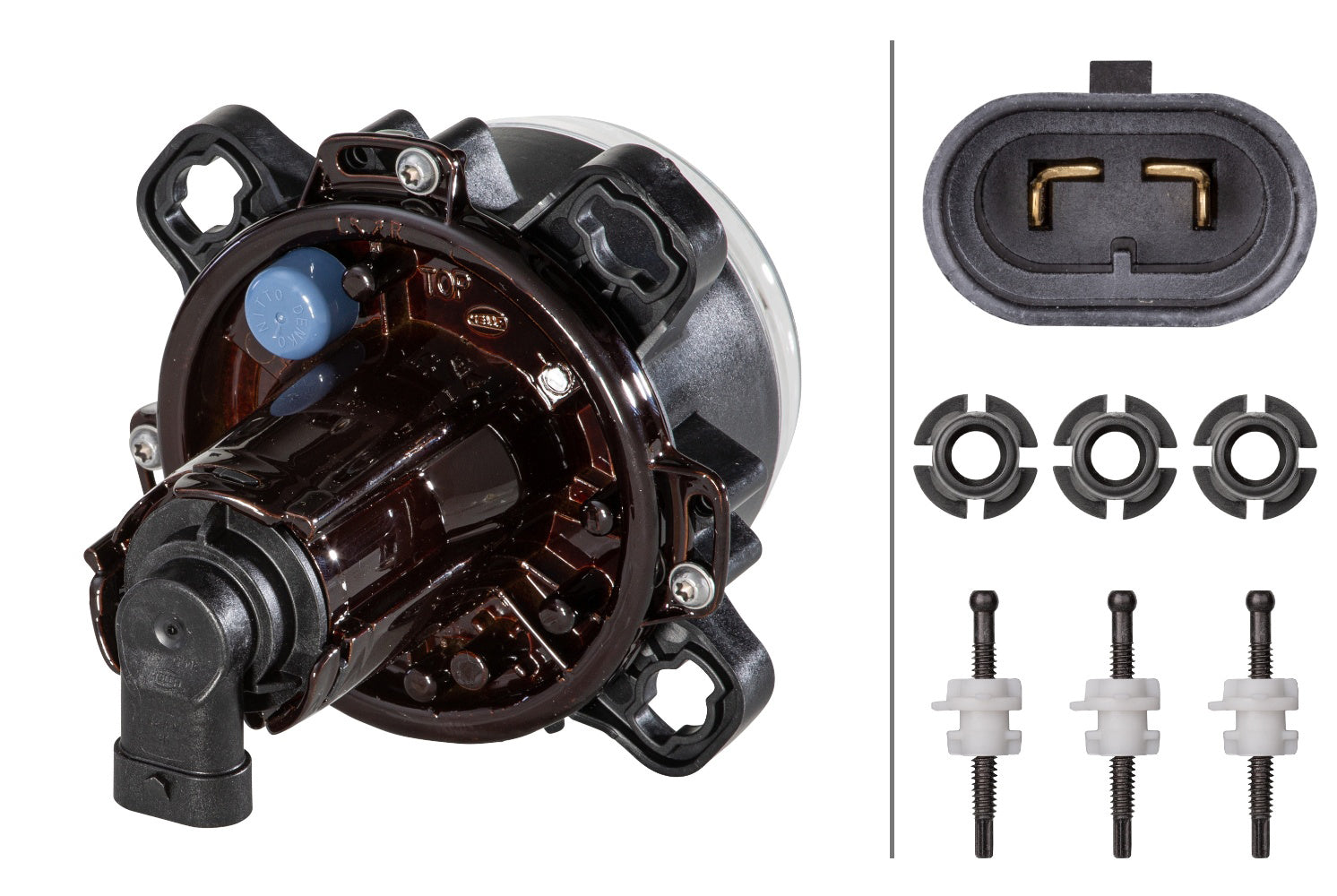

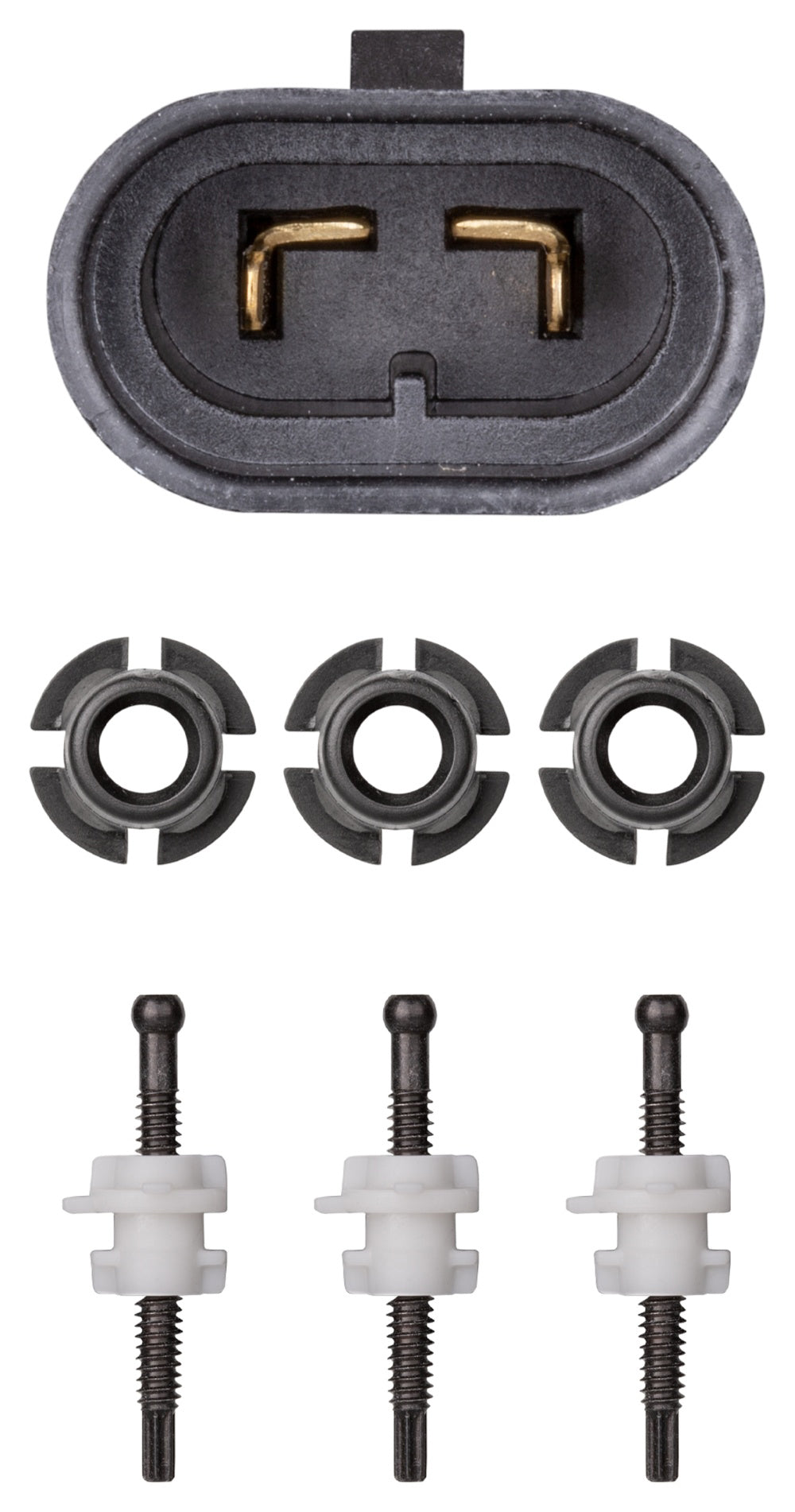

Supplementary Article/Supplementary Info: with bulb / with accessories
Assembly by qualified personnel required!

OE references: EVOBUS 000 544 30 47 01; EVOBUS A0005443047 01; IVECO 5801342346; MERCEDES-BENZ 000 544 304 701; MERCEDES-BENZ A 000 544 304 701; MERCEDES-BENZ A 054 430 47 01 ; TATA 48.331.39.019; VAN HOOL 11214306; VDL 11214306; VDL 30036230; YUTONG 4101-00216
