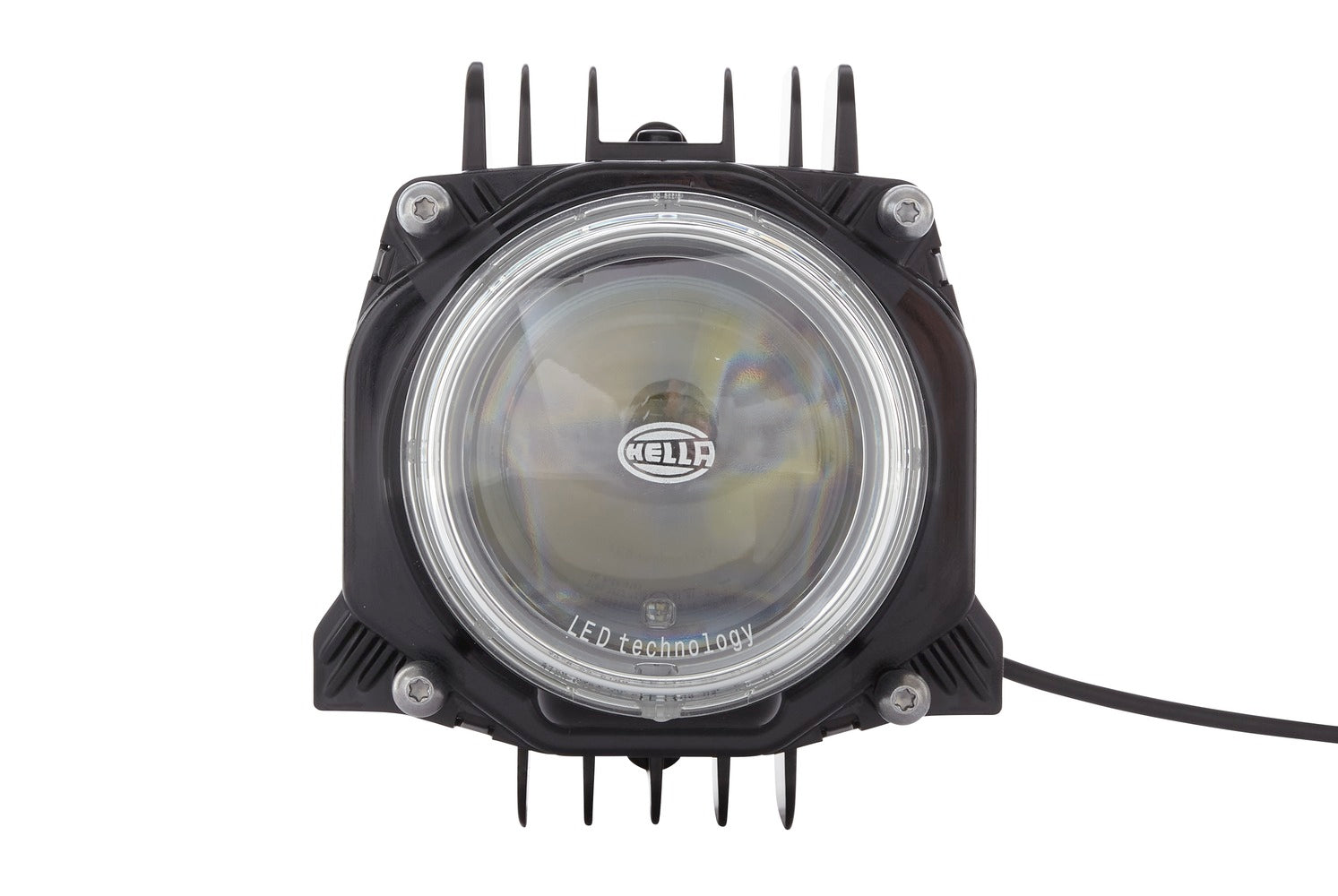

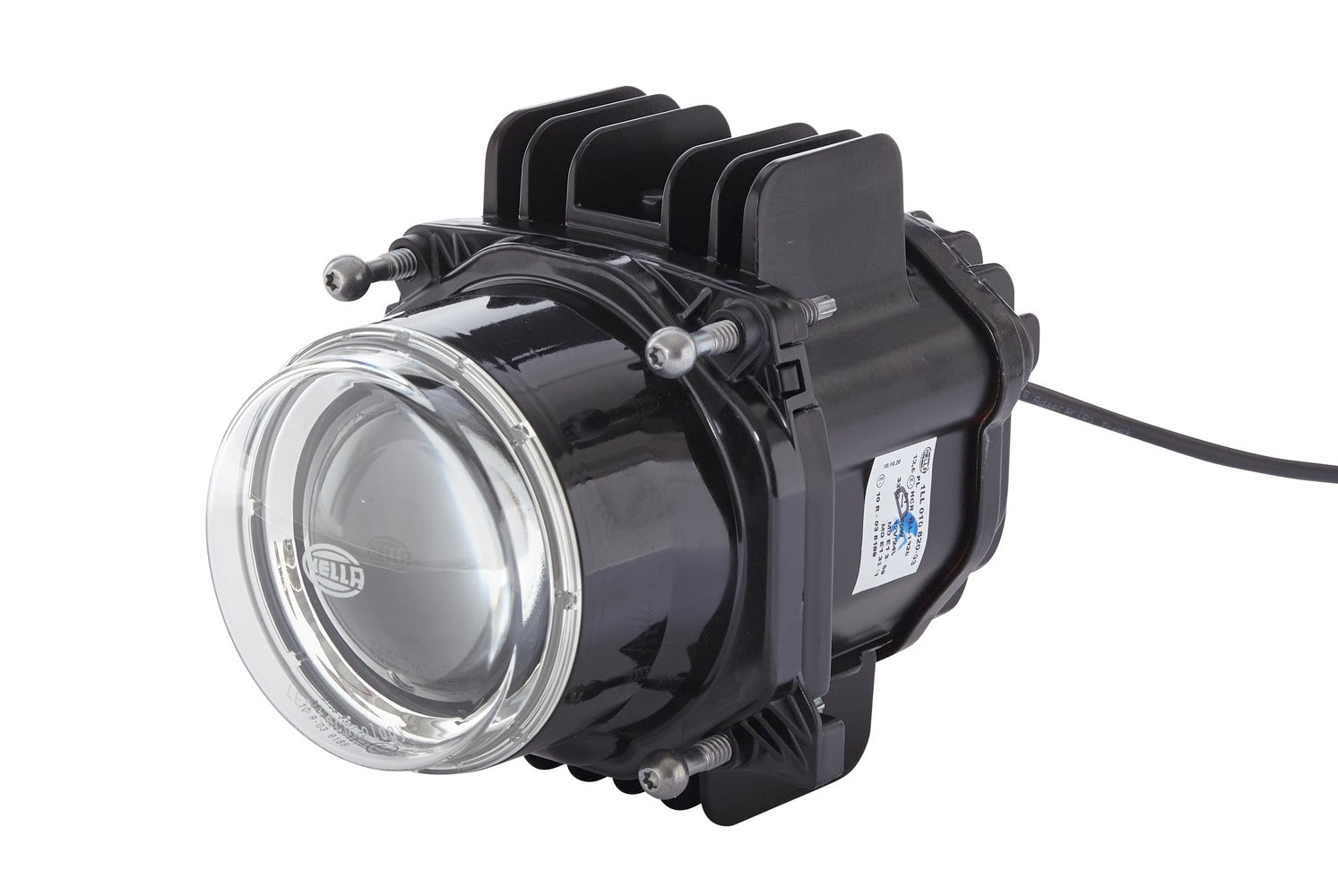

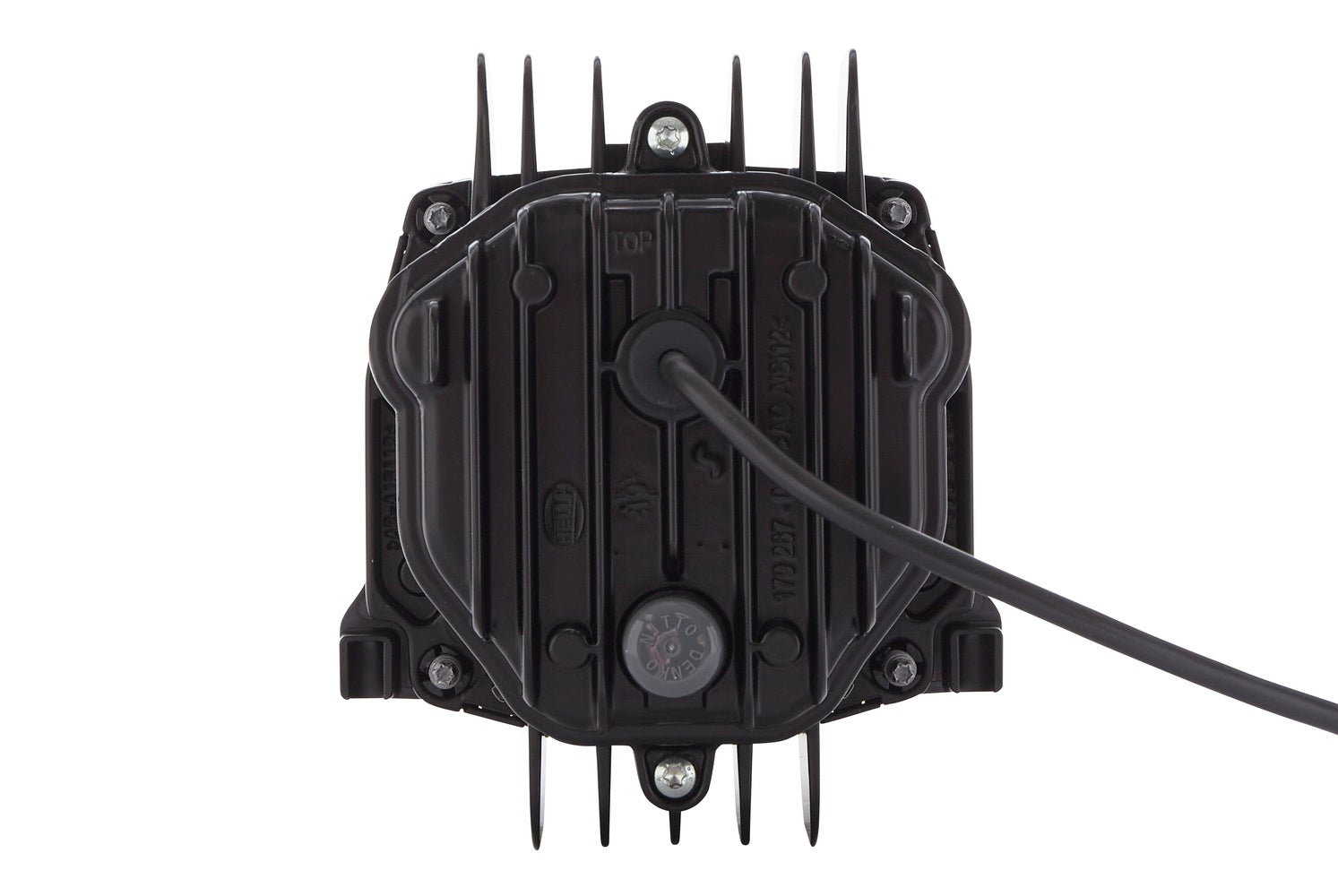

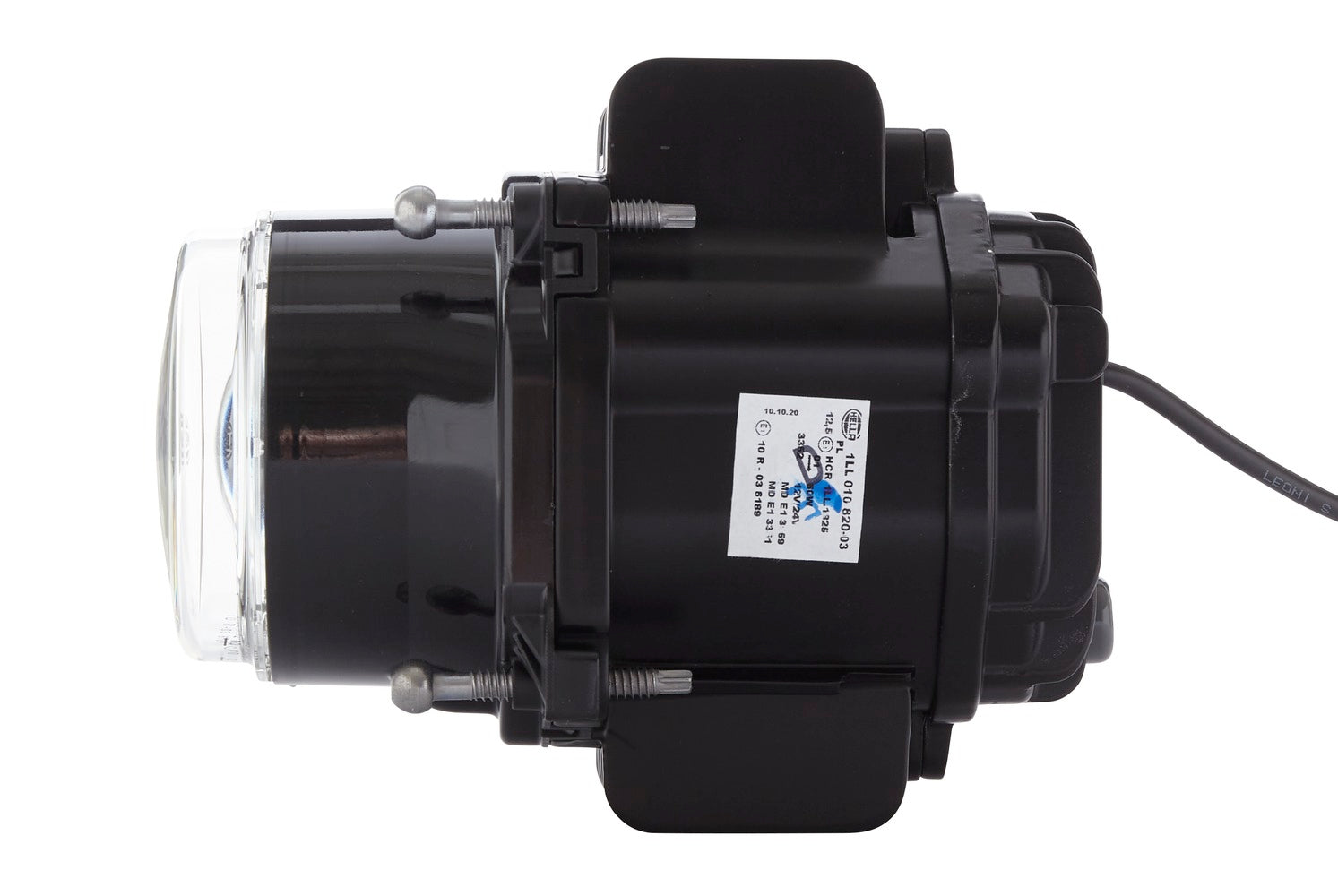

HELLA DE/LED-Headlight - 90mm Performance Bi-LED L70 - 12/24V 1LL010820-031

DE/LED-Headlight - 90mm Performance Bi-LED L70 - 12/24V - ECE - transparent - Plug: AMP - left/right

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• 90 mm cover lens: Made of plastic especially resistant to stone chipping. Optics-free - for direct view of the lens.
• 70 mm lens: Optic-free, made of glass, the light from the reflector is projected in the desired direction. Excellent light output and extremely homogeneous illumination with little stray light.
• Free-form reflector: Computer-calculated free-form plastic reflector focuses the light through the precision lens.

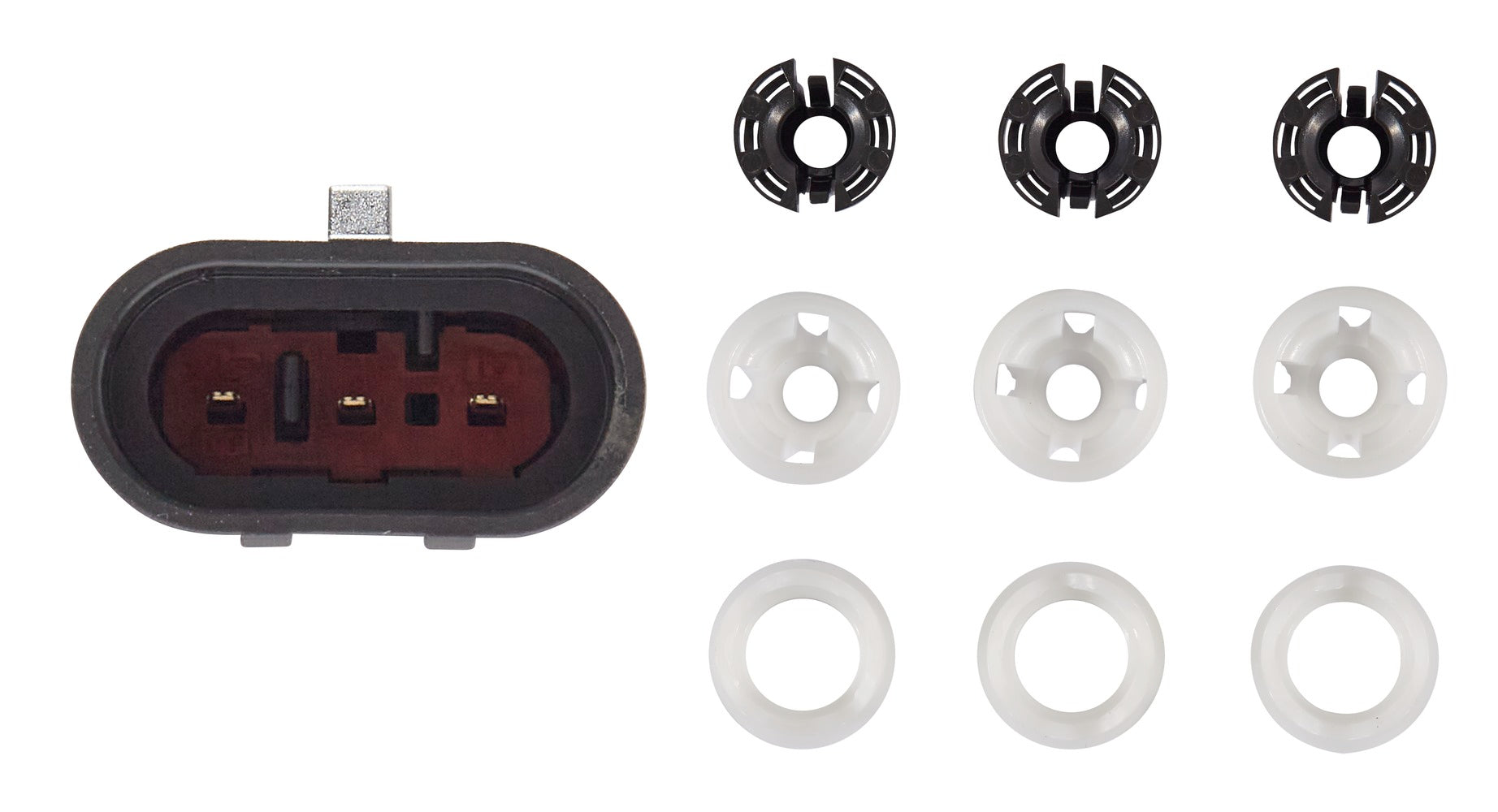

• Simple installation with 4 pre-mounted adjusting screws on the vehicle body or optionally on an additional support frame (accessory).
• Can be ideally combined with other modules of the 90 mm series.
• Width: 143mm - Height: 143mm - Depth: 182mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)
• Light functions: 2 - with low beam (LED)/with high beam (LED)

Item Attributes:
Mounting Type: Fitting
Lamp Type: LED
Light Design: DE / LED
Voltage: 12 V / 24 V
Fitting Position: right / left
Width: 143 mm
Height: 143 mm
Depth: 182 mm
Light Function: with high beam (LED) / with low beam (LED)
Light functions: 2
Registration Type: ECE
Plug: AMP
Left-hand/Right-hand Traffic: for left-hand traffic
Housing Colour: black
Illuminated Area: 90 mm
Lens Colour: transparent
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
SVHC: 1317-36-8; Lead monoxide (lead oxide) / 1303-86-2; Diboron trioxide / 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO ACW2169960; HYMER 2500408; HYMER 2500408 X1603.15.220; KRONE 200837650; KUBOTA 3J036-6250; KUBOTA 3J03662501; KUBOTA 3J036-62502; LIEBHERR 12104467; ROSENBAUER 13915A; SAME 2.8039.383.0; SCANIA 2497635; TAM 11040197; TERBERG-BENSCHOP LAMP; VAN HOOL 11600013; VDL 11600013; VDL 30129992; VOLVO 22331023
