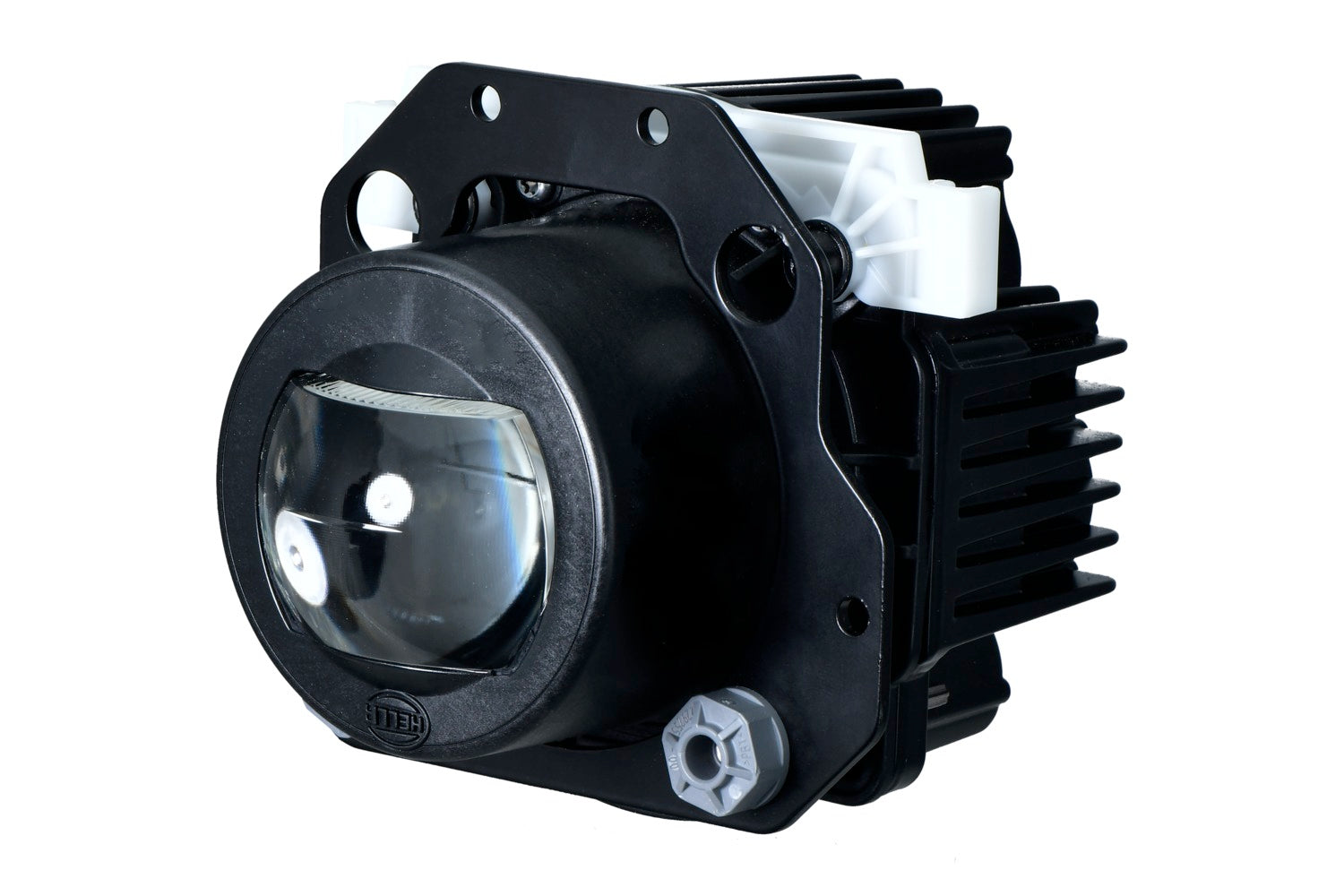

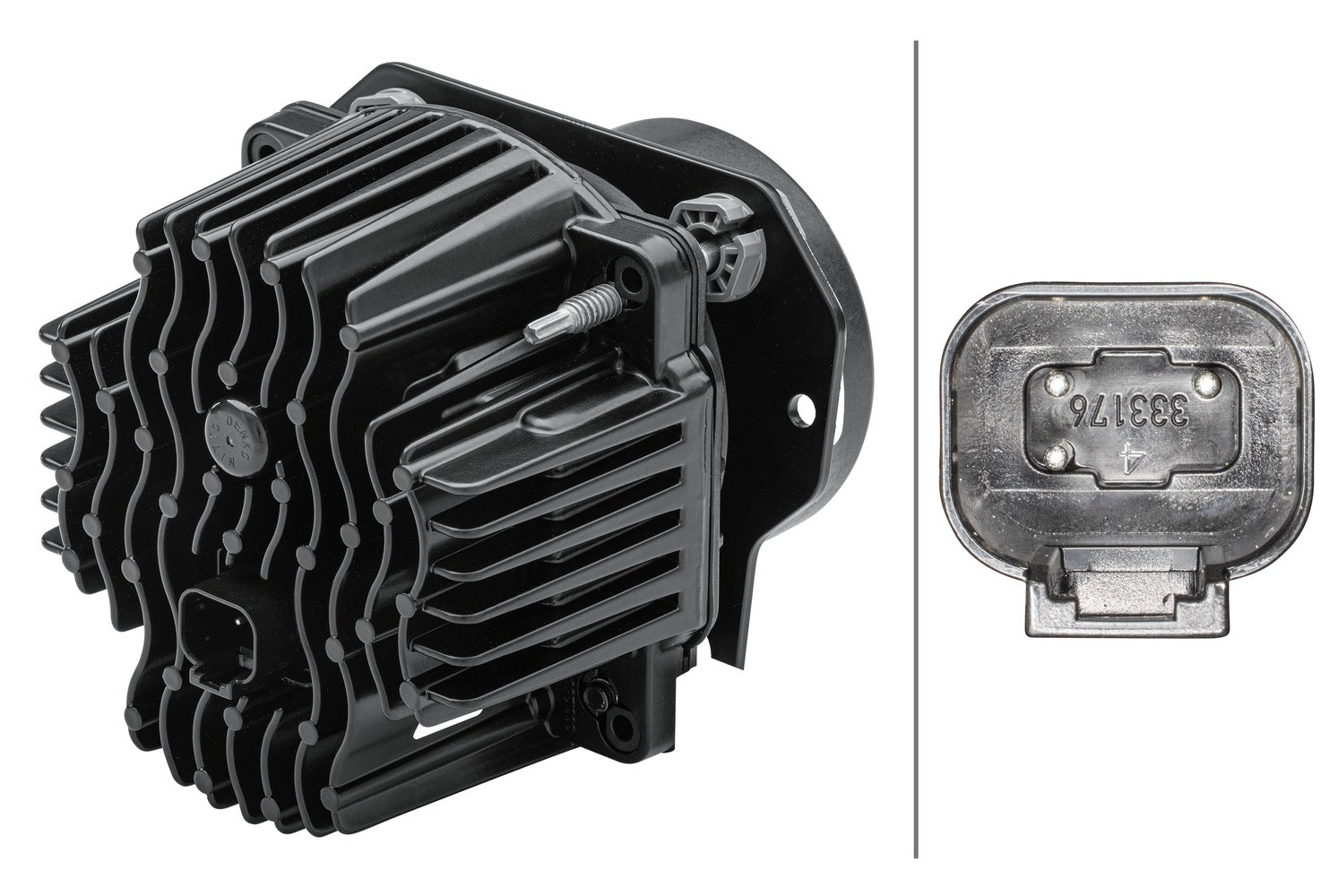

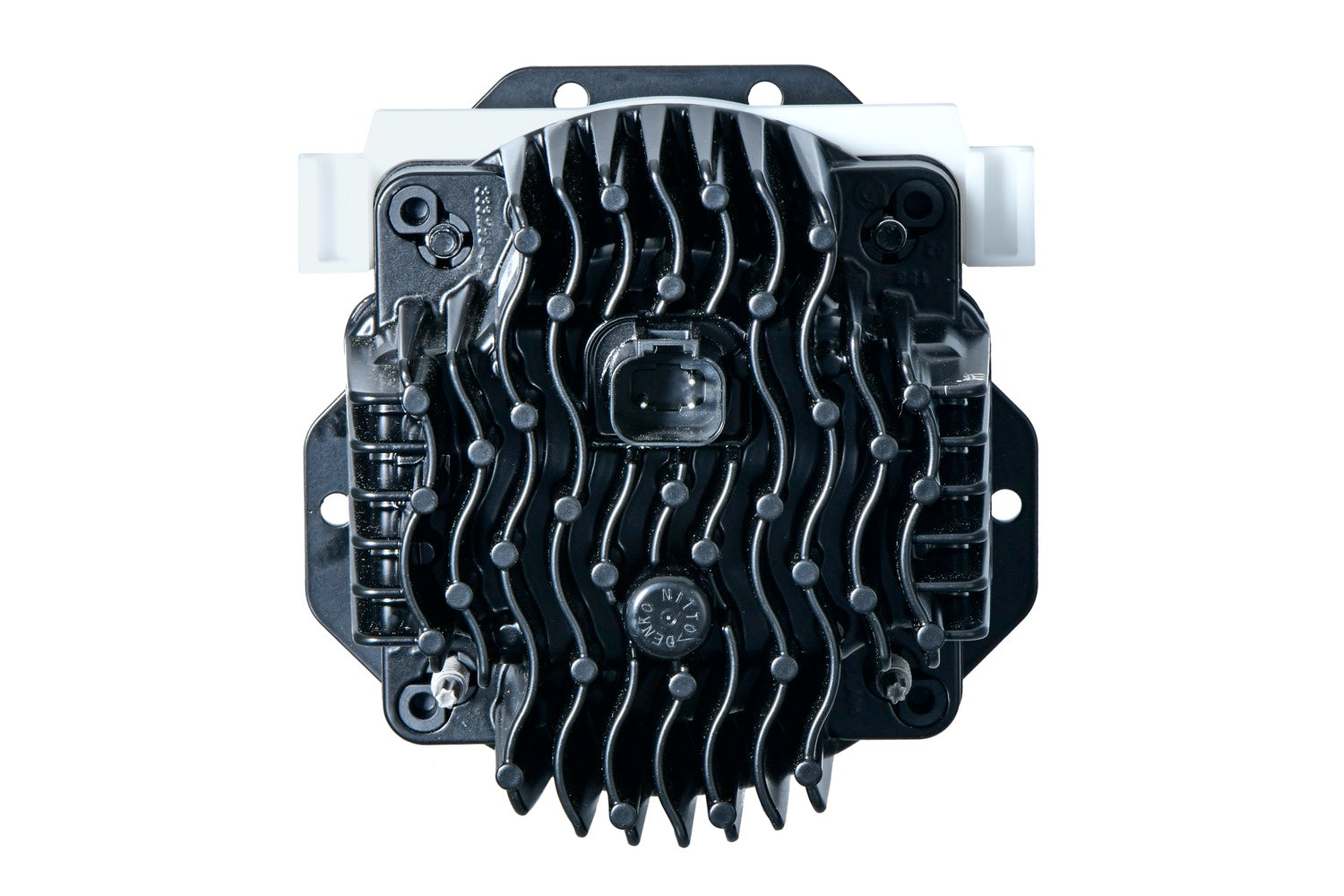

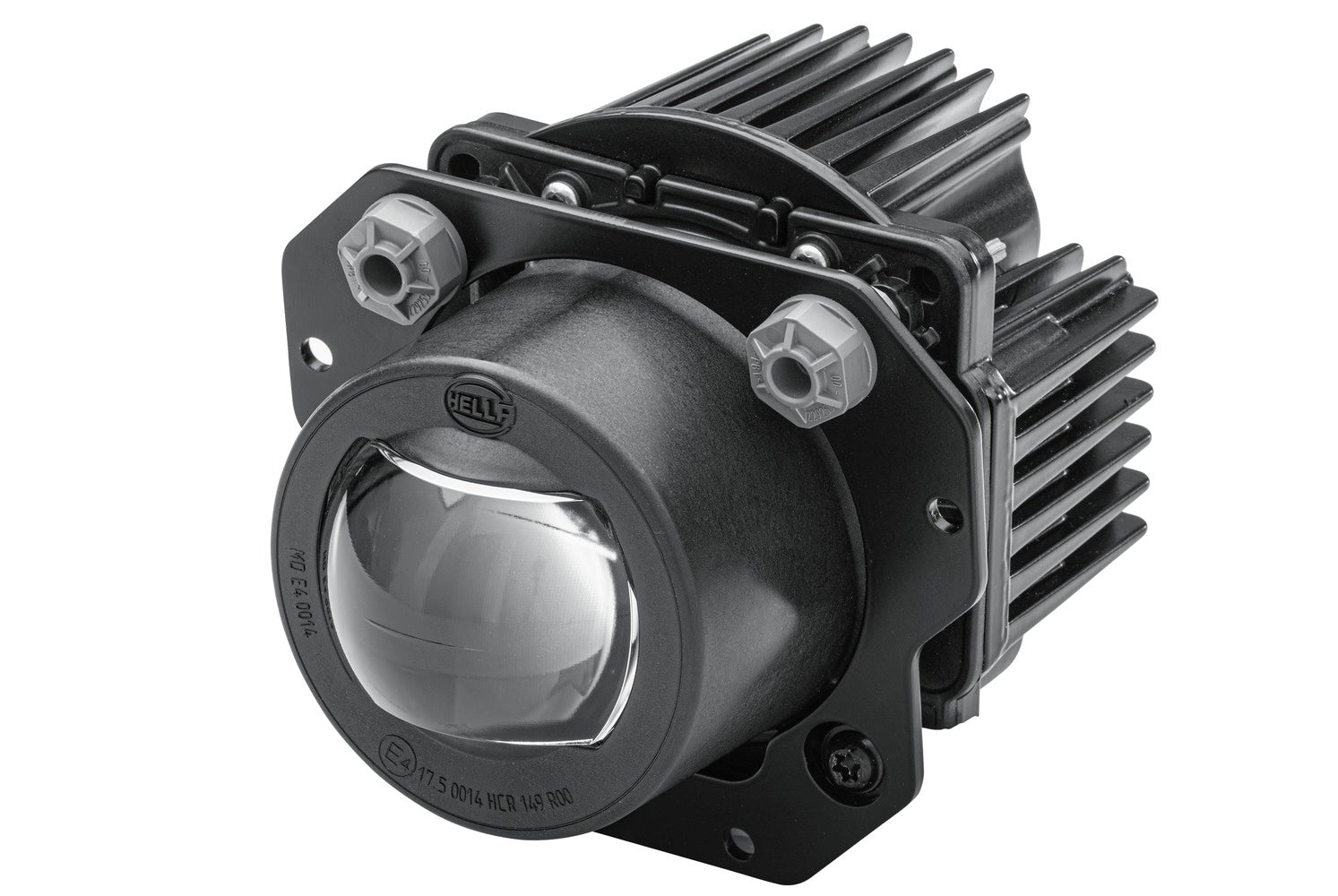

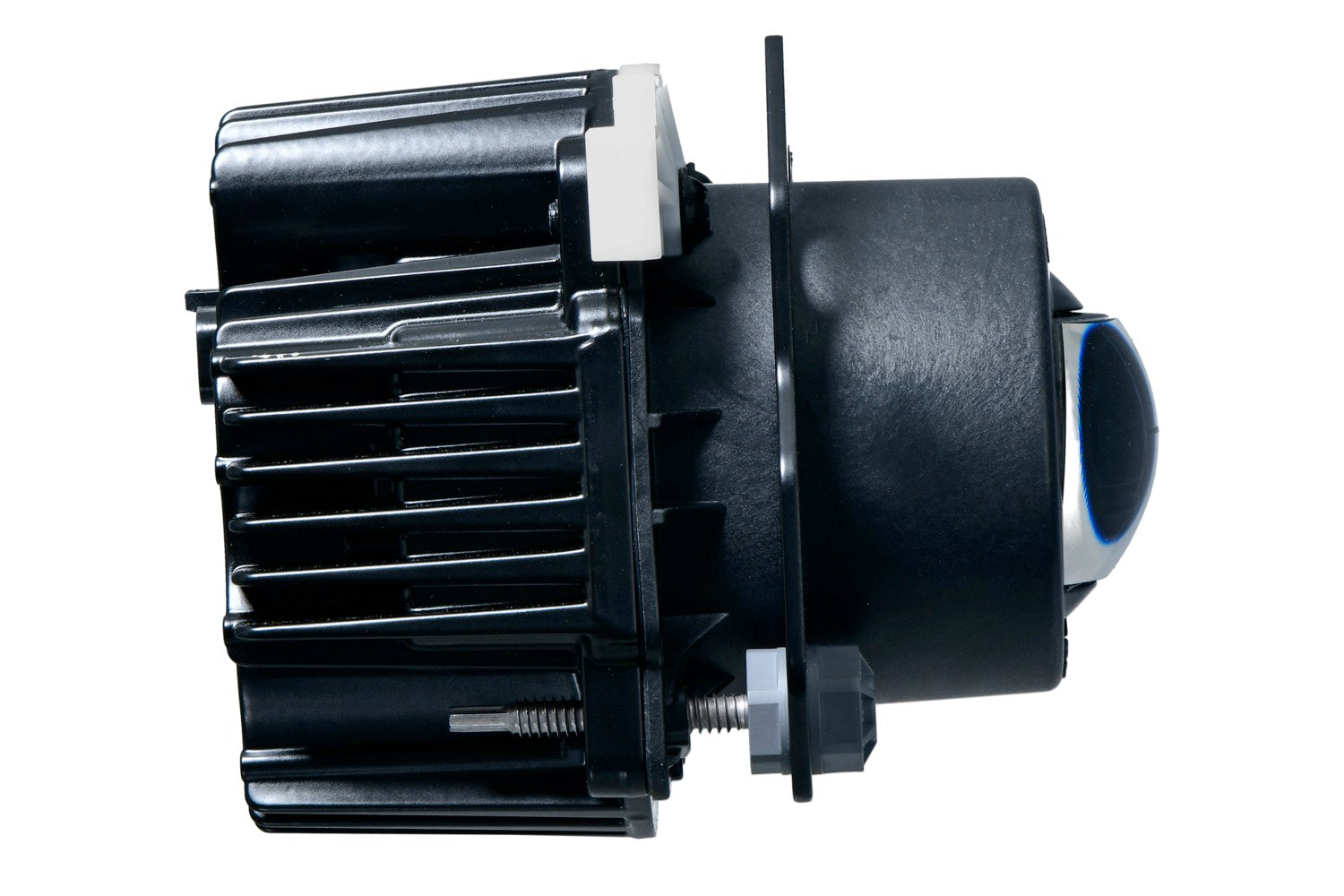

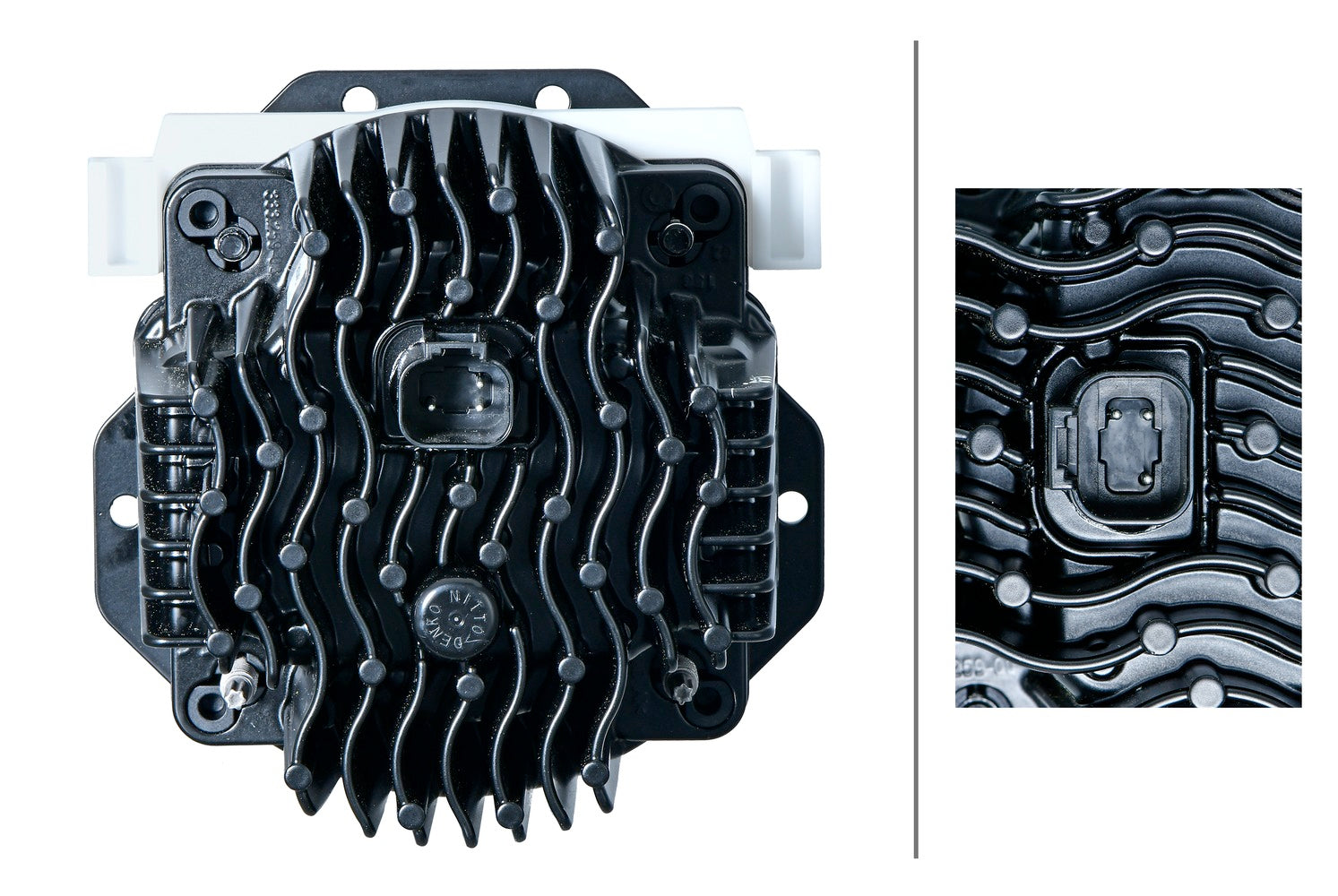

HELLA DE/LED-Insert, headlight - 90mm Essential L4565 - 12/24V 1AL015318-211

DE/LED-Insert, headlight - 90mm Essential L4565 - 12/24V - round - 3-pin connector - left/right

The HELLA 90 mm module headlamps stand for highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorcycle: The robust HELLA 90 mm headlamps are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, permitting a wide range of applications as well as an individual front design. Within the 90 mm module headlamp range, halogen and LED technology can be selected according to requirements, which also makes it easier to switch from halogen to LED. All modules score with their robust construction and can therefore also be used in demanding working environments. The difference between the individual series in the 90 mm range lies in the detail. The L 4060 LED modules, for example, shine with their outstanding light output and additional lighting functions. The daylight-like light color of the LED modules considerably improves visibility and concentration during night-time journeys, thus increasing safety. The Bi-LED modules L 4565 as well as the BI-Halogen modules combine low beam and high beam in a single headlight module and are therefore ideally suited for construction situations with limited space. The R 80 modules have an innovative reflector design that ensures particularly homogeneous illumination.

• Excellent low beam and high beam from a single headlamp module
• Design freedom thanks to a modular system
• For the most diverse applications and the highest demands
• Ø: 99mm - Depth: 169mm - Lamp Type: LED - with bulb/with adjuster - Electromagnetic Compatibility (EMC)
• Light functions: 2 - with low beam (LED)/with high beam (LED)
• fulfils ECE standard: R149/R10 - for right-hand traffic
• Mounting Type: Fitting

Item Attributes:
Mounting Type: Fitting
Voltage: 12 V / 24 V
Fitting Position: right / left
Supplementary Article/Supplementary Info: with bulb / with adjuster
Light Design: LED / DE
Lamp Type: LED
Power consumption: 35 W
Light functions: 2
Light Function: with low beam (LED) / with high beam (LED)
Shape: round
Ø: 99 mm
Depth: 169 mm
fulfils ECE standard: R149 / R10
Left-hand/Right-hand Traffic: for right-hand traffic
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)

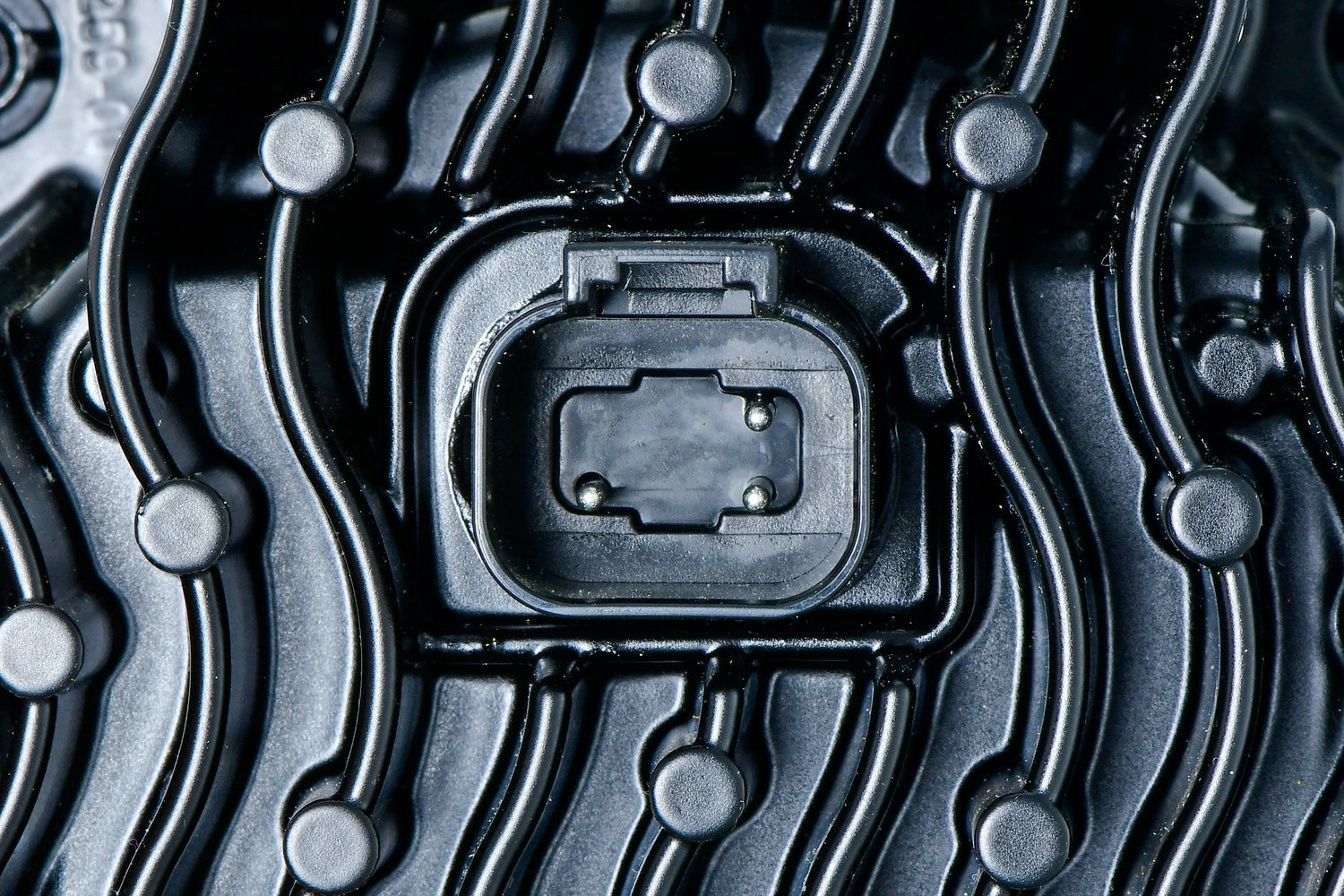

Connector type: DT
Number of pins: 3 -pin connector
Assembly by qualified personnel required!
