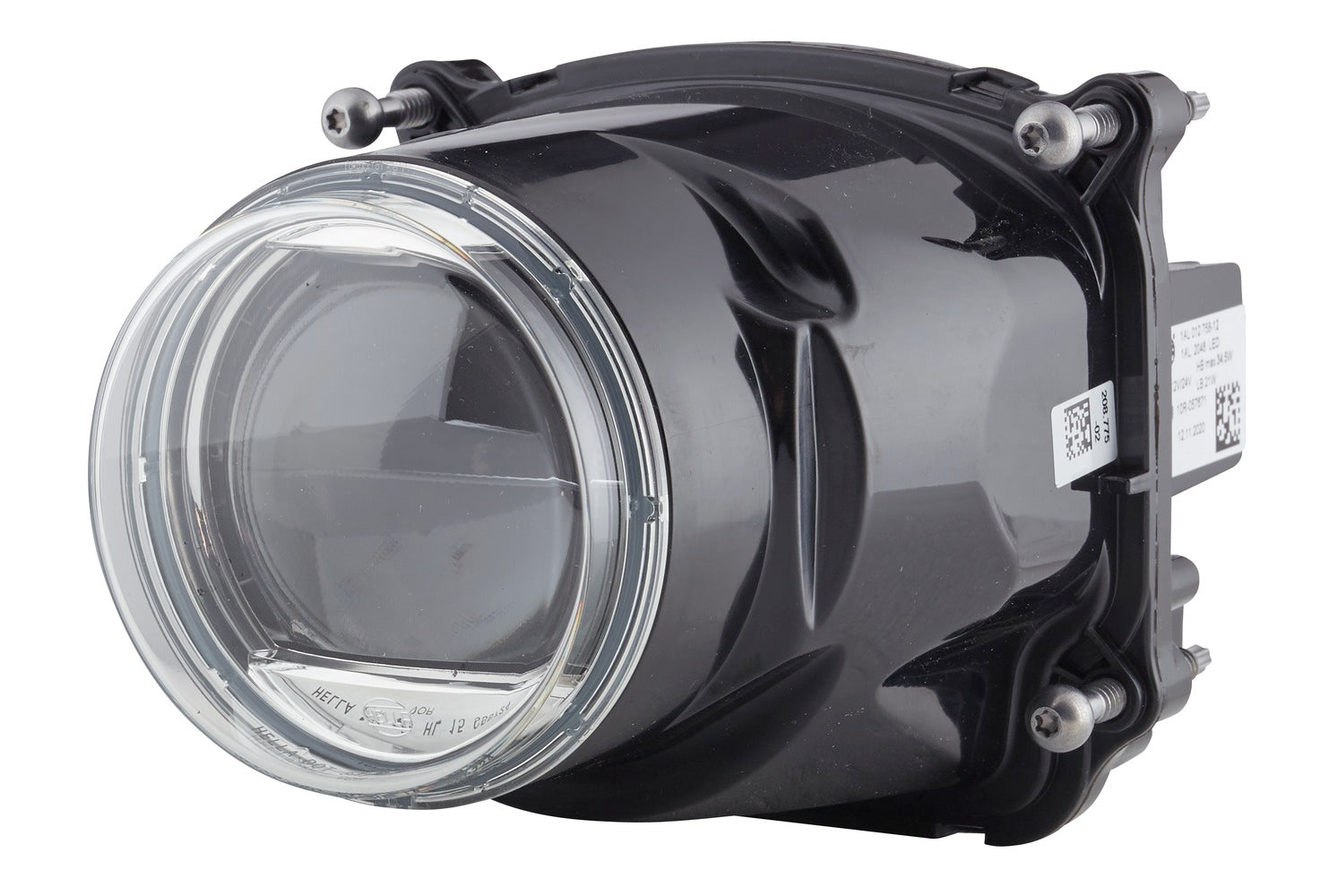

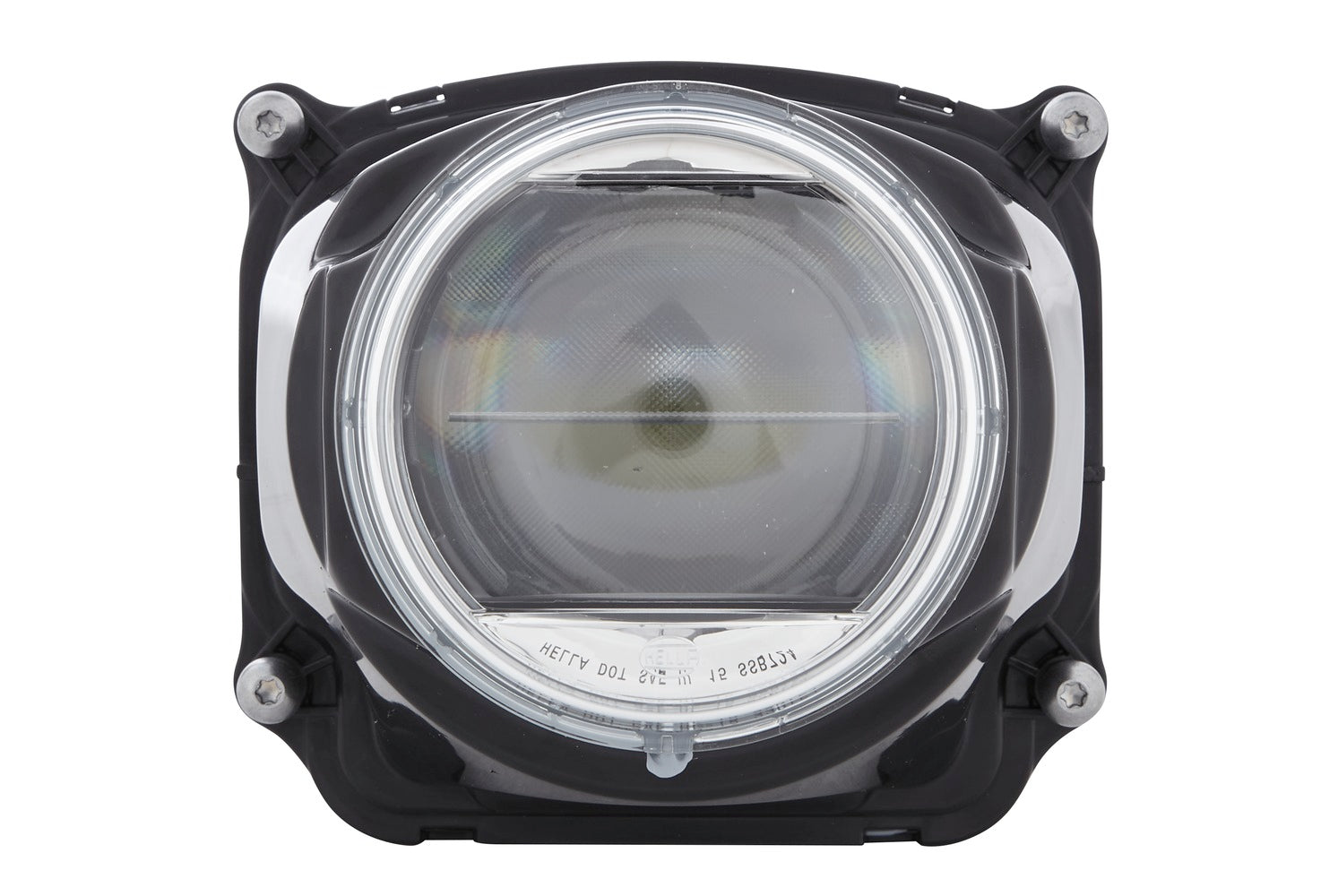

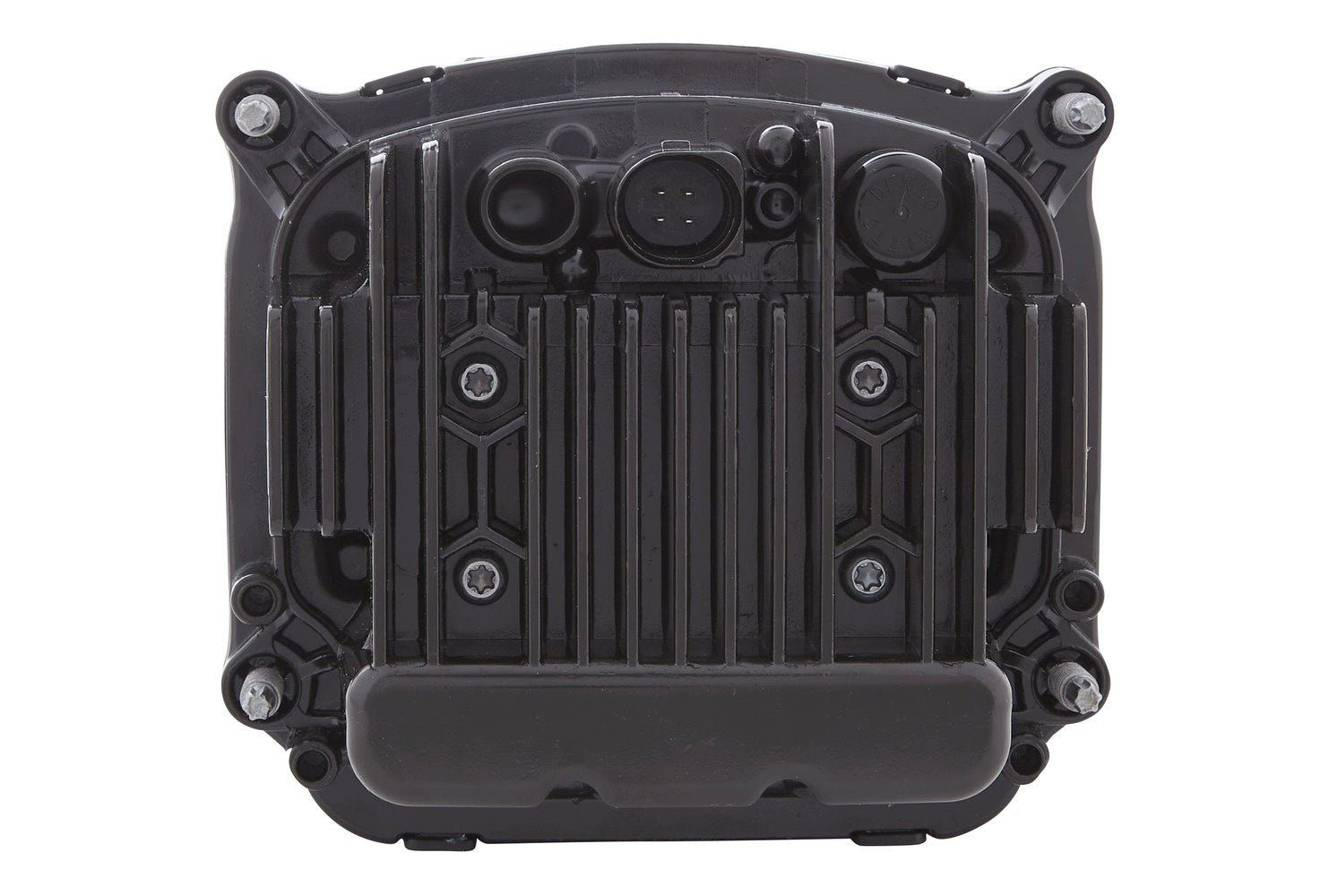

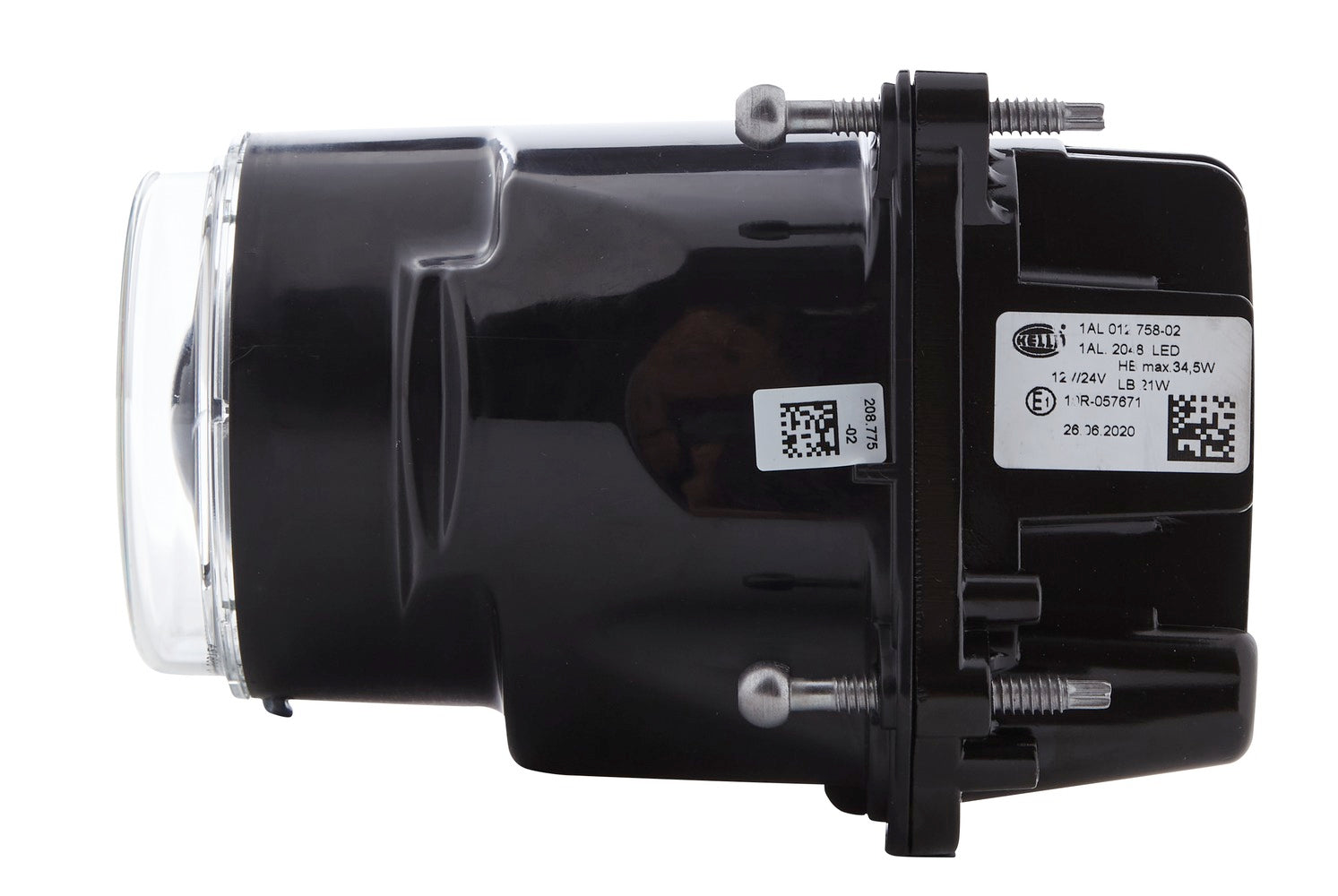

HELLA DE/LED-Insert, headlight - 90mm Performance Bi-LED L5570 - 12/24V 1AL012758-021

DE/LED-Insert, headlight - 90mm Performance Bi-LED L5570 - 12/24V - SAE - Plug: FEP

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

• The Bi-LED module of the 2. The second generation combines dipped and main beam light and impresses with its advanced light / electronics.
• The 55 x 70 polycarbonate lens projects light from the reflector in the desired direction without the need for optics.
• The module has a hardened plastic cover lens, it has no moving parts and is passively cooled.
• An integrated function output for failure control is inherent to the product.
• Electromagnetic compatibility (EMC) tested and EC type approval granted.
• Lamp Type: LED - Electromagnetic Compatibility (EMC)
• Light functions: 2 - with low beam (LED)/with high beam (LED)

Item Attributes:
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Light Design: DE / LED
Registration Type: SAE
Voltage: 24 V / 12 V
Light functions: 2
Lamp Type: LED
Light Function: with low beam (LED) / with high beam (LED)
Left-hand/Right-hand Traffic: for right-hand traffic
Plug: FEP
Assembly by qualified personnel required!

OE references: LAMBORGHINI 47F.941.037.B; PININFARINA AA00170582; PININFARINA AA00170582/AA00170583; PININFARINA AA00170583
