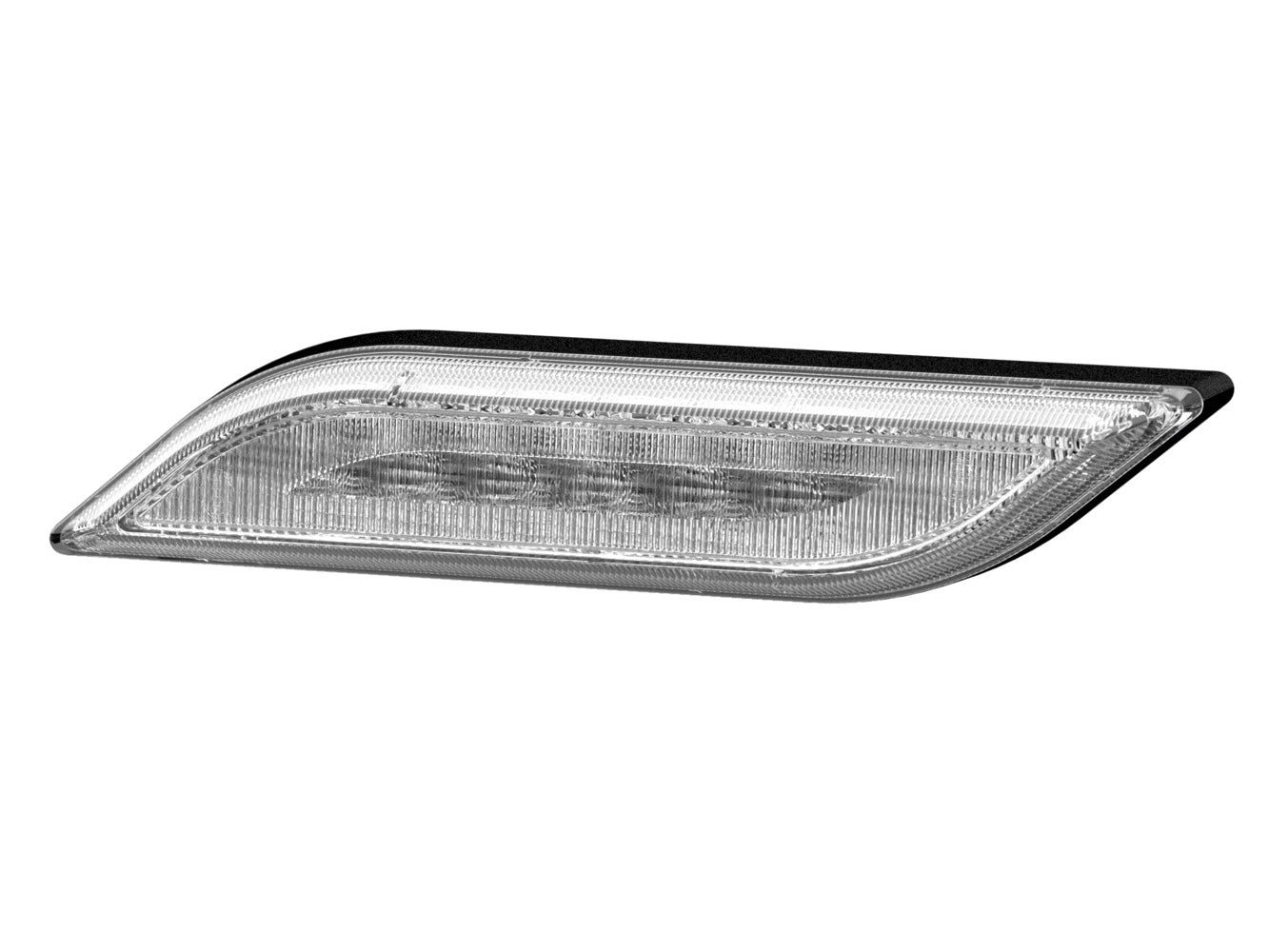

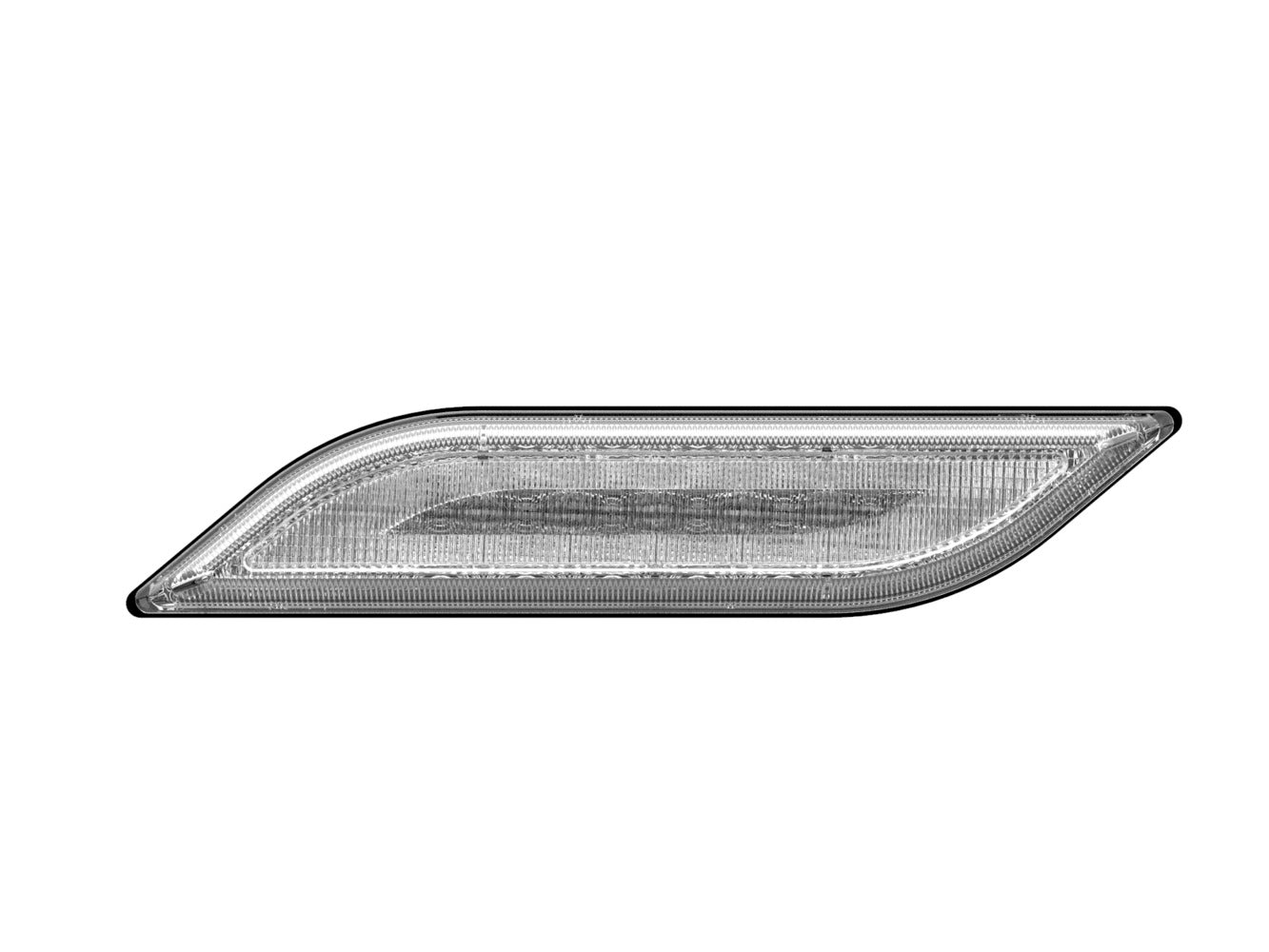

HELLA Direction Indicator - Shapeline Style - LED - 12/24V 2BA013332-071

Direction Indicator - Shapeline Style - LED - 12/24V - slim - Bolted/mounting - ECE/ADR/GGVS - Lens Colour: Crystal clear - Plug: AMP - 2-pin connector - Left Rear - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Indicator failure check according to ISO 13207
• High recognition value thanks to unique yet consistent light signature
• ADR/GGVS certification for hazardous goods transports
• Electromagnetic compatibility (EMC 5)
• Length: 200mm - Width: 25mm - Height: 40mm - Lamp Type: LED - Number of LEDs: 6
• Light functions: 2 - with indicator (LED)/with dynamic indicator light

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Fitting Position: Left Rear
Lamp Type: LED
Light Function: with dynamic indicator light / with indicator (LED)
Light Design: LED
Voltage: 12 V / 24 V
Power consumption: 2.5 W
Length: 200 mm
Width: 25 mm
Height: 40 mm
Plug: AMP
Number of pins: 2 -pin connector
Housing Colour: black
Lens Colour: Crystal clear
Prot.type (IP Code): IPX9K / IP6K7
fulfils ECE standard: R6 / R10
Quantity: 1
Light functions: 2
Number of LEDs: 6
SVHC: 7439-92-1; Lead
Colour: yellow (amber)
Operating Mode: Pulsation-controlled
Registration Type: ADR/GGVS / ECE
Shape: slim
Assembly by qualified personnel required!

OE references: AGCO ACX4864510; BOMAG 05751436; LAMBERET 027862-002
