HELLA Direction Indicator - Shapeline Style Wing - LED - 12/24V 2BA013334-031

Direction Indicator - Shapeline Style Wing - LED - 12/24V - Bolted - SAE/ADR/GGVS - Lens Colour: Crystal clear - Plug: AMP - 2-pin connector - Left Front - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Indicator failure check according to ISO 13207
• High recognition value thanks to unique yet consistent light signature
• ADR/GGVS certification for hazardous goods transports
• Electromagnetic compatibility (EMC 5)

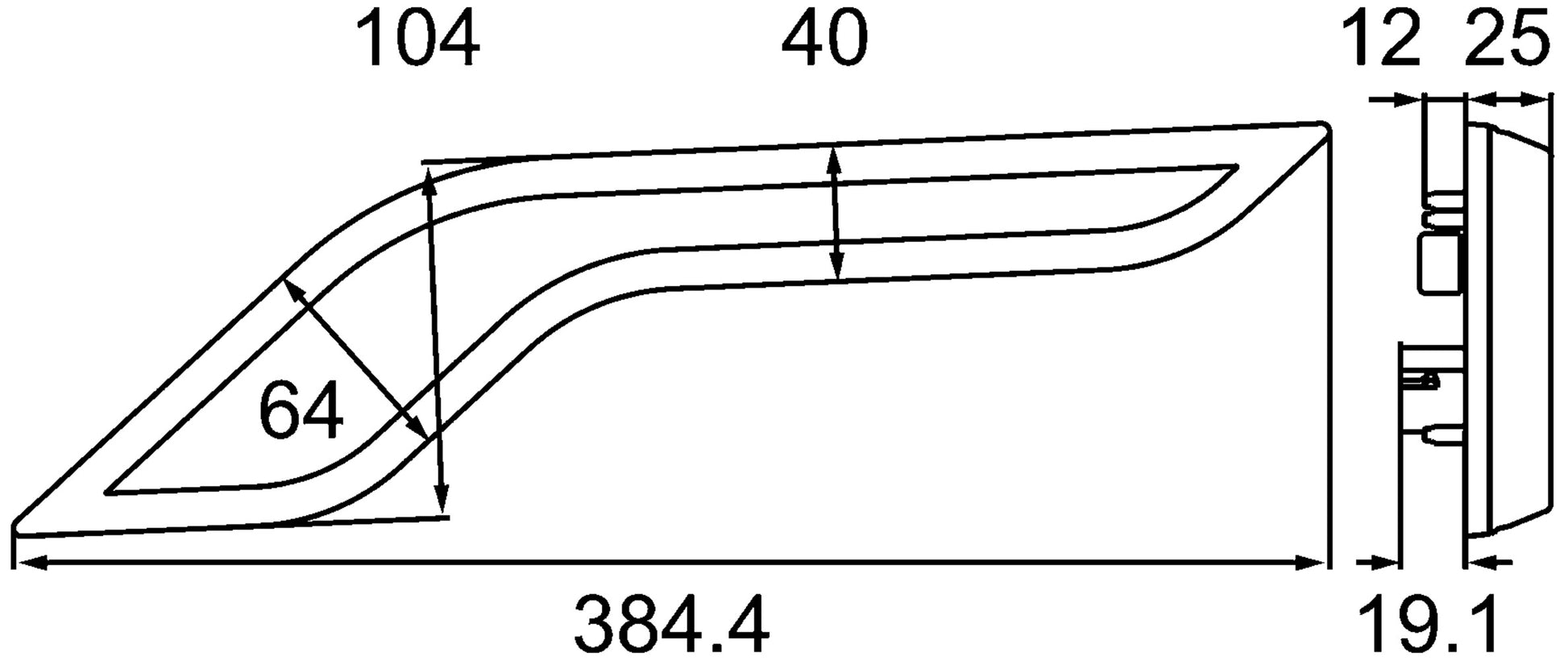

• Length: 389mm - Width: 104mm - Height: 25mm - Lamp Type: LED - Number of LEDs: 12 - with indicator failure control
• Light functions: 1 - with indicator (LED)

Item Attributes:
Mounting Type: Bolted
Fastening Type: for vertical fastening
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: Left Front
Length: 389 mm
Width: 104 mm
Height: 25 mm
Light Function: with indicator (LED)
Light functions: 1
Plug: AMP
Prot.type (IP Code): IP6K7
fulfils ECE standard: R10 / R6
Registration Type: ADR/GGVS / SAE
Number of LEDs: 12
Lens Colour: Crystal clear
Number of pins: 2 -pin connector
Design by: Wing
Supplementary Article/Supplementary Info 2: with indicator failure control
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
