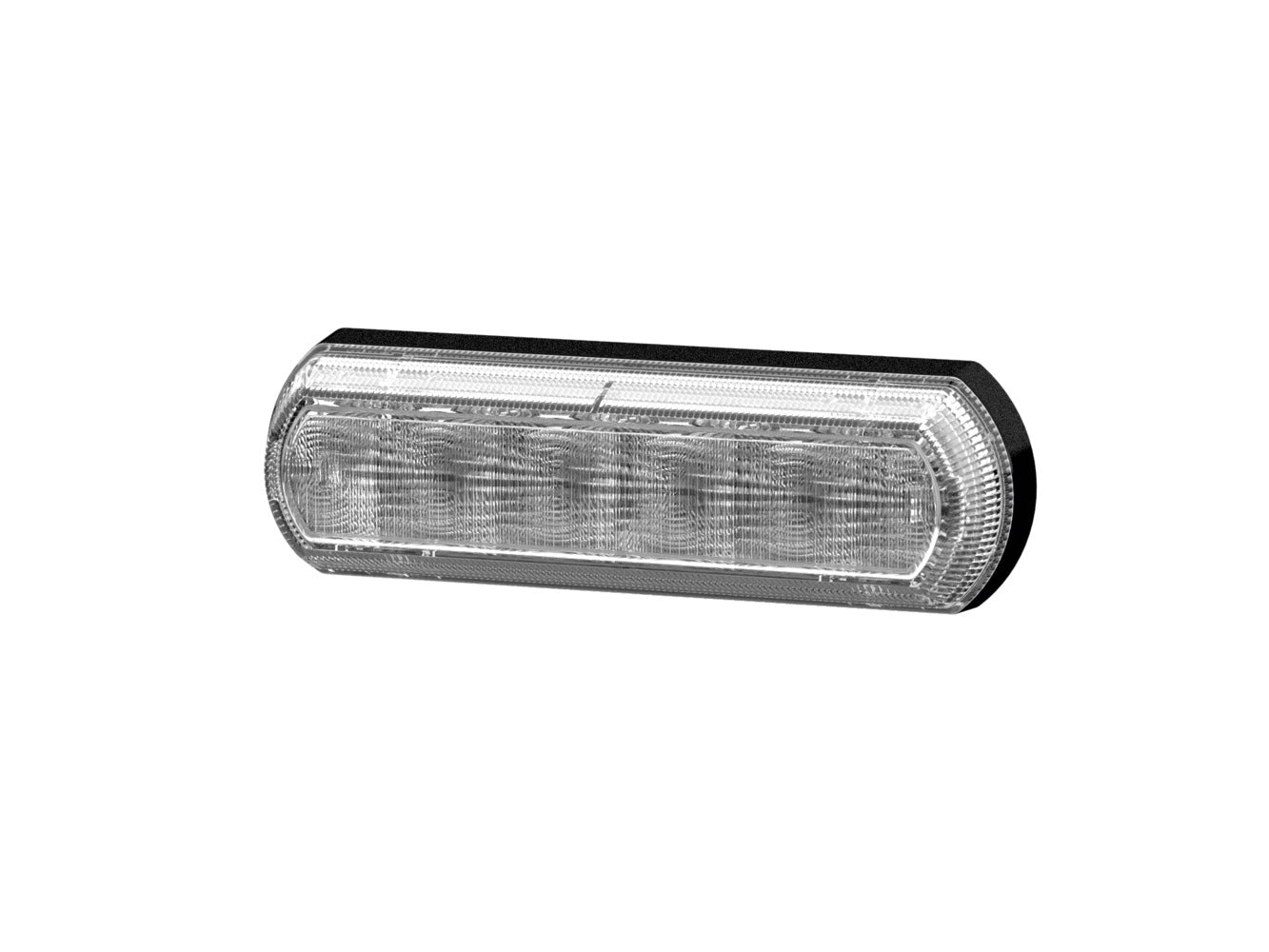

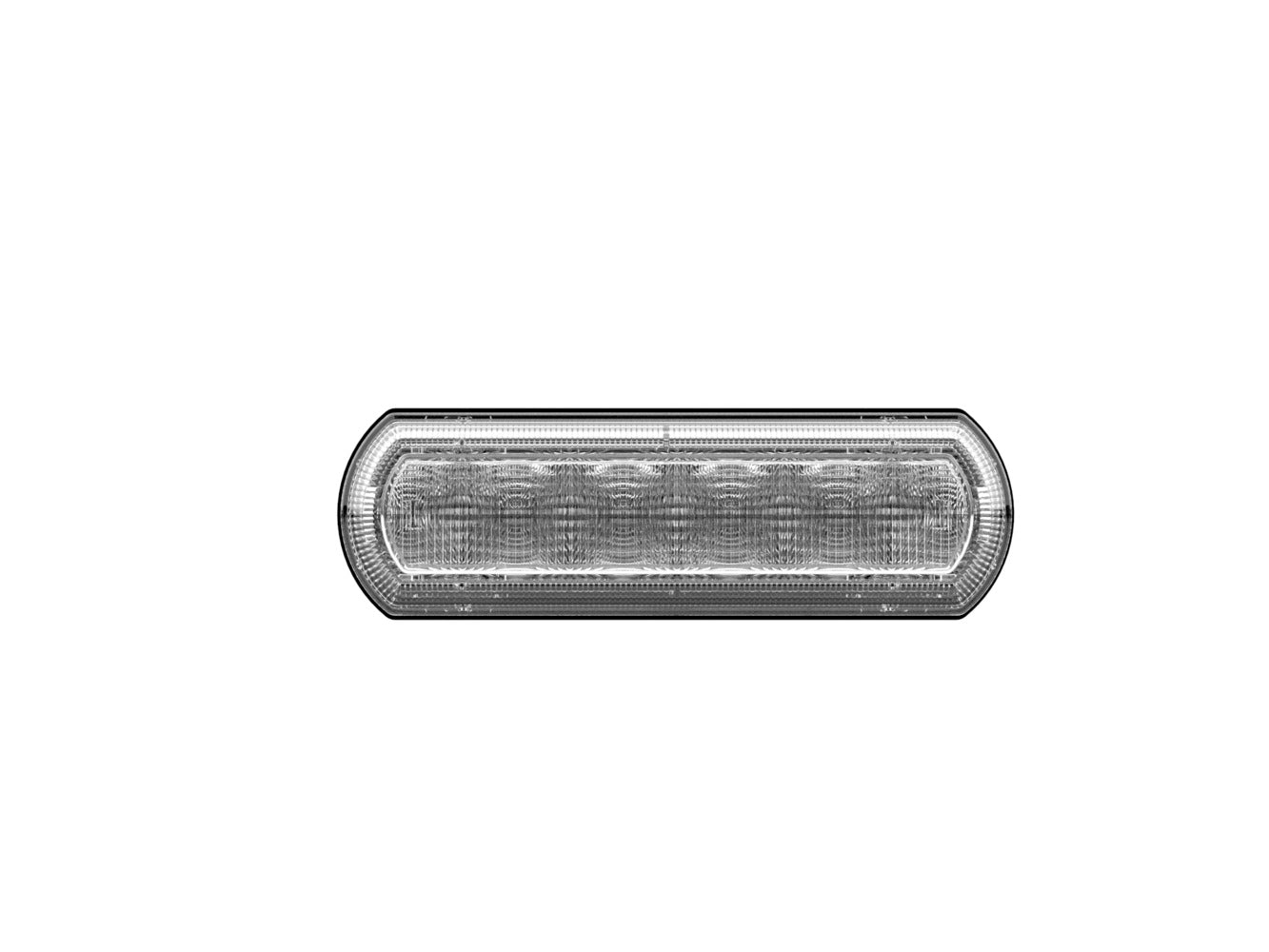

HELLA Direction Indicator - Shapeline Tech - LED - 12/24V 2BA013398-011

Direction Indicator - Shapeline Tech - LED - 12/24V - Glued/mounting - ECE/ADR/GGVS - Lens Colour: Crystal clear - Plug: AMP - Left Front/Right Front - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Indicator failure check according to ISO 13207
• High recognition value thanks to unique yet consistent light signature
• ADR/GGVS certification for hazardous goods transports
• Electromagnetic compatibility (EMC 5)
• Length: 128mm - Width: 40mm - Height: 41mm - Lamp Type: LED - Number of LEDs: 6 - with indicator failure control
• Light functions: 2 - with indicator (LED)/with dynamic indicator light

Item Attributes:
Mounting Type: mounting / Glued
Fastening Type: for horizontal fastening
Fitting Position: Left Front / Right Front
Lamp Type: LED
Light Function: with indicator (LED) / with dynamic indicator light
Light Design: LED
Voltage: 12 V / 24 V
Power consumption: 2.9 W
Length: 128 mm
Width: 40 mm
Height: 41 mm
Plug: AMP
Housing Colour: black
Lens Colour: Crystal clear
Prot.type (IP Code): IP6K7 / IPX9K
fulfils ECE standard: R6 / R10
Quantity: 1
Light functions: 2
Number of LEDs: 6
SVHC: 7439-92-1; Lead
Colour: yellow (amber)
Registration Type: ECE / ADR/GGVS
Supplementary Article/Supplementary Info 2: with indicator failure control
Assembly by qualified personnel required!

OE references: AGCO ST146690; FLIEGL ETZXXX911581
