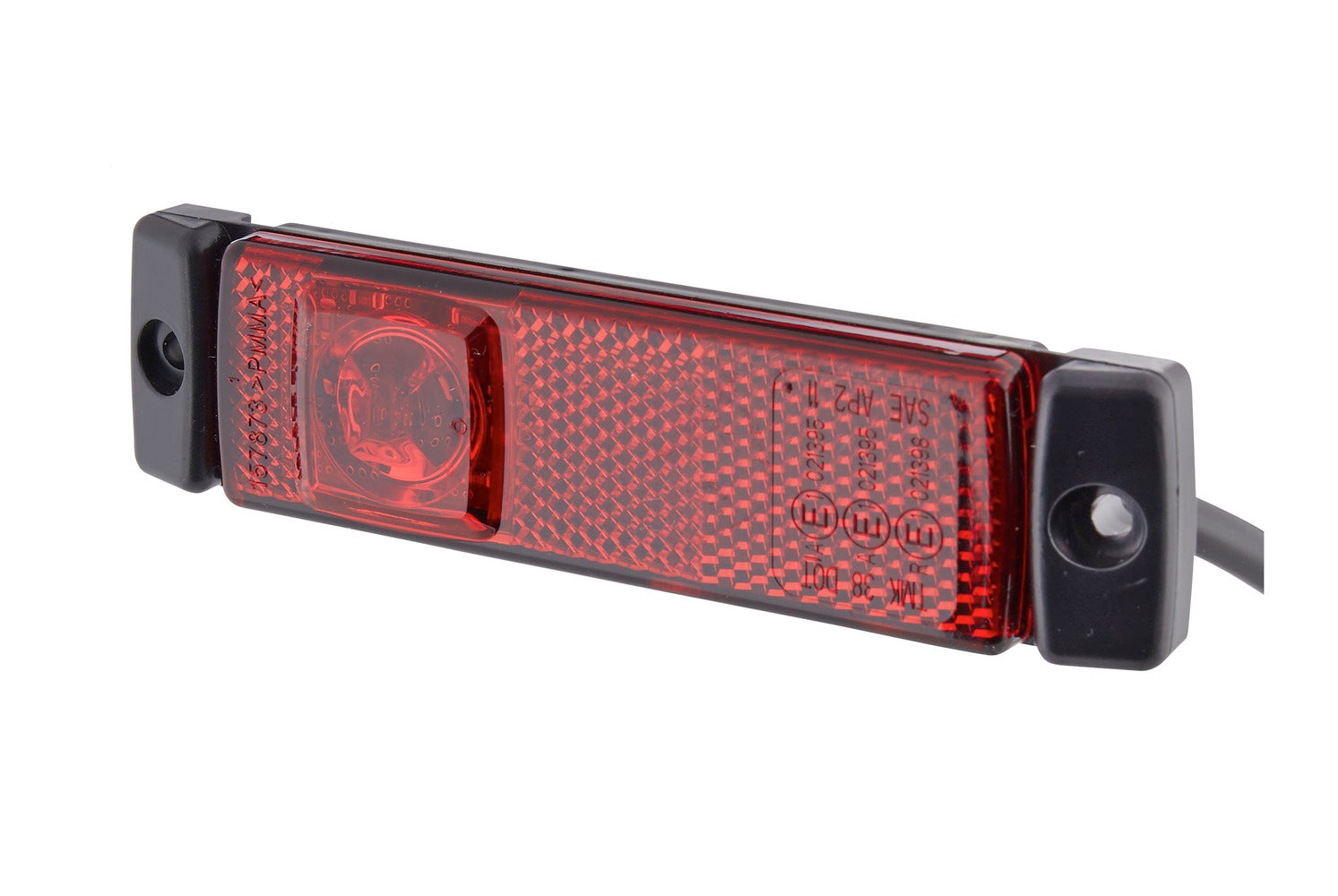

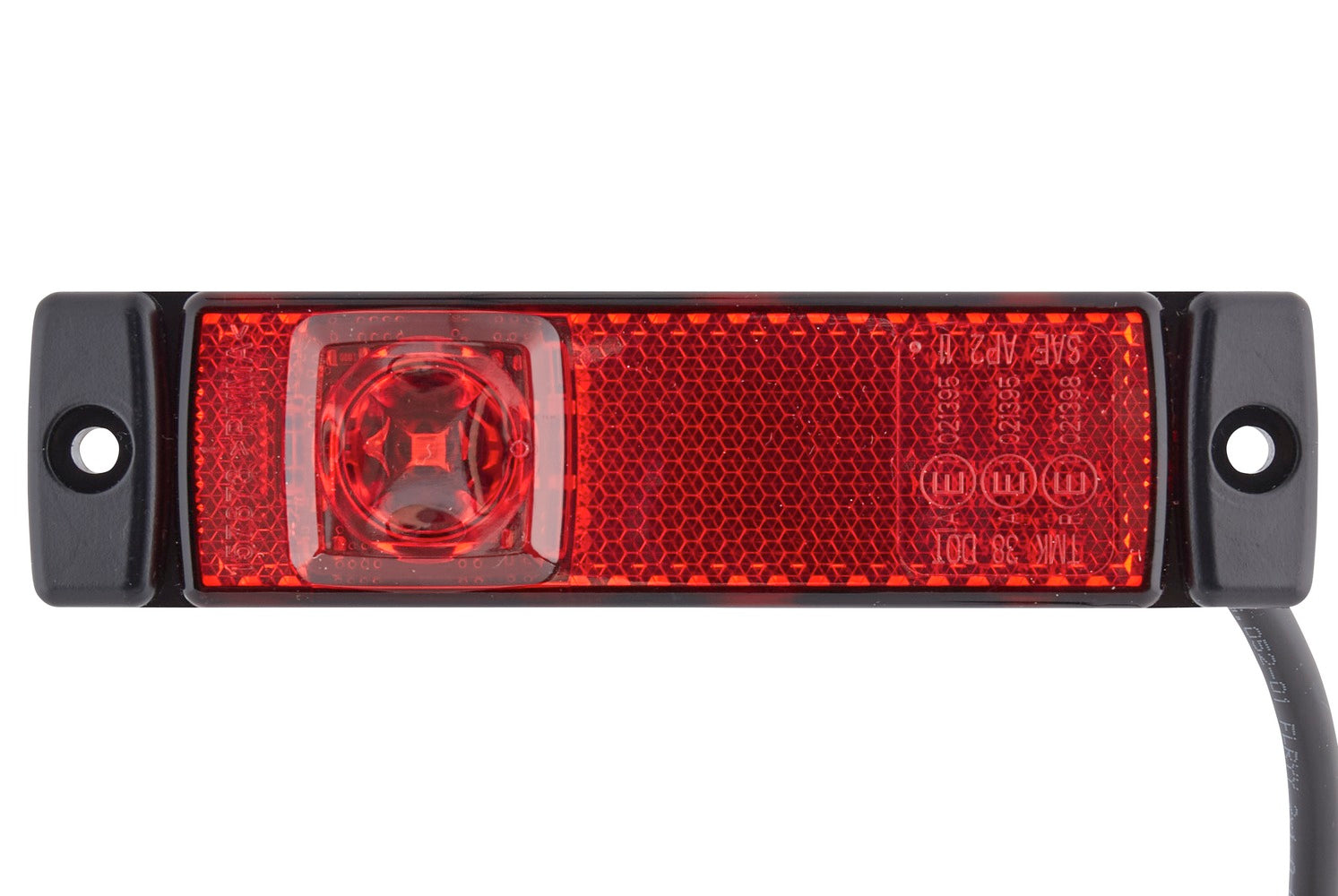

HELLA End Outline Marker Light - LED - 24V 2TM008645-951

End Outline Marker Light - LED - 24V - mounting/Screw Connection - SAE/ADR/GGVS - Lens Colour: Red - Cable: 500mm - Rear

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

• LED rear reflector light for horizontal and vertical surface-mounting (left / right, for horizontal surface-mounting the optical field must face the outside of the vehicle) - with ECE/SAE approval, ADR/GGVS-tested
• The marker light has 2 light functions: Tail light / reflector, can also be used as clearance light with reflector, with Implus for indicator failure check
• With 1 LED 24V1,2W, with 500 mm cable, housing black, 2 holes for fixing screws B4,2
• Length: 130mm - Width: 32mm - Height: 13mm - Lamp Type: LED - Number of LEDs: 1
• Light functions: 2 - with reflector/with taillight (LED)
• Registration Type: SAE/ADR/GGVS - fulfils ECE standard: R3/R7 - Prot.type (IP Code): IP6K9K
• Housing Colour: Black - LED colour: Red - Lens Colour: Red

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: for horizontal fastening / for vertical fastening
Fitting Position: Rear
Lamp Type: LED
Light Function: with taillight (LED) / with reflector
Light Design: LED
LED colour: red
Voltage: 24 V
Power consumption: 1.2 W
Length: 130 mm
Width: 32 mm
Height: 13 mm

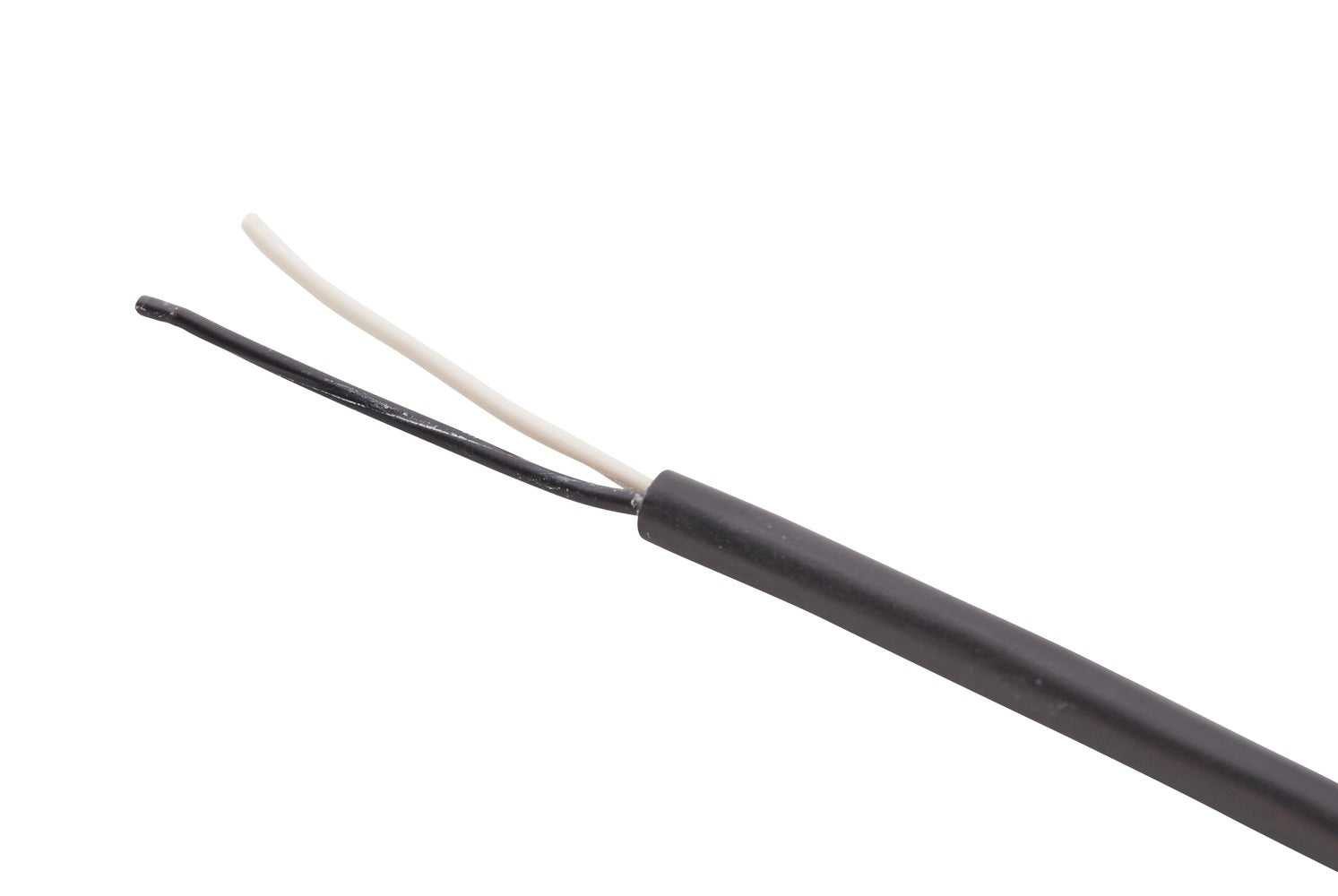

Cable: 500 mm
Housing Colour: black
Lens Colour: red
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R7 / R3
Light functions: 2
Number of LEDs: 1
SVHC: 7439-92-1; Lead
Registration Type: SAE / ADR/GGVS
Assembly by qualified personnel required!

OE references: BROSHUIS 35251503; DAF 0867494; DAF 1527557; DOLL 7100460; FAUN 99707017009; FAYMONVILLE 295779; KRAUSS-MAFFEI 10575251; KRONE 4501.7063; KRONE 505822220; KRONE 745017063; LIEBHERR 1 164 473 6; RENAULT TRUCKS 5H08620126; ROSENBAUER 45087; ROSENBAUER 578728; ROSENBAUER FE0130; SCANIA 20223006; SCANIA 2039041; SCANIA 2055755; SOMMER 2801265001; TATRA 443 400 395 000; VAN HOOL 11509054
