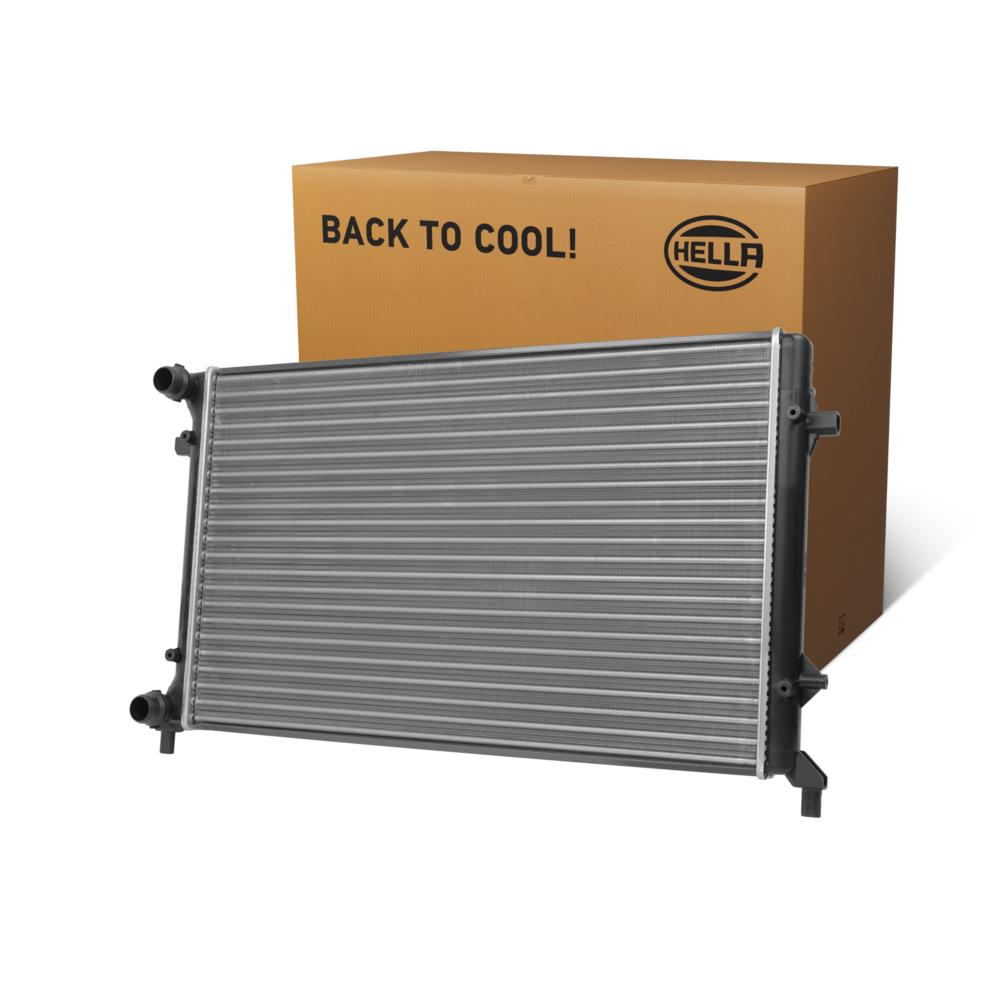

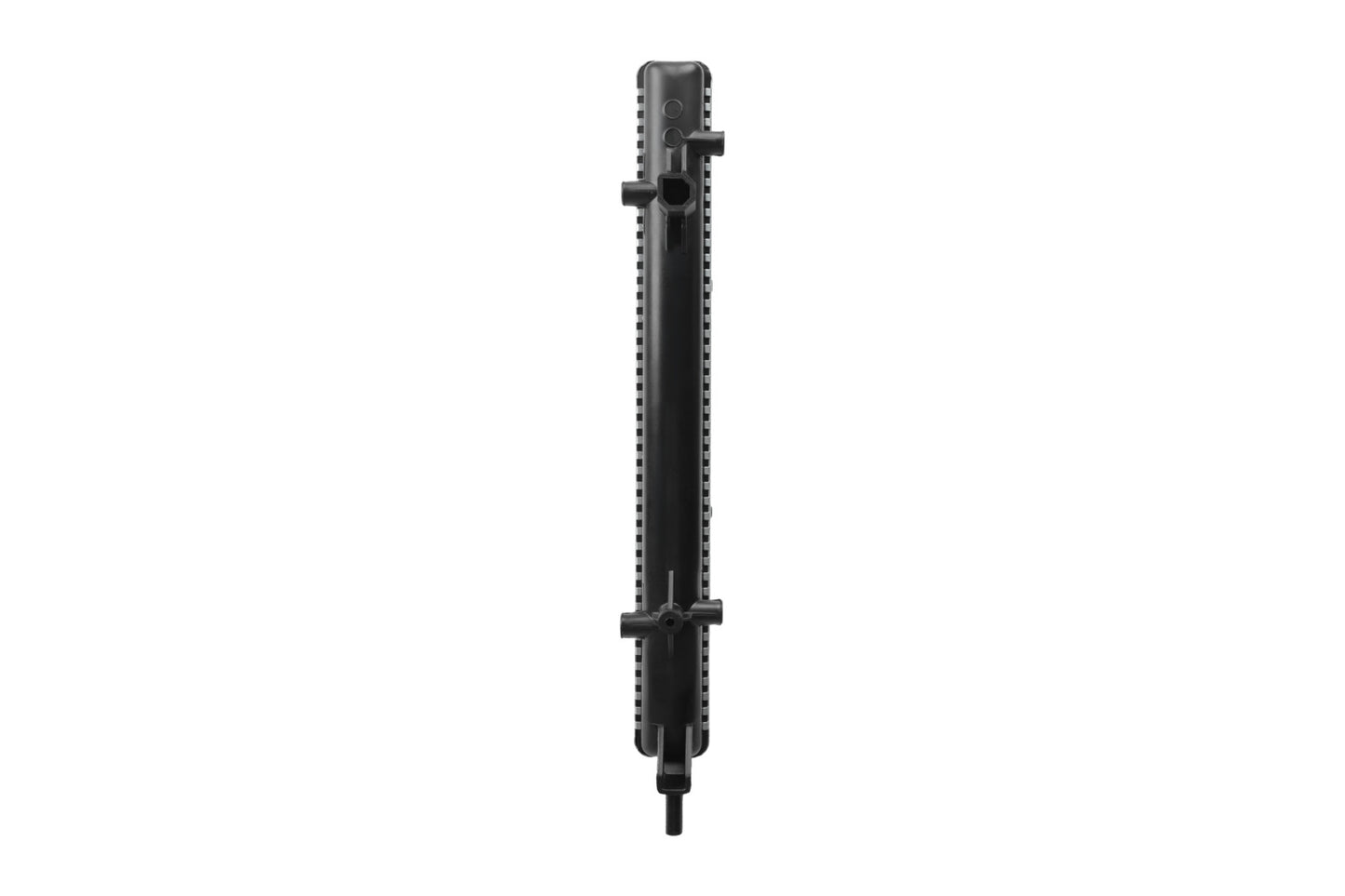

Hella Engine Coolant Radiator 8MK366301-321

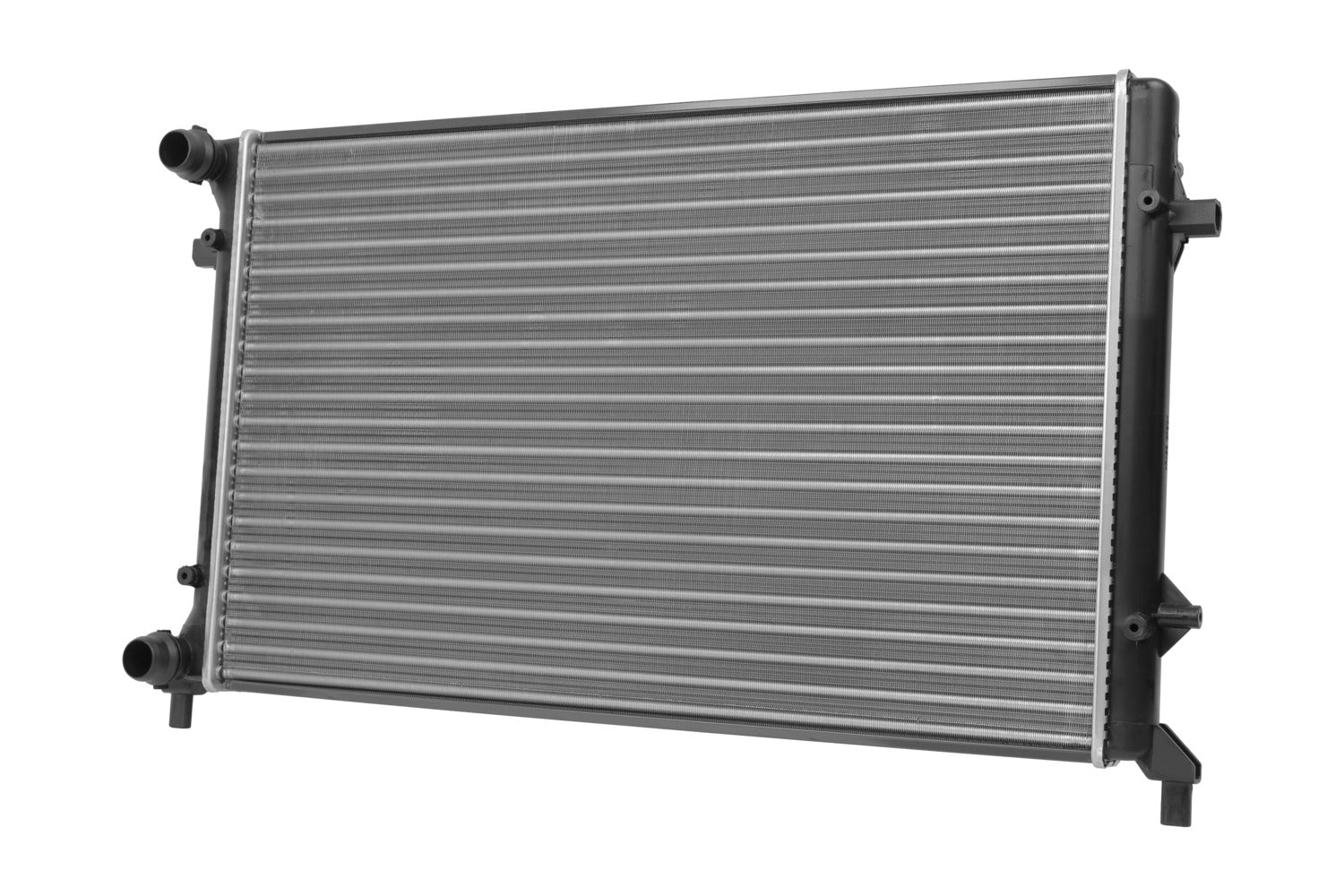

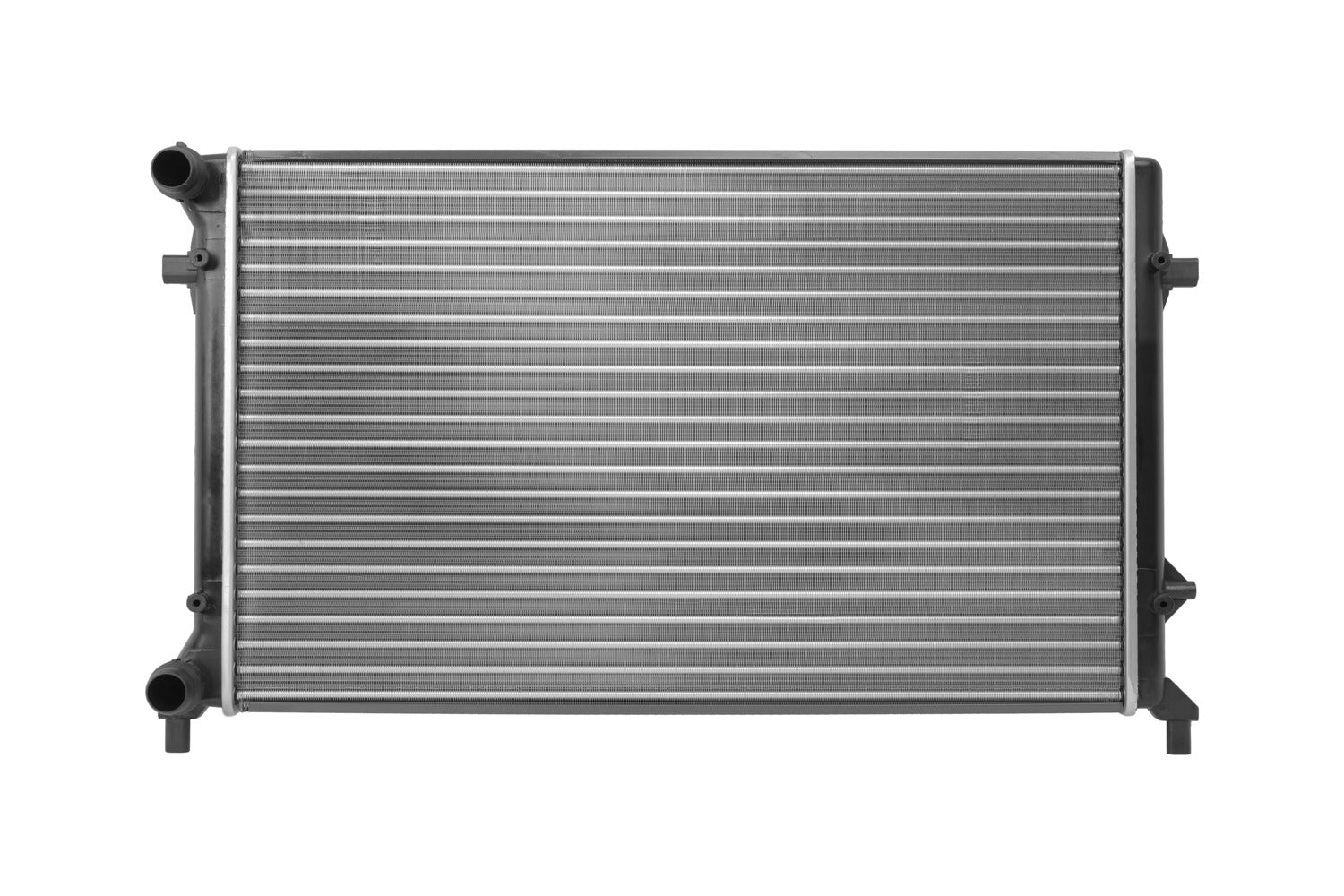

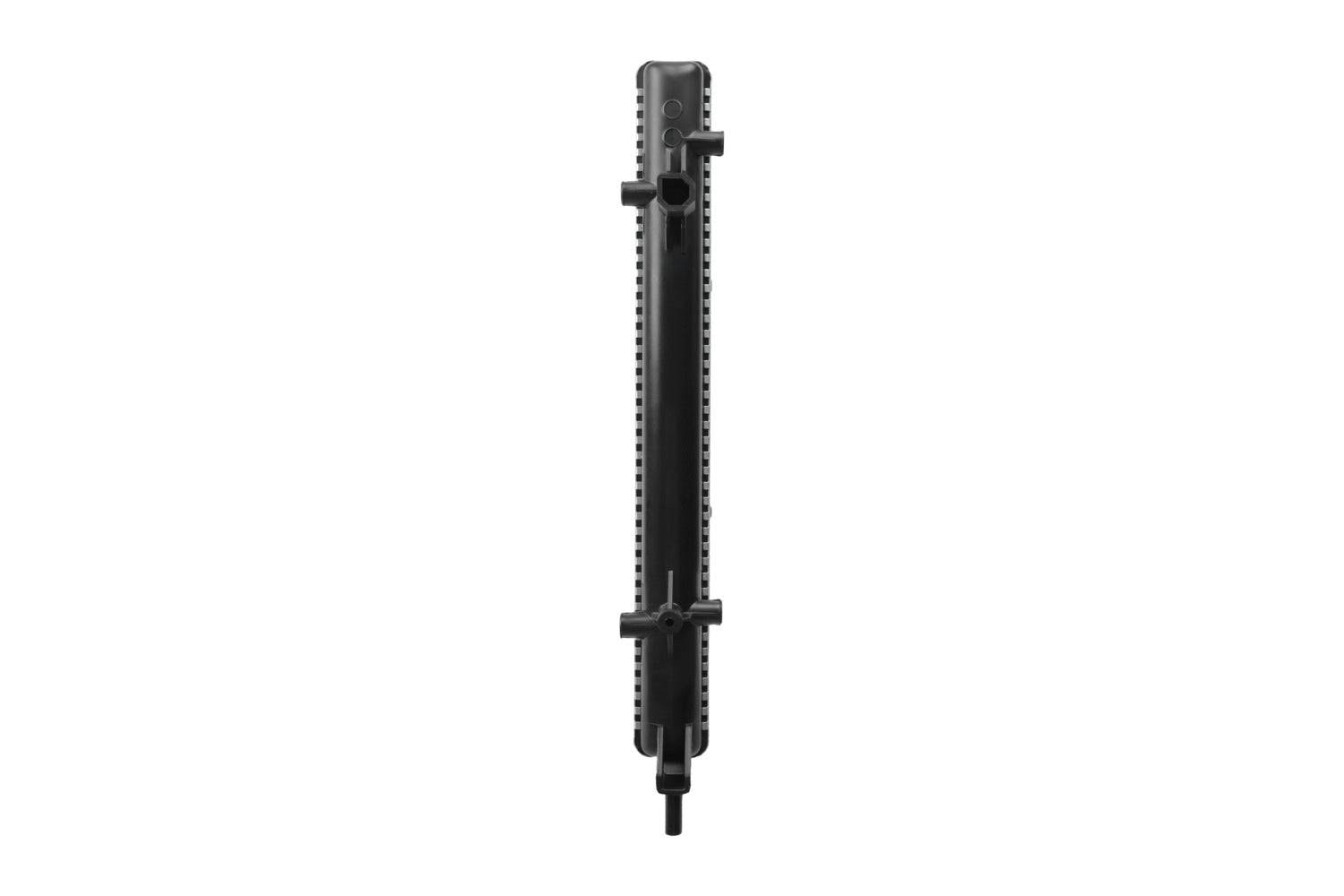

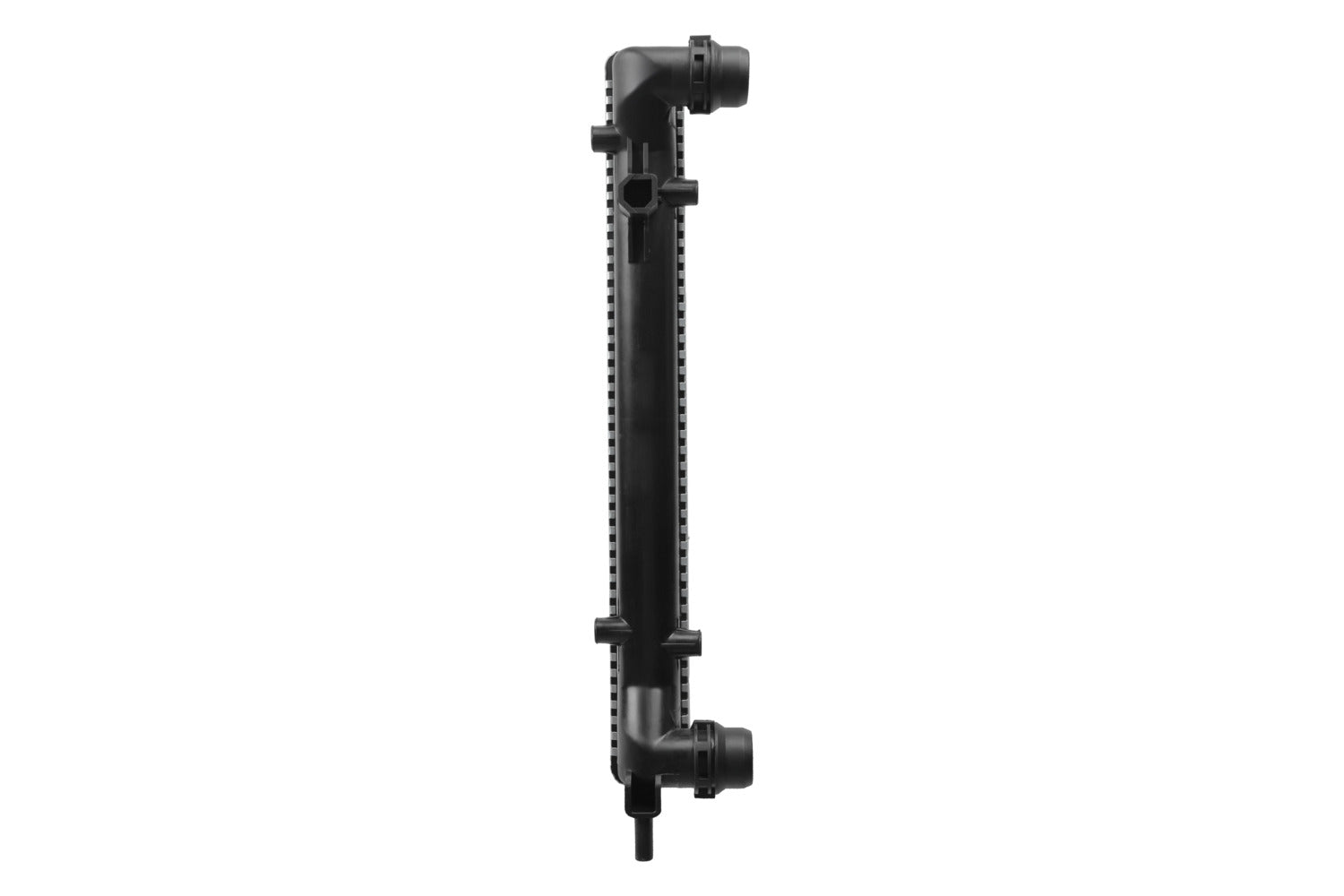

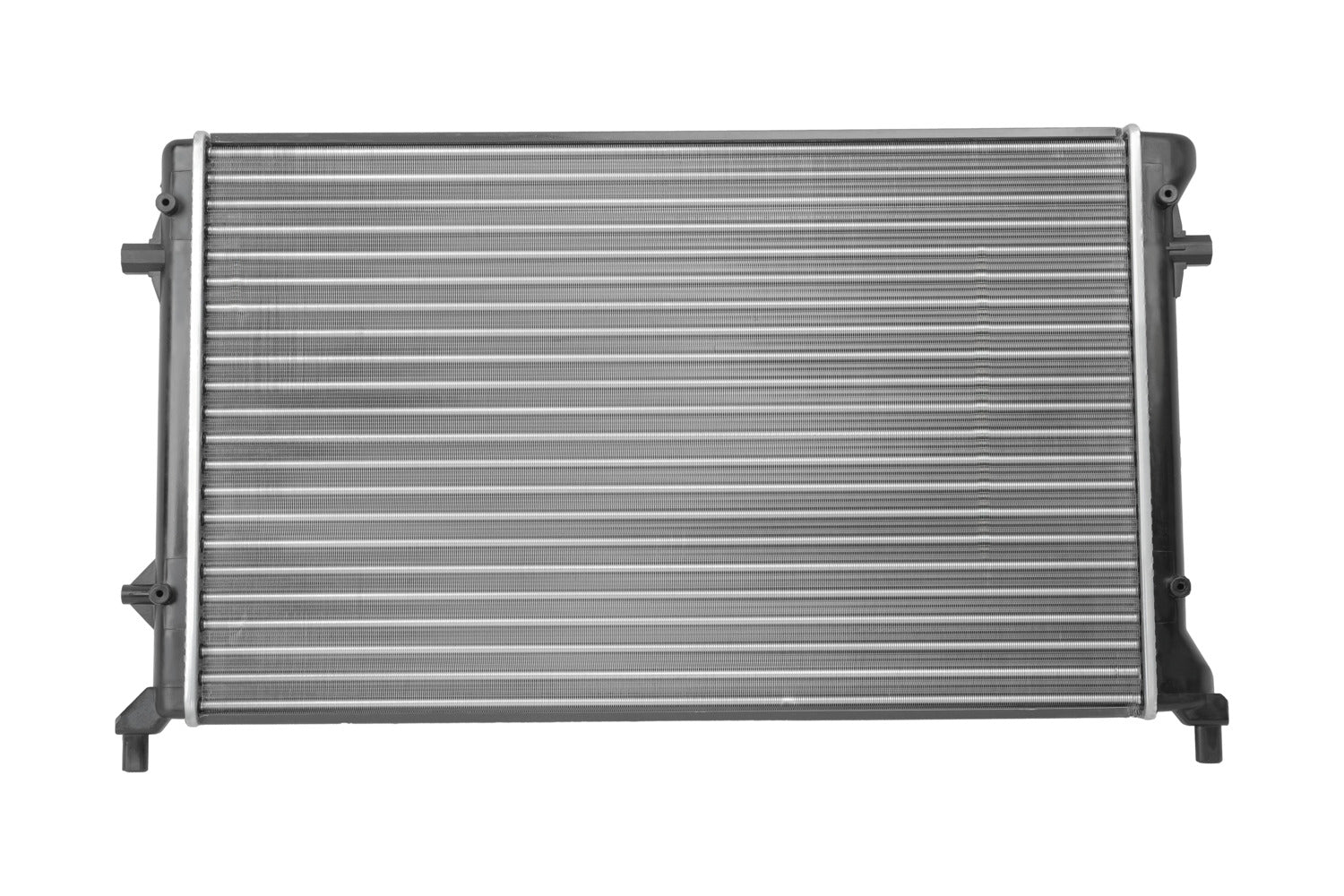

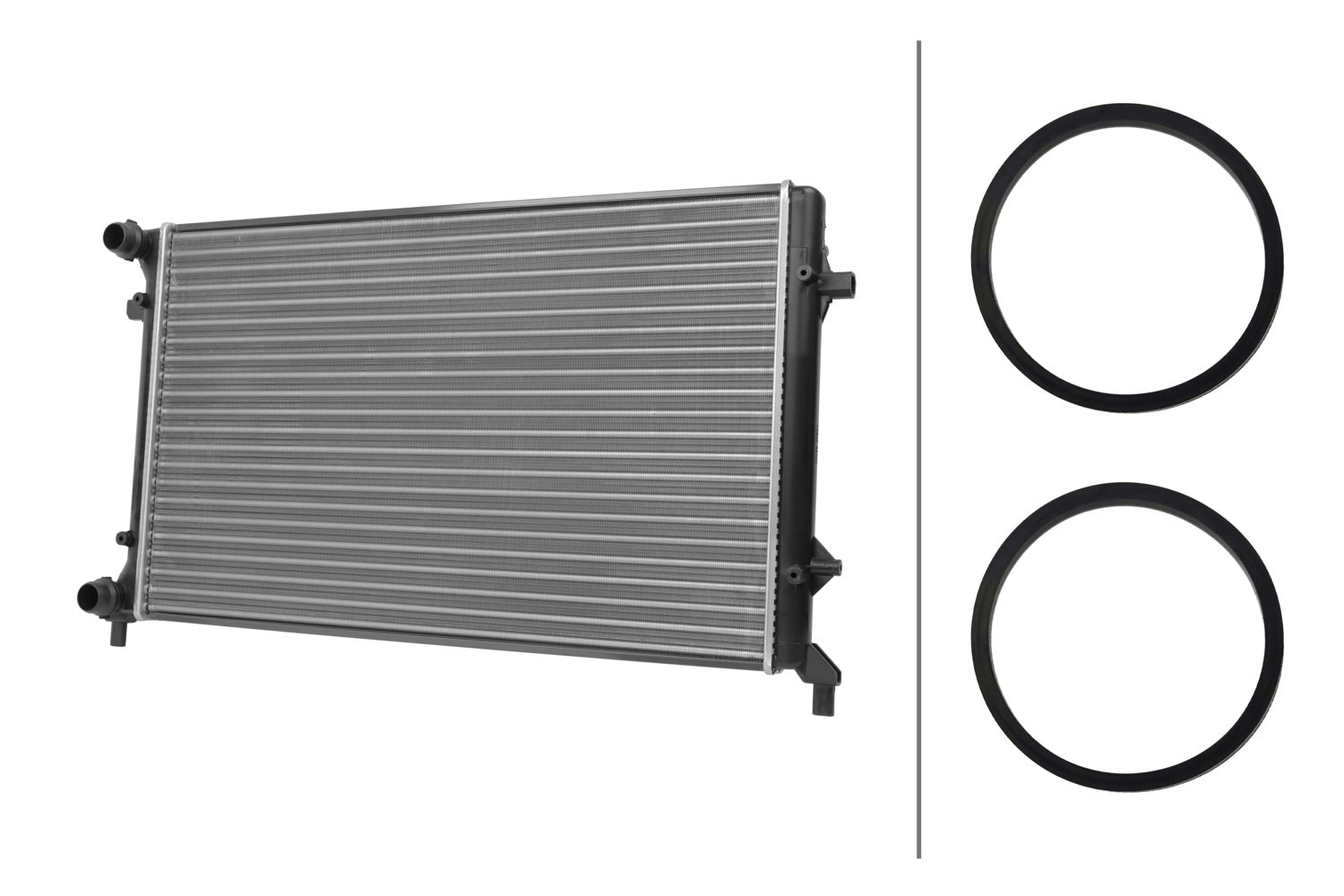

Radiator, engine cooling - Mechanically jointed cooling fins - Aluminium/Plastic - with gaskets/seals - without expansion tank

BACK TO COOL We were the first in the IAM and the market leader that shaped the thermal management aftermarket up until 2019! HELLA has over 25 years of experience in thermal management, dating back to 1999. With fine-tuned experience in thermal management for passenger cars, light commercial vehicles and commercial vehicles, HELLA has become synonymous with maximum reliability, quality and durability in this field. Our expertise in engine cooling (EC) and air conditioning (AC) has been honed through years of innovation and customer feedback to ensure that every product we offer meets the highest performance standards. Why HELLA? OE expertise: Transfer of OE expertise in thermal management for electric vehicles to the independent automotive aftermarket. E&E expertise: The combination of the thermal management product range with HELLA's extensive range of electrical and electronic spare parts for all aspects of thermal management. Customer focus: Flexible handling of the product range in line with customer requirements. "Glocal" product line approaches help us to offer the right solutions worldwide. Market coverage: Comprehensive vehicle coverage for passenger cars, light commercial vehicles and commercial vehicles. Time to market: Rapid market launch through continuous market observation and utilisation of state-of-the-art databases. Stock-optimised delivery program: Continuous further development and review of the portfolio with regard to the possibility of grouping together material numbers.

• fits e.g. VW TOURAN (1T1, 1T2) 1.6 (please check exact vehicle application)
• Type: Mechanically jointed cooling fins - Cooling fins material: Aluminium - Water Tank Material (radiator): Plastic
• Core Length: 650mm - Core Width: 414mm - Core Depth: 23mm - Inlet Ø: 32.5mm - Outlet Ø: 32.5mm

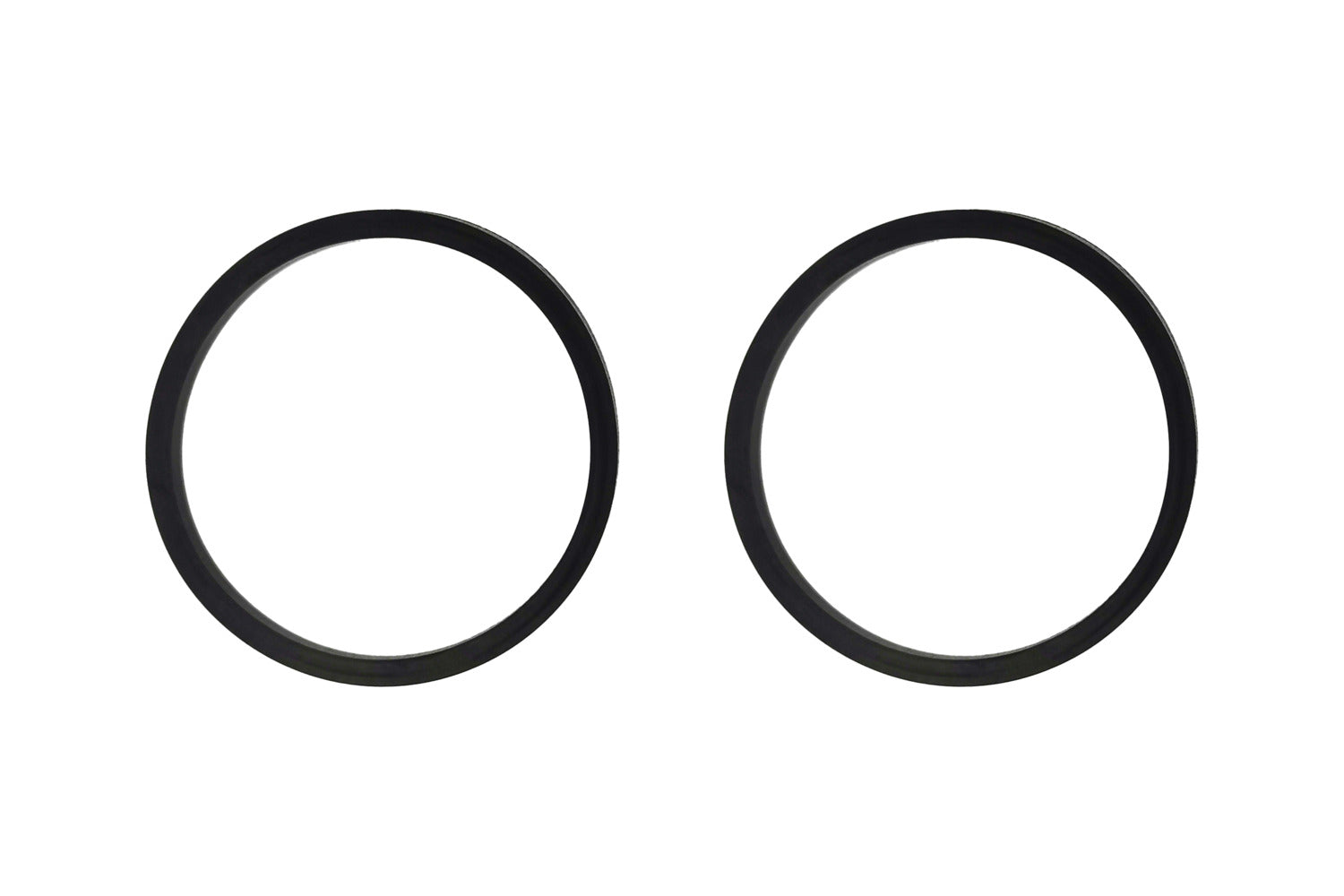

• with gaskets/seals - without expansion tank
• High quality: HELLA radiators are designed to fulfil the highest quality requirements, thereby ensuring compatibility and high performance across a variety of vehicle models and conditions.
• Easy installation: Thanks to a precise fit and a complete range of accessories, HELLA radiators enable quick and smooth installation and reduce vehicle downtime.
• Reliable and durable: Manufactured from high-quality materials, HELLA radiators undergo rigorous testing, including corrosion resistance, vibration resistance and thermal performance evaluations, to ensure long-lasting operation and optimum efficiency.

Item Attributes:
Type: Mechanically jointed cooling fins
Cooling fins material: Aluminium
Water Tank Material (radiator): Plastic
Core Length: 650 mm
Core Width: 414 mm
Core Depth: 23 mm
Inlet Ø: 32.5 mm
Outlet Ø: 32.5 mm
Supplementary Article/Supplementary Info: with gaskets/seals
Supplementary Article/Supplementary Info 2: without expansion tank
Assembly by qualified personnel required!

Replaces OEM reference(s):
AUDI 1K0 121 251 AR; AUDI 1K0 121 251 BQ; AUDI 1K0 121 251 BR; AUDI 1K0 121 251 CD; AUDI 1K0 121 251 CE; AUDI 1K0 121 251 CJ; AUDI 1K0 121 251 DF; AUDI 1K0 121 251 DL; AUDI 1K0 121 251 E; AUDI 1K0 121 251 F; AUDI 1K0 121 251 P; AUDI 1K0 121 251 Q; CUPRA 1K0 121 251 AR; CUPRA 1K0 121 251 BQ; CUPRA 1K0 121 251 BR; CUPRA 1K0 121 251 CD; CUPRA 1K0 121 251 CE; CUPRA 1K0 121 251 CJ; CUPRA 1K0 121 251 DF; CUPRA 1K0 121 251 DL; CUPRA 1K0 121 251 E; CUPRA 1K0 121 251 F; CUPRA 1K0 121 251 P; CUPRA 1K0 121 251 Q; SEAT 1K0 121 251 AR; SEAT 1K0 121 251 BQ; SEAT 1K0 121 251 BR; SEAT 1K0 121 251 CD; SEAT 1K0 121 251 CJ; SEAT 1K0 121 251 DF; SEAT 1K0 121 251 P; SKODA 1K0 121 251 AR; SKODA 1K0 121 251 BQ; SKODA 1K0 121 251 BR; SKODA 1K0 121 251 CD; SKODA 1K0 121 251 CJ; SKODA 1K0 121 251 DF; SKODA 1K0 121 251 P; SKODA (SVW) 1K0 121 251 CD; VW 1K0 121 251 AR; VW 1K0 121 251 BQ; VW 1K0 121 251 BR; VW 1K0 121 251 CD; VW 1K0 121 251 CE; VW 1K0 121 251 CJ; VW 1K0 121 251 DF; VW 1K0 121 251 DL; VW 1K0 121 251 E; VW 1K0 121 251 F; VW 1K0 121 251 P; VW 1K0 121 251 Q; VW (FAW) 1K0 121 251 BQ; VW (FAW) 1K0 121 251 BR; VW (FAW) 1K0 121 251 CD; VW (FAW) 1K0 121 251 CJ; VW (FAW) 1K0 121 251 DF; VW (FAW) 1K0 121 251 F; VW (FAW) 1K0 121 251 P; VW (FAW) 1K0 121 251 Q; VW (SVW) 1K0 121 251 BQ; VW (SVW) 1K0 121 251 BR; VW (SVW) 1K0 121 251 CD; VW (SVW) 1K0 121 251 CJ; VW (SVW) 1K0 121 251 DF; VW (SVW) 1K0 121 251 F; VW (SVW) 1K0 121 251 P; VW (SVW) 1K0 121 251 Q

Replaces aftermarket reference(s):
AUTOGAMMA: 103612, AUTOGAMMA: 103613, AVA: VN2204, AVA: VNA2205, AVA: VNA2223, DENSO: DRM02014, DENSO: DRM32016, DENSO: DRM32018, J DEUS: M0010311, J DEUS: M0010330, MAHLE BEHR INDUSTRY: CR30000P, MAHLE BEHR INDUSTRY: CR30000S, NISSENS: 65277, NISSENS: 695481, NISSENS: 65277A, NRF: 53404, NRF: 53405, NRF: 56153, NRF: 53405A, NRF: 56153A, TYC: 7020023, TYC: 7020025, VALEO: 716906, VALEO: 716996, VALEO: 734332, VALEO: 735120, VAN WEZEL: 58002204, VAN WEZEL: 58002205, VEMO: V15605049, VEMO: V15605067, VEMO: V15606035
